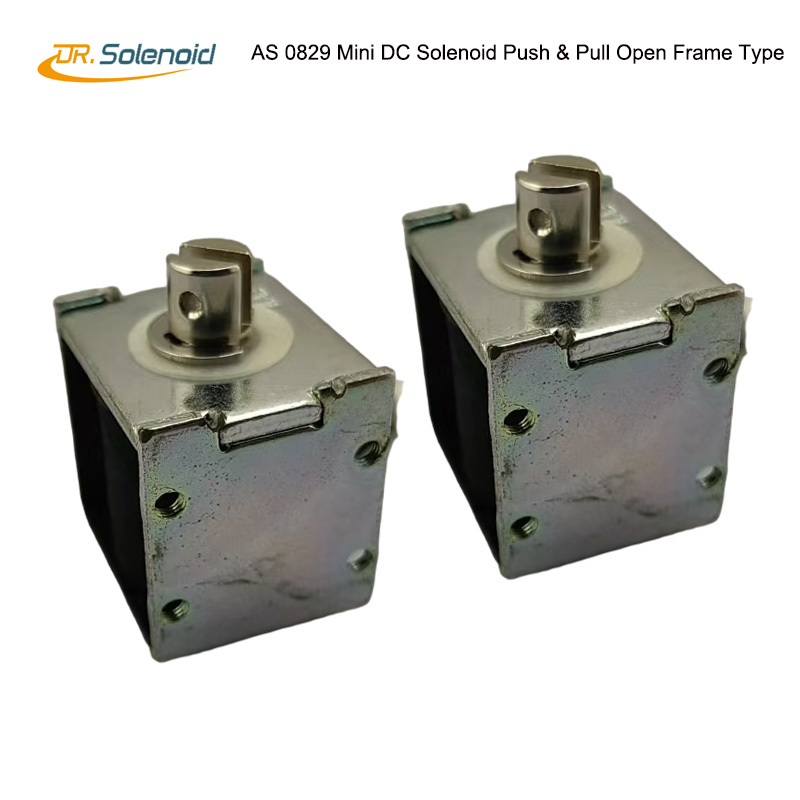

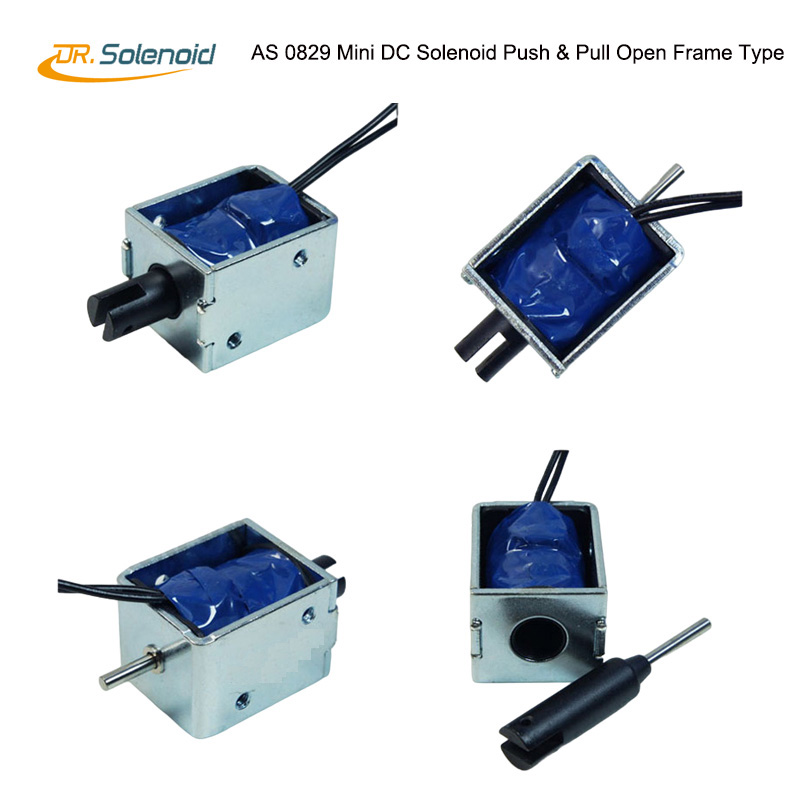

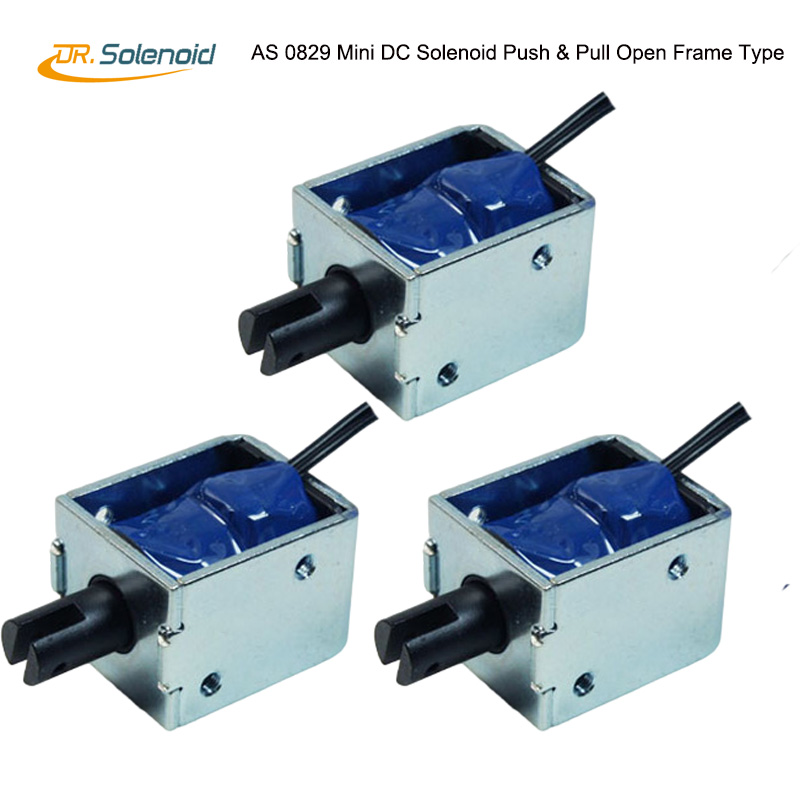

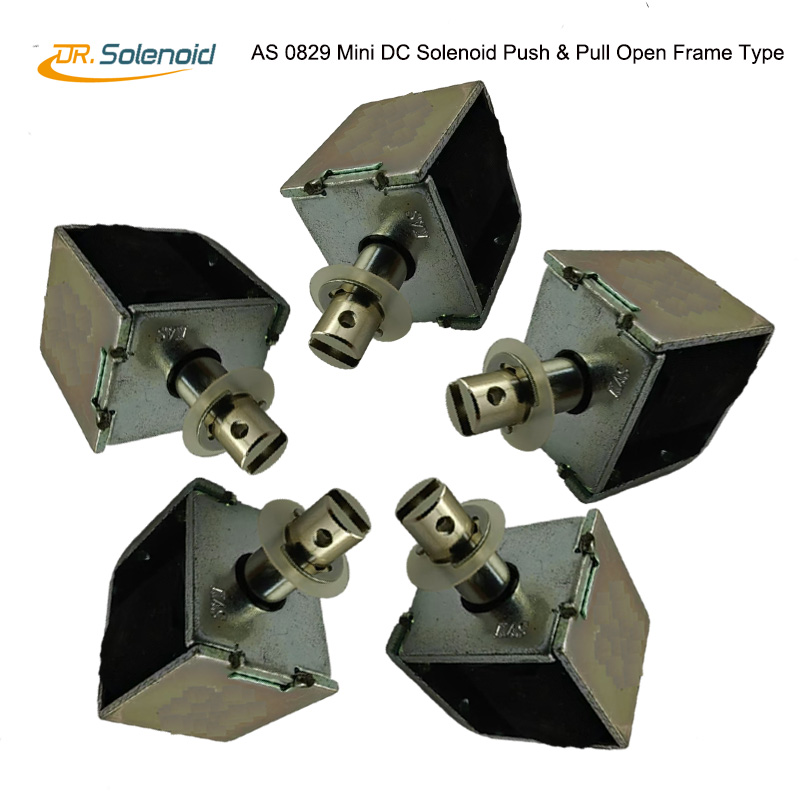

AS 0829 Mini DC Solenoid Push and Pull Open Frame Type For automation equipment

Introduction of DC Mini Solenoid Open Frame Push and Pull Type

Open-Frame Solenoids are available in various designs, as Push and Pull, or just a Push combination type, Features a simple and robust action for the industry and automation equipment.

DC power sources Option ; DC Voltage ; 6 V , 12 V and 24 V, the power is more bigger and the pushing force will be more stronger and the noise will increasingly also.

Long stroke designs for improved performance over greater strokes.

Electric wire fitted 200mm as standard or we can do as per your want.

Optional return springs or the mounted screw holes for selection.

Fixing arrangement, plunger coupling, thrust rod options and lead length can all be customize

product details

Product Description

Brand	Dr. Solenoid	Model Number	AS 0829
Rated Voltage (V)	DC 24.0V 0.48 A	Rated Power(W)	11.5-15 W
Work Mode	Push and Pull Liear Movement	Holding Force (N)	2--10 N
Stroke(mm)	3-8 MM Customized	Reset Time(s)	0.5 S On， 1.5 S OFF
Service Life	200 Thousand Times	Certification	CE,ROHS,ISO9001,
Material	Superior Magnet Iron	Lead Wire Length(mm)	200 MM
Install Style	Screw	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	B
Hi-Pot Test	AC 600V 50/60Hz 2s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

Unit Features:

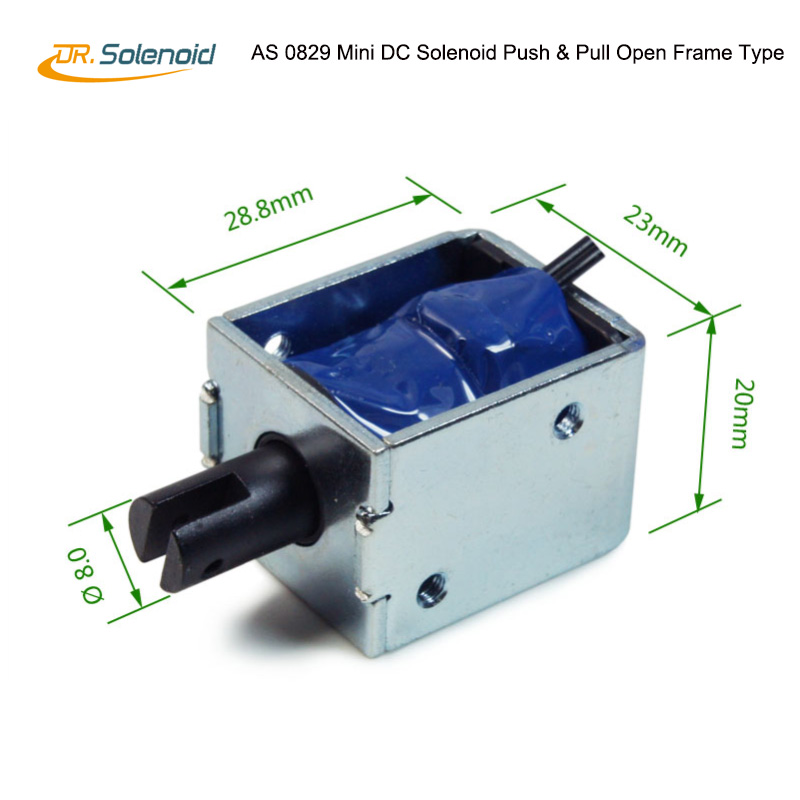

Unit Dimension : 28.8 X23 X 20 mm

DC power Push pull Type, linear motion, frame type, plunger spring return, Low power consumption to ensure high efficiency and 100,000 cycle lifespan.

D Type Frame Solenoid electromagnet has simple structure, small volume, high adsorption force. Good copper coil inside, has good temperature resistant performance along with high electrical conductivity.

Standard working condition: Ambient Temperature: 20±2℃, Relative Humidity: 65±5%RH

Product Standards ● designed and tested to VDE 0580 ● manufactured to ISO 9001

Material Selection :

Solenoid Enclosures : We offers two types of enclosures, each for a variety of applications: a one-piece molded epoxy construction called the Red Hat II solenoid and a conventional Red Hat metallic construction. Both meet ICS-6 ANSI/NEMA, and UL Standards 429, 508, and/or 1002. These standards define enclosure protection levels and the tests passed to earn each Type designation

* Built in Cooper Coil : High temperature resistance: This enamelled copper wire has a thermal class rating of 220°C (428°F), making it perfect for demanding applications like transformers and motors. Double insulated: The wire is double insulated, which helps prevent damage from electrical and mechanical stress and ensures reliable performance over time.

High-quality construction: Made of high-quality copper wire coated with enamel, providing excellent electrical insulation and protection against oxidation and corrosion. Returned Spring :

Application:

The push pull type, linear motion open frame, plunger spring return, DC solenoid electromagnet of Dr. Solenoid are wildly used in vending machines, transporting equipment, office device; smart household appliance, mechanical used.

Notice: please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using electricity, so as not to damage the electromagnet.
