Part 1: Long Stroke Solenoid Working Principle

The long-stroke solenoid is mainly composed of a coil, a moving iron core, a static iron core, a power controller, etc. Its working principle is as follows

1.1 Generate suction based on electromagnetic induction: When the coil is energized, the current passes through the coil wound on the iron core. According to Ampere's law and Faraday's law of electromagnetic induction, a strong magnetic field will be generated inside and around the coil.

1.2 The moving iron core and the static iron core are attracted: Under the action of the magnetic field, the iron core is magnetized, and the moving iron core and the static iron core become two magnets with opposite polarities, generating electromagnetic suction. When the electromagnetic suction force is greater than the reaction force or other resistance of the spring, the moving iron core begins to move toward the static iron core.

1.3 To achieve linear reciprocating motion: The long-stroke solenoid uses the leakage flux principle of the spiral tube to enable the moving iron core and the static iron core to be attracted over a long distance, driving the traction rod or push rod and other components to achieve linear reciprocating motion, thereby pushing or pulling the external load.

1.4 Control method and energy-saving principle: The power supply plus electric control conversion method is adopted, and the high-power start-up is used to enable the solenoid to quickly generate sufficient suction force. After the moving iron core is attracted, it is switched to low power to maintain, which not only ensures the normal operation of the solenoid, but also reduces energy consumption and improves work efficiency.

Part 2 : The main characteristics of the long-stroke solenoid are as follows:

2.1: Long stroke: This is a significant feature. Compared with ordinary DC solenoids, it can provide a longer working stroke and can meet the operation scenarios with higher distance requirements. For example, in some automated production equipment, it is very suitable when objects need to be pushed or pulled for a long distance.

2.2: Strong force: It has sufficient thrust and pulling force, and can drive heavier objects to move linearly, so it can be widely used in the drive system of mechanical devices.

2.3: Fast response speed: It can start in a short time, make the iron core move, quickly convert electrical energy into mechanical energy, and effectively improve the working efficiency of the equipment.

2.4: Adjustability: The thrust, pull and travel speed can be adjusted by changing the current, number of coil turns and other parameters to adapt to different working requirements.

2.5: Simple and compact structure: The overall structural design is relatively reasonable, occupies a small space, and is easy to install inside various equipment and instruments, which is conducive to the miniaturization design of the equipment.

Part 3 : The differences between long-stroke solenoids and comment solenoids :

3.1: Stroke

Long-stroke push-pull solenoids have a longer working stroke and can push or pull objects over a long distance. They are usually used in occasions with high distance requirements.

3.2 Ordinary solenoids have a shorter stroke and are mainly used to produce adsorption within a smaller distance range.

3.3 Functional use

 Long-stroke push-pull solenoids focus on realizing the linear push-pull action of objects, such as being used to push materials in automation equipment.

Ordinary solenoids are mainly used to adsorb ferromagnetic materials, such as common solenoidic cranes that use solenoids to absorb steel, or for adsorption and locking of door locks.

3.4: Strength characteristics

 The thrust and pull of long-stroke push-pull solenoids are relatively more concerned. They are designed to effectively drive objects in a longer stroke.

 Ordinary solenoids mainly consider the adsorption force, and the magnitude of the adsorption force depends on factors such as the magnetic field strength.

Part 4 : The working efficiency of long-stroke solenoids is affected by the following factors:

4.1 : Power supply factors

 Voltage stability: Stable and appropriate voltage can ensure the normal operation of the solenoid. Excessive voltage fluctuations can easily make the working state unstable and affect efficiency.

4.2 Current size: The current size is directly related to the strength of the magnetic field generated by the solenoid, which in turn affects its thrust, pull and movement speed. The appropriate current helps to improve efficiency.

4.3 : Coil related

Coil turns: Different turns will change the magnetic field strength. A reasonable number of turns can optimize the performance of the solenoid and make it more efficient in long-stroke work. Coil material: High-quality conductive materials can reduce resistance, reduce power loss, and help improve work efficiency.

4.4: Core situation

Core material: Selecting a core material with good magnetic conductivity can enhance the magnetic field and improve the working effect of the solenoid.

Core shape and size: The appropriate shape and size help to evenly distribute the magnetic field and improve efficiency.

4.5: Working environment

- Temperature: Too high or too low temperature may affect the coil resistance, core magnetic conductivity, etc., and thus change the efficiency.

- Humidity: High humidity may cause problems such as short circuits, affect the normal operation of the solenoid, and reduce efficiency.

4.6 : Load conditions

- Load weight: Too heavy a load will slow down the solenoid's movement, increase energy consumption, and reduce work efficiency; only a suitable load can ensure efficient operation.

- Load movement resistance: If the movement resistance is large, the solenoid needs to consume more energy to overcome it, which will also affect efficiency.

Part 1: Long Stroke Solenoid Working Principle

The long-stroke solenoid is mainly composed of a coil, a moving iron core, a static iron core, a power controller, etc. Its working principle is as follows

1.1 Generate suction based on electromagnetic induction: When the coil is energized, the current passes through the coil wound on the iron core. According to Ampere's law and Faraday's law of electromagnetic induction, a strong magnetic field will be generated inside and around the coil.

1.2 The moving iron core and the static iron core are attracted: Under the action of the magnetic field, the iron core is magnetized, and the moving iron core and the static iron core become two magnets with opposite polarities, generating electromagnetic suction. When the electromagnetic suction force is greater than the reaction force or other resistance of the spring, the moving iron core begins to move toward the static iron core.

1.3 To achieve linear reciprocating motion: The long-stroke solenoid uses the leakage flux principle of the spiral tube to enable the moving iron core and the static iron core to be attracted over a long distance, driving the traction rod or push rod and other components to achieve linear reciprocating motion, thereby pushing or pulling the external load.

1.4 Control method and energy-saving principle: The power supply plus electric control conversion method is adopted, and the high-power start-up is used to enable the solenoid to quickly generate sufficient suction force. After the moving iron core is attracted, it is switched to low power to maintain, which not only ensures the normal operation of the solenoid, but also reduces energy consumption and improves work efficiency.

Part 2 : The main characteristics of the long-stroke solenoid are as follows:

2.1: Long stroke: This is a significant feature. Compared with ordinary DC solenoids, it can provide a longer working stroke and can meet the operation scenarios with higher distance requirements. For example, in some automated production equipment, it is very suitable when objects need to be pushed or pulled for a long distance.

2.2: Strong force: It has sufficient thrust and pulling force, and can drive heavier objects to move linearly, so it can be widely used in the drive system of mechanical devices.

2.3: Fast response speed: It can start in a short time, make the iron core move, quickly convert electrical energy into mechanical energy, and effectively improve the working efficiency of the equipment.

2.4: Adjustability: The thrust, pull and travel speed can be adjusted by changing the current, number of coil turns and other parameters to adapt to different working requirements.

2.5: Simple and compact structure: The overall structural design is relatively reasonable, occupies a small space, and is easy to install inside various equipment and instruments, which is conducive to the miniaturization design of the equipment.

Part 3 : The differences between long-stroke solenoids and comment solenoids :

3.1: Stroke

Long-stroke push-pull solenoids have a longer working stroke and can push or pull objects over a long distance. They are usually used in occasions with high distance requirements.

3.2 Ordinary solenoids have a shorter stroke and are mainly used to produce adsorption within a smaller distance range.

3.3 Functional use

 Long-stroke push-pull solenoids focus on realizing the linear push-pull action of objects, such as being used to push materials in automation equipment.

Ordinary solenoids are mainly used to adsorb ferromagnetic materials, such as common solenoidic cranes that use solenoids to absorb steel, or for adsorption and locking of door locks.

3.4: Strength characteristics

 The thrust and pull of long-stroke push-pull solenoids are relatively more concerned. They are designed to effectively drive objects in a longer stroke.

 Ordinary solenoids mainly consider the adsorption force, and the magnitude of the adsorption force depends on factors such as the magnetic field strength.

Part 4 : The working efficiency of long-stroke solenoids is affected by the following factors:

4.1 : Power supply factors

 Voltage stability: Stable and appropriate voltage can ensure the normal operation of the solenoid. Excessive voltage fluctuations can easily make the working state unstable and affect efficiency.

4.2 Current size: The current size is directly related to the strength of the magnetic field generated by the solenoid, which in turn affects its thrust, pull and movement speed. The appropriate current helps to improve efficiency.

4.3 : Coil related

Coil turns: Different turns will change the magnetic field strength. A reasonable number of turns can optimize the performance of the solenoid and make it more efficient in long-stroke work. Coil material: High-quality conductive materials can reduce resistance, reduce power loss, and help improve work efficiency.

4.4: Core situation

Core material: Selecting a core material with good magnetic conductivity can enhance the magnetic field and improve the working effect of the solenoid.

Core shape and size: The appropriate shape and size help to evenly distribute the magnetic field and improve efficiency.

4.5: Working environment

- Temperature: Too high or too low temperature may affect the coil resistance, core magnetic conductivity, etc., and thus change the efficiency.

- Humidity: High humidity may cause problems such as short circuits, affect the normal operation of the solenoid, and reduce efficiency.

4.6 : Load conditions

- Load weight: Too heavy a load will slow down the solenoid's movement, increase energy consumption, and reduce work efficiency; only a suitable load can ensure efficient operation.

- Load movement resistance: If the movement resistance is large, the solenoid needs to consume more energy to overcome it, which will also affect efficiency.

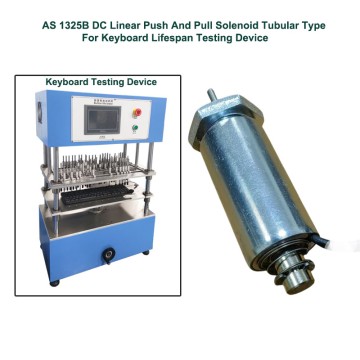

 Part 1 : Key point requirement for keyboard testing device Solenoid

1.1 Magnetic field requirements

In order to effectively drive keyboard keys, keyboard testing device Solenoids need to generate sufficient magnetic field strength. The specific magnetic field strength requirements depend on the type and design of keyboard keys.  Generally speaking, the magnetic field strength should be able to generate sufficient attraction so that the key press stroke meets the trigger requirements of the keyboard design. This strength is usually in the range of tens to hundreds of Gauss (G).

1.2 Response speed requirements

The keyboard testing deviceneeds to test each key quickly, so the response speed of the solenoidis crucial. After receiving the test signal, the solenoid should be able to generate sufficient magnetic field in a very short time to drive the key action. The response time is usually required to be at the millisecond (ms) level. the rapid pressing and releasing of the keys can be accurately simulated, thereby effectively detecting the performance of the keyboard keys, including its parameters without any delay.

1.3 Accuracy requirements

The action accuracy of the solenoidis crucial for accurately。The keyboard testing device. It needs to accurately control the depth and force of the key press. For example, when testing some keyboards with multi-level trigger functions, such as some gaming keyboards, the keys may have two trigger modes: light press and heavy press. The solenoid must be able to accurately simulate these two different trigger forces. Accuracy includes position accuracy (controlling the displacement accuracy of the key press) and force accuracy. The displacement accuracy may be required to be within 0.1mm, and the force accuracy may be around ±0.1N according to different test standards to ensure the accuracy and reliability of the test results.

1.4  Stability requirements

Long-term stable operation is an important requirement for the solenoidof the The keyboard testing device. During the continuous test, the performance of the solenoidcannot fluctuate significantly. This includes the stability of the magnetic field strength, the stability of the response speed, and the stability of the action accuracy. For example, in large-scale keyboard production testing, the solenoid may need to work continuously for several hours or even days. During this period, if the performance of the electromagnet fluctuates, such as the weakening of the magnetic field strength or the slow response speed, the test results will be inaccurate, affecting the evaluation of product quality.

1.5  Durability requirements

Due to the need to frequently drive the key action, the solenoidmust have high durability. The internal solenoid coils and plungermust be able to withstand frequent electromagnetic conversion and mechanical stress. Generally speaking, Keyboard testing device solenoid need to be able to withstand millions of action cycles, and in this process, there will be no problems that affect performance, such as solenoid coil burnout and core wear. For example, using high-quality enameled wire to make coils can improve their wear resistance and high temperature resistance, and choosing a suitable core material (such as soft magnetic material) can reduce the hysteresis loss and mechanical fatigue of the core.

Part 2 :. Structure of keyboard tester solenoid

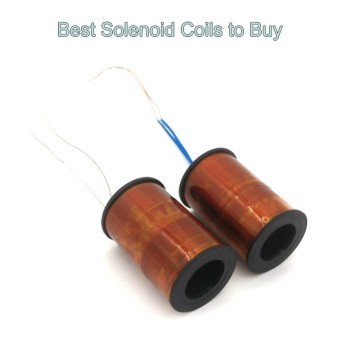

2.1 Solenoid Coil

• Wire material: Enameled wire is usually used tomakethe solenoid coil. There is a layer of insulating paint on the outside of the enameled wire to prevent short circuits between the solenoid coils. Common enameled wire materials include copper, because copper has good conductivity and can effectively reduce resistance, thereby reducing energy loss when passing current and improving the efficiency of the electromagnet.
• Turns design: The number of turns is the key affecting the magnetic field strength of the tubular solenoid for Keyboard testing device Solenoid. The more turns, the greater the magnetic field strength generated under the same current. However, too many turns will also increase the resistance of the coil, leading to heating problems. Therefore, it is very important to reasonably design the number of turns according to the required magnetic field strength and power supply conditions. For example, for a Keyboard testing device Solenoidthat requires a higher magnetic field strength, the number of turns may be between hundreds and thousands.
• Solenoid Coil shape: The solenoid coil is generally wound on a suitable frame, and the shape is usually cylindrical. This shape is conducive to the concentration and uniform distribution of the magnetic field, so that when driving the keyboard keys, the magnetic field can act more effectively on the driving components of the keys.

2.2  Solenoid Plunger

• Plungermaterial: The plungeris an important component of solenoid, and its main function is to enhance the magnetic field. Generally, soft magnetic materials such as electrical pure carbon steel and silicon steel sheets are selected. The high magnetic permeability of soft magnetic materials can make it easier for the magnetic field to pass through the core, thereby enhancing the magnetic field strength of the electromagnet. Taking silicon steel sheets as an example, it is a silicon-containing alloy steel sheet. Due to the addition of silicon, the hysteresis loss and eddy current loss of the core are reduced, and the efficiency of the electromagnet is improved.
• Plungershape: The shape of the core usually matches the solenoid coil, and is mostly tubular. In some designs, there is a protruding part at one end of the plunger, which is used to directly contact or approach the driving components of the keyboard keys, so as to better transmit the magnetic field force to the keys and drive the key action.

2.3 Housing

• Material selection: The housing of keyboard testing device Solenoidmainly protects the internal coil and iron core, and can also play a certain electromagnetic shielding role. Metal materials such as stainless steel or carbon steelare usually used.  Carbon steel housing has higher strength and corrosion resistance, and can adapt to different test environments.
• Structural design: The structural design of the shell should take into account the convenience of installation and heat dissipation. There are usually mounting holes or slots to facilitate the fixing of the electromagnet to the corresponding position of the keyboard tester. At the same time, the shell may be designed with heat dissipation fins or ventilation holes to facilitate the heat generated by the coil during operation to dissipate and prevent damage to the electromagnet due to overheating.

Part 3 : The operation of the keyboard testing device solenoid is mainly based on the principle of electromagnetic induction.

3.1.Basic electromagnetic principle

When current passes through the solenoid coil of the solenoid, according to Ampere's law (also called the right-hand screw law), a magnetic field will be generated around the electromagnet. If the solenoid coil is wound around the iron core, since the iron core is a soft magnetic material with high magnetic permeability, the magnetic field lines will be concentrated inside and around the iron core, causing the iron core to be magnetized. At this time, the iron core is like a strong magnet, generating a strong magnetic field.

3.2. For example, taking a simple tubular solenoid as an example, when the current flows into one end of the solenoid coil, according to the right-hand screw rule, hold the coil with four fingers pointing in the direction of the current, and the direction pointed by the thumb is the north pole of the magnetic field. The strength of the magnetic field is related to the current size and the number of coil turns. The relationship can be described by the Biot-Savart law. To a certain extent, the larger the current and the more turns, the greater the magnetic field strength.

3.3Driving process of keyboard keys

3.3.1. In keyboard testing device, when the keyboard testing device solenoid is energized, a magnetic field is generated, which will attract the metal parts of the keyboard keys (such as the shaft of the key or metal shrapnel, etc.). For mechanical keyboards, the key shaft usually contains metal parts, and the magnetic field generated by the electromagnet will attract the shaft to move downward, thereby simulating the action of the key being pressed.

3.3.2. Taking the common blue axis mechanical keyboard as an example, the magnetic field force generated by the electromagnet acts on the metal part of the blue axis, overcoming the elastic force and friction of the axis, causing the axis to move downward, triggering the circuit inside the keyboard, and generating a signal of key pressing. When the electromagnet is powered off, the magnetic field disappears, and the key axis returns to its original position under the action of its own elastic force (such as the elastic force of the spring), simulating the action of releasing the key.

3.3.3 Signal control and test process

1. The control system in the keyboard tester controls the power-on and power-off time of the electromagnet to simulate different key operation modes, such as short press, long press, etc. By detecting whether the keyboard can correctly generate electrical signals (through the keyboard's circuit and interface) under these simulated key operations, the function of the keyboard keys can be tested.

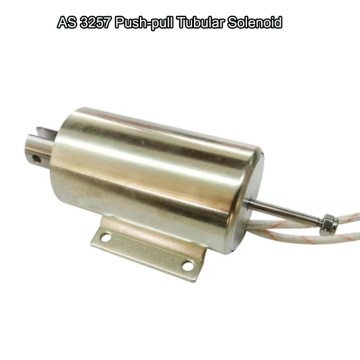

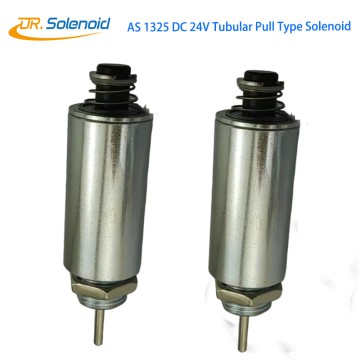

What is a tubular Solenoid ?

Tubular solenoid comes in two types: push and pull type. A push solenoid operates by pushing the plunger out of the copper coil when power on, while a pull solenoid works by pulling the plunger into the solenoid coil when power is applied.
Pull solenoid is generally more common product, as they tend to have a longer stroke length (the distance the plunger can move) compared to push solenoids. They are often found in applications like door locks, where the solenoid needs to pull a latch into place.
Push solenoids, on the other hand, are typically used in applications where a component needs to be moved away from the solenoid. For example, in a pinball machine, a push solenoid might be used to propel the ball into play.

Unit Features:- DC 12V 60N Force 10mm Pull Type Tube Shape Solenoid Electromagnet

GOOD DESIGN- Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet. Less power consumption, low temperature rise, no magnetism when power off.

ADVANTAGES:- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity. It can be installed flexibly and quickly, which is very convenient.

NOTED:  As an actuating element of equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 49 seconds.

Rotary Actuator Definition and basic principle

The rotating actuator is an electromagnetic device that converts electrical energy into mechanical energy to achieve rotational motion. It is mainly composed of a solemnized coil, an iron core, an armature and a rotating shaft. When the solenoid coil is energized, a magnetic field is generated, causing the armature to rotate around the rotating shaft under the action electromagnetic  force. In sorting machine, the rotating actuator can drive the corresponding mechanical parts to perform sorting actions according to the signal sent by the control system.

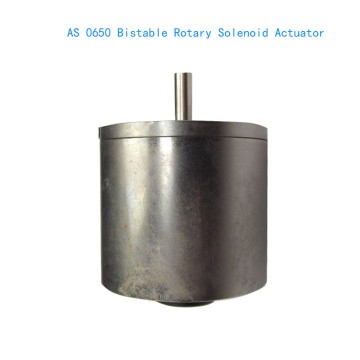

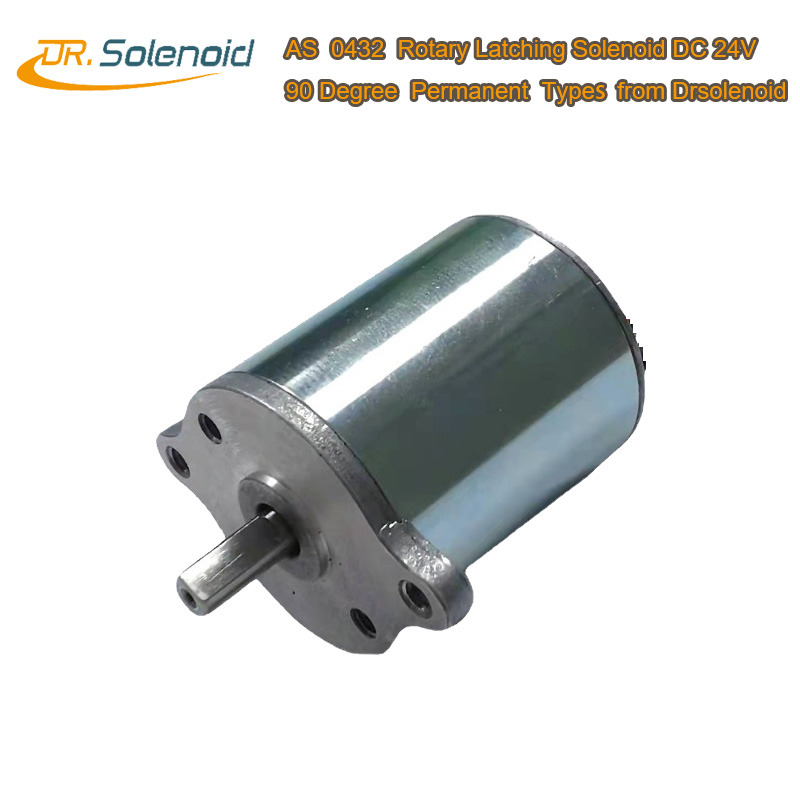

Part 1: What is a rotary solenoid actuator ?

The rotary solenoid actuator is similar to the motor, but the difference between is that the motor is can rotate 360 degree in one direction, while the rotating rotary solenoid actuator cannot rotate 360 degree but can rotate to a fixed angle. After the power is off, it is reset by its own spring, which is considered to complete an action. It can rotate within a fixed angle, so it is also called a rotating solenoid actuator or an angle solenoid.  As for the rotation direction, it can be made into two types: clockwise and counterclockwise for the project need.

Part 2: The structure of rotary solenoid

The working principle of the rotating solenoid is based on the principle of electromagnetic attraction. It adopts an inclined surface structure. When the power is turned on, the inclined surface is used to make it rotate at an angle and output torque without axial displacement. When the solenoid coil is energized, the iron core and the armature are magnetized and become two magnets with opposite polarities, and electromagnetic attraction is generated between them. When the attraction is greater than the reaction force of the spring, the armature begins to move toward the iron core. When the current of solenoid coil is less than a certain value or the power supply is interrupted, the electromagnetic attraction is less than the reaction force of the spring, and the armature will return to the original  position under the action of the reaction force.

Part 3: Working principle

When the solenoid coil is energized, the core and the armature are magnetized and become two magnets with opposite polarities, and electromagnetic attraction is generated between them. When the attraction is greater than the reaction force of the spring, the armature begins to move toward the core. When the current in the solenoid coil is less than a certain value or the power supply is interrupted, the electromagnetic attraction is less than the reaction force of the spring, and the armature will return to the original position. The rotating electromagnet is an electrical appliance that uses the electromagnetic attraction generated by the current-carrying core coil to manipulate the mechanical device to complete the expected action. It is an electromagnetic element that converts electrical energy into mechanical energy. There is no axial displacement when rotating after power is turned on, and the rotation angle can reach 90. It can also be customized to 15°, 30°, 45°, 60°, 75°, 90° or other degrees, etc., using CNC-processed spiral surfaces to make it smooth and unstuck without axial displacement when rotating. The working principle of the rotating electromagnet is based on the principle of electromagnetic attraction. It adopts an inclined surface structure.

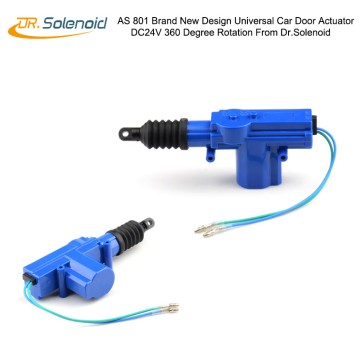

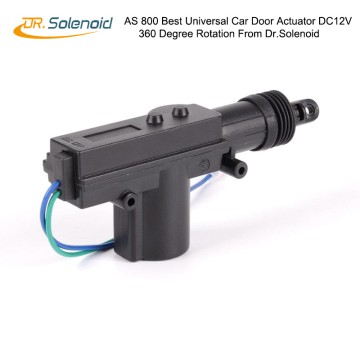

The central control car door actuator is an important part  of the car, it makes the car's safety and convenience for user. AS 801 is the brand new design and we would like to introduction the product working principle, structure, characteristics, installation and disadvantage as below:

Working Principle

Mechanical design: Through mechanical connecting rods, Car Door Actuator and other components, the rotation of the key or the pressing of the button is converted into the extension and retraction of the lock tongue to achieve the locking and unlocking of the car door. For example, the traditional plug-in key, turning the key drives the car door lock/actuator to rotate, and then drives the lock tongue to insert or exit the lock buckle to lock or open the car door.

Electronic circuit: The remote control key sends a radio signal, and the receiver get the signal and transmits it to the central control system, which controls the motor or electromagnetic device to drive the lock tongue to move. For example, when the lock button on the remote control key is pressed, the key will emit a specific coded radio wave. After the car receiving module receives and decodes the signal, it controls the door actuator to complete the locking operation.

Structure

Mechanical part: mainly includes lock actuator, lock tongue, lock buckle, connecting rod, spring, etc. The lock core is the part where the key is inserted, and the internal mechanism is driven by the key rotation; the lock tongue and the lock buckle are locked together; the connecting rod is used to connect the various components and transmit force; the spring provides elastic force to make the lock tongue pop out or retract at the right time.

Electronic part: there are remote control keys, receivers, control modules, actuators, etc. The remote control key is used to transmit signals, the receiver is responsible for receiving signals and transmitting them to the control module, the control module processes and judges according to the received signals, and then sends instructions to the actuator. The actuator is generally a motor or electromagnetic device to drive the lock tongue action.

In the world of automotive technology, DC car door actuators have revolutionized the way we interact with our vehicles. These small yet powerful devices play a crucial role in ensuring the smooth and efficient operation of car doors. With their push-pull force of up to 6 kilograms and flexible stroke distance of 21mm, DC car door actuators are designed to provide universal fitment and high temperature resistance, making them a versatile and reliable choice for car owners. In this comprehensive guide, we will explore the features, installation process, and benefits of DC car door actuators, shedding light on their importance in the automotive industry.

Car Door actuator Working Principle

Electromagnetic type of cart door Actuator Principle: It consists of electromagnetic coils. When the solenoid coil is energized, it generates a magnetic field, and the electromagnetic force makes the armature move, driving the connecting rod to realize the locking and unlocking of the car door. For example, when the lock signal is sent, the current passes through a specific coil, generating an electromagnetic force that pulls the armature to lock the door latch.

Motor Actuator type Principle: Motors, such as DC motors or permanent magnet motors, are used. When the motor rotates, the rotational force is transmitted to the door lock mechanism through reduction gears and transmission rods. The motor rotates in different directions to control the opening and closing of the door lock. For instance, when receiving an unlocking signal, the motor rotates in a certain direction to drive the lock cylinder to rotate and release the door latch.

Structure

Electromagnetic Actuator Structure: It mainly includes electromagnetic coils, armatures, springs, and connecting rods. The electromagnetic coil is the core component that generates electromagnetic force. The armature moves under the action of electromagnetic force, and the spring is used to reset the armature. The connecting rod transmits the movement of the armature to the door lock mechanism.

Motor Actuator Structure: It is composed of a motor, reduction gearbox, transmission rod, and position sensor. The motor provides power, the reduction gearbox reduces the speed and increases the torque, the transmission rod transmits the power to the door lock, and the position sensor is used to detect the position of the door lock and feedback to the control system.

What is a motorcycle starter relay ?

Definition and Function

A motorcycle starter relay is an electromagnetic switch. Its primary function is to control the high - current circuit that powers the starter motor of a motorcycle. When you turn the ignition key to the “start” position, a relatively low - current signal from the motorcycle's ignition system is sent to the starter relay. The relay then closes its contacts, allowing a much larger current to flow from the battery to the starter motor. This high - current is necessary to crank the engine and start the motorcycle.

Working Principle

Electromagnetic Operation: The starter relay consists of a coil and a set of contacts. When the small current from the ignition switch activates the coil, it creates a magnetic field. This magnetic field attracts an armature (a movable part), which causes the contacts to close. The contacts are usually made of a conductive material such as copper. When the contacts close, they complete the circuit between the battery and the starter motor.

Voltage and Current Handling: The relay is designed to handle the high voltage (usually 12V in most motorcycles) and high current (which can range from tens to hundreds of amperes, depending on the starter motor's power requirements) that the starter motor needs. It acts as a buffer between the low - power control circuit (the ignition switch circuit) and the high - power starter motor circuit.

Components and Construction

Coil: The coil is wound around a magnetic core. The number of turns and the gauge of the wire in the coil determine the strength of the magnetic field generated for a given current. The coil's resistance is designed to match the voltage and current characteristics of the control circuit it is connected to.

Contacts: There are usually two main contacts - a movable contact and a stationary contact. The movable contact is attached to the armature, and when the armature is attracted by the magnetic field of the coil, it moves to close the gap between the two contacts. The contacts are designed to handle high - current flow without overheating or arcing excessively.

Case: The relay is housed in a case, usually made of a durable plastic material. The case provides insulation to protect the internal components from external factors such as moisture, dirt, and physical damage. It also helps to contain any electrical arcing that may occur during contact closure and opening.

Importance in Motorcycle Operation

Protecting the Ignition System: By using a starter relay, the high - current demands of the starter motor are isolated from the ignition switch and other low - power components in the motorcycle's electrical system. If the high - current for the starter motor were to flow directly through the ignition switch, it could cause the switch to overheat and fail. The relay acts as a safeguard, ensuring the longevity and proper function of the ignition system.

Efficient Engine Starting: It provides a reliable means of delivering the necessary power to the starter motor. A well - functioning starter relay ensures that the engine cranks with sufficient speed and torque to start smoothly. If the relay fails, the starter motor may not receive enough current to operate effectively, leading to difficulties in starting the motorcycle.
