What is a rotary latching solenoid ?

A rotary latching solenoid is an electromechanical device that combines rotation and latching functions. It is mainly used to convert electrical energy into mechanical rotational motion and can maintain a specific position without consuming electricity. Here are the details:

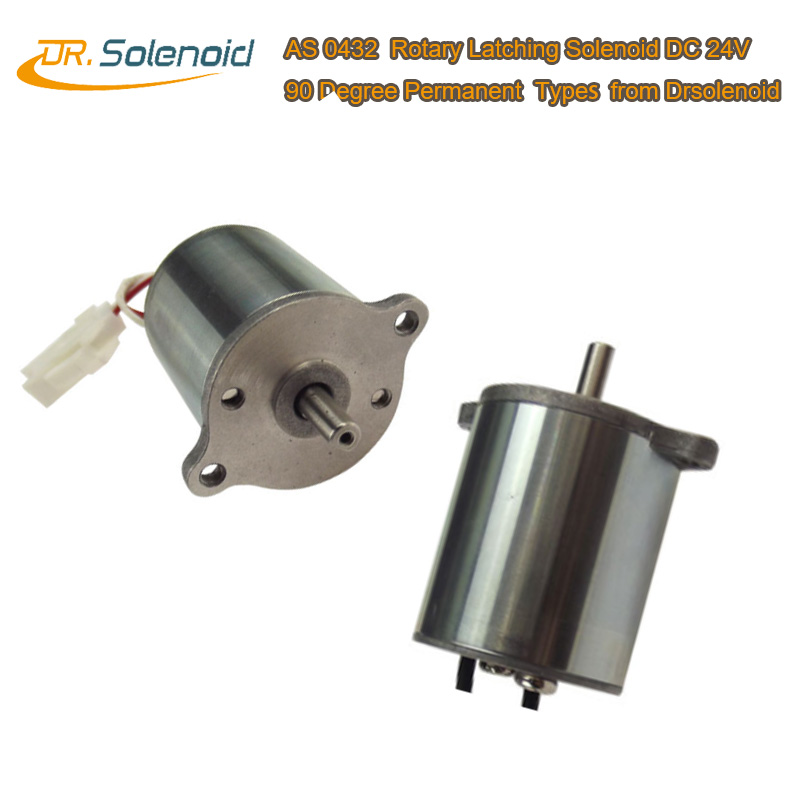

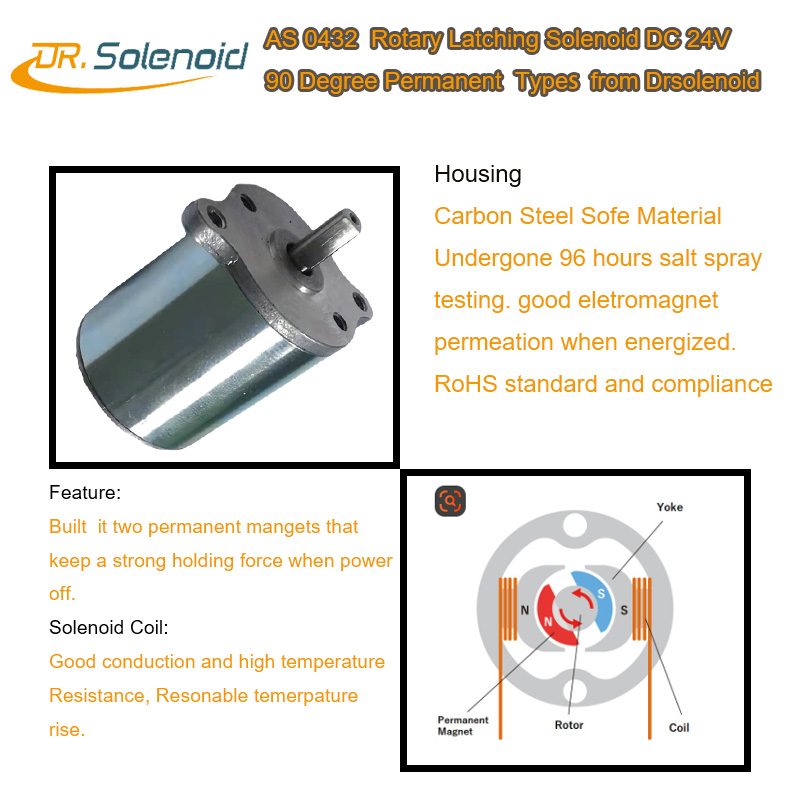

Rotary Latching Solenoid 's Structure : it Usually composed of coil, permanent magnet, armature, and base. The coil generates a magnetic field when energized. The permanent magnet forms a magnetic flux flow path between the opposite pole faces of the armature and the base. The armature is the rotating part, connected to the output shaft or mechanism.

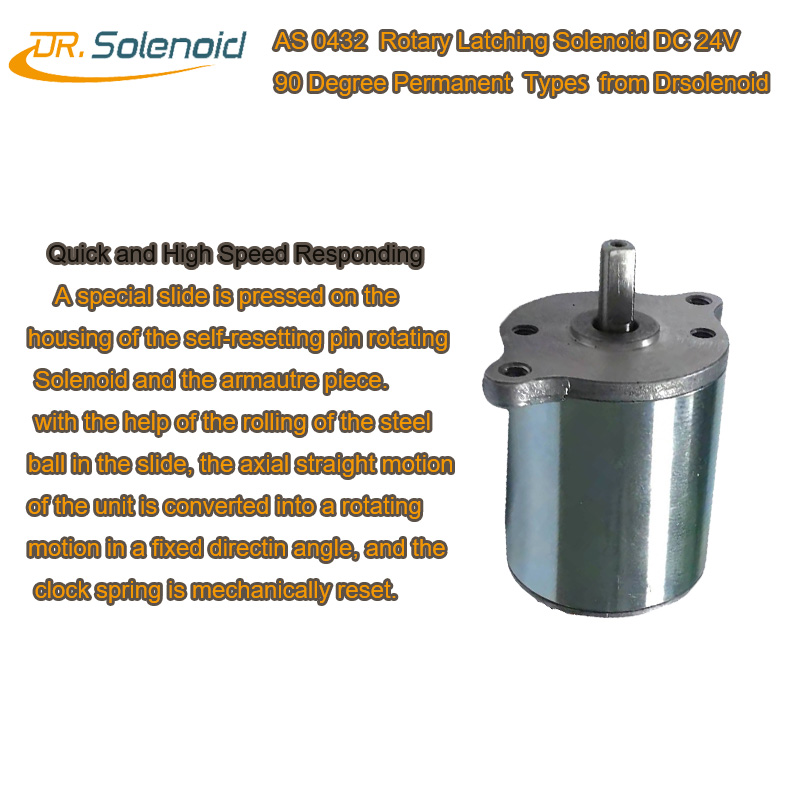

Working principle: When the solenoid is energized, the coil generates a magnetic field that interacts with the magnetic field of the permanent magnet. This causes the armature to rotate to a specific position. Due to the locking function, once the armature reaches the target position, it can be held in place by the magnetic force of the permanent magnet even if the power is removed. To change the position of the armature, it is necessary to apply an appropriate electrical signal again to overcome the locking force and drive the armature to rotate to another position.

Technical Parameters

Power supply voltage: usually 12V, 24V DC, etc. Different models have different voltage requirements.

Rotation angle: Common rotation angles include 30°, 45°, 90°, etc. The specific angle depends on the design and application requirements of the project.

Duty cycle: Indicates the proportion of power-on time in a duty cycle to the total time, which can be 10%, 15%, 100%, etc.

Power consumption: The power consumed by the solenoid valve when it is energized, ranging from a few watts to tens of watts depending on the model.

Switching time: Generally within tens of milliseconds, this is the time required for the electromagnet to complete one rotation and latching action.

advantage

Energy saving: It consumes power only when switching positions, and does not require continuous power supply to maintain the position, which can save energy.

High reliability: The self-locking function ensures that the position remains stable and is not easily affected by external factors.

Compact structure: Relatively small in size, can be installed in a small space.

product details

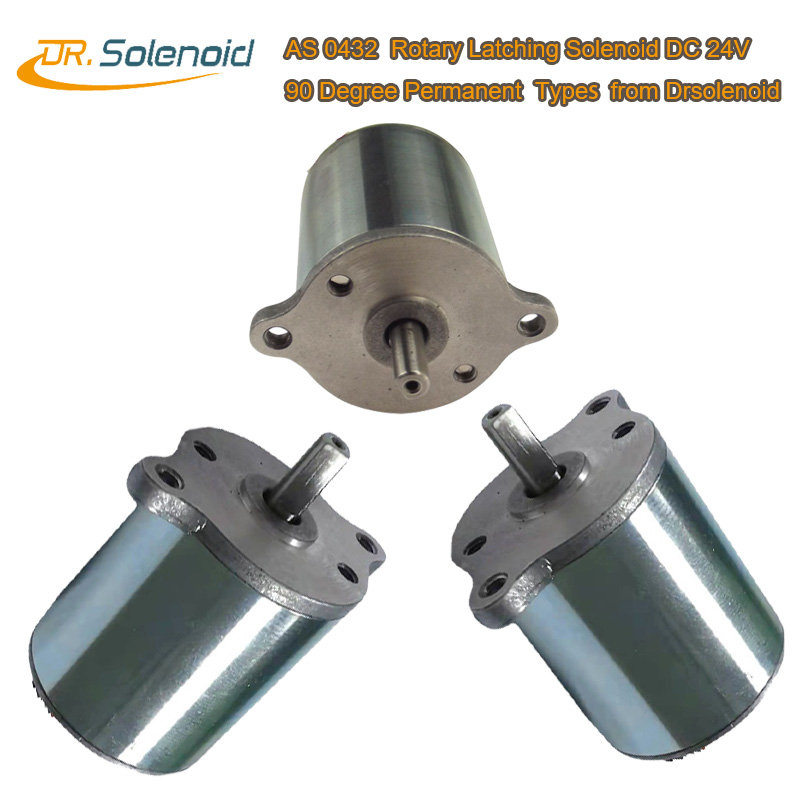

Product Description

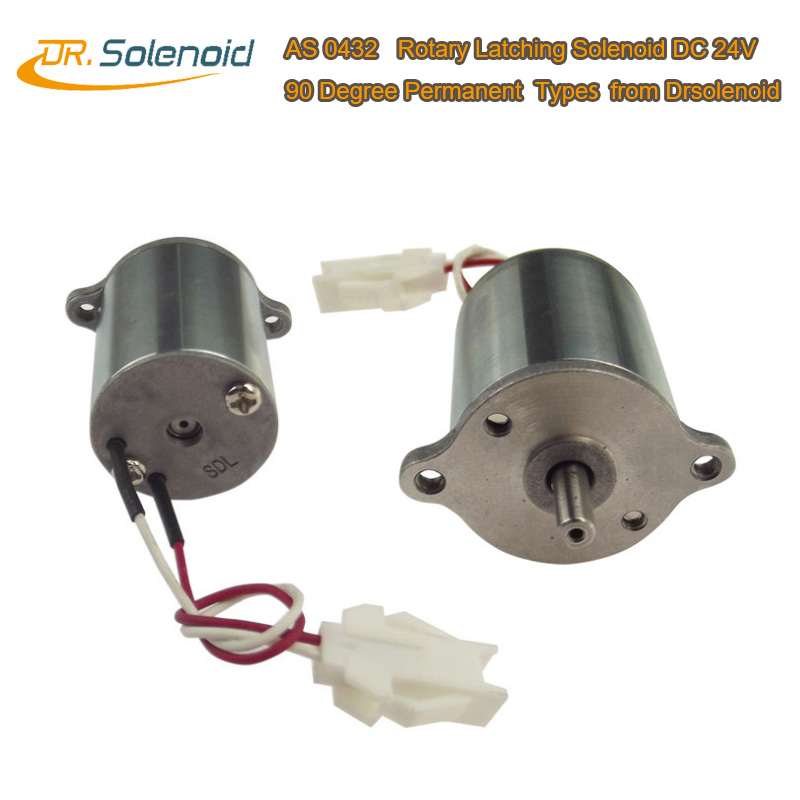

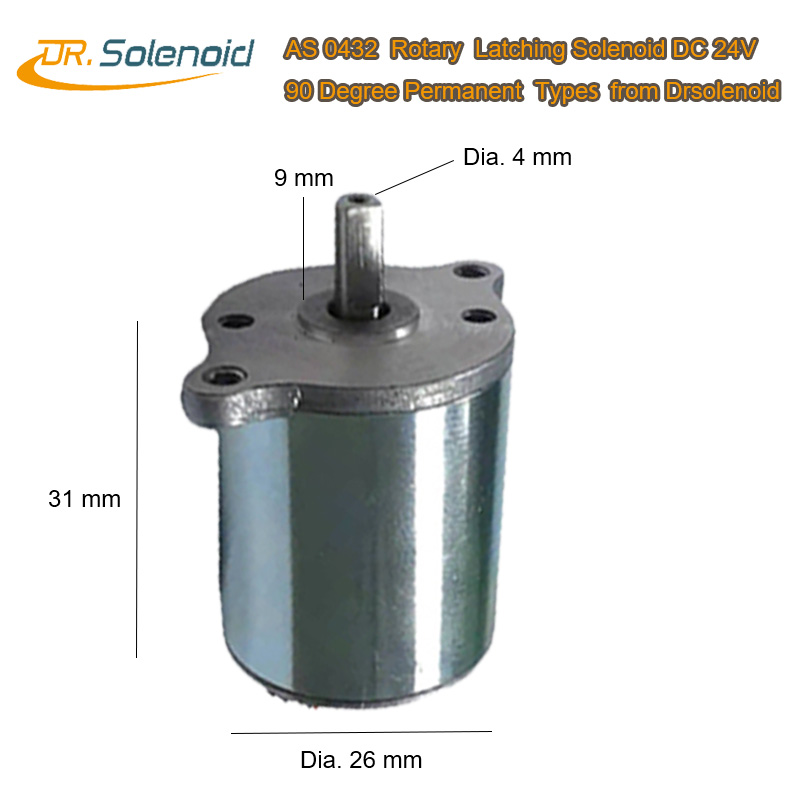

Brand	Dr. Solenoid	Model Number	AS 0432

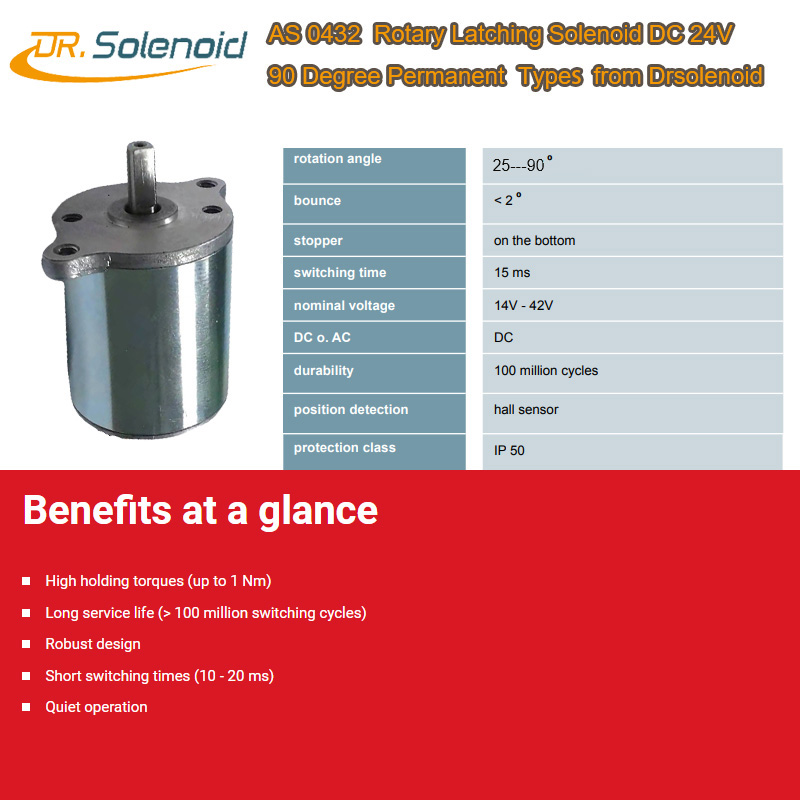

Rated Voltage (V)	DC 12V ,18V or 24V	Rated Power(W)	40--80 W
Work Model	Rotation	Holding Force (N)	150 ----- 300 GF

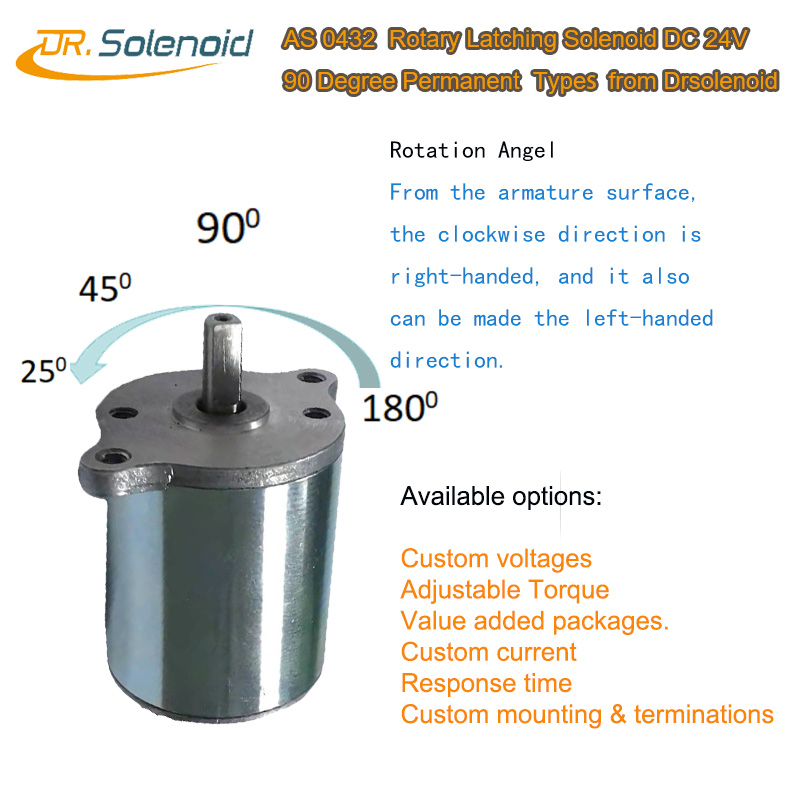

Rotating Angle	From 25, 45, 60 or 90 Degree	Working Duty	25%
Service Life	500 Thousand Times	Certification	CE,ROHS,ISO9001,
Material	Carbon Steel Housing	Lead Wire Length(mm)	200
Install Style	screw	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	B
Hi-Pot Test	AC 600V 50/60Hz 2s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 PCS	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

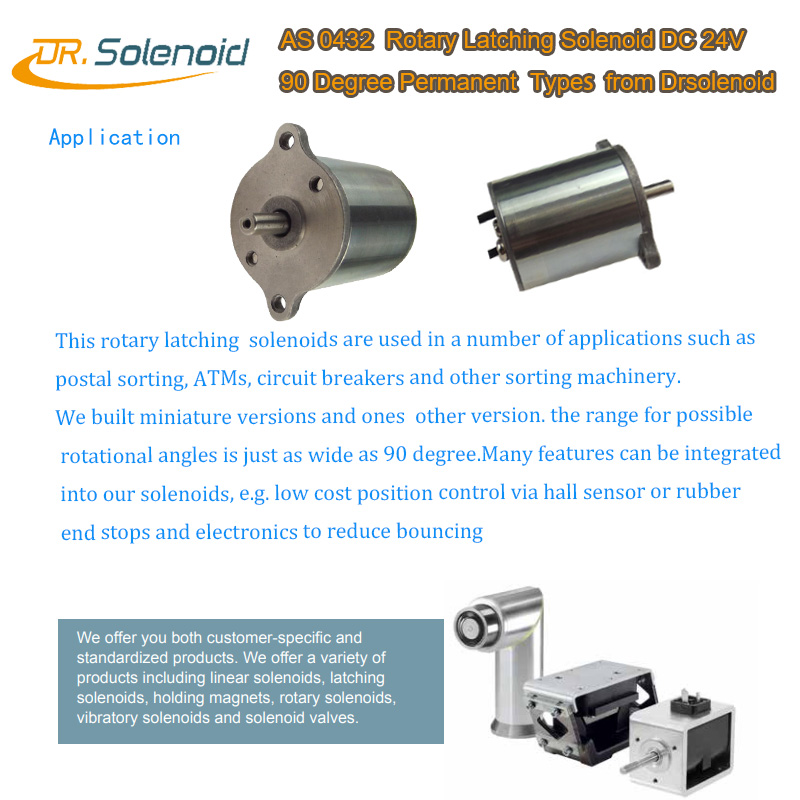

What are some common applications for rotary latching solenoids?

Rotary magnetic holding electromagnets have the characteristics of energy saving, high reliability and compact structure, and are widely used in various fields. The details are as follows:

Automotive

Seat adjustment: used to control the rotation and locking of the seat adjustment mechanism, so as to accurately adjust the seat position to meet the comfort needs of different drivers and passengers.

Sunroof control: The rotary latching solenoid is used in the sunroof system of the car and is responsible for controlling the rotation and latching of the sunroof switch so that the sunroof can be accurately opened and closed and maintained in the set position.

Door lock system: In some high-end car door lock systems, rotary latch solenoids are used to control the rotation of the door lock mechanism. They ensure that the doors are securely locked and unlocked accurately when needed.

Industrial automation field

Conveyor belt sorting: It is used to control the rotation of the sorting mechanism on the conveyor belt in the automated production line. It can accurately guide items to different channels as required, thus improving production efficiency and accuracy.

Robot joints: Rotary latch electromagnets can be applied to the joints of industrial robots to control the rotation angle and position of the joints, enabling the robot to perform precise movements and operations.

Valve control: Used to control the rotation of valves in industrial fluid control systems. It can accurately adjust the opening and closing degree of the valves, thereby controlling the flow and pressure of the fluid.

Aerospace

Aircraft landing gear: Rotary locking electromagnets are used in aircraft landing gear systems to control the rotation and locking of the landing gear retraction and extension mechanism to ensure the safe operation of the landing gear during takeoff and landing.

Actuator Control: In aircraft flight control systems, used to control the rotation of actuators. They help adjust the position of control surfaces such as ailerons, rudder, and elevator to ensure aircraft stability and maneuverability.

Home appliances

Washing machine controls: In washing machines, they can be used to control the rotation of the detergent dispenser. They ensure that the correct amount of detergent is dispensed at the right time during the wash cycle.

Refrigerator door control: The rotary locking electromagnet is used in the refrigerator door closing mechanism to make the refrigerator door tightly closed and maintain the closed state to ensure the cooling effect
