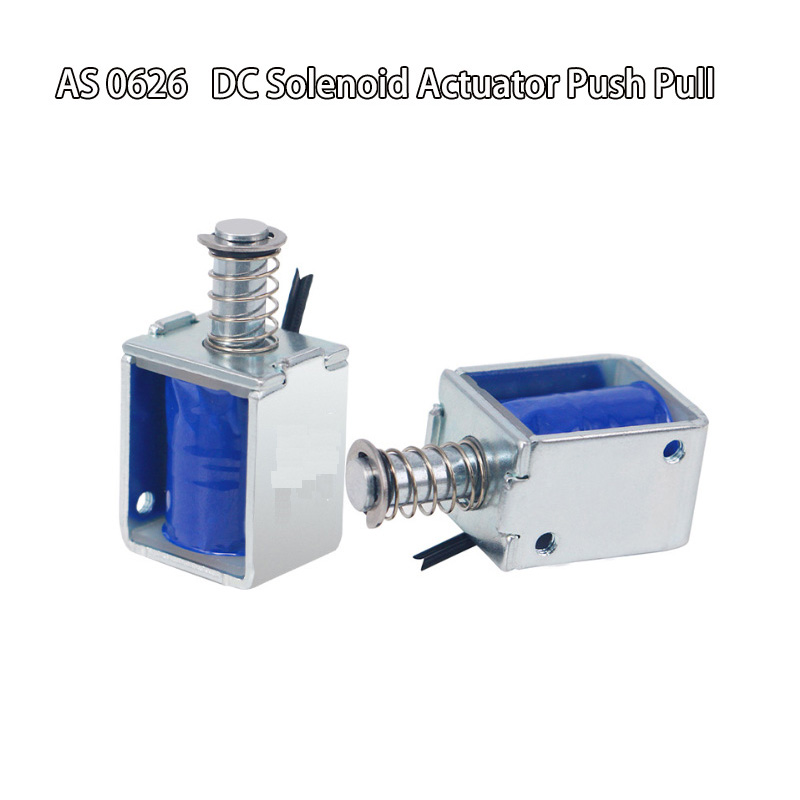

As 0626 DC Solenoid Actuator Push Pull 2.jpg
As 0626 DC Solenoid Actuator Push Pull 4.jpg

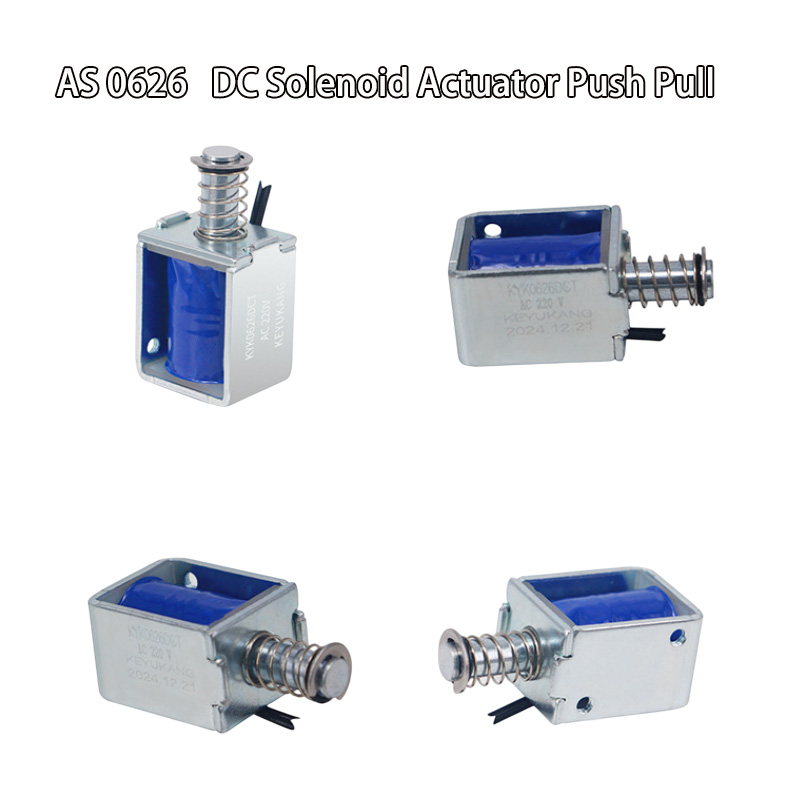

As 0626 DC Solenoid Actuator Push Pull 3.jpg
As 0626 DC Solenoid Actuator Push Pull 5.jpg
As 0626 DC Solenoid Actuator Push Pull 6.jpg

AS 0626 DC Solenoid Actuator Push Pull

The solenoid actuator push pull is mainly composed of open frame housing with permeability, a big coil of copper wirl, bobbin, plunger and iron core.  When the solenoid coil is energized, the slug is pulled into the center of the coil. This makes the solenoid able to pull (from one end) or push (from the other)Because of its simple structure and low cost, it is widely used in life automation equipment, such as small household appliances, game and vending machines.

    Contact us Download
    product details

    Product Description

    Brand Dr. Solenoid Model Number AS 0626
    Rated Voltage (V) DC12V  or 24V  Rated Power(W) 4-8W
    Work Mode Push and Pull  Holding Force (N) 0.1--1.5 N
    Stroke(mm) 3-6 MM Customized Reset Time(s) 1 S On，3 S OFF
    Service Life 200 Thousand Times Certification CE,ROHS,ISO9001,
    Material Superior Magnet Iron Lead Wire Length(mm) 200 MM
    Install Style Screw Tolerance of Dimension  +/-  0.1 MM
    Water-proof  None Insulation Class B
    Hi-Pot Test AC 600V 50/60Hz 2s Non-excitation Holding Force 0
    Working Temperature -10°C-100°C Duty Cycle 1-100%
    Thread Depth(mm) / Payment Term TT, or LC At Sight
    Sample Order Yes Warranty 1 Year
    MOQ 1000 pcs Supply Ability 5000 pcs per Week
    Delivery Time 30 Days Port of Loading shenzhen

    Product detail diagram

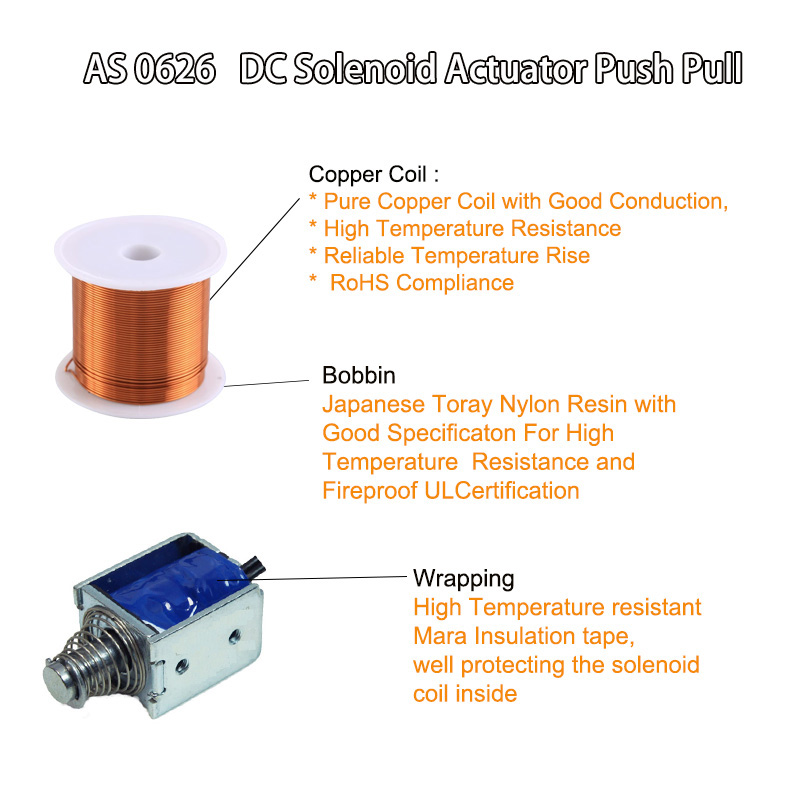

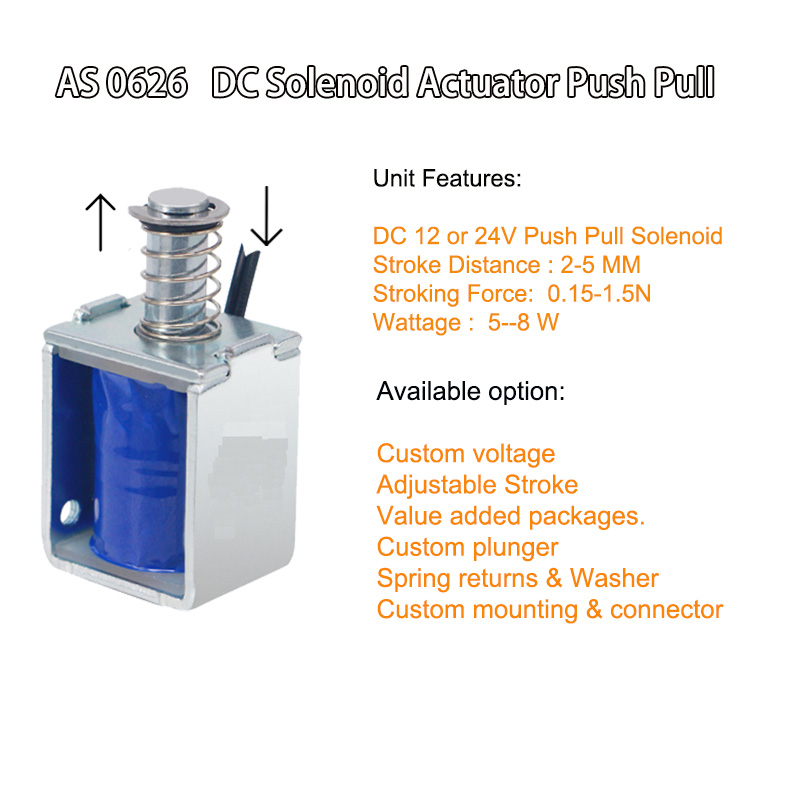

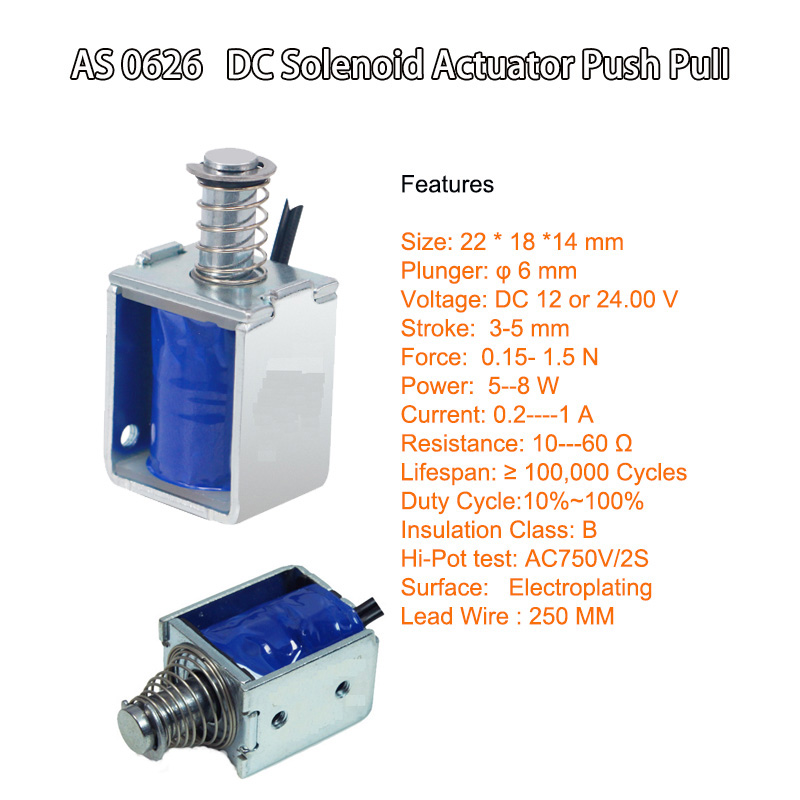

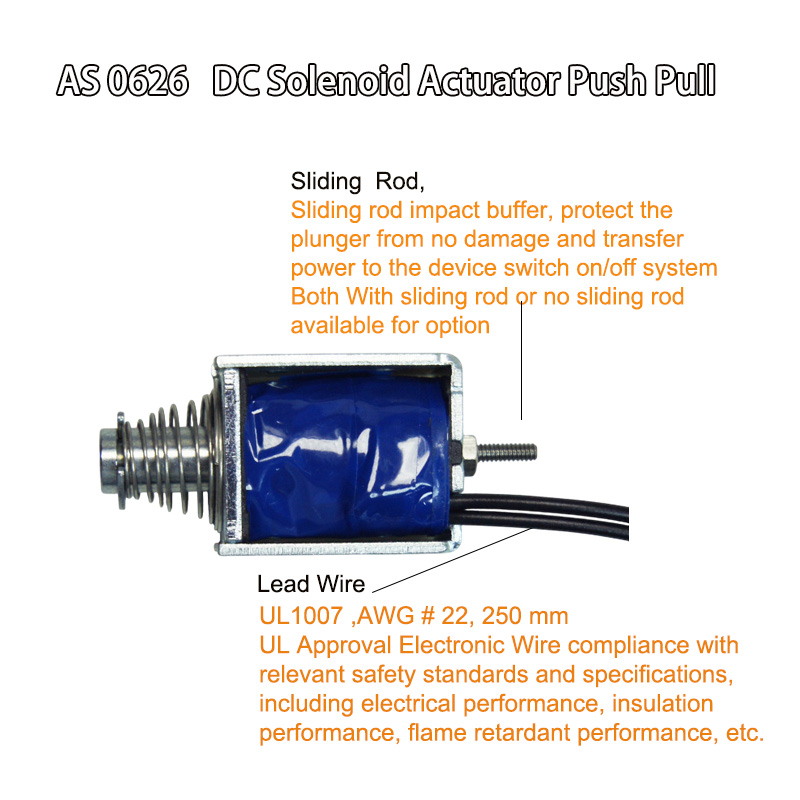

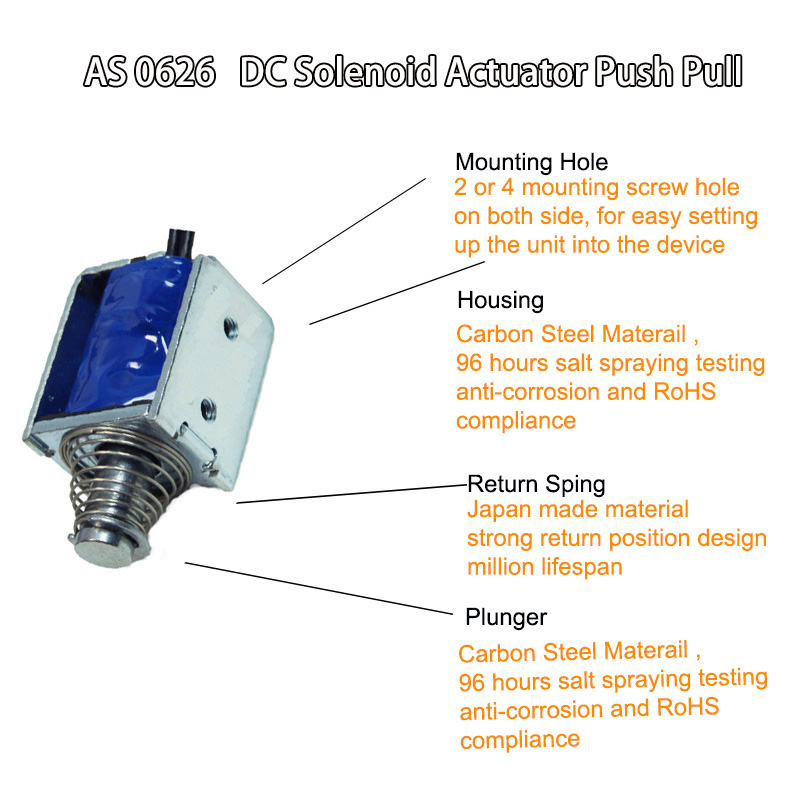

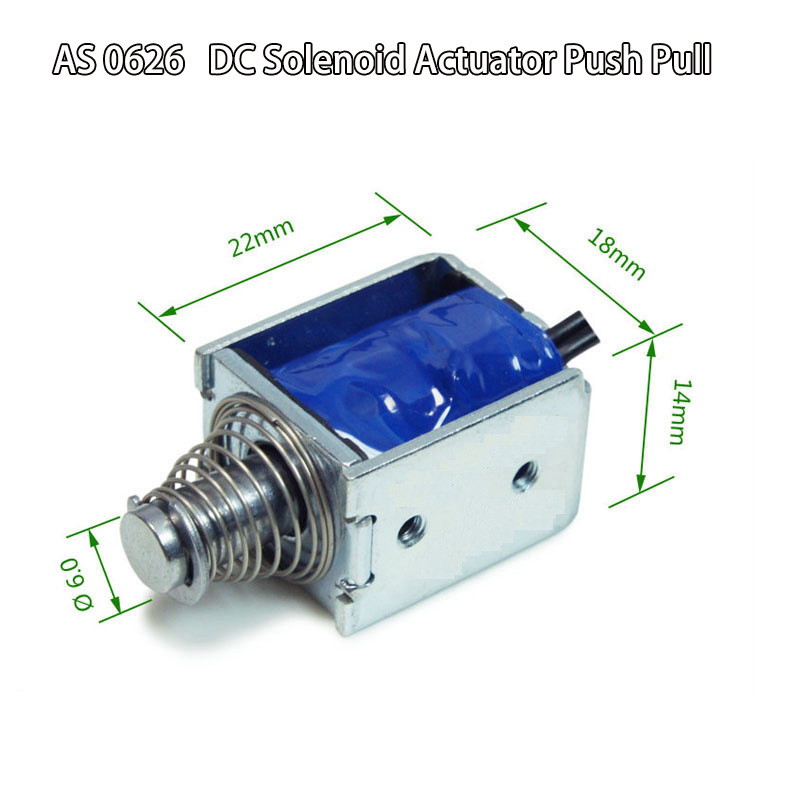

    As 0626 DC Solenoid Actuator Push Pull D 1AS 0626 DC Solenoid Actuator Push Pull D 2AS 0626 DC Solenoid Acuator Push Pull D 3AS 0626 DC Solenoid Actuator Push PUll D 4AS 0626 DC Solenoid Actuator Push PUll D 5 AS 0626 DC Solenoid Actuator Push Pull D 6Application

    This solenoid actuator push pull in particular is nice and strong, with a 24mm long body and a 'captive' plunger with a returned spring. This means that when activated with up to 12 or 24V DC, the solenoid moves and then the voltage is removed it springs back to the original position, which is quite handy. Many lower cost solenoids are only push type or only pull type and may not have a captive armature or don't have a return spring. This solenoid has 2 xM3 (metric) threaded holes in the side of housing for easy mounting.

    Our DC solenoids are widely used in the industrial automation and the life automation, office automation and other applications for all of our cusotmer in the global.

    The industrial automation includes embroidery machine, textile equitment machine, burners, robots, etc. Life automation includes subway and screen doors, ATM machines, automatic ticket checking machines, vending machines, cash boxes, various credit card machines, toasters, medicine dispensers, oxygen machines, breast pumps, sealing machines, fishing boats, dishwasher, bicycle rental system, electric pressure cooker, salad machine, massager, game machine, car lock, electronic lock for charging gun, etc.

    Office automation includes lettering machine, printer, copier, coded lock, various automation door locks, safe, charging cabinet, mechanical arm, leakage protection switch, etc.   We have been in the solenoid and solenoid valve with 20 years experience. If you have any project need more information, pls contact us today through email : info@drsolenoid.com
