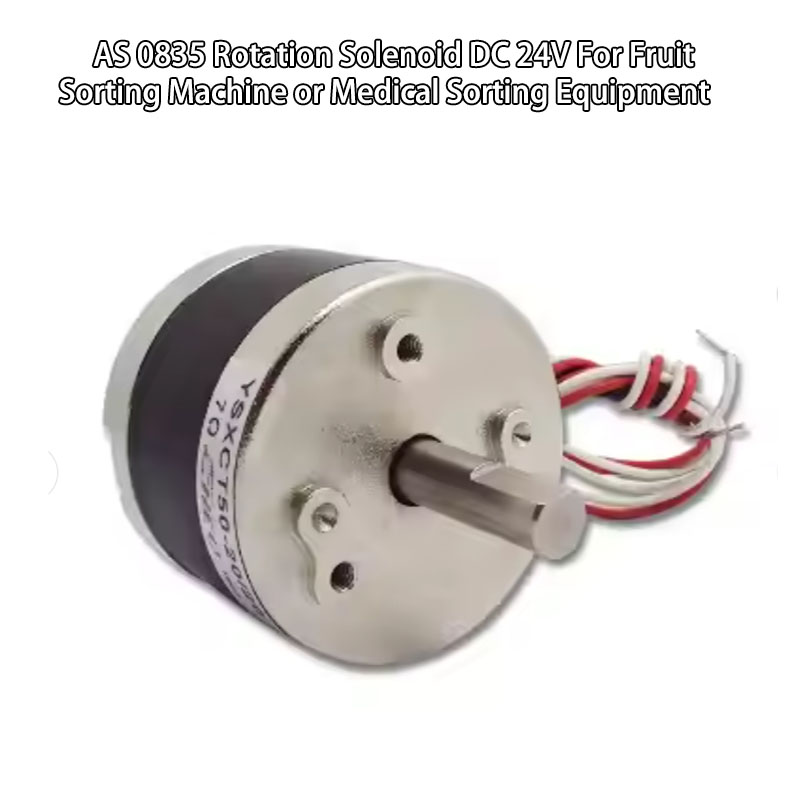

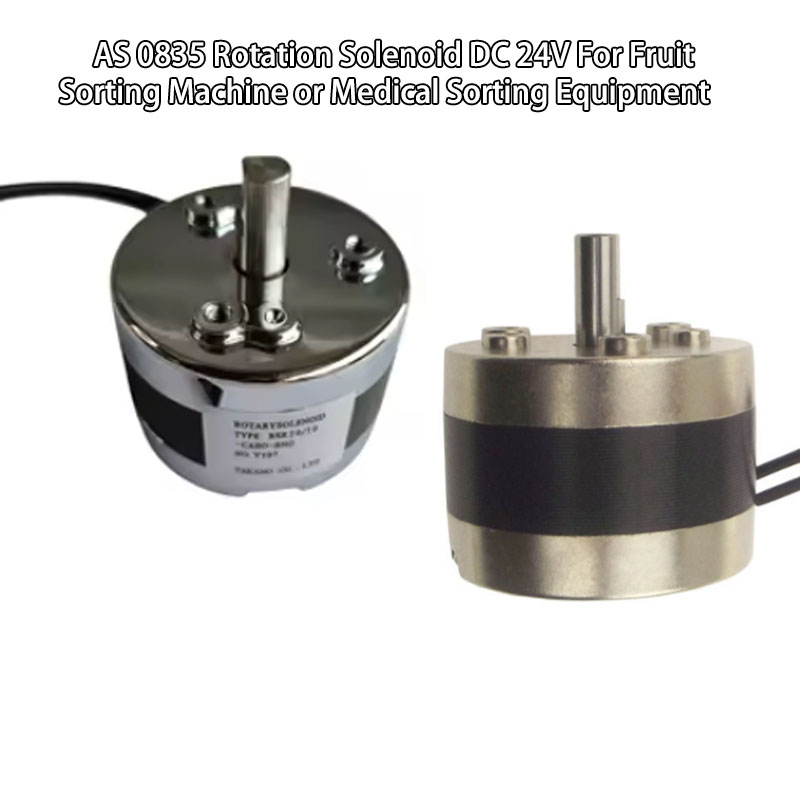

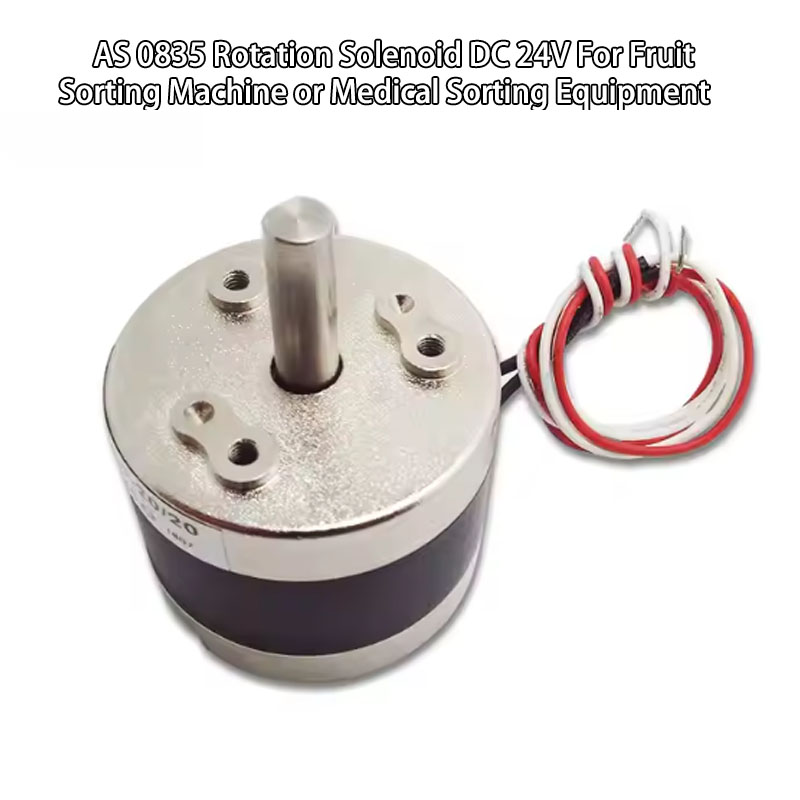

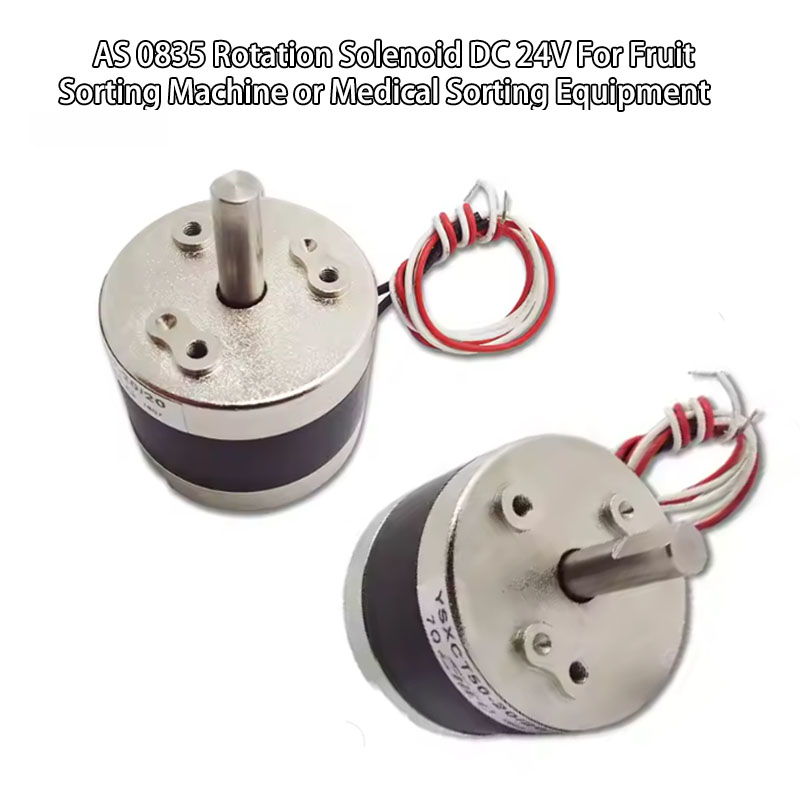

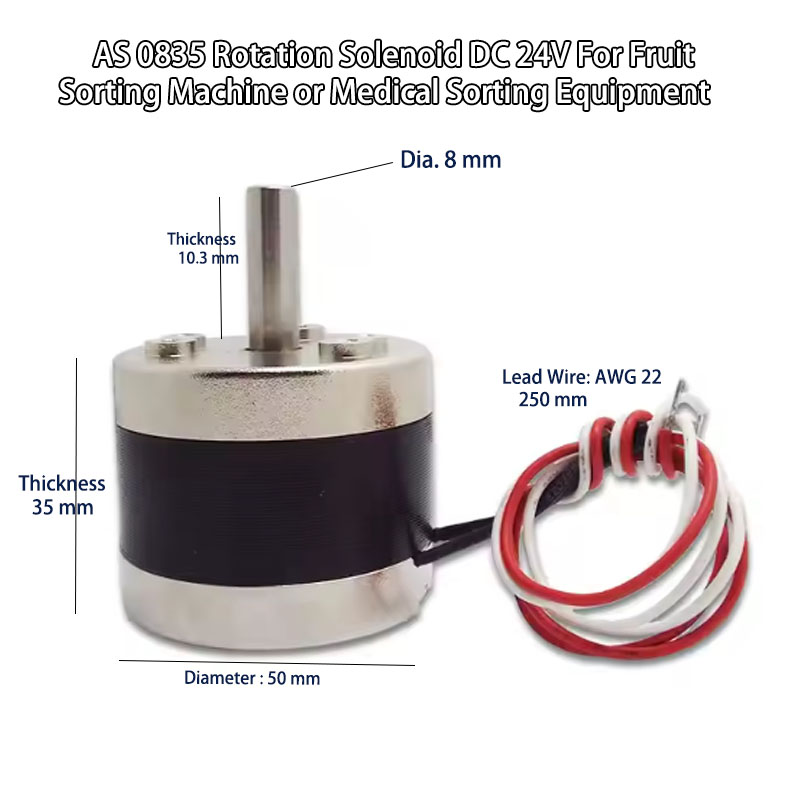

AS 0835 Rotary Solenoid DC24 For fruit sorting machine and industrial sorting equipment

Features of bistable Rotary solenoid DC 24V actuator

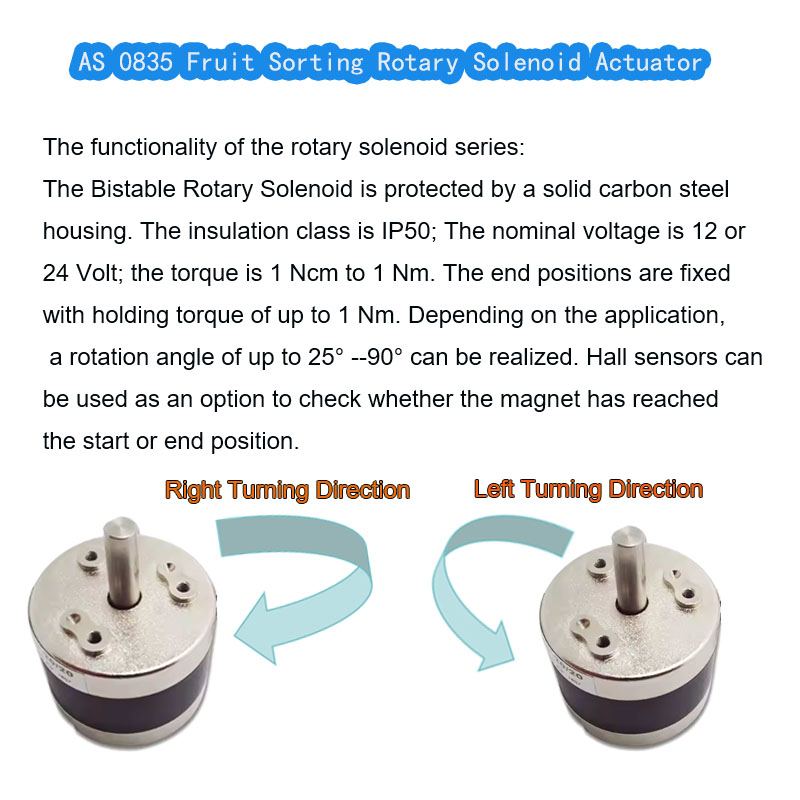

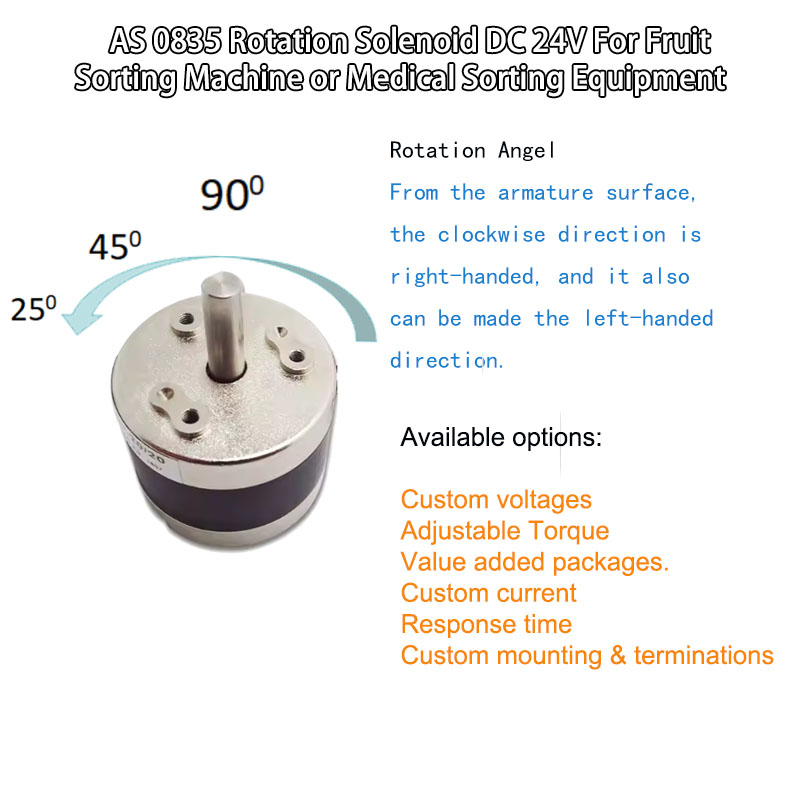

It features bidirectional rotating movement after being energized. You can choose the angle from 30-100 degrees for your need of your device. The common working voltage is 12-24V, and the external limit is adjustable. This as 0837 rotation solenoid actuator needs to be equipped with a forward and reverse pulse electromagnet drive, with a programmable board or a relay self-made H-bridge switch. The rotation and reset are driven by the forward and reverse pulse power supply. After power failure, the shaft core can be kept at the initial or end position of the torque.

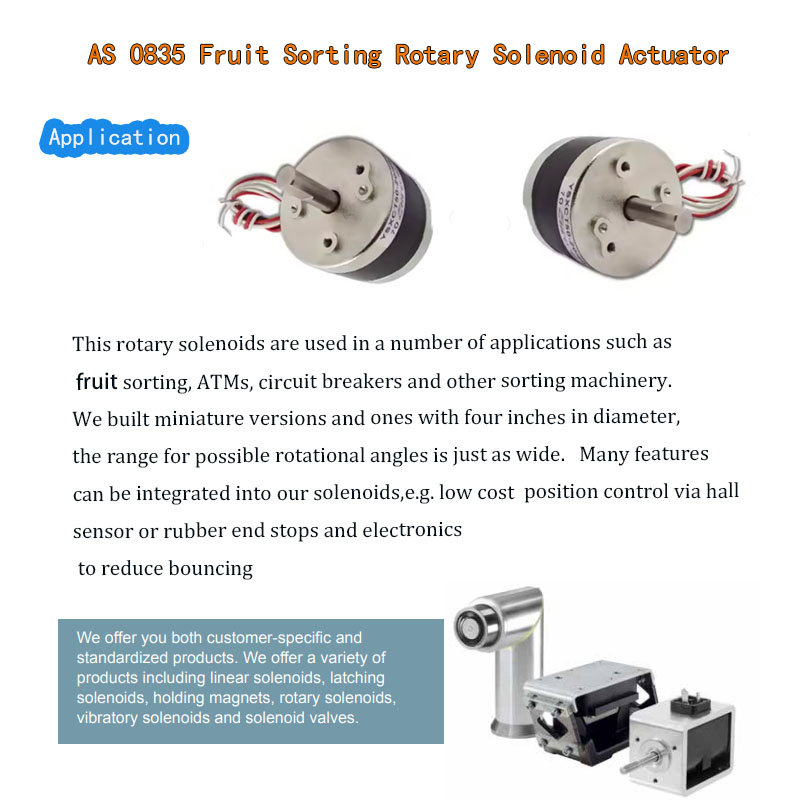

This rotation solenoid actuator has no axial movement during operation, and its service life can be up to more than 10 million times. This rotation solenoid actuators are widely used in industrial automatic control sorting, automatic sorting of electronic components, shutter control of lasers and color expansion, high-speed flipping action of textile equipment, dynamic simulation of entertainment equipment, automatic detection of rail transit line。
