AS 1512 Small Round Electro Holding magnet/DC electromagnets
Product Description
| Brand | Dr. Solenoid | Model Number | AS 1512 |
| Rated Voltage (V) | DC 12V or 24V | Rated Power(W) | 10-13W |
| Work Model | Holding Suction | Attraction Force | 6000 GF |
| Stroke(mm) | Customized | Reset Time(s) | 1 S |
| Service Life | 500 Thousand Times | Certification | CE,ROHS,ISO9001, |

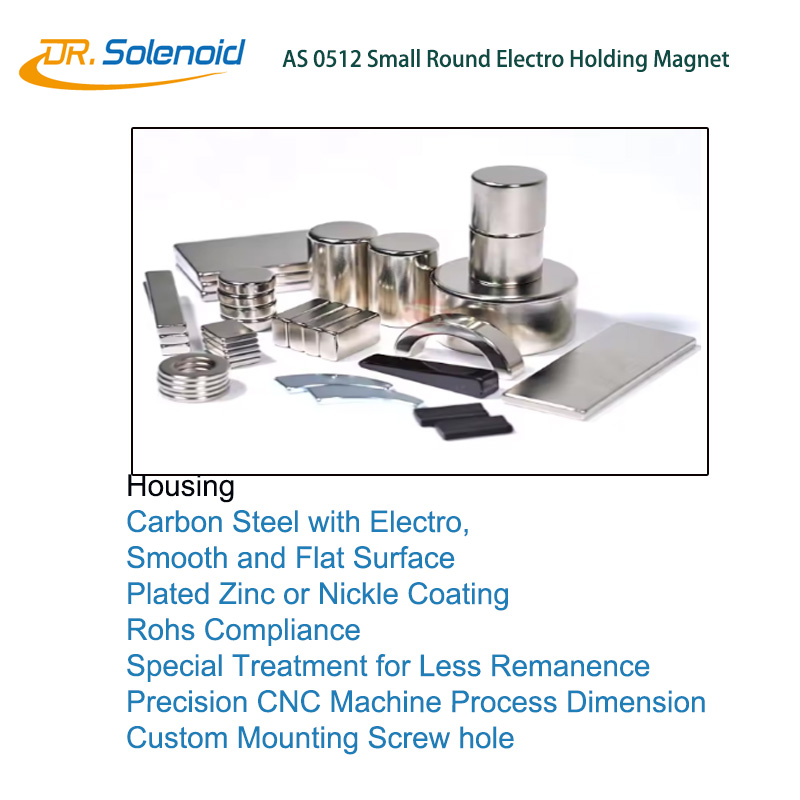

| Material | Carbon Steel House with Zinc Coating | Lead Wire Length(mm) | 200 |
| Install Style | screw | Tolerance of Dimension | +/- 0.1 MM |
| Water-proof | yes | Insulation Class | F 155 Degree |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Resistance | 89 ohm |
| Working Temperature | -10°C-100°C | Duty Cycle | 1-100% |
| Thread Depth(mm) | / | Payment Term | TT, or LC At Sight |
| Sample Order | Yes | Warranty | 1 Year |
| MOQ | 1000 PCS | Supply Ability | 5000 pcs per Week |
| Delivery Time | 30 Days | Port of Loading | shenzhen |

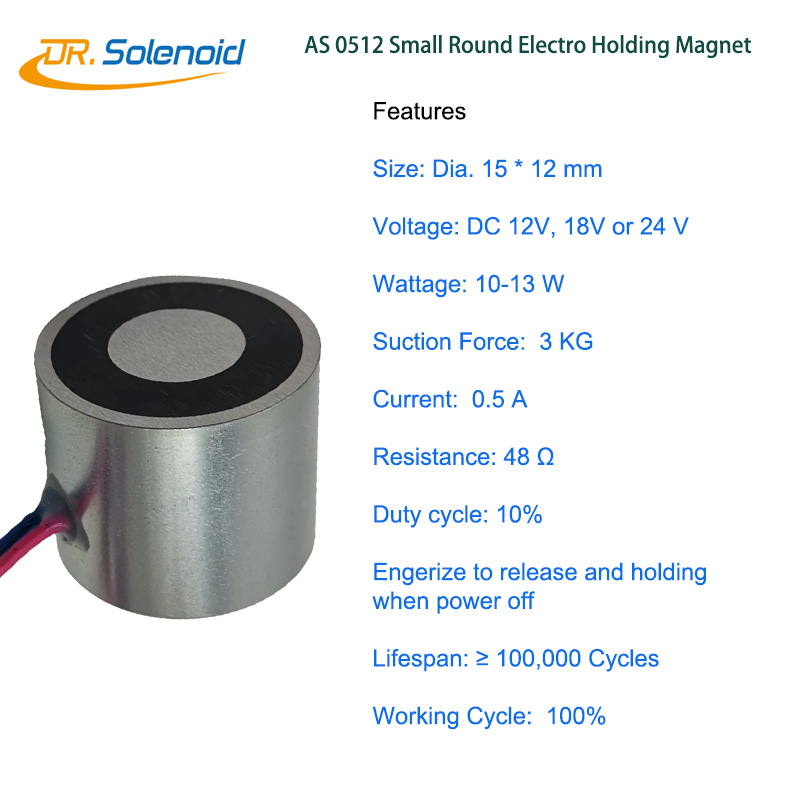

Unit Features:

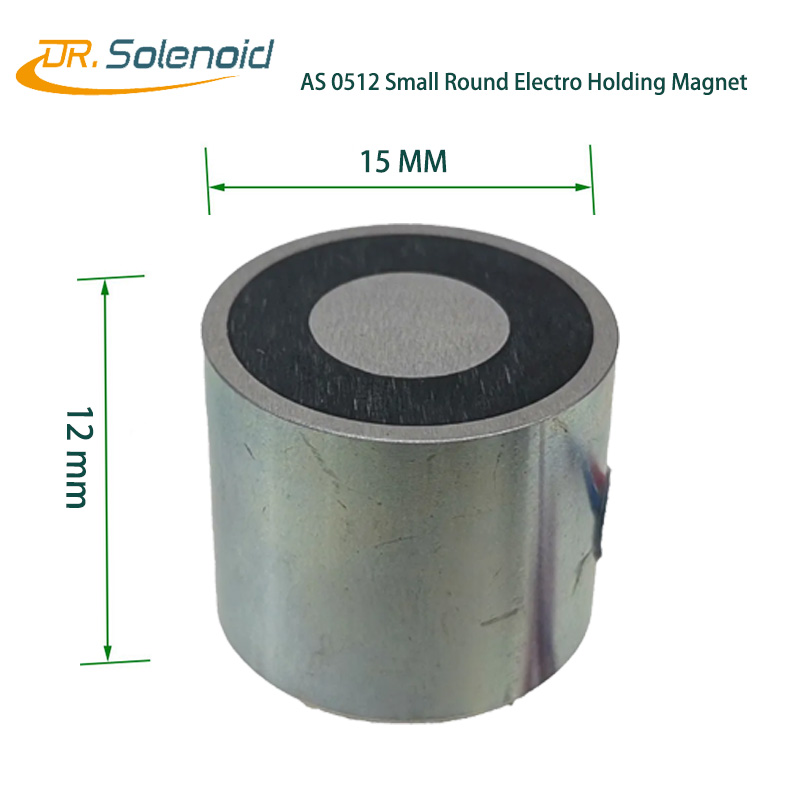

* Size: D15 x 12mm
- Power: 12V or 24VDC, 13W
- Holding force> 3kgs,
- Duty cycle: 10%

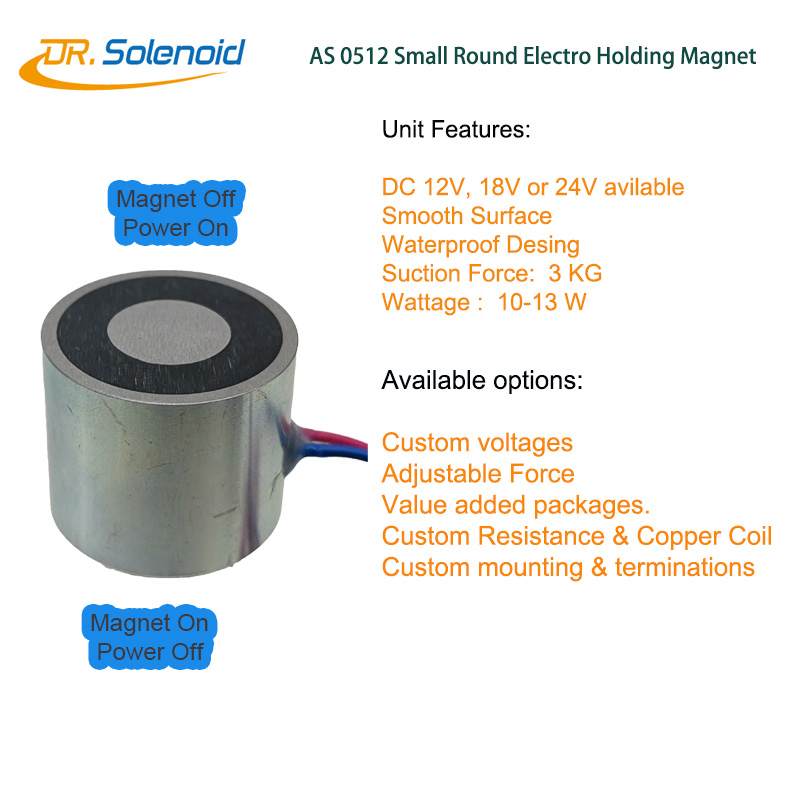

- Engerize to release and holding when power off

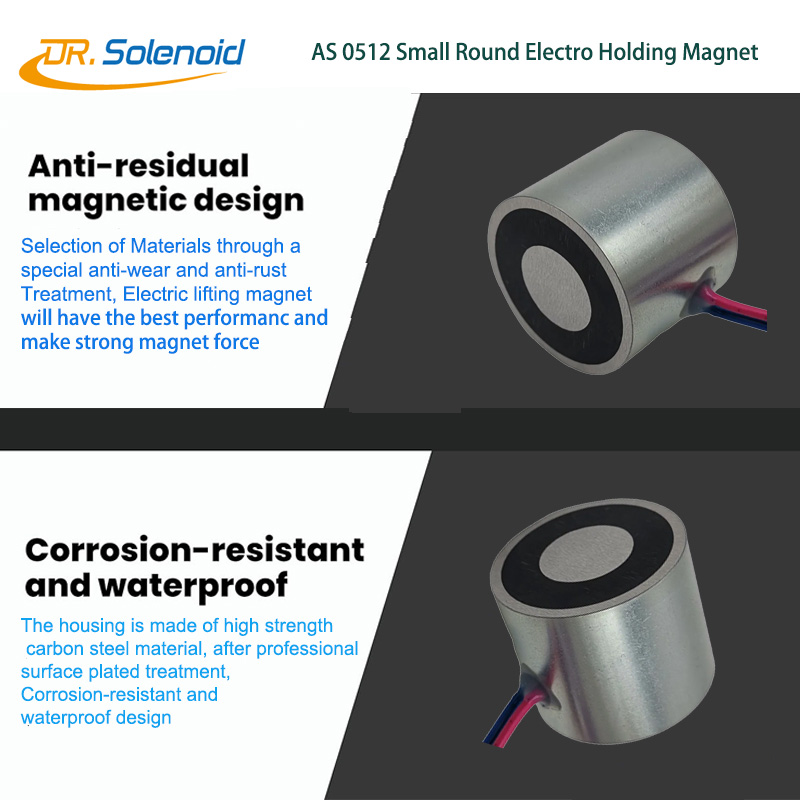

- Electroplating anti-corrosive
- Epoxy filled Waterproof
- Different models are available, holding force: 1kgs - 200kgs.
- Application: electronic machine, package machines, mechanical hands.
- 20 years of design and produce experience
- OEM/ODM is welcomed
Features:
Powerful and compact Design
Smooth and flat surface
Low consumption and reliable
Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc
Note: The Force will be decreased due to long time working, lower voltage and improper Sucked object, etc.

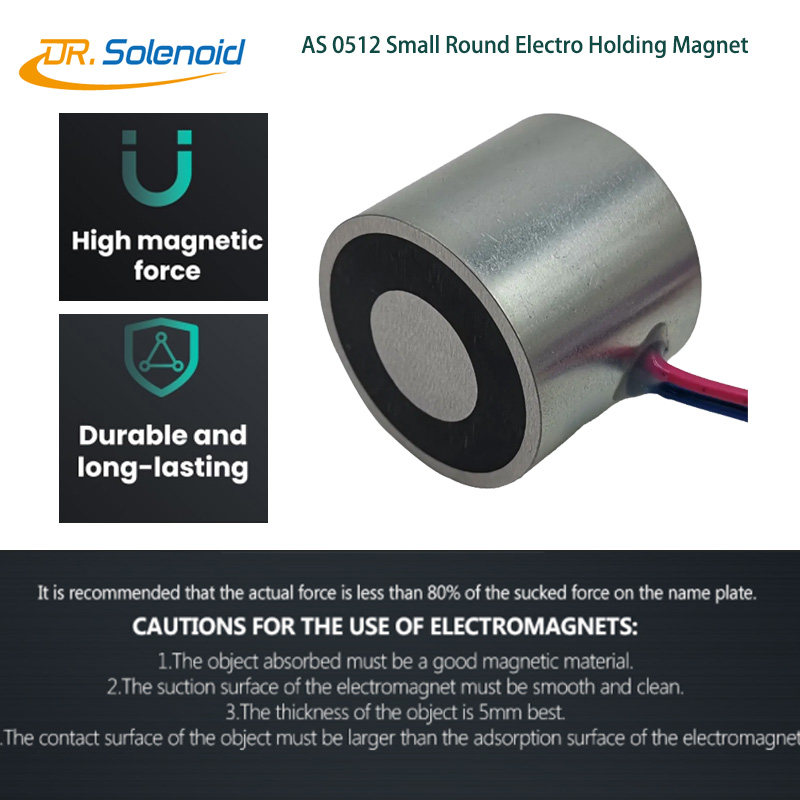

It is recommended that the actual force is less than 80% of the sucked force on the name plate.
Cautions for the use of electromagnets:
1.The object absorbed must be a good magnetic material.
2.The suction surface of the electromagnet must be smooth and clean.
3.The thickness of the object is 5mm best.
4.The contact surface of the object must be larger than the adsorption surface of the electromagnet

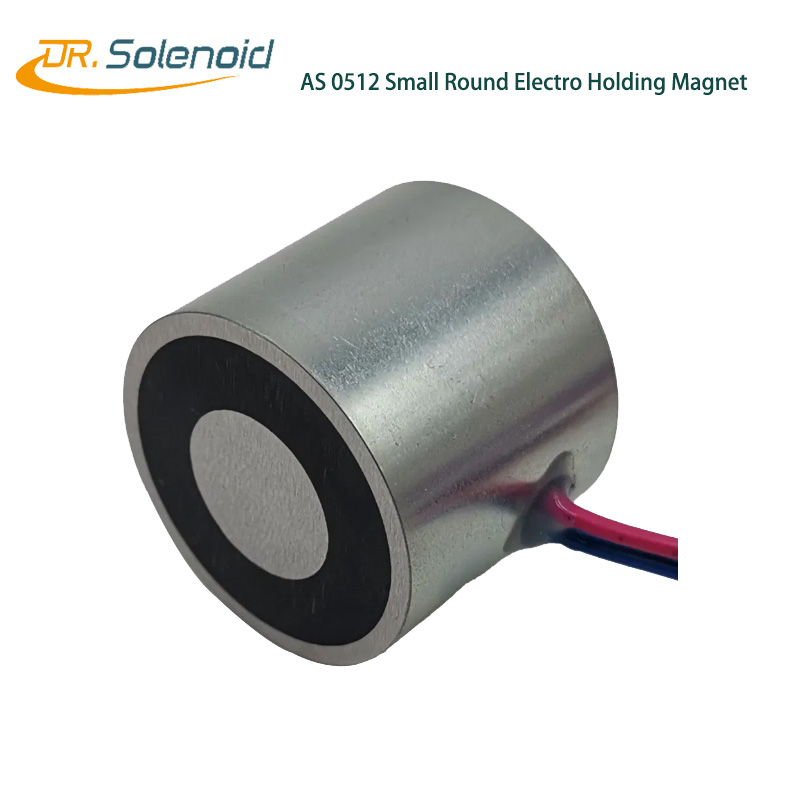

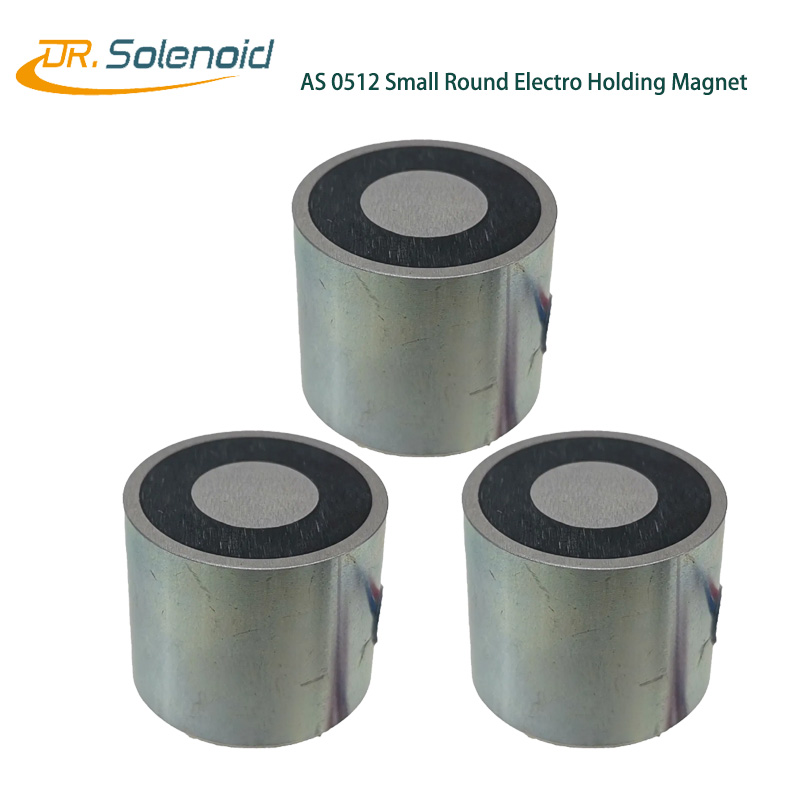

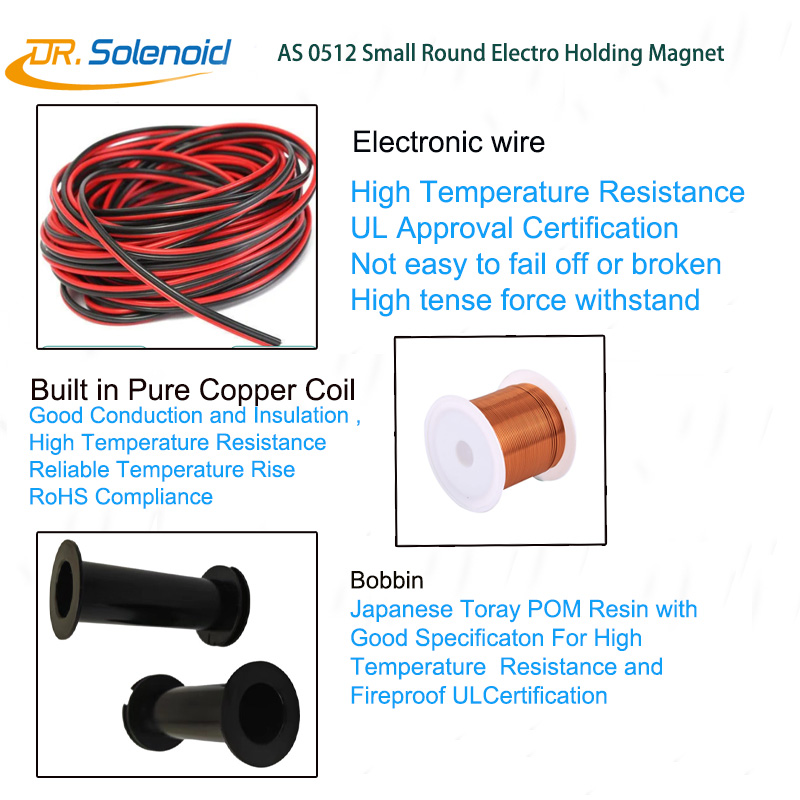

Product detail diagram
