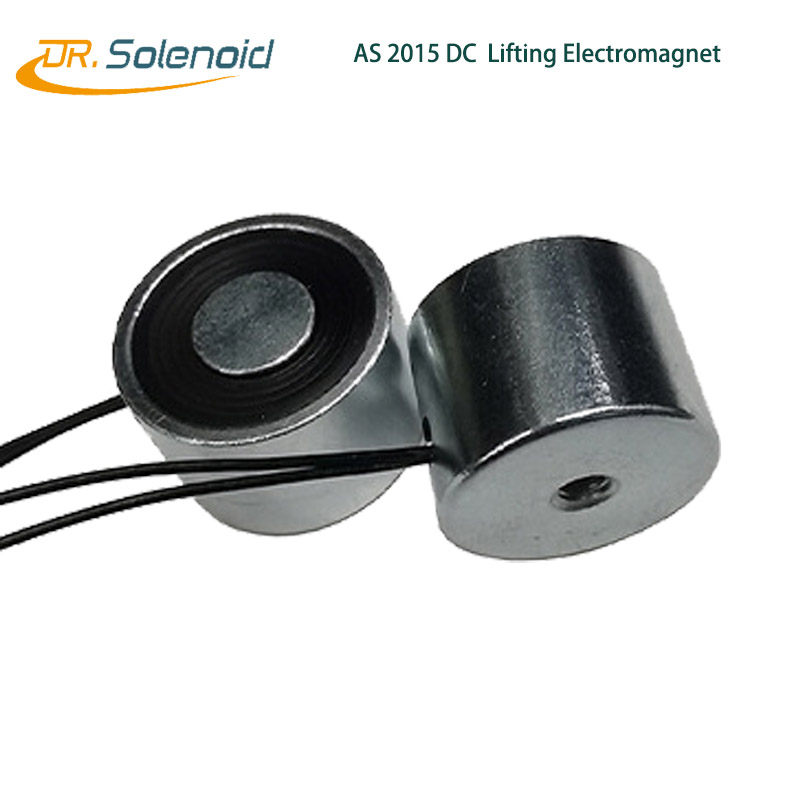

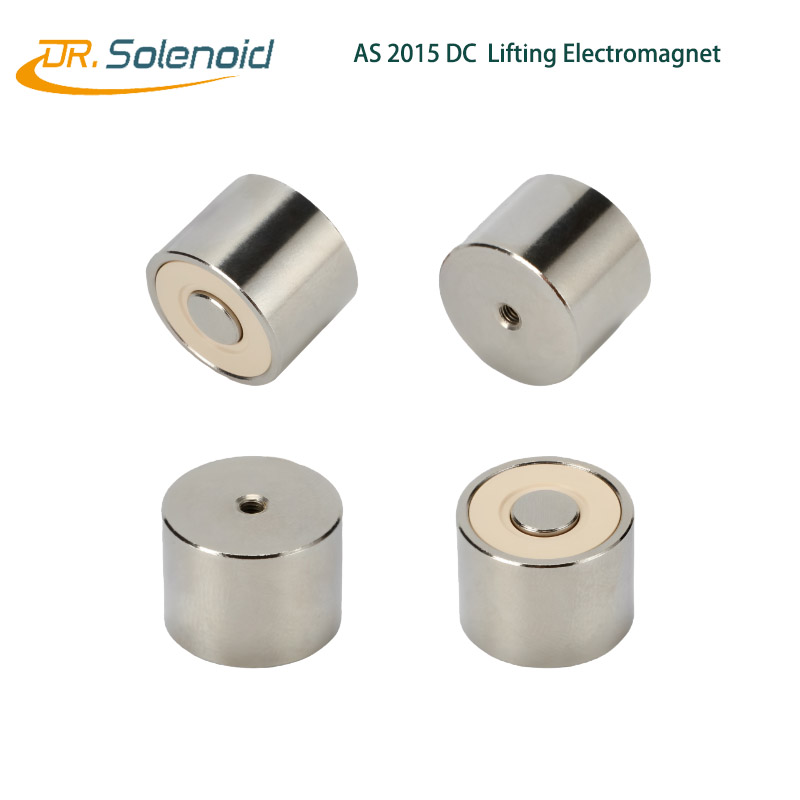

AS 2015 DC Electric Lifting Electromagnet power to hold design for automation equipment

Part 1 ： The structure of 2015 DC Lifting electromagnet
1.1： Iron core: usually located in the middle of the coil, it is an important part of the electromagnet to generate magnetic force. It is made of soft magnetic materials and can be
magnetized to enhance the magnetic field when powered on.

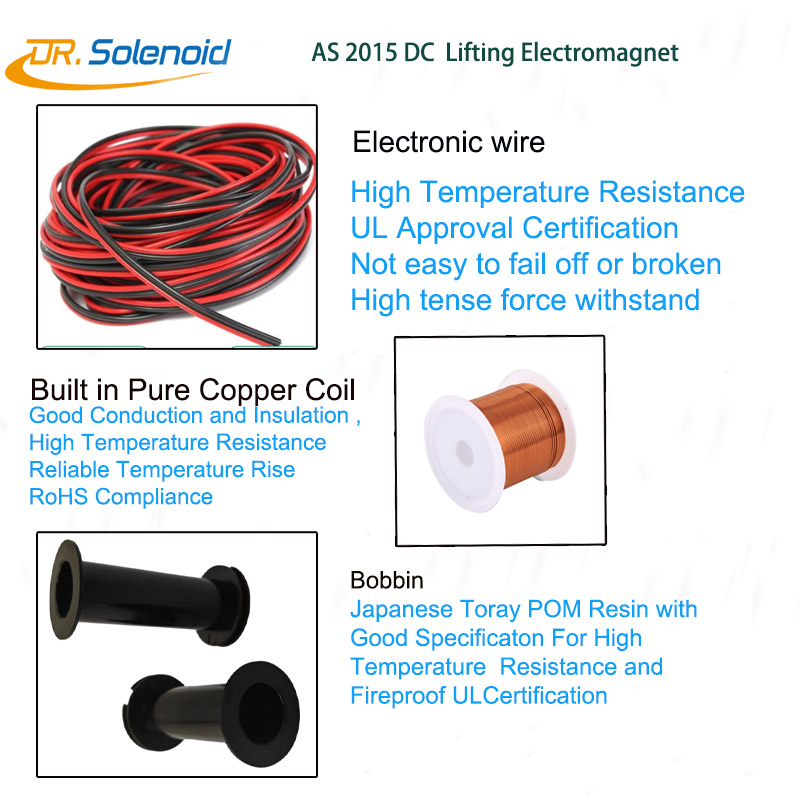

1.2：Solenoid Coil: it is made of copper wire, it is the source of the magnetic field. When DC current is passed through, a magnetic field will be generated around it. The larger the
current and the more turns of the coil, the stronger the magnetic field.
1.3: Panel: it is usually made of magnetic conductive material, located on the adsorption surface of the electromagnet, it can guide the magnetic lines to be concentrated, making
the adsorption force more concentrated and effective, and increasing the suction force on the workpiece.
1.4 Bottom housing: it is the role of supporting and protecting the internal iron core, solenoid coil and other components. It is generally made of solid materials such as carbon
steel plates to ensure the overall structural strength of the electromagnet.
1.5 Electric wire: it is used to connect an external power supply, input current to the solenoid coil, and enable the electromagnet to work normally.
Part 2 : Working Principle
Based on the principle of electromagnetic induction, when current passes through the solenoid coil of the suction cup electromagnet, a magnetic field is generated around the solenoid coil, which magnetizes the iron core, and the magnetized iron core further enhances the magnetic field strength. At this time, if a magnetic workpiece approaches the panel of the suction cup electromagnet, the workpiece will be tightly sucked under the action of the magnetic field force. When the current of the coil is cut off, the magnetic field disappears quickly, the magnetism of the iron core also disappears, the workpiece loses suction and separates from the suction cup, thus achieving demagnetization.

product details

Product Description

Brand	Dr. Solenoid	Model Number	AS 2015
Rated Voltage (V)	DC 12V	Rated Power(W)	2-3 W
Work Model	Holding Suction	Attraction Force	20 GF
Stroke(mm)	Customized	Reset Time(s)	1 S
Service Life	500 Thousand Times	Certification	CE,ROHS,ISO9001,
Material	Carbon Steel House with Zinc Coating	Lead Wire Length(mm)	200
Install Style	screw	Tolerance of Dimension	+/- 0.1 MM
Water-proof	yes	Insulation Class	F 155 Degree
Hi-Pot Test	AC 600V 50/60Hz 2s	Resistance	89 ohm
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 PCS	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

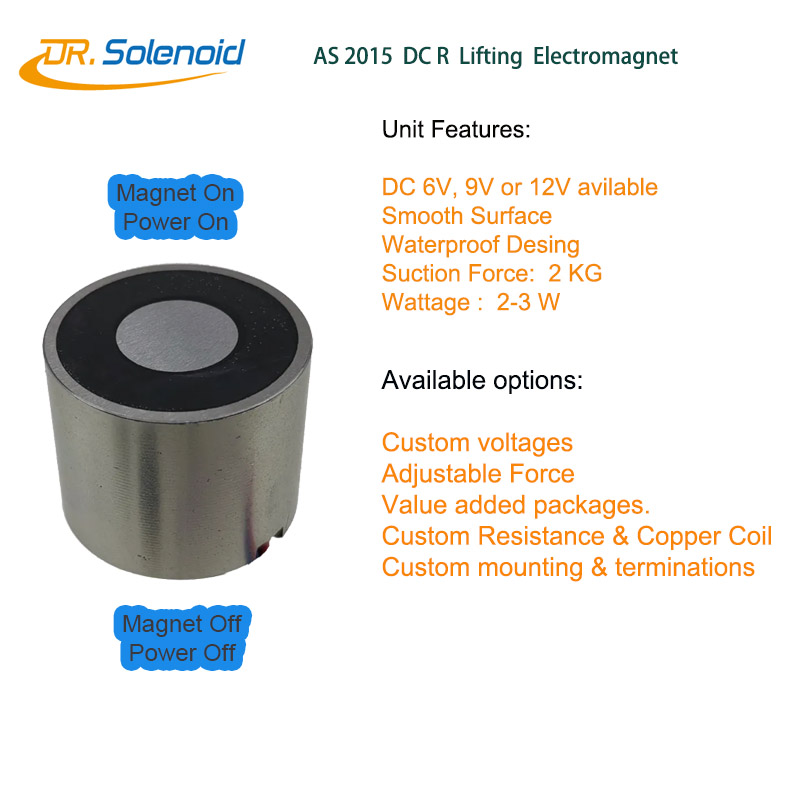

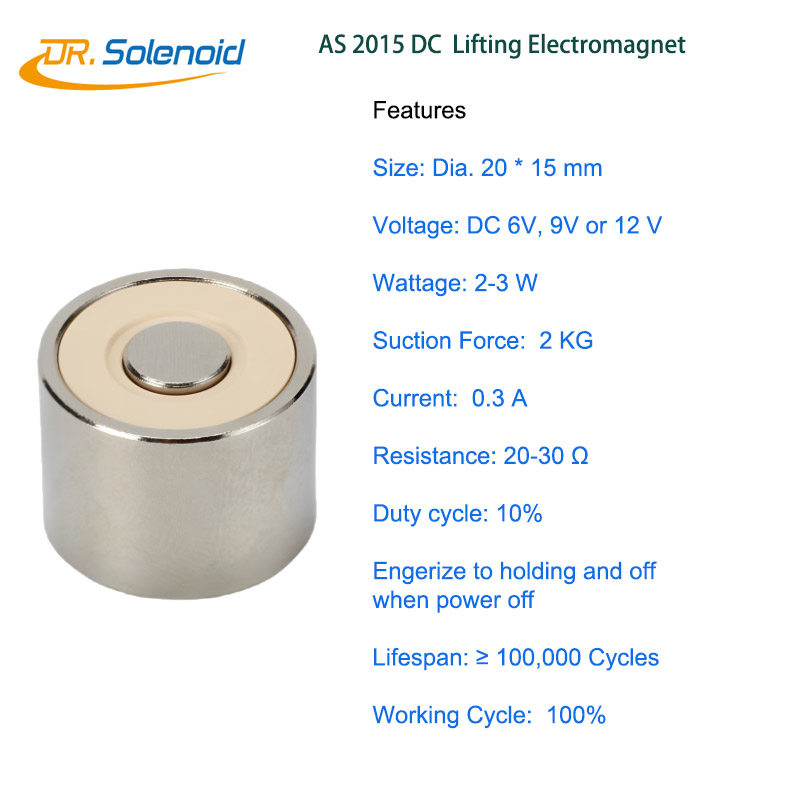

Part 1 ：Product Feautres:

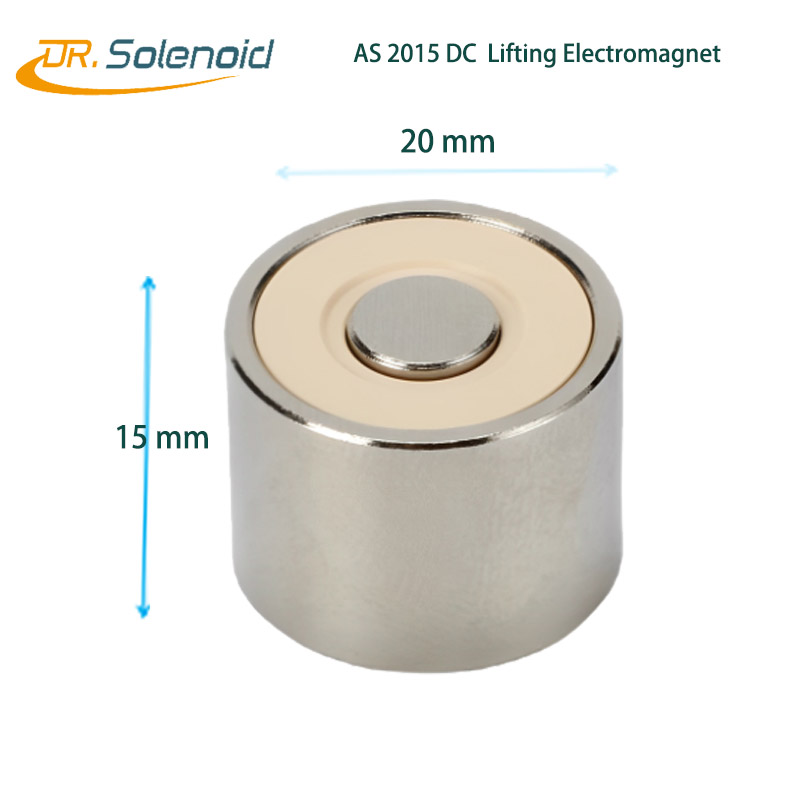

Unit Dimension: Diameter 20, High 15 Mm ;

· Powerful and compact Design

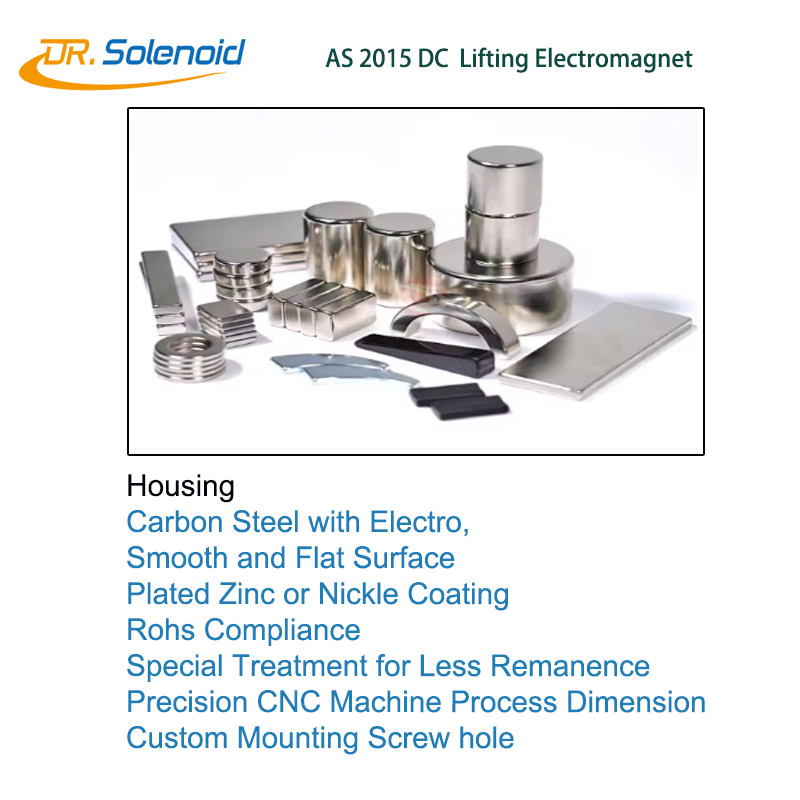

· Housing Material: Good Carbon Steel with Zinc or Nickle coating. Smooth surface and Rohs Compliance

· Input Voltage: DC 12 V

· Peak Force:20N

· Holding Force: 18N

· Duty-cycle: 50%;

· Electric time: Less than 7 minutes ;

Part 2 : Lifting Electromagnet Application

2.1: In the field of lifting and handling, it is used to lift and carry magnetic materials such as steel plates and iron ingots. For example, in steel mills and ports, it can effectively absorb and move heavier metal objects to improve work efficiency.

2.2 : In machine tool processing, by adsorbing the workpiece, the stability of the workpiece during the processing can be guaranteed, which is convenient for precise processing. For example, it can be used on processing equipment such as grinders and milling machines to fix small metal processing parts.

2.3: On the automated assembly line, it can be used to adsorb and sort parts of ferromagnetic materials, realize automated material transportation and parts classification, and make the production process more efficient and orderly.

2.4: In the field of electromagnetic clamps, it is a key component of the clamp, providing reliable clamping force for metal cutting, grinding and other processing operations to ensure processing accuracy.

Part 3: Common problems of suction cup electromagnets

3.1 : Insufficient suction

-Cause: The power supply voltage may be too low, resulting in a smaller current passing through the coil and a weaker magnetic field; it may also be that there is oil or impurities on the surface of the electromagnet, which affects the contact with the adsorbed object and reduces the suction. In addition, partial damage to the coil, such as a short circuit between turns, which reduces the number of coil turns and reduces the magnetic field strength, can also cause insufficient suction.

- Solution: Check the power supply voltage and restore it to normal; clean the surface of the electromagnet to ensure that the adsorption surface is clean; check the coil and repair or replace the damaged part.

3.2 over heating

- Cause: Continuous working time is too long or the working environment temperature is too high, which will cause the electromagnet to dissipate heat in time; it may also be that the resistance of the coil is too large. According to Joule's law, too much heat is generated when the current passes through.

- Solution: Arrange working time reasonably, avoid long-term uninterrupted use, and improve the ventilation conditions of the working environment; if it is a coil resistance problem, it is necessary to check whether the coil material and specifications meet the requirements, and replace the appropriate coil if necessary.

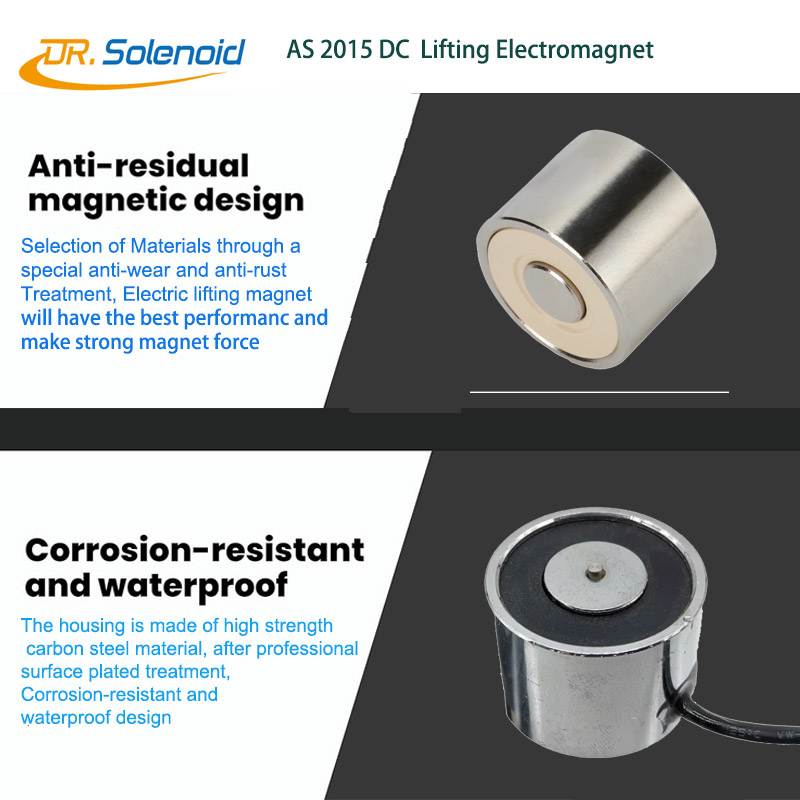

3.3 Incomplete demagnetization

- Cause: The reverse current used to eliminate residual magnetism in the circuit is set unreasonably, such as too small current or too short time; or the residual magnetism of the core material is strong, resulting in incomplete demagnetization.

- Solution: Adjust the parameters of the demagnetization circuit, such as increasing the reverse current or extending the demagnetization time; replace the core material with smaller residual magnetism.

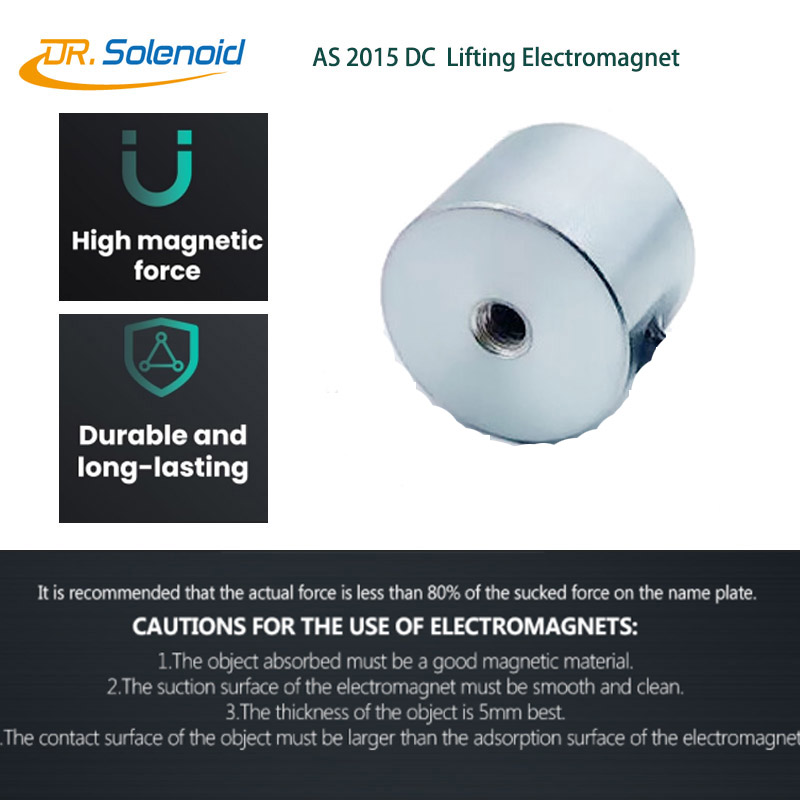

Part 4 : Caution of Using this Electromagnets

1. The relative object absorbed must be a good magnetic material
2. The suction surface of the electromagnet must be smooth and clean.
3. The thickness of the object is 5 mm at best.
4. The contact surface of the object must be larger than the adsorption surface of the electromagnet

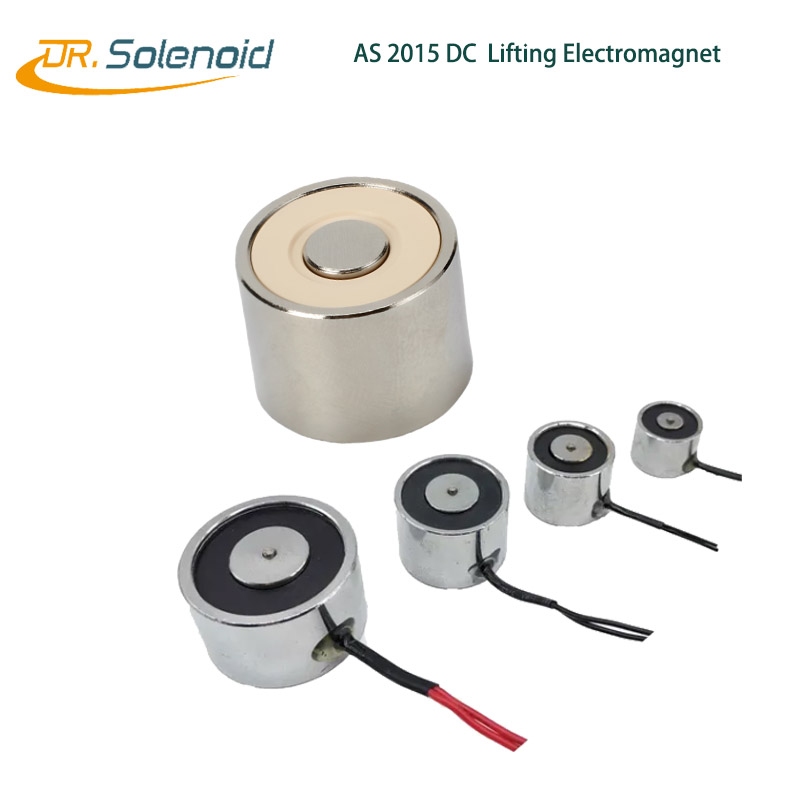

Product detail diagram

Model No	Dimension	Install Thread	Holding Force	Power	Min thickness of counter plate	Weight
AS-1010	Ø10*10	M2_6	5N	3.0W	1mm	6g
AS-1212	Ø12*12	M3_6	10N	6.0W	1mm	8g
AS-1419	Ø14*19	M3_9	30N	10W	2mm	12g
AS-1512	Ø15*12	M2_7	30N	13W	2mm	12g
AS-1515	Ø15*15	M4_8	20N	3.6	2mm	15g
AS-2023	Ø20*23	M3_5	30N	6.0W	2.5mm	37g
AS-2025	Ø20*25	M4_7	50N	4.0W	2.5mm	43g
AS-2520	Ø25*20	M4_4	60N	4.5W	3mm	75g
As-2521	Ø25*21	M4_11	120N	7.5W	3mm	78g
AS-2522	Ø25*22	M4_12	100N	7.3W	3mm	80g
AS-2529	Ø25*29	M4_14	120N	7.0W	3mm	90g
AS-2821	Ø28*21	M4_14	150N	8.0W	3mm	95g
AS-3025	Ø30*25	M4_14	200N	14.4W	3mm	104g
AS-3229	Ø32*29	M5_19	180N	14.8W	3mm	168g
AS-3333	Ø33*33	M4_14	250N	5.5W	3mm	170g
AS-3425	Ø34*25	M5_16	300N	15W	3mm	160g
AS-3529	Ø35*29	M5_19	300N	28W	3.5mm	168g
AS-4025	Ø40*25	M6_18	200N	10.5W	3mm	185g
AS-4029	Ø40*29	M6_18	400N	16W	4mm	223g
AS-5029	Ø50*29	M8_19	500N	9.6W	5mm	320g
AS-6329	Ø63*29	M8_18	960N	33W	6mm	520g
AS-7045	Ø70*45	M8_26	1200N	17.5W	8mm	900g
AS-8245	Ø82*45	M8_25	1950N	43W	10mm	1400g
AS-15063	Ø150*63	M16_16	3500N	60W	15mm	6500g

Q: Are you a trading company or a solenoid manufacturer? And where is your factory location?
A: We are a professional solenoid and solenoid valve manufacturer. Our factory is located in Dongguan City, 2 hours from Hong Kong Airport by car.

Q: What kind of the service does your company offer ？

A：We are a professional solenoid and solenoid valves solution manfaucturers since 2007, our factory have metal stamping workshop, mould and dia workship under same room, CNC workshop, Testing laboratory, R & D team and assembling production line, we can offer you the one stop service from drawing design, working sample, moulding and validation , assembling and exporting service.

Q: How to choose a suitable electromagnet for your project?
A: Please let us the electromagnet parameter you need :

DC voltage(DC/AC) source, current, resistance,

Act form: when the energized to hold or the energized to release?
Holding force(Kg/N)?
Shape dimension (circular or rectangular),
Dimension limited (diameter and height).
Duty working cycle,
Electronic wire length and connector,
Waterproof? Yes/No need
Residual force(Kg/N)?
-------------------------------
For example: You can say I want purchase electromagnet as below:
  Circular Permanent Electromagnet,
Action Form: Energized to release
Force: 40Kg/400N
Size:     Ø40 x H29
Voltage:       DC 12V
Power:        16 W
Duty Cycle: 10%(For each cycle: Max. Energized time 3s, de-energize

time 60s)
Lead Wire: Bottom edge out 25cm with XH2.54 male connector.
Waterproof: Yes.
Install Thread size: M6
---------------------------------------
