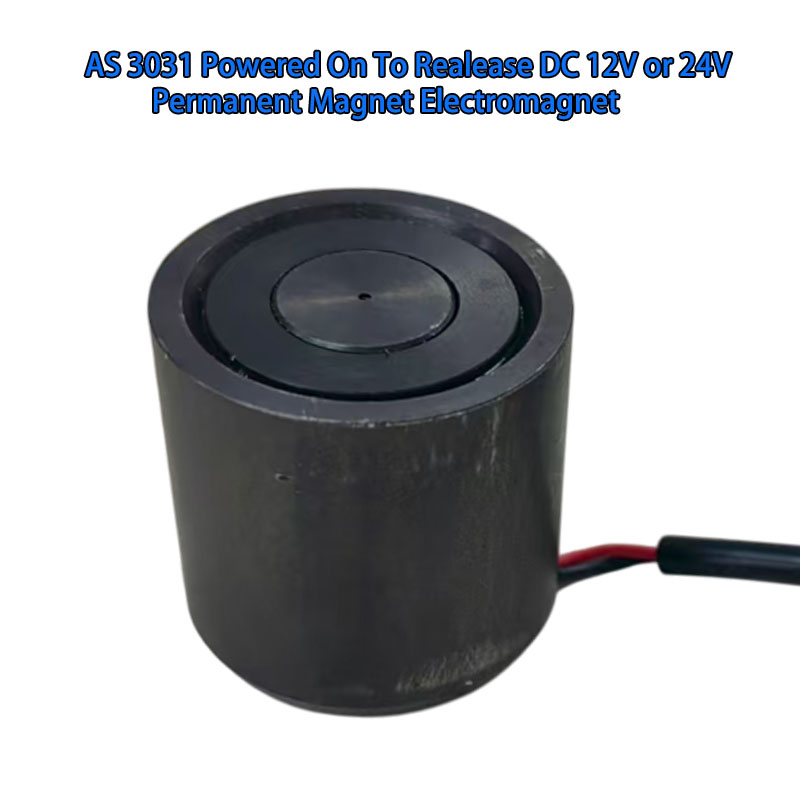

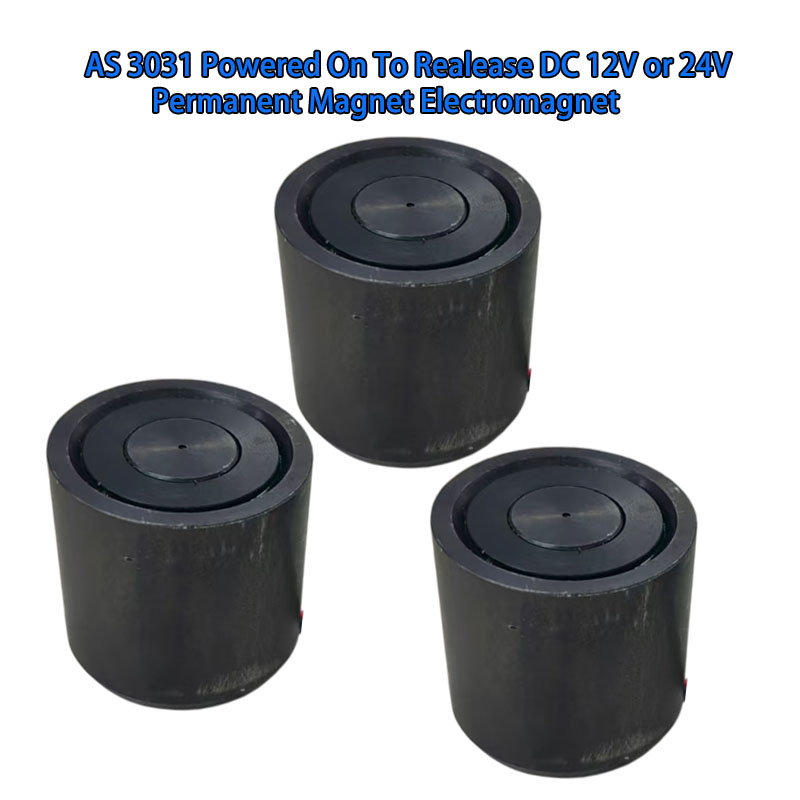

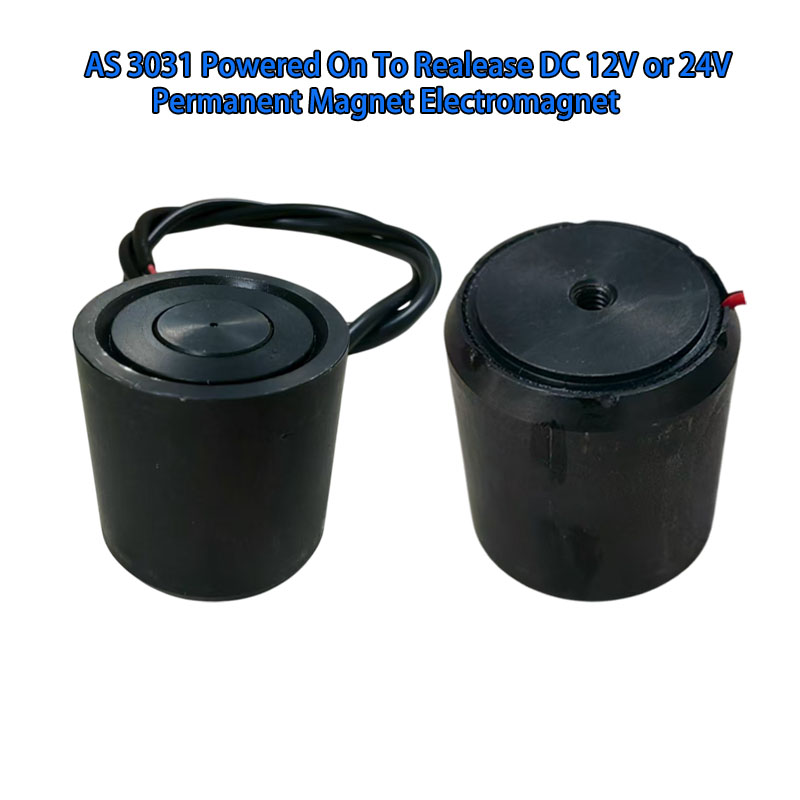

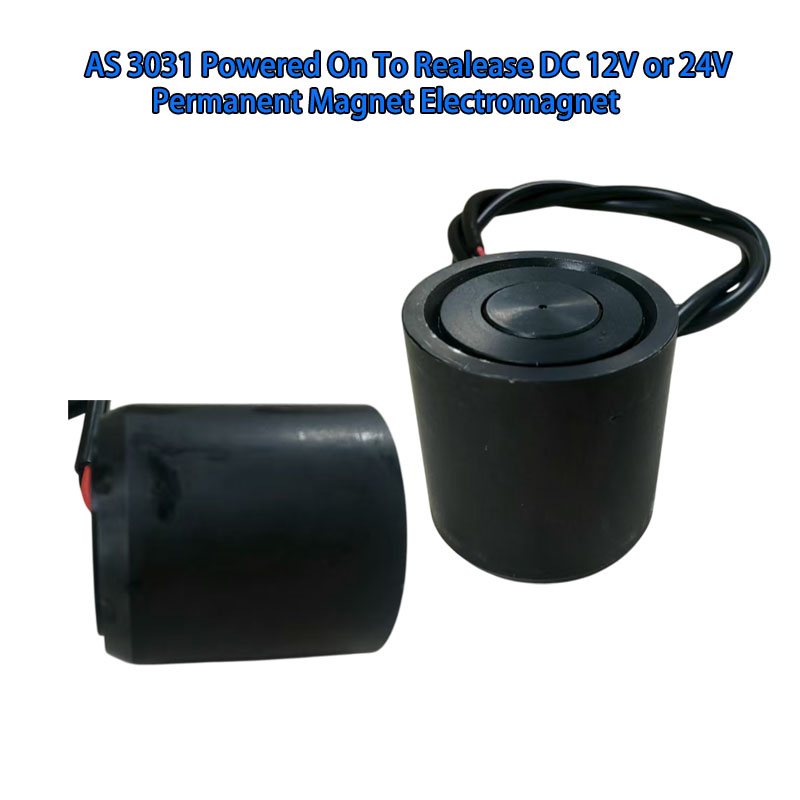

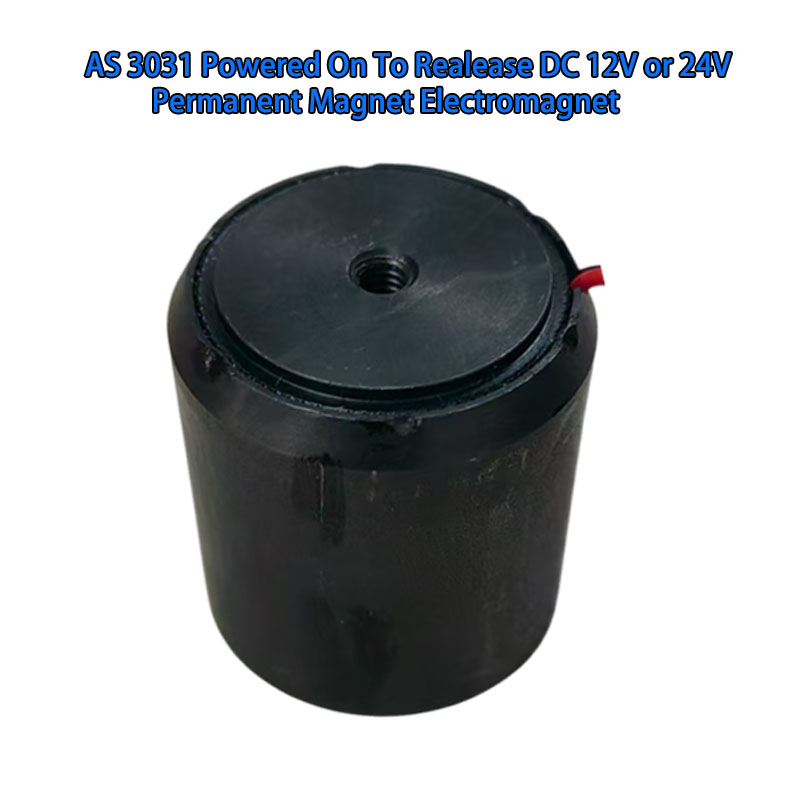

AS 3031 Powered on to release DC 12V or 24V Permanet magnet electrmanget
Product Description
| Brand | Dr. Solenoid | Model Number | AS 3031 |
| Rated Voltage (V) | DC 12V, 18V and 24V | Rated Power(W) | 3-5 W |
| Work Mode: | Power on, Magnet off | Holding Force (N) | 130 N |
| working duty | 10% | Resistance | 32 Ω |
| Service Life | 100 Thousand Times | Certification | CE,ROHS,ISO9001, |

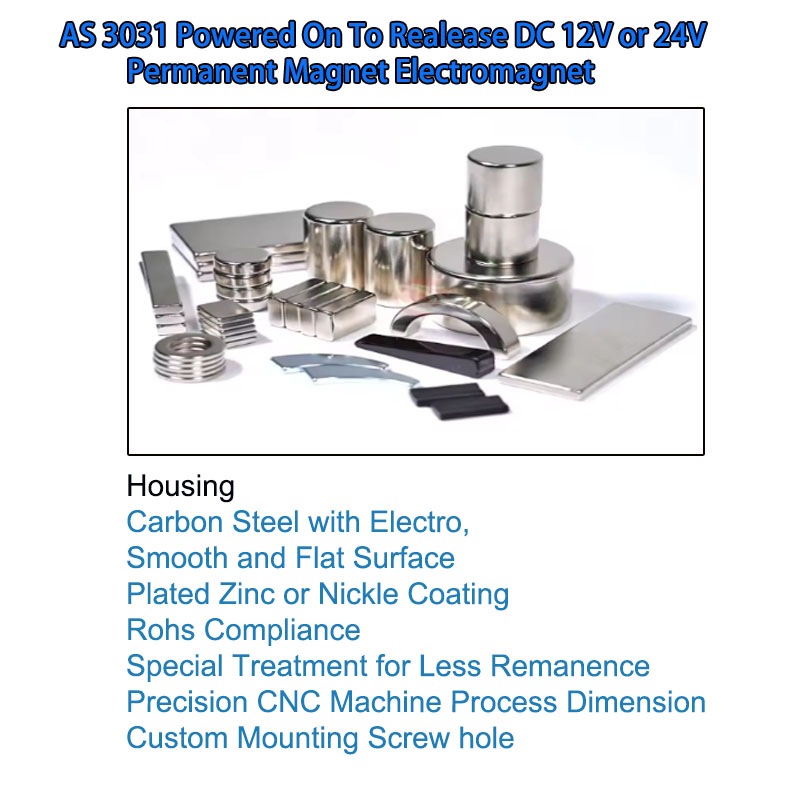

| Material | Superior Magnet Carbon Steel Housing | Lead Wire Length(mm) | 200 MM |
| Install Style | Screw Hole | Tolerance of Dimension | +/- 0.1 MM |
| Water-proof | None | Insulation Class | B |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Non-excitation Holding Force | 0 |
| Working Temperature | -10°C-100°C | Duty Cycle | 1-100% |
| Thread Depth(mm) | / | Payment Term | TT, or LC At Sight |
| Sample Order | Yes | Warranty | 1 Year |
| MOQ | 1000 pcs | Supply Ability | 5000 pcs per Week |
| Delivery Time | 30 Days | Port of Loading | shenzhen |

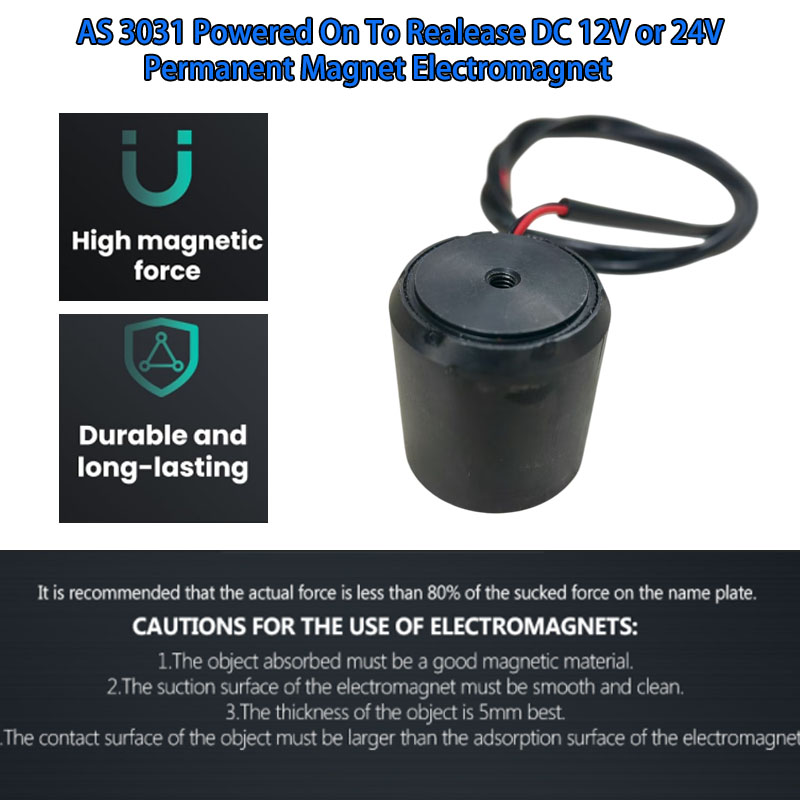

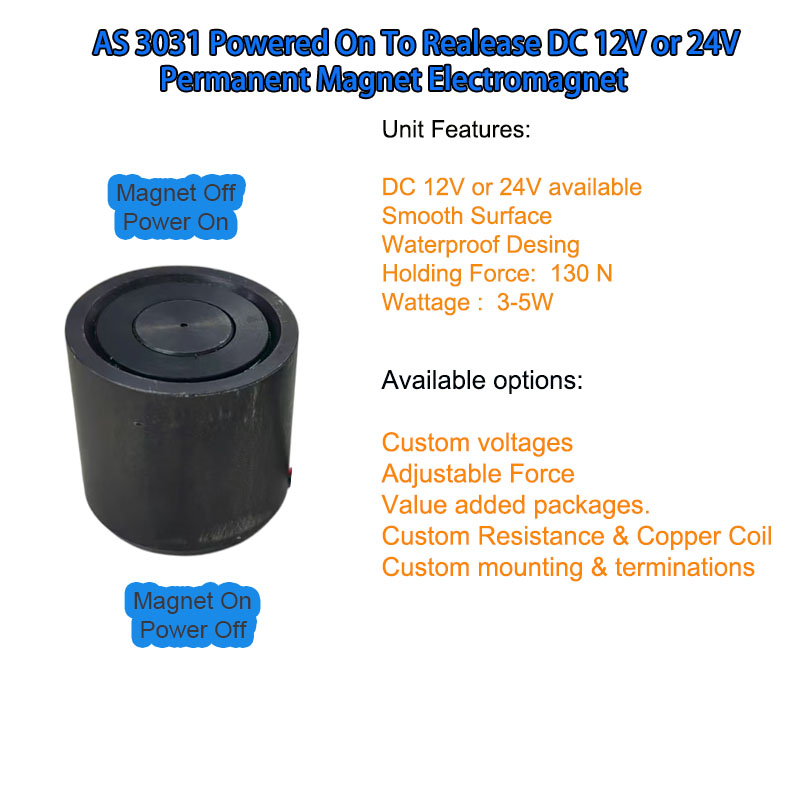

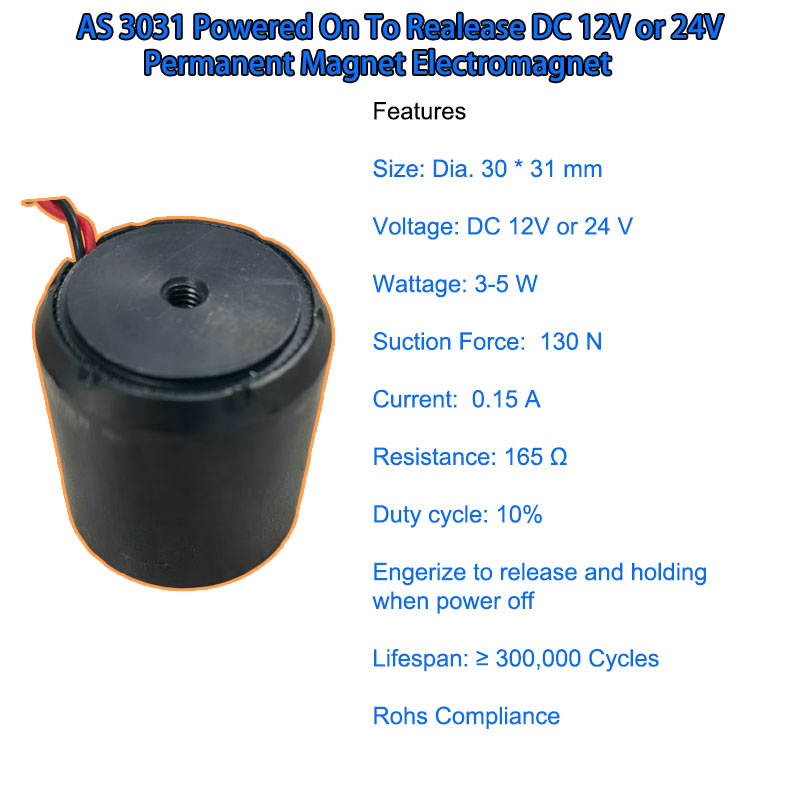

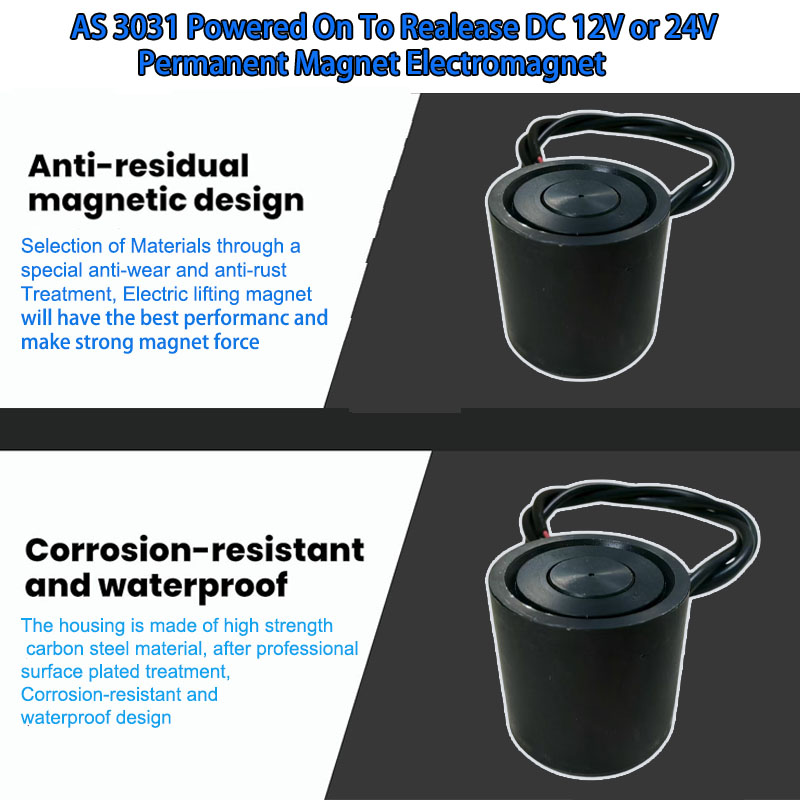

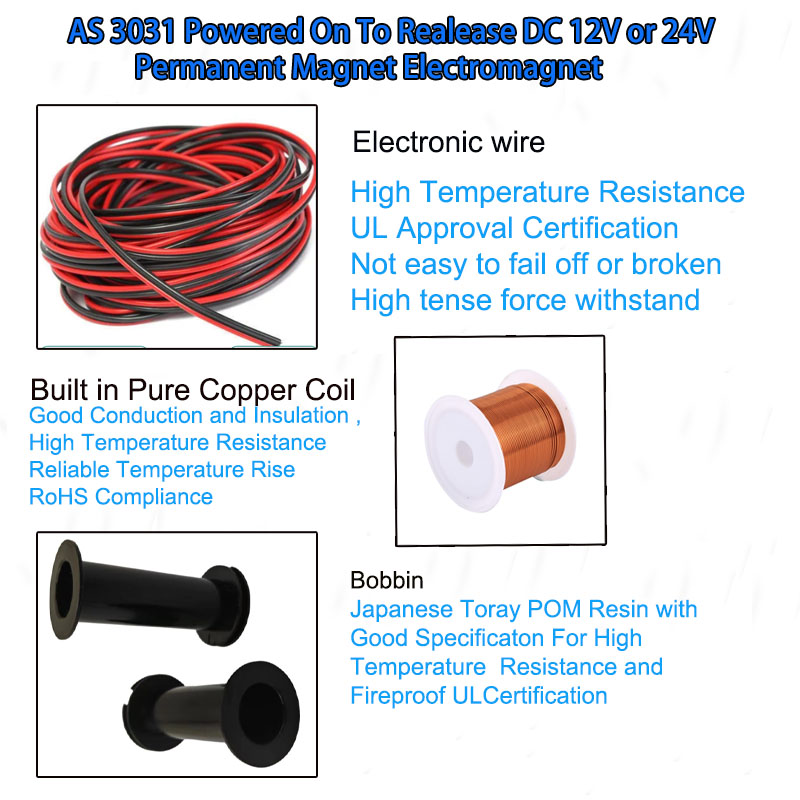

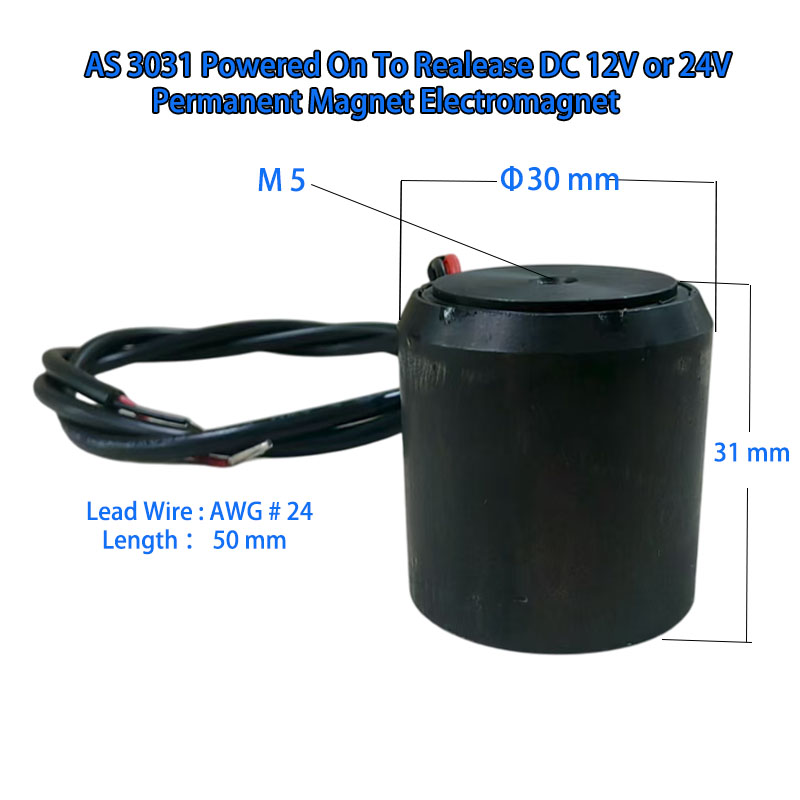

Product detail diagram
Energise-to-Release Permanent Electro Holding Magnets
Our Permanent Electro Holding Magnets combine the advantages of both permanent magnets and electromagnets. They consist of a permanent magnet encapsulated in a magnetic housing, with an excitation coil wound between the magnet and the housing.
Unlike standard electromagnets, this design ensures that the magnetic circuit is open in the “off” state, which allows the permanent magnet to provide holding force without the need for continuous current. This feature makes them particularly safe and reliable for holding workpieces, doors, or other components in the event of a power failure, or whenever long-term holding is required.
When a DC current is applied to the coil, the magnetic field of the permanent magnet is neutralized. As a result, the held part can be released with minimal effort. However, it’s important to note that some residual holding force may remain, unlike in conventional electromagnets, and this should be considered in the overall system design.
Because they require only a short pulse of current to switch states, these Permanent Electro Holding Magnets are highly energy-efficient and well-suited for applications demanding both reliability and low power consumption.
If you don’t see the exact size, shape, or performance specification you need, please contact us—our engineering team can design a custom solution to meet your requirements.
Compared to permanent magnets, electromagnets offer key advantages:
Adjustable strength.
Instant on/off capability.
High versatility for precise applications.
Applications of Electromagnets
Thanks to their controllable properties, electromagnets are widely used across industries:
Industrial automation & robotics: For actuators, locks, and motion control.
Lifting and material handling: Adjustable strength ensures precision and safety.
Magnetic separation: Separating metals in recycling and processing.
Scientific equipment: For experiments requiring controlled magnetic fields.
Their instant activation/deactivation makes them critical for systems needing on-demand magnetic control.
Why Choose Dr. Solenoid?
Dr. Solenoid is a professional manufacturer of solenoids, solenoid valves, and electromagnets, offering high-performance, durable, and precise products. Their range includes:
DC Solenoids,
Solenoid Valves,
Linear Push-pull solenoids,
Standard and high-power electromagnets
Power-on-to-hold electromagnets,
Custom-designed magnet solutions,
Their technical sales team assists with selecting the right type for specific applications. Contact via email or video meeting for tailored solutions.
In summary, the text highlights electromagnets’ versatility and promotes Dr. Solenoid as a provider of specialized electromagnetic products.
