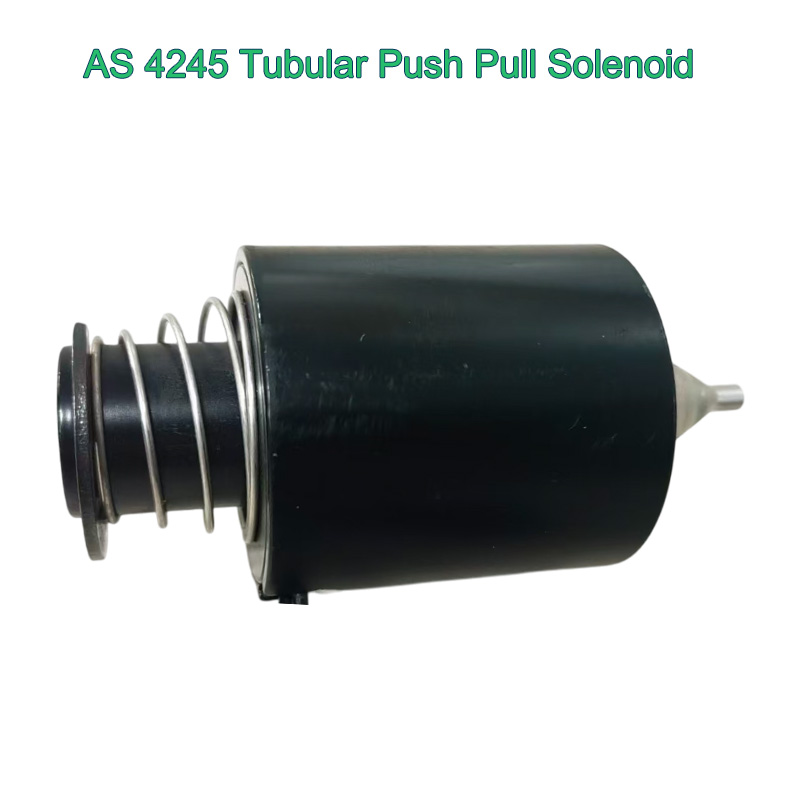

AS 4245 Tubular Push PUll Solenoid 1.jpg

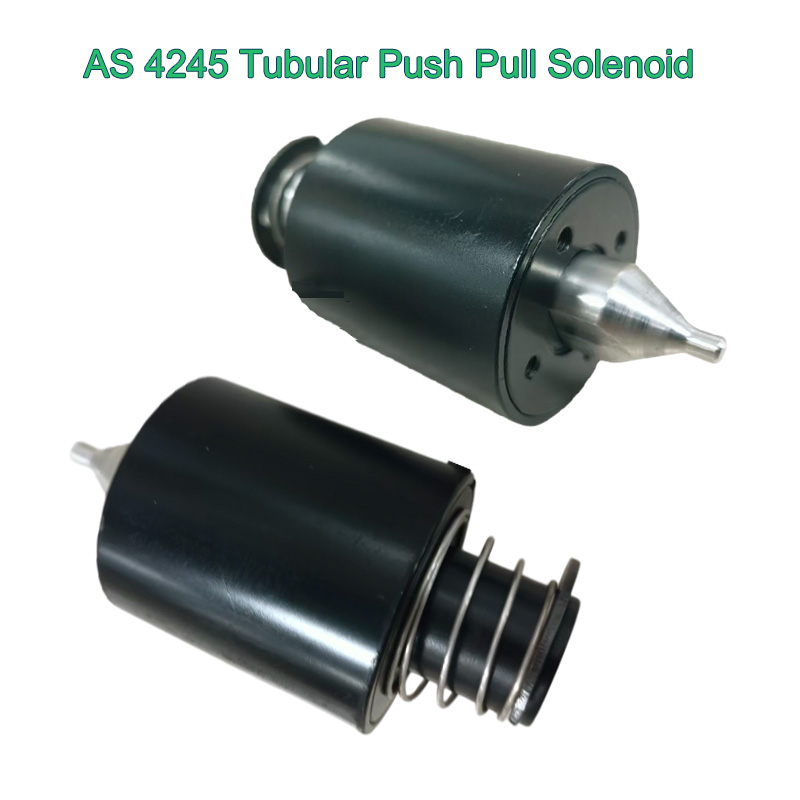

AS 4245 Tubular Push PUll Solenoid 2.jpg

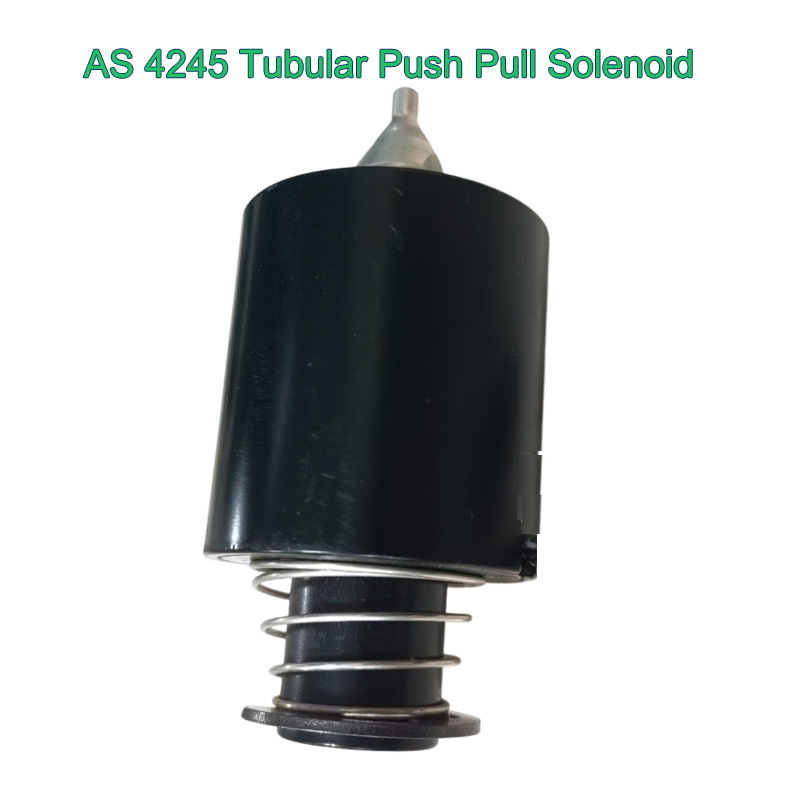

AS 4245 Tubular Push PUll Solenoid 3.jpg

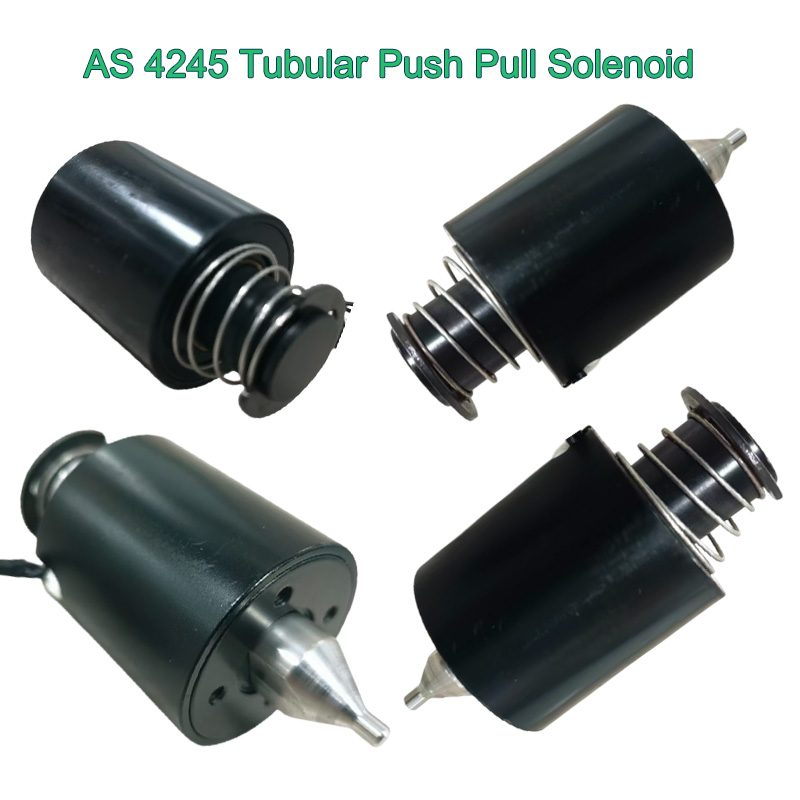

AS 4245 Tubular Push PUll Solenoid 4.jpg

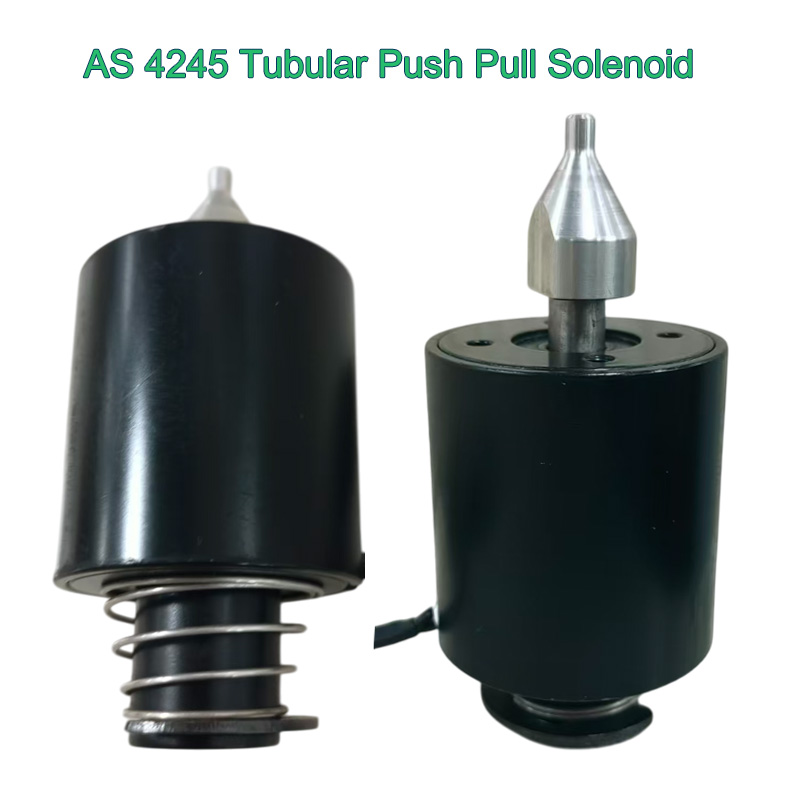

AS 4245 Tubular Push PUll Solenoid 5.jpg

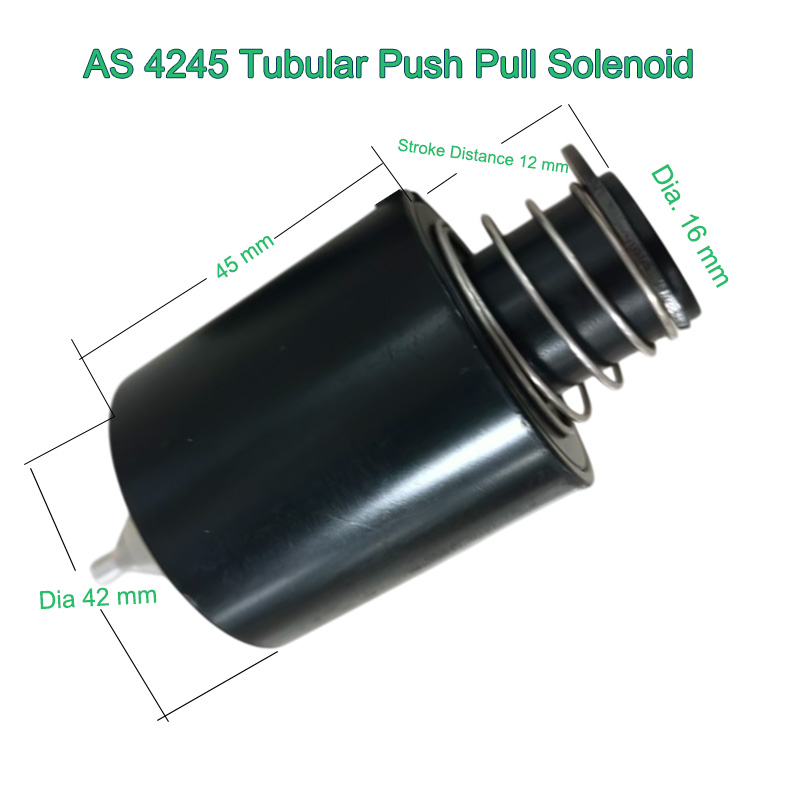

AS 4245 Tubular Push PUll Solenoid 6.jpg

As 4245 Tubular Push Pull Solenoid mechanical actuator

SUPER STROKE TUBULAR SOLENOID FOR SEMI PROPORTIONAL CONTROL (SS)

The Super-Stroke-Tubular-Solenoids are linear solenoids with a super flat characteristics of force to stroke for a quite long part of their stroke; this allows them to be used as cost effective electrical linear cylinders for many applications requiring proportional control; they can be used as a replacement for many pneumatic cylinder. Another positive feature of the Super-Stroke-Tubular-Solenoids is controllable impact force. The advantage of the Super-Stroke-Tubular-Solenoids as a miniature electrical cylinder for e.g. 12V oder 24V over linear pneumatic cylinder is the quiet operation and the easy installation because they don't need any air supply.

The principal data of our Super-Stroke-Tubular-Solenoids:

  • stroke up to 12 mm (depending on type)
  • opmtimized for long stroke
  • holding force up to 30 N (in end position, energized)
  • high life time: up to >30 million cycles
  • low noise (quiet operation)
  • controllable impact
  • standard sizes from 15 mm to 158mm diameter
    Contact us Download
    product details

    Product Description

    Brand Dr. Solenoid Model Number AS 4245
    Rated Voltage (V) DC 24 V  Rated Power(W) 145 W
    Work Model  1 Million Lifespan Cycles Holding Force (N)  30N
    Stroke(mm) 8-12 MM  Reset Time(s) 1 S 3S Off
    Service Life 300 Thousand Times Certification CE,ROHS,ISO9001,
    Material Carbon Steel Housing with Zinc Plated Coating Lead Wire Length(mm) 200
    Install Style both side with three mounted Screw Holes for easy setting up Tolerance of Dimension  +/-  0.1 MM
    Water-proof  None Insulation Class F  Cel.  150 Degree
    Hi-Pot Test AC 600V 50/60Hz 1 s Non-excitation Holding Force 0
    Working Temperature -10°C-100°C Duty Cycle 1-100%
    Thread Depth(mm) / Payment Term TT, or LC At Sight
    Sample Order Yes Warranty 1 Year
    MOQ 500 pcs Supply Ability 5000 pcs per Week
    Delivery Time 30 Days Port of Loading shenzhen

    Product detail diagram

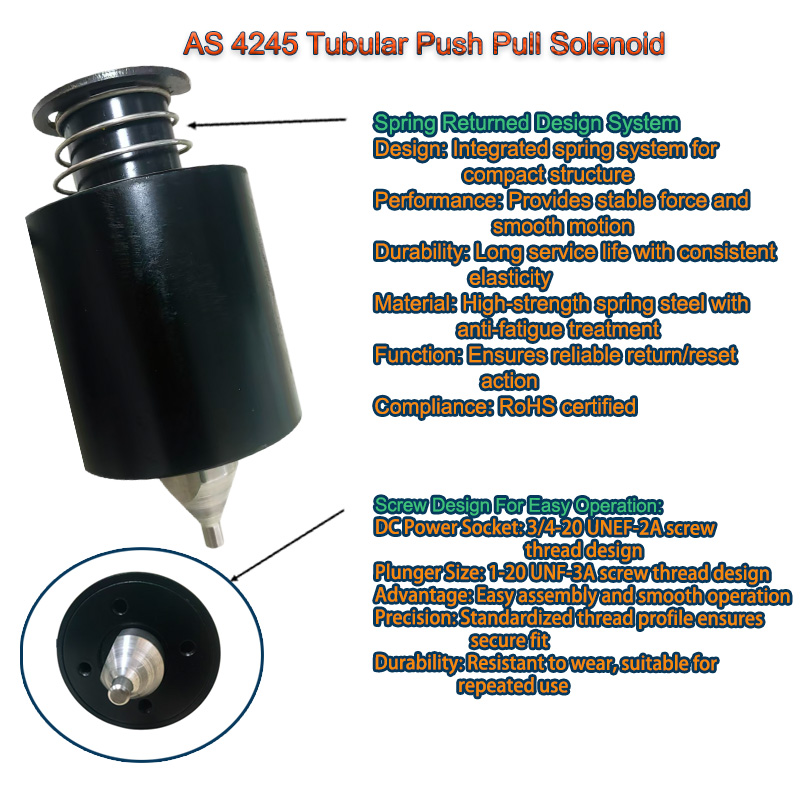

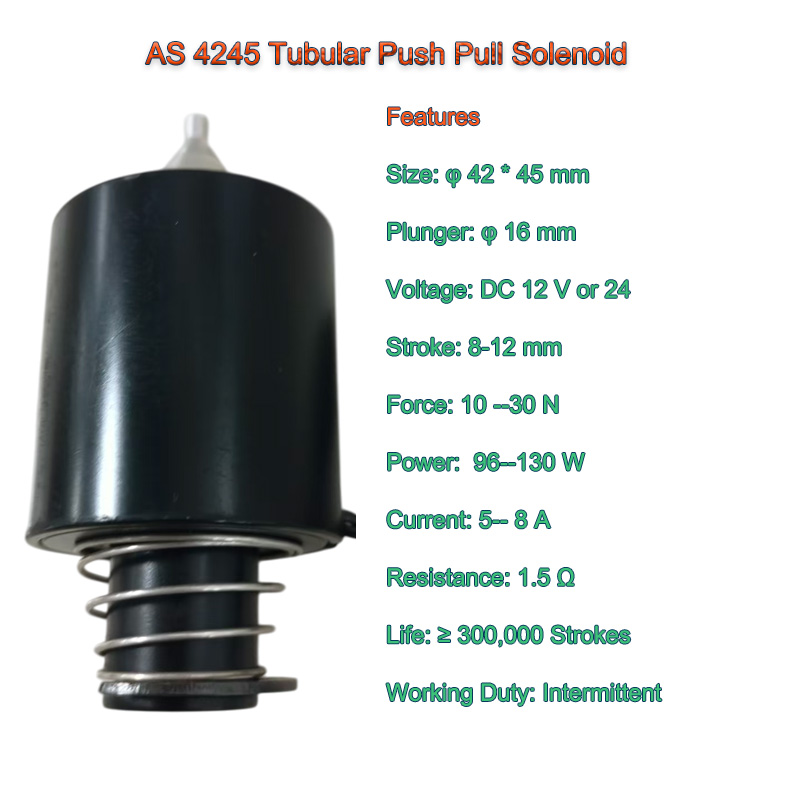

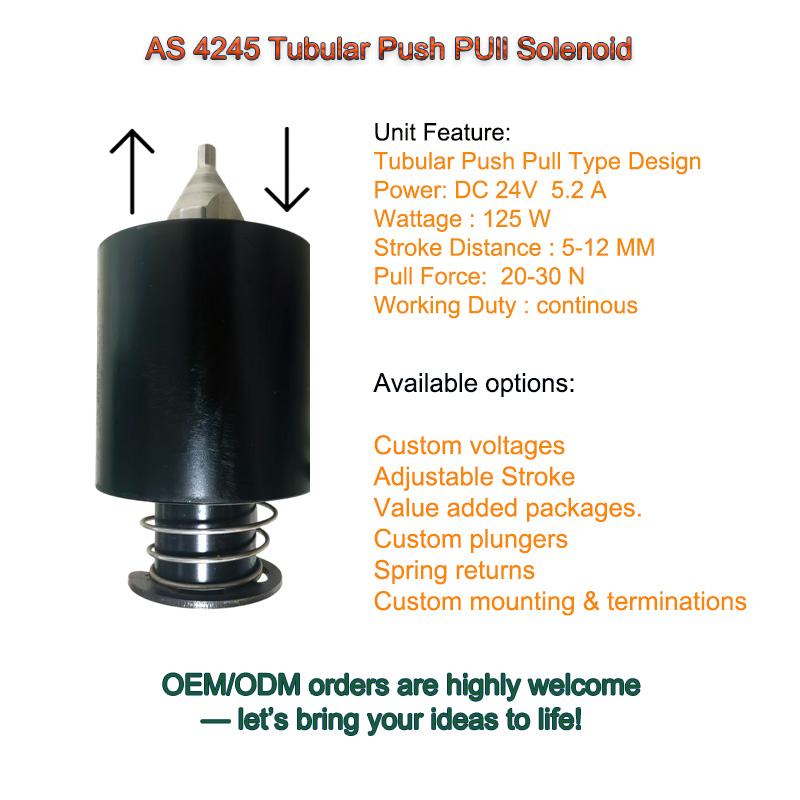

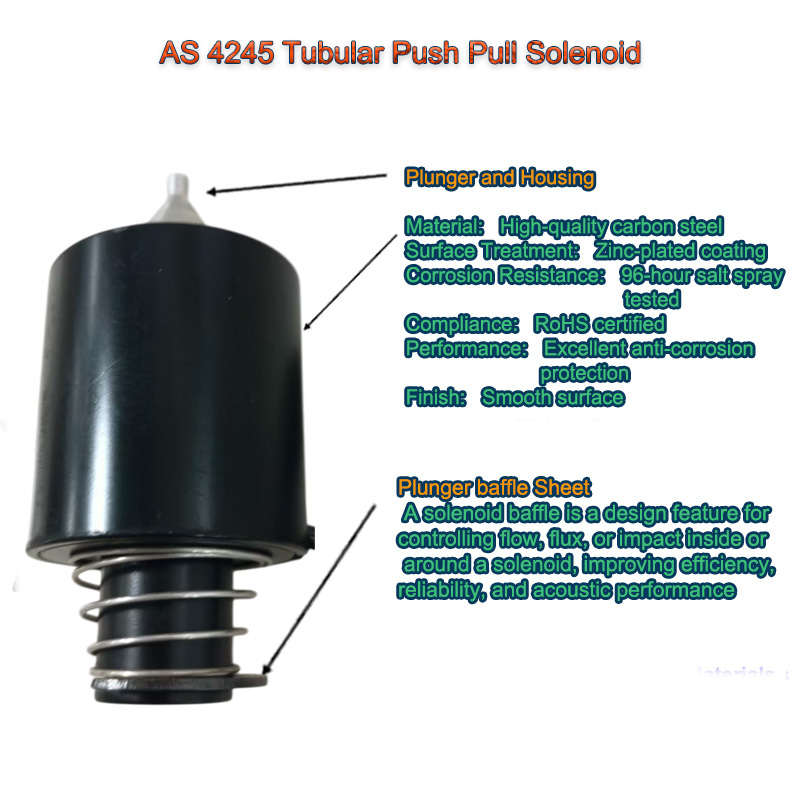

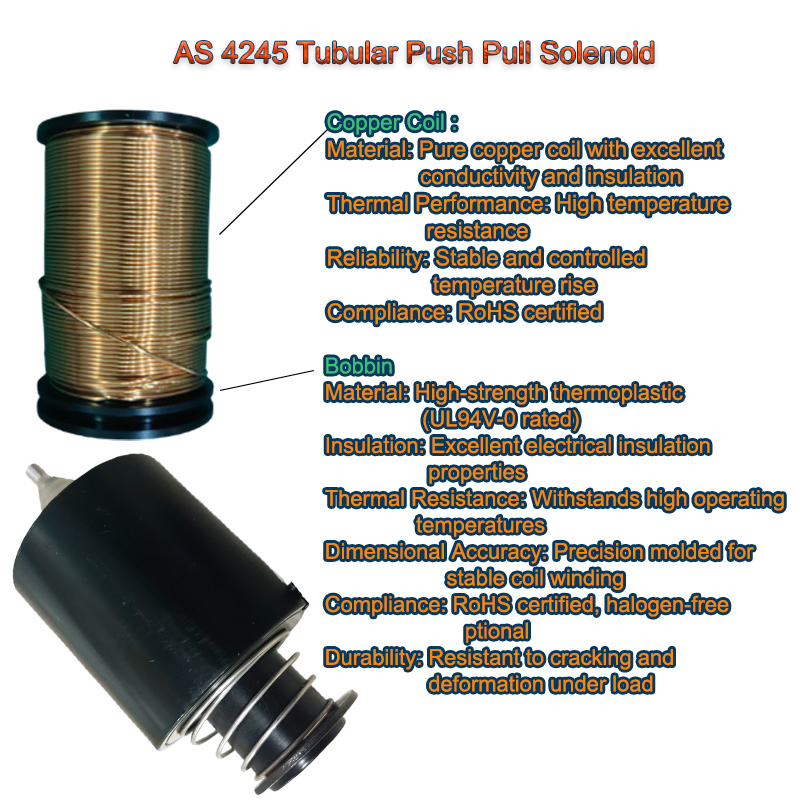

    AS 4245 Tubular Push Pull Solenoid 1As 4245 Tubular Push Pull Solenoid mechanical actuator D 2how does a Push Pull Tubualr solenoid actuator work D 3As 4245 Tubular Push Pull Solenoid mechanical actuator D4As 4245 tubular Push Pull Solenoid mechanical actuator D5As 424 Tubual Push Pull Solenoid mechanical actuator D66-1r457-1oac8-2hyd12-faq-lk0
