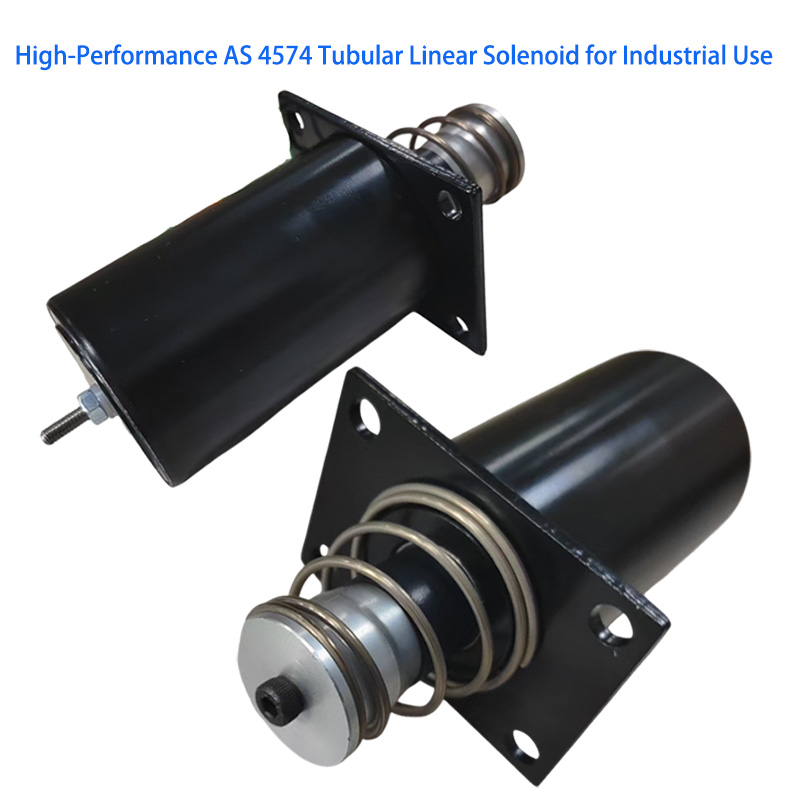

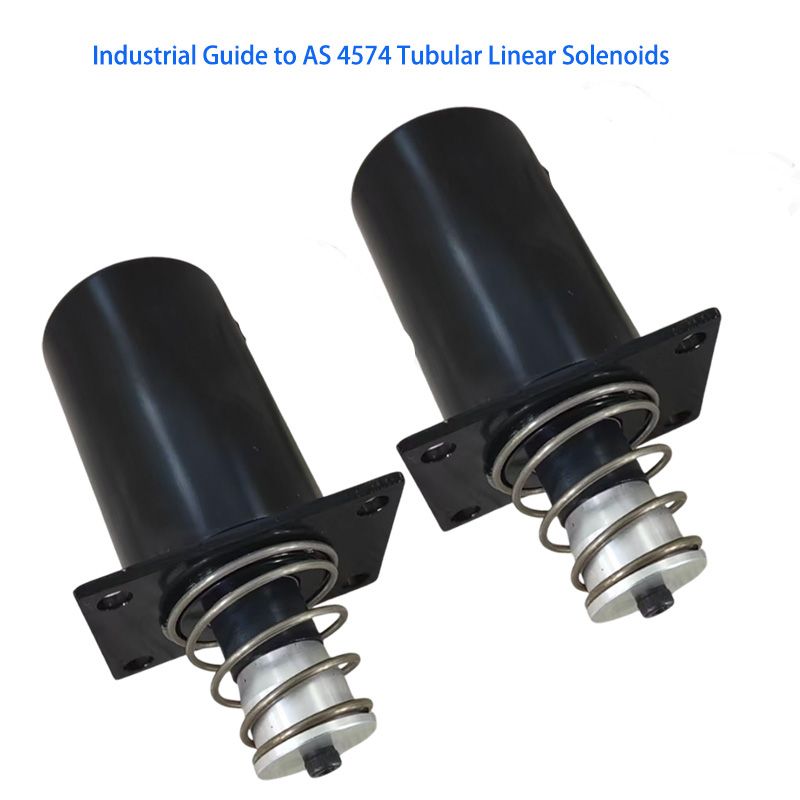

AS 4574 Tubular Linear Solenoid for Industrial Motion Solutions
Product Description
| Brand | Dr. Solenoid | Model Number | AS 4574 |
| Rated Voltage (V) | DC 12V, 18V and 24V | Rated Power(W) | 20 W |
| Work Model | Push and Pull Linear Type | Holding Force (N) | 3-5 N |
| Stroke(mm) | Customized | Reset Time(s) | 1 S |
| Service Life | 500 Thousand Times | Certification | CE,ROHS,ISO9001, |
| Material | Carbon Steel | Lead Wire Length(mm) | 200 |
| Install Style | screw | Tolerance of Dimension | +/- 0.1 MM |
| Water-proof | None | Insulation Class | B |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Non-excitation Holding Force | 0 |
| Working Temperature | -10°C-100°C | Duty Cycle | 1-100% |
| Thread Depth(mm) | / | Payment Term | TT, or LC At Sight |
| Sample Order | Yes | Warranty | 1 Year |
| MOQ | 1000 PCS | Supply Ability | 5000 pcs per Week |
| Delivery Time | 30 Days | Port of Loading | shenzhen |

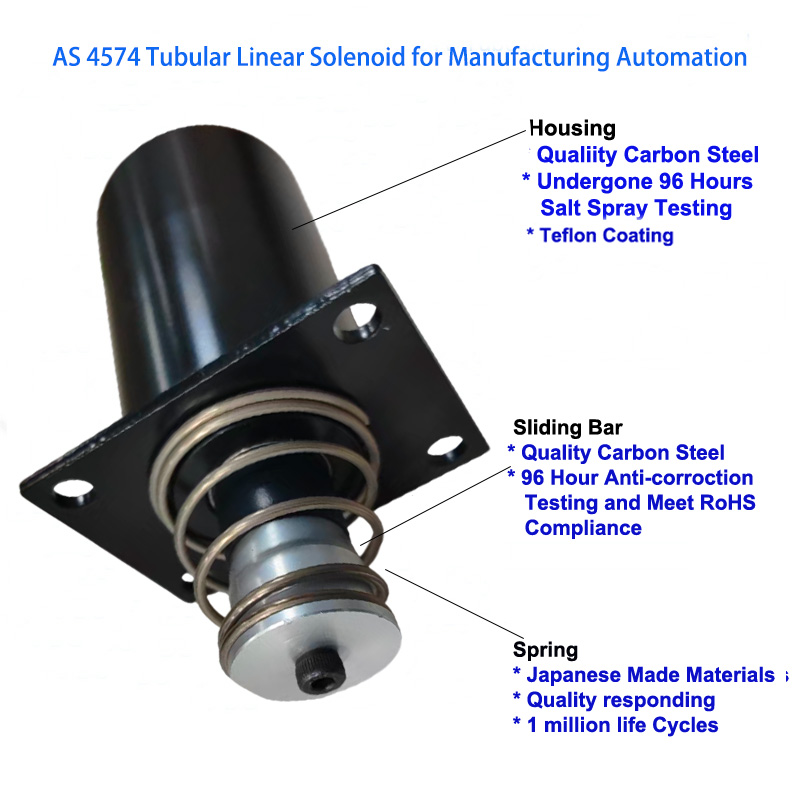

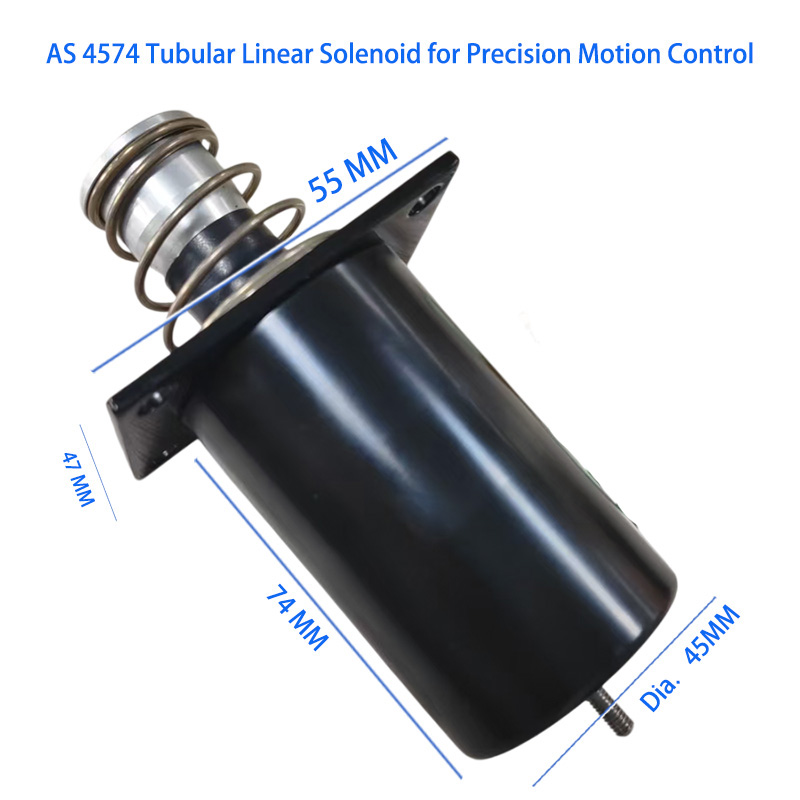

Product detail diagram
FAQ — AS 4574 Tubular Linear Solenoid
1. What's the primary job of the AS 4574 tubular linear solenoid?
It's designed to transform electrical energy into linear motion, which then controls mechanical actions like pushing, pulling, lifting, or locking within industrial machinery.
2. Where is the AS 4574 tubular solenoid typically found?
You'll find it in a variety of settings, including automation, medical devices, packaging equipment, robotics, textile machinery, and industrial control systems.
3. Is the AS 4574 tubular solenoid adaptable?
Absolutely. You can adjust things like voltage, stroke length, force, mounting style, and connector type to fit the needs of your specific application.
4. What are the voltage choices?
The most common options are 12V DC and 24V DC, but other custom voltages are available based on what you need.
5. Is the AS 4574 suitable for continuous operation?
The suitability of the AS 4574 for continuous operation hinges on the coil's design and its duty cycle; however, custom designs can indeed facilitate continuous duty, provided that effective thermal management is implemented.
6. What is the advantage of a tubular solenoid design?
The tubular configuration offers several advantages over open-frame solenoids, including enhanced magnetic efficiency, greater durability, and more consistent linear movement.
7. How do I choose the right solenoid force?
Selecting the appropriate force rating necessitates consideration of several factors, including the load's weight, the required stroke length, the desired response speed, and the specific operating environment.
8. Does the AS 4574 solenoid require maintenance?
In general, the AS 4574 requires minimal maintenance; nevertheless, periodic inspection is recommended to ensure optimal performance and extend its operational lifespan.
