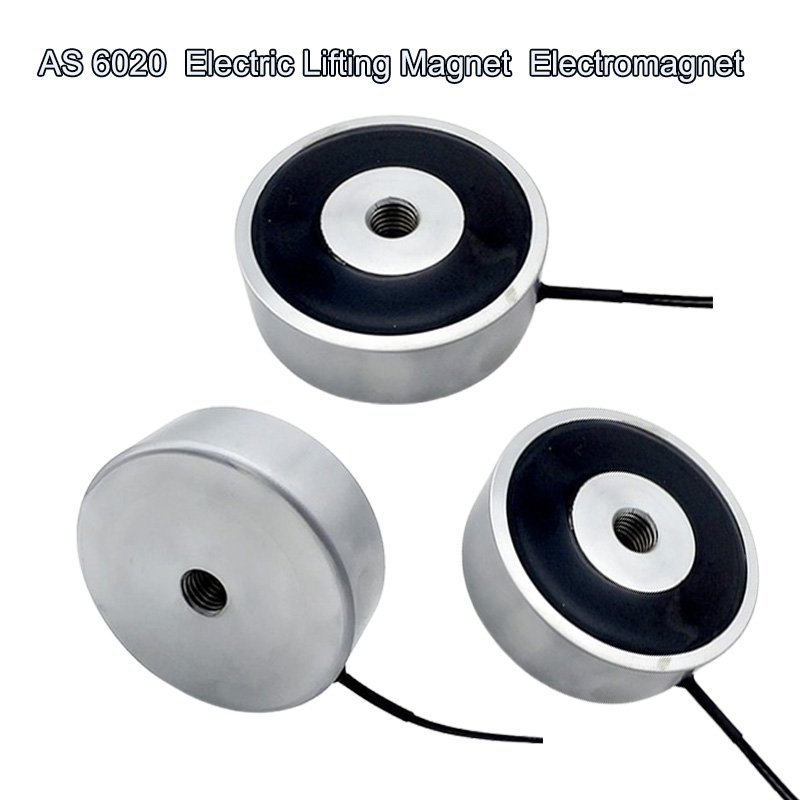

AS 6020 Electri Small Round Magnet Electromanget

Below , we would like to introduce a selection of our smallest DC electromagnets. Starting at 50 N and ranging up to 500N in holding force. The electromagnet has a potted solenoid coil to provide additional protection against dust, water and other external forces. All of our holding magnets  come with 250mm long leads and offer a threaded center mounting hole in the back for mounting. The low power draw of the electromagnets is keeping the surface temperature of the housing low and allows for peak performance even at continuous duty and high ambient temperatures.

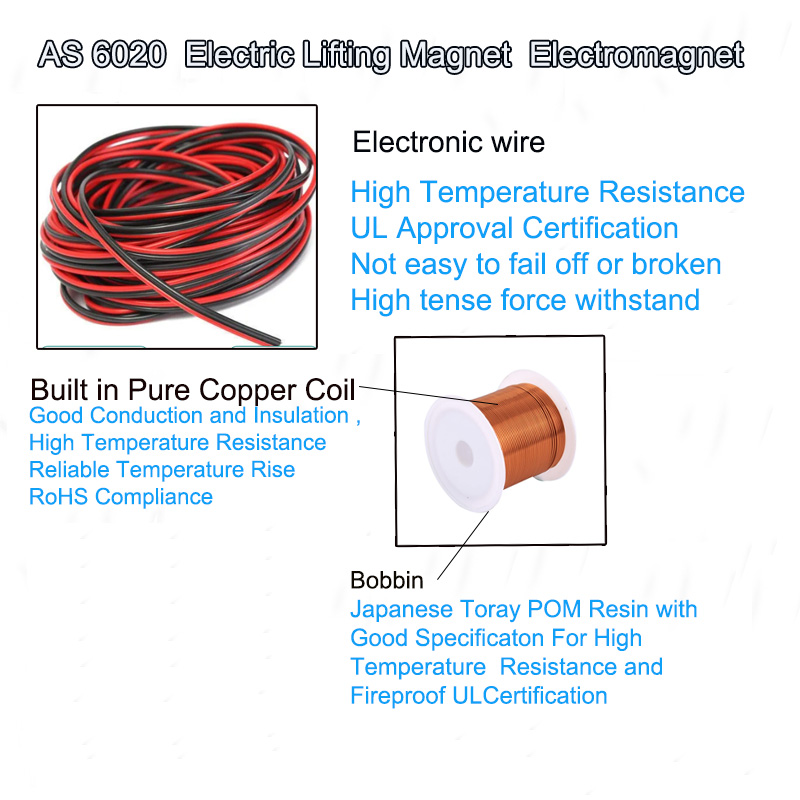

 This Small round electromagnets are great for automated part handling and packaging operations, but they have many other application also. Dr solenoid 12 or 24 volt DC round electromagnets are controlled by a 12 or 24 volt power supply and require no maintenance, noise or air pressure like vacuum cups or grippers. Dr solenoid 's rugged high power electromagnets feature a durable steel housing and hand wound premium copper coils sealed with high temperature epoxy for years of maintenance free service.

    Contact us Download
    product details

    Product Description

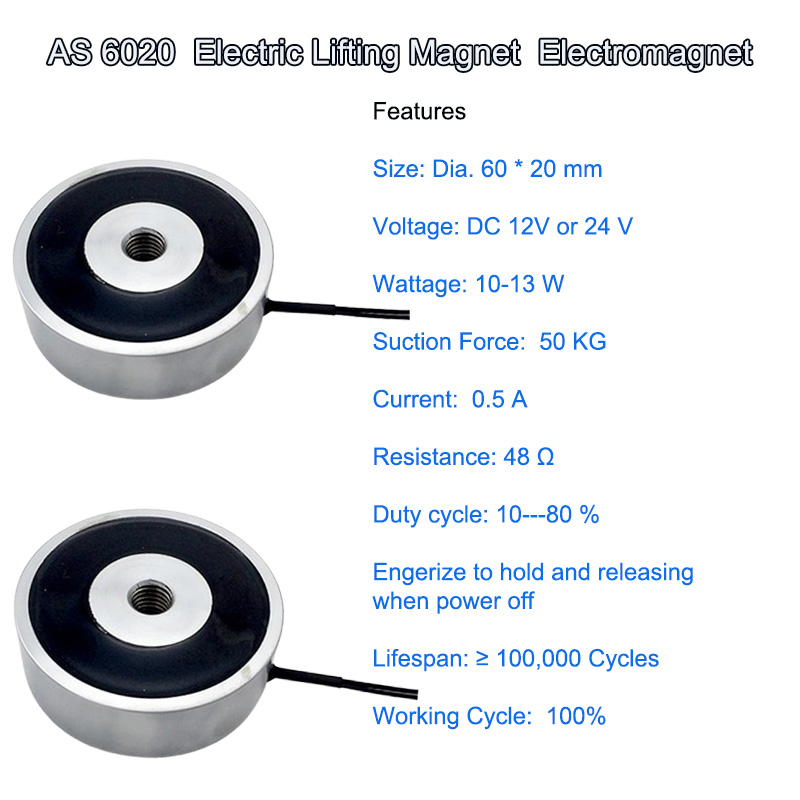

    Brand Dr. Solenoid Model Number  AS 6020
    Rated Voltage (V) DC 12V, 18V and 24V     Rated Power(W) 10 W
    Work Mode: Power on, Magnet on Holding Force (N) 60  KG
     working duty 100% Resistance 24  Ω
    Service Life 100 Thousand Times Certification CE,ROHS,ISO9001,

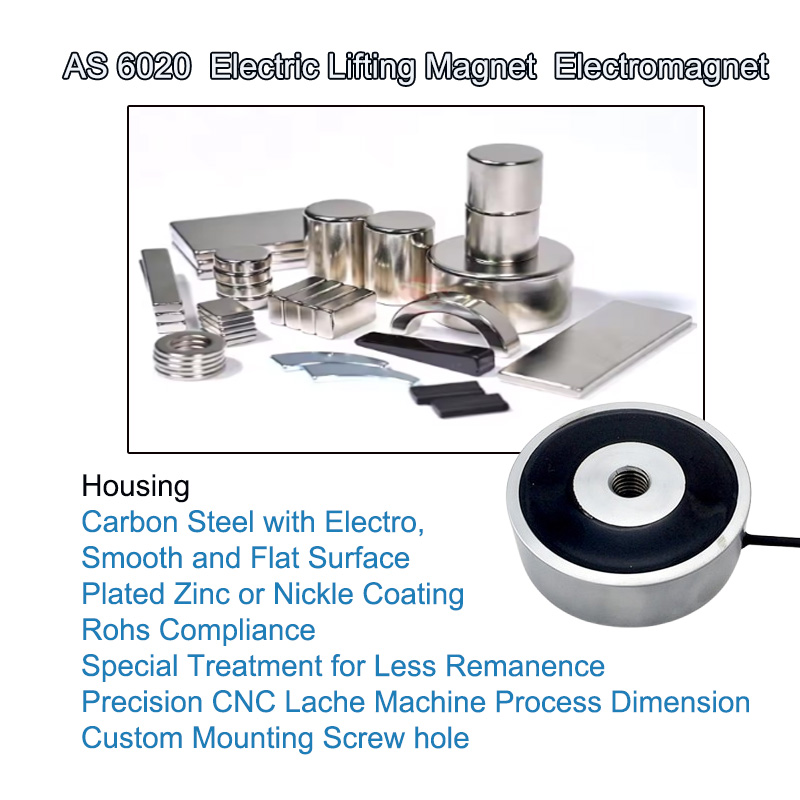

    Material Superior Magnet Carbon Steel Housing  Lead Wire Length(mm) 200 MM
    Install Style Screw Hole Tolerance of Dimension  +/-  0.1 MM
    Water-proof  None Insulation Class B
    Hi-Pot Test AC 600V 50/60Hz 2s Non-excitation Holding Force 0
    Working Temperature -10°C-100°C Duty Cycle 1-100%
    Thread Depth(mm) / Payment Term TT, or LC At Sight
    Sample Order Yes Warranty 1 Year
    MOQ 1000 pcs Supply Ability 5000 pcs per Week
    Delivery Time 30 Days Port of Loading shenzhen

    Small Round holding Electromagnet
    1. Holding type, round shape, mini size, IP65 waterproof, DC 12v 24v standard voltage also accept custom.
    2. The mini round electromagnet need to be energized to develop suction force and de-energized to release, widely used for holding of ferromagnetic workpieces during machining or assenbly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

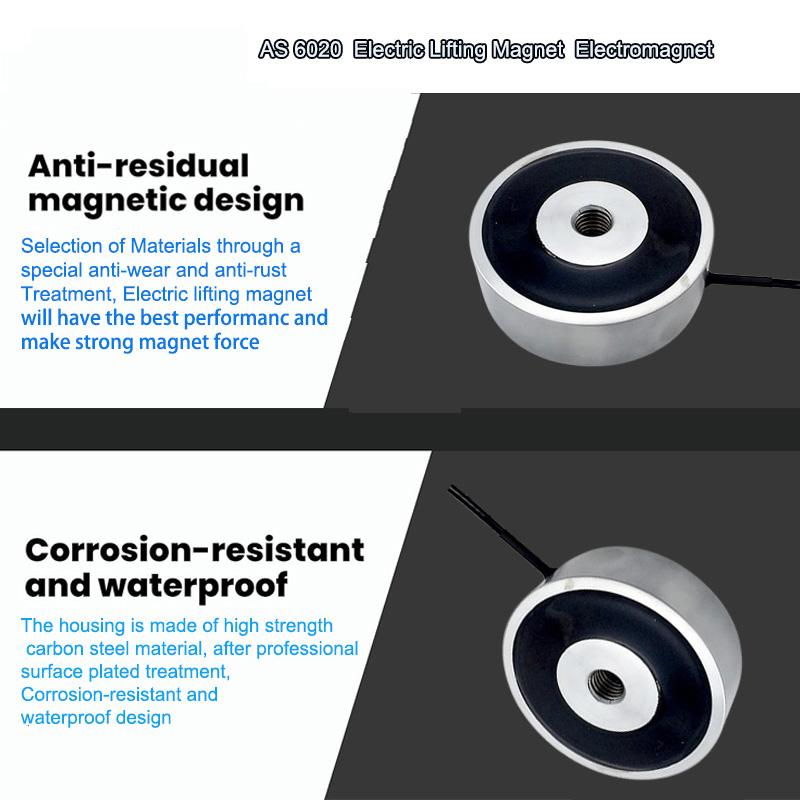

    3. Energized to hold and de-energized to release. We also offer an optional spring loaded ejected pi to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
    4. Also offer custom shape and supply energized-to-relaese mini dc electromagnet.

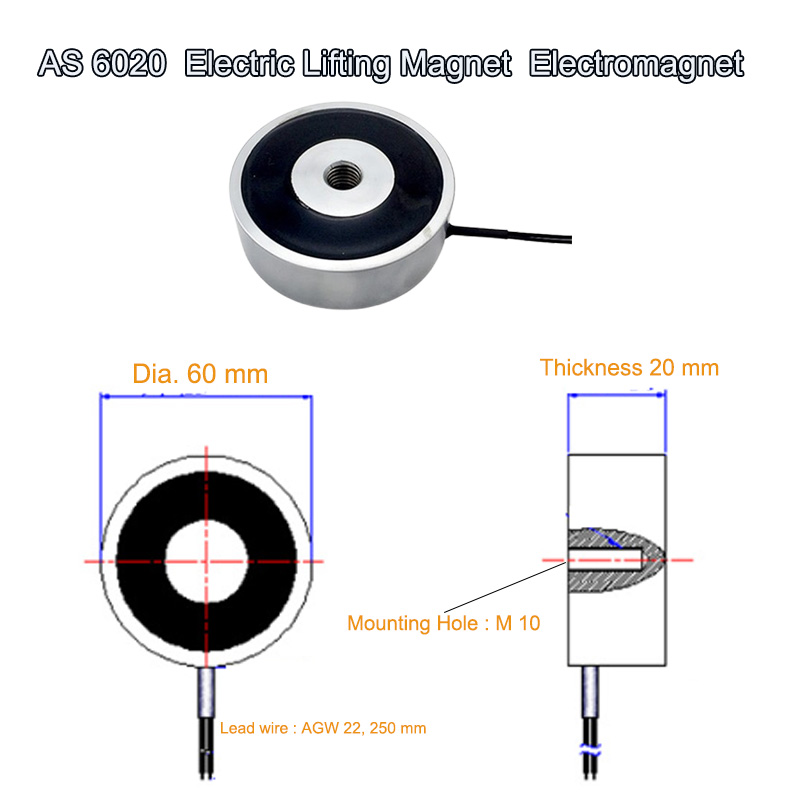

    Product detail diagram

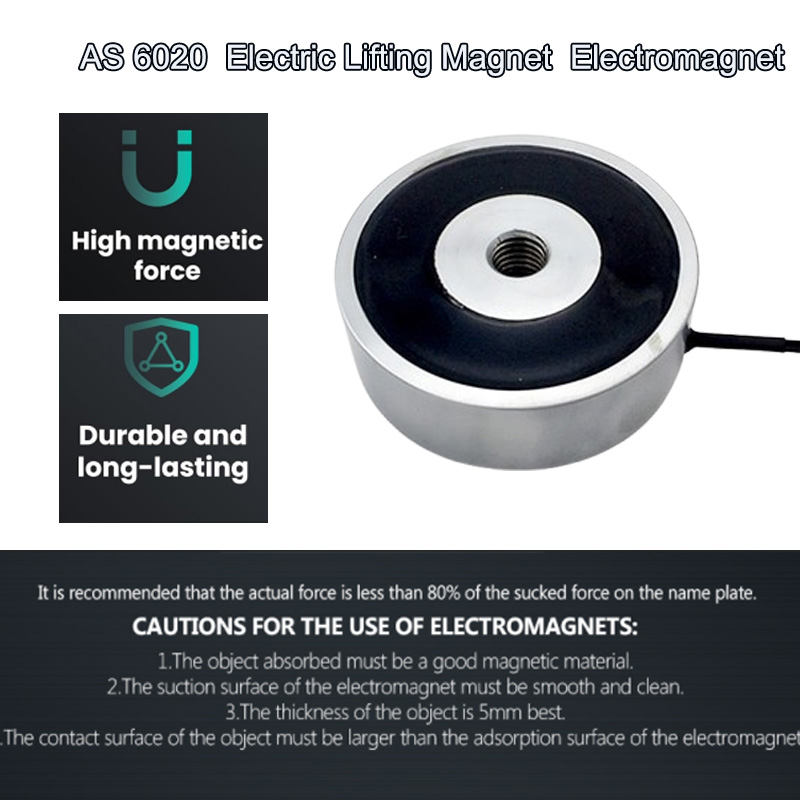

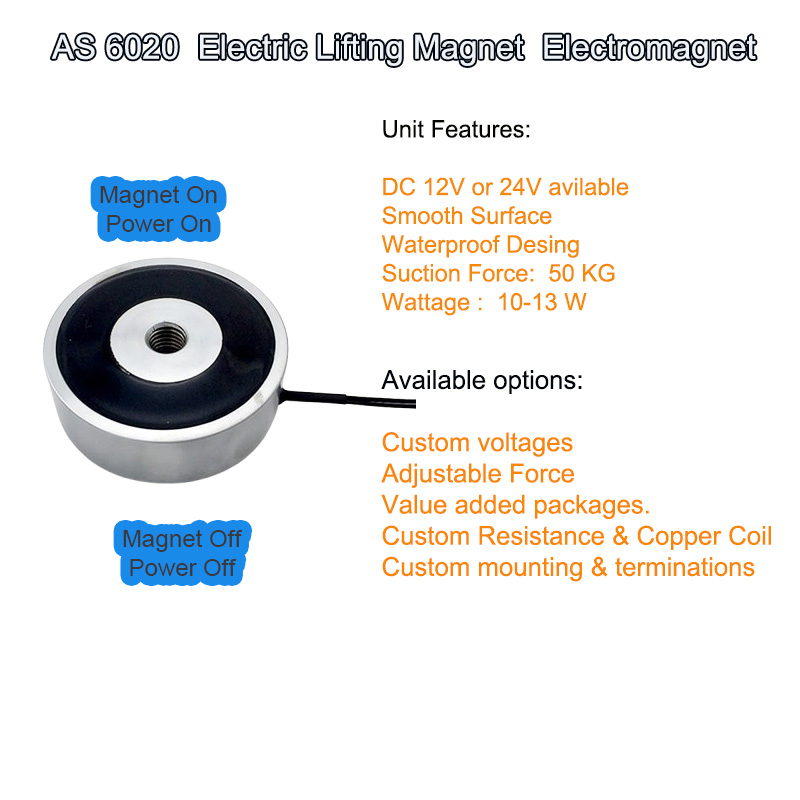

    AS 6020 electric lifting magnet electromagnet D 1AS 6020 electric lifting magnet electromagnet D 2 AS 6020 electric lifting magnet electromagnet D 3 AS 6020 electric lifting magnet electromagnet D 4 AS 6020 electric lifting magnet electromagnet D 5 AS 6020 electric lifting magnet electromagnet D 6 application

    FAQ

    1. who are we?
    We are based in Dongguan, China, start from 2007, sell to South America ,North America ,Western Europe Northern , Mid East, ,Central America(5.00%). There are total about 80-150 people in our factory

    2. how can we guarantee quality?
    We will send the production specification and the first sample for checking. Once the order is confirmed, we will always arrange a pre-production sample before mass production for final checking.  Always final Inspection before shipment;

    3.what can you buy from us?
     Push pull solenoid, latching solenoid , rotary solenoid , solenoid valve and electromagnet.

    4. why should you buy from us not from other suppliers?
    We have IS0 9001 2015 certified as a profession solenoid manufacturer.We can provide high-quality products , fast delivery ,excellent after-sale services and the most competitive prices based on self-owned raw materials.
