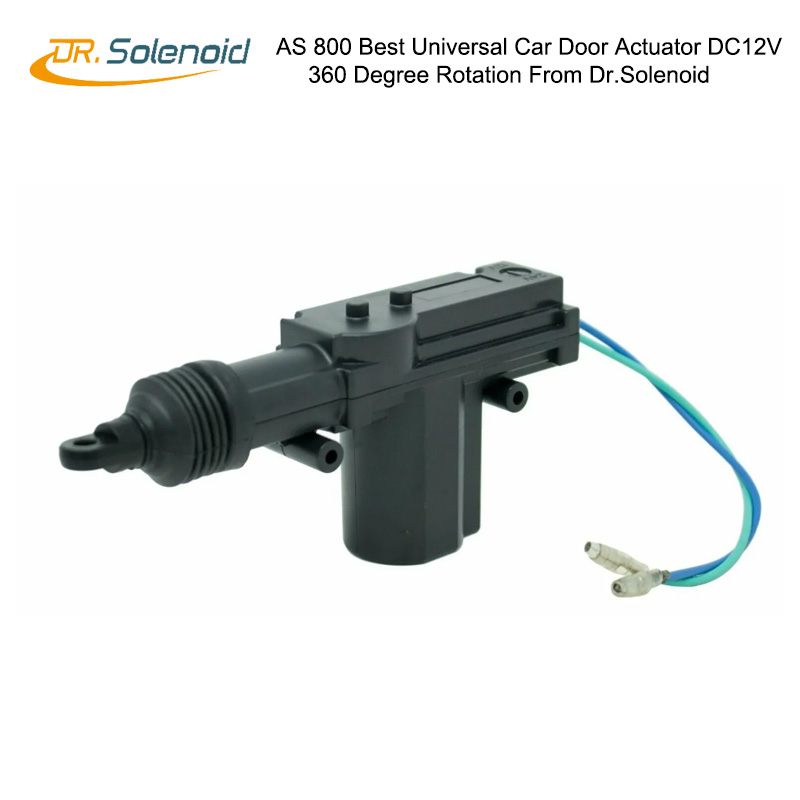

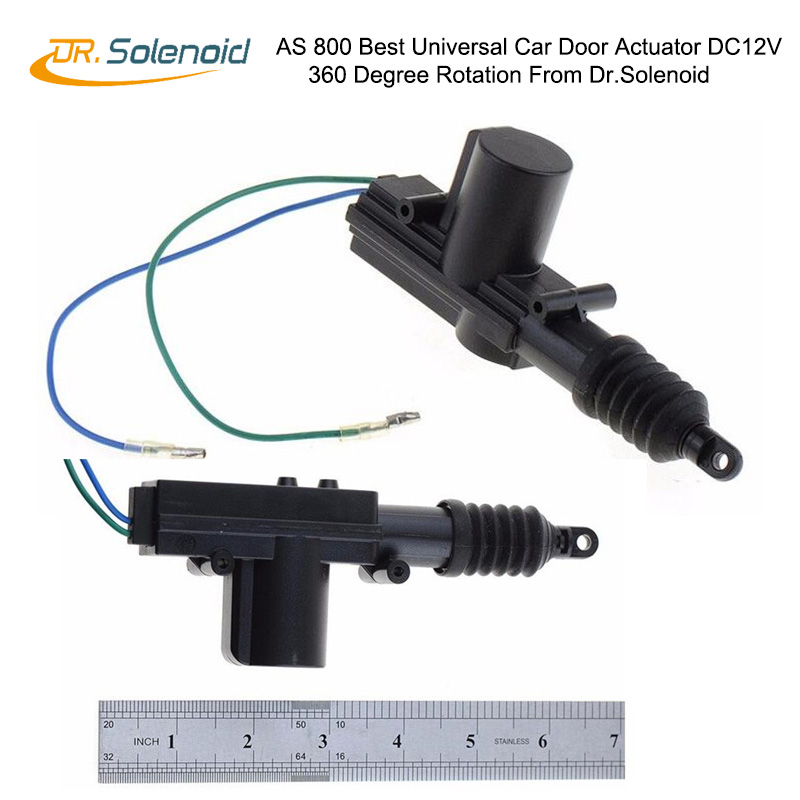

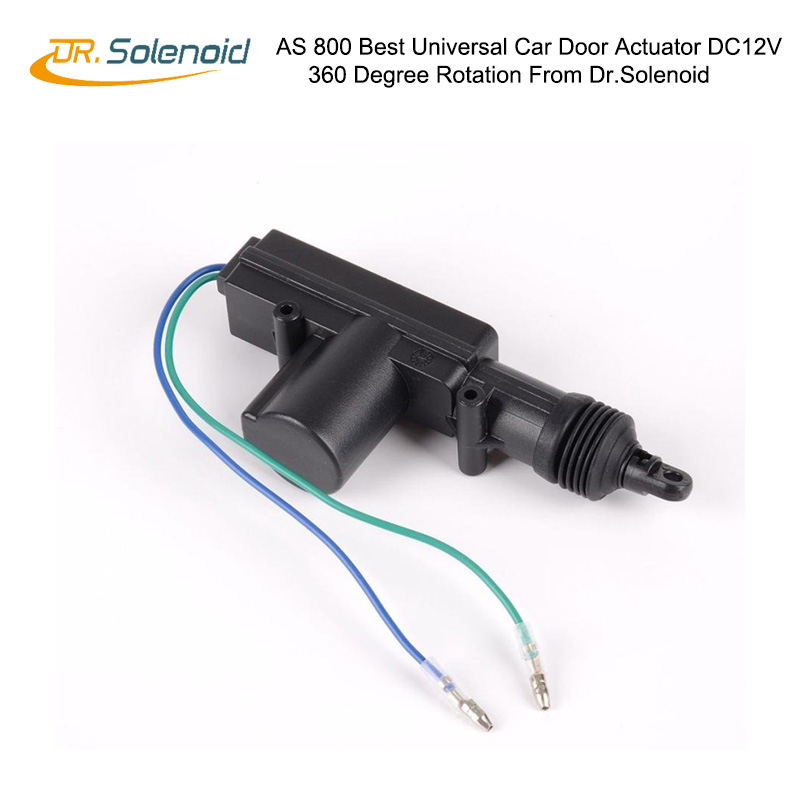

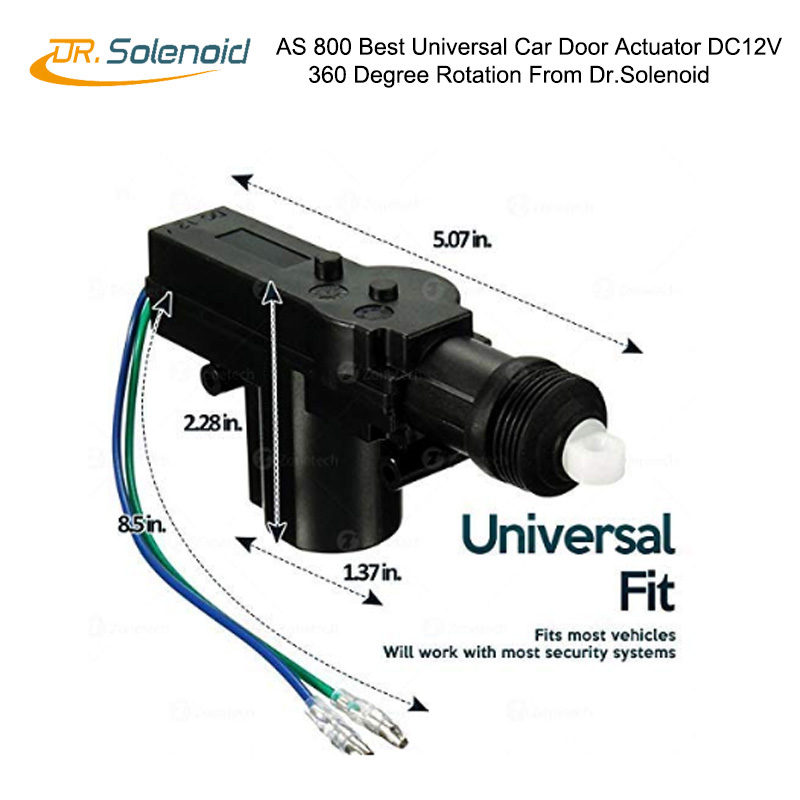

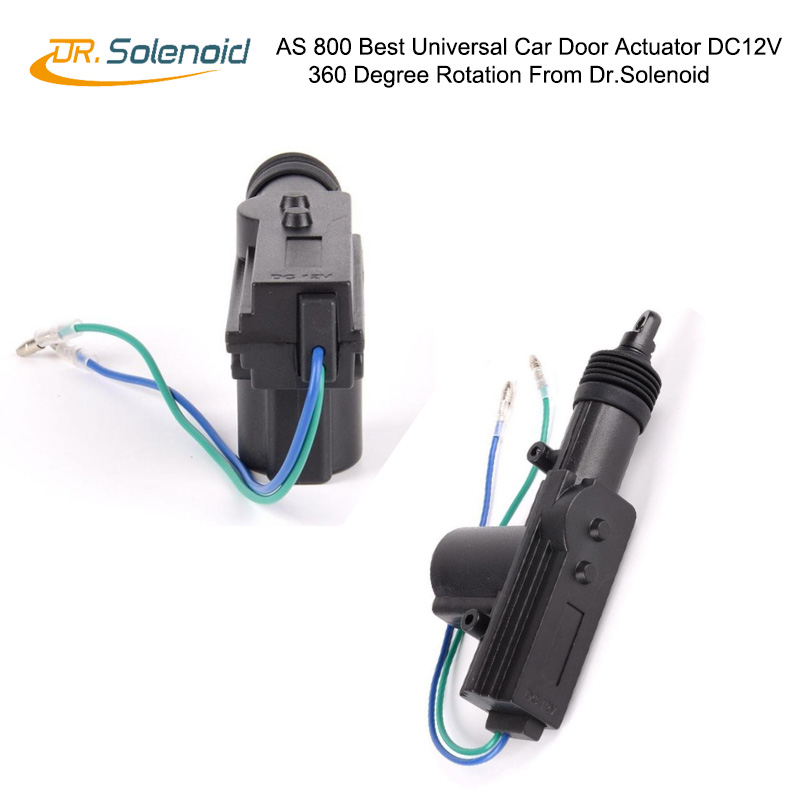

AS 800 Universal Car Door Actuators DC 12V 360 degree rotation from Dr.Solenoid

In the world of automotive technology, DC car door actuators have revolutionized the way we interact with our vehicles. These small yet powerful devices play a crucial role in ensuring the smooth and efficient operation of car doors. With their push-pull force of up to 6 kilograms and flexible stroke distance of 21mm, DC car door actuators are designed to provide universal fitment and high temperature resistance, making them a versatile and reliable choice for car owners. In this comprehensive guide, we will explore the features, installation process, and benefits of DC car door actuators, shedding light on their importance in the automotive industry.

Car Door actuator Working Principle

Electromagnetic type of cart door Actuator Principle: It consists of electromagnetic coils. When the solenoid coil is energized, it generates a magnetic field, and the electromagnetic force makes the armature move, driving the connecting rod to realize the locking and unlocking of the car door. For example, when the lock signal is sent, the current passes through a specific coil, generating an electromagnetic force that pulls the armature to lock the door latch.

Motor Actuator type Principle: Motors, such as DC motors or permanent magnet motors, are used. When the motor rotates, the rotational force is transmitted to the door lock mechanism through reduction gears and transmission rods. The motor rotates in different directions to control the opening and closing of the door lock. For instance, when receiving an unlocking signal, the motor rotates in a certain direction to drive the lock cylinder to rotate and release the door latch.

Structure

Electromagnetic Actuator Structure: It mainly includes electromagnetic coils, armatures, springs, and connecting rods. The electromagnetic coil is the core component that generates electromagnetic force. The armature moves under the action of electromagnetic force, and the spring is used to reset the armature. The connecting rod transmits the movement of the armature to the door lock mechanism.

Motor Actuator Structure: It is composed of a motor, reduction gearbox, transmission rod, and position sensor. The motor provides power, the reduction gearbox reduces the speed and increases the torque, the transmission rod transmits the power to the door lock, and the position sensor is used to detect the position of the door lock and feedback to the control system.

product details

Product Description

Brand	Dr. Solenoid	Model Number	AS 800
Rated Voltage (V)	DC 12V or 24V	Rated Power(W)	20 W
Work Mode	Motor type	RoHS	Compliance
Stroke(mm)	21 MM	Reset Time(s)	1 S on 3 S off
Service Life	200 Thousand Times	Certification	CE,ROHS,ISO9001,
Material	ABS Housing	Lead Wire Length(mm)	200
Install Style	mounted screw hole for easy set up	Tolerance of Dimension	+/- 0.1 MM
Pushing Force	60 N	Insulation Class	H 180 Degree
Hi-Pot Test	AC 600V 50/60Hz 1s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

Features of DC Car Door Actuators

DC car door actuators are equipped with a range of impressive features that set them apart from traditional door locking mechanisms. With a push-pull force of up to 6 kilograms, these actuators are capable of effortlessly opening and closing car doors, ensuring a seamless user experience. The flexible stroke distance of 21mm allows for smooth and precise operation, accommodating various door sizes and configurations. Additionally, the universal fitment of DC car door actuators makes them compatible with a wide range of vehicle models, eliminating the need for specialized components.

Furthermore, DC car door actuators boast high temperature resistance, ensuring optimal performance even in extreme weather conditions. Their 360-degree rotation capability enables them to operate efficiently from any angle, providing maximum flexibility and convenience. Moreover, these actuators are designed to be easy to install, with the installation hardware provided for a hassle-free setup process. This combination of features makes DC car door actuators a reliable and practical choice for car owners seeking enhanced door locking solutions.

Installation Process

Installing DC car door actuators is a straightforward process that can be completed with basic tools and minimal technical expertise. The provided installation hardware includes all the necessary components for mounting the actuators securely onto the car doors. The universal fitment of these actuators ensures compatibility with various vehicle models, simplifying the installation process and eliminating the need for specialized adjustments.

To begin the installation, the existing door locking mechanism is removed, and the DC car door actuators are positioned in place using the provided hardware. Once securely mounted, the wiring connections are established, integrating the actuators into the car's electrical system. Finally, a thorough testing process is conducted to ensure that the actuators are functioning correctly and providing smooth and reliable door operation. With their user-friendly installation process, DC car door actuators offer a convenient and effective solution for upgrading car door locking systems.

Benefits of DC Car Door Actuators

The adoption of DC car door actuators presents a multitude of benefits for car owners, enhancing the functionality and security of their vehicles. The push-pull force of up to 6 kilograms ensures robust door locking, providing a sense of safety and reliability for both drivers and passengers. The flexible stroke distance of 21mm allows for seamless door operation, accommodating different door configurations and sizes with ease.

Moreover, the universal fitment of DC car door actuators makes them a versatile choice for various vehicle models, offering a practical and cost-effective solution for upgrading door locking mechanisms. Their high temperature resistance ensures consistent performance in diverse weather conditions, making them suitable for use in a wide range of environments. Additionally, the 360-degree rotation capability of these actuators enables them to operate efficiently from any angle, further enhancing their convenience and usability.

In conclusion, DC car door actuators are a valuable addition to the automotive industry, offering a combination of features that prioritize performance, versatility, and ease of installation. With their push-pull force of up to 6 kilograms, flexible stroke distance of 21mm, universal fitment, high temperature resistance, and 360-degree rotation capability, these actuators provide a reliable and efficient solution for upgrading car door locking systems. By understanding their features, installation process, and benefits, car owners can make informed decisions about integrating DC car door actuators into their vehicles, enhancing both functionality and security.
