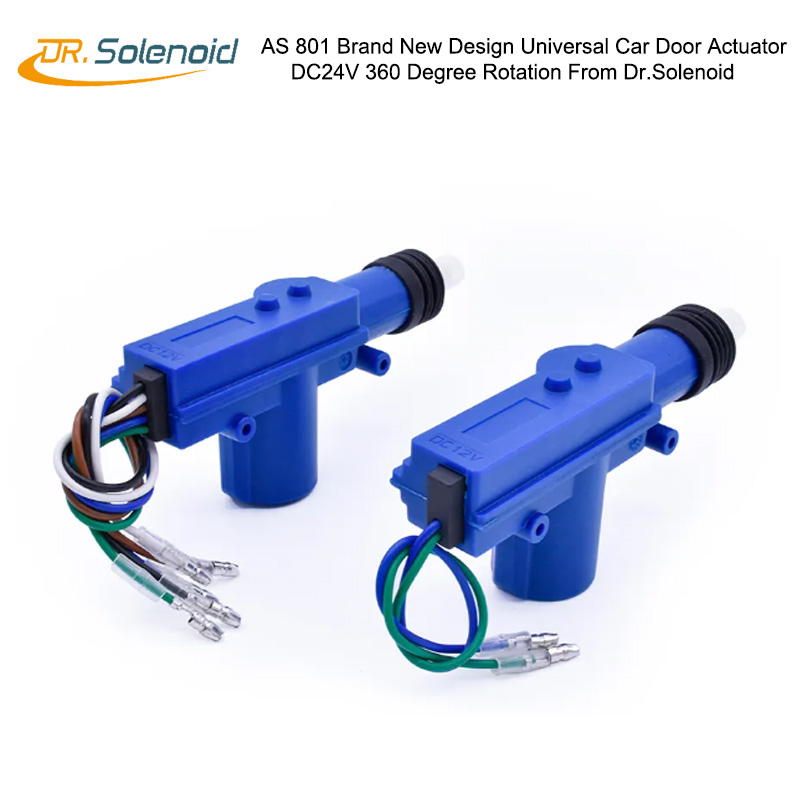

AS 801 Brand new design Universal Car Door Actuator DC 24V 360 Degree rotation from DrSolenoid

The central control car door actuator is an important part of the car, it makes the car's safety and convenience for user. AS 801 is the brand new design and we would like to introduction the product working principle, structure, characteristics, installation and disadvantage as below:

Working Principle

Mechanical design: Through mechanical connecting rods, Car Door Actuator and other components, the rotation of the key or the pressing of the button is converted into the extension and retraction of the lock tongue to achieve the locking and unlocking of the car door. For example, the traditional plug-in key, turning the key drives the car door lock/actuator to rotate, and then drives the lock tongue to insert or exit the lock buckle to lock or open the car door.

Electronic circuit: The remote control key sends a radio signal, and the receiver get the signal and transmits it to the central control system, which controls the motor or electromagnetic device to drive the lock tongue to move. For example, when the lock button on the remote control key is pressed, the key will emit a specific coded radio wave. After the car receiving module receives and decodes the signal, it controls the door actuator to complete the locking operation.

Structure

Mechanical part: mainly includes lock actuator, lock tongue, lock buckle, connecting rod, spring, etc. The lock core is the part where the key is inserted, and the internal mechanism is driven by the key rotation; the lock tongue and the lock buckle are locked together; the connecting rod is used to connect the various components and transmit force; the spring provides elastic force to make the lock tongue pop out or retract at the right time.

Electronic part: there are remote control keys, receivers, control modules, actuators, etc. The remote control key is used to transmit signals, the receiver is responsible for receiving signals and transmitting them to the control module, the control module processes and judges according to the received signals, and then sends instructions to the actuator. The actuator is generally a motor or electromagnetic device to drive the lock tongue action.

product details

Product Description

Brand	Dr. Solenoid	Model Number	AS 801
Rated Voltage (V)	DC 24V	Rated Power(W)	20 W
Work Mode	Motor type	RoHS	Compliance
Stroke(mm)	25.4 MM or 35 MM	Reset Time(s)	1 S on 3 S off
Service Life	200 Thousand Times	Certification	CE,ROHS,ISO9001,
Material	ABS Housing	Lead Wire Length(mm)	200
Install Style	mounted screw hole for easy set up	Tolerance of Dimension	+/- 0.1 MM
Pushing Force	60 N	Insulation Class	H 180 Degree
Hi-Pot Test	AC 600V 50/60Hz 1s	Non-excitation Holding Force	0
Working Temperature	-20 °C-80°C	Duty Cycle	Nil
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

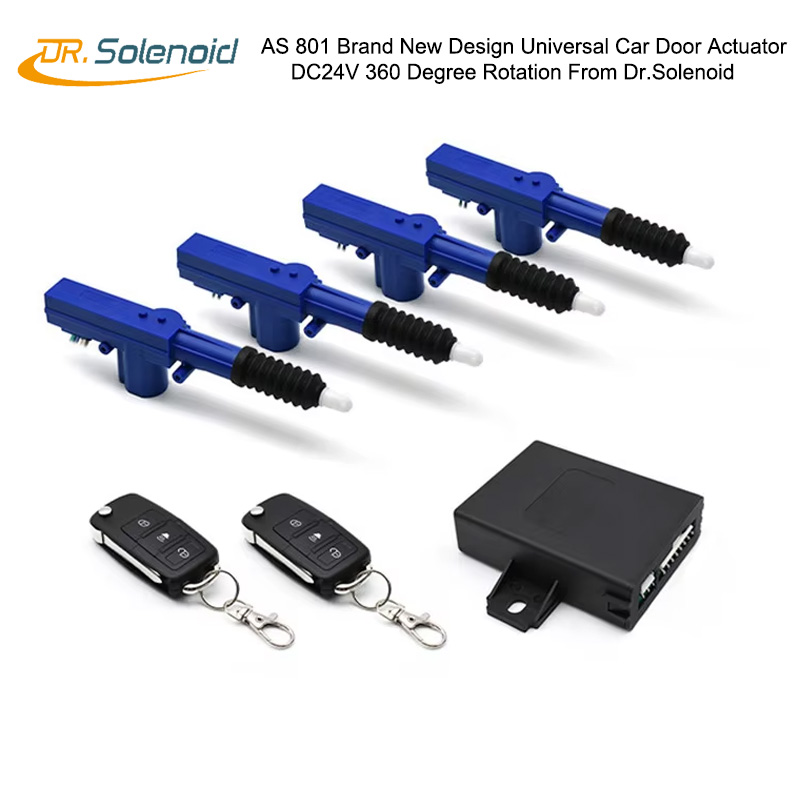

AS 801 brand new design Car Door Actuator Features

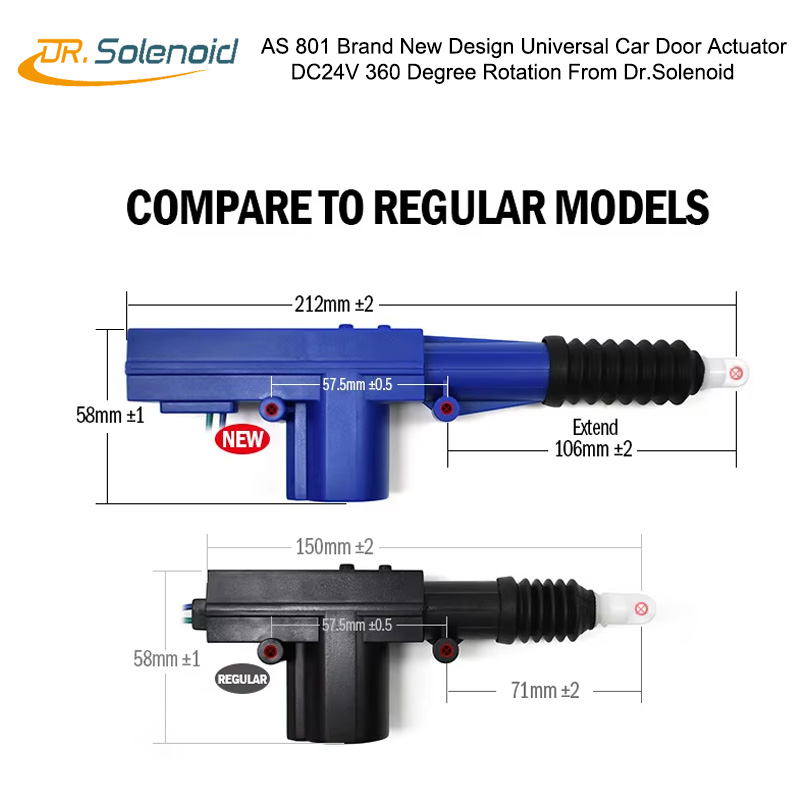

High-Quality with 6kgs strong force than other regular model.

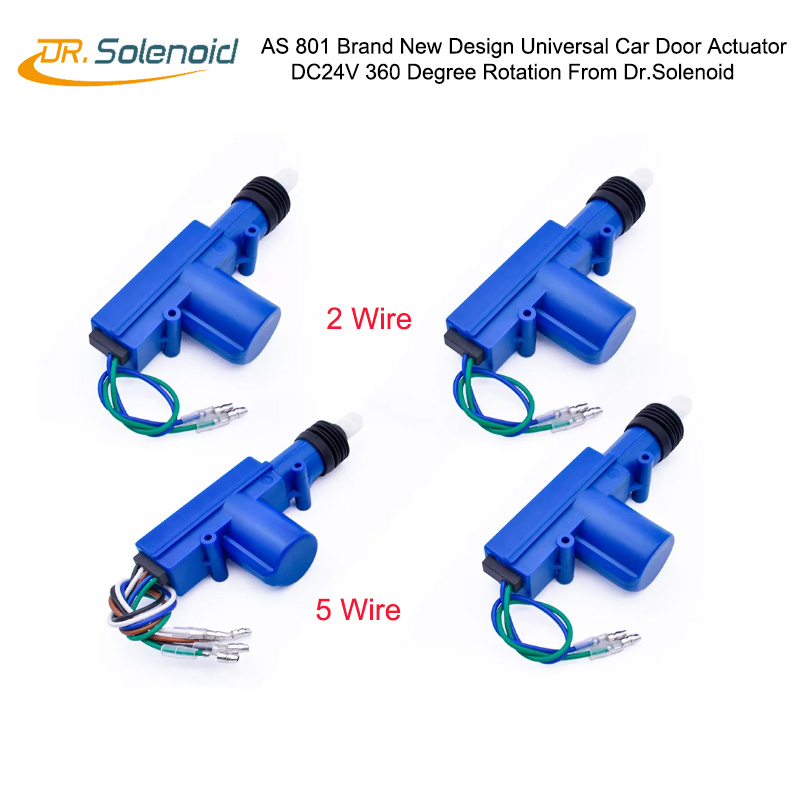

Option : 2 or 5-Wire, one set with control or without control system, Universal Central Lock System for Car and Truck,

Empower your vehicle's security with our advanced Car Door Lock Actuator.

Built with utmost care for precision and toughness, our product offers strong protection to keep your vehicle safe.

Experience the assurance of robust security with our Car Door Lock Actuator, boasting an impressive power force of 6kgs.

Long Life Cycle (Over 60,000 Times): Say goodbye to worries about wear and tear.

Our Car Door Lock Actuator is designed to withstand over 60,000 cycles, guaranteeing longevity and consistent performance for years to come.

The unit is meticulously manufactured in compliance with the rigorous standards of IATF16949-certified factories, ensuring uncompromising quality and reliability. Experience the pinnacle of automotive security with our Car Door Lock Actuator.

Car Door Actuator Installation

Preparation: You need to prepare a suitable central control car lock kit, including control box, motor, wiring harness, remote control, etc., as well as installation tools such as screwdrivers and wrenches.

Installation steps

Remove the door interior panel: Use the appropriate tools to carefully remove the door interior panel to expose the internal structure of the door.

Installation of actuator: Install the motor and other actuators in the appropriate position of the door, generally near the lock, fix them firmly with screws, etc., and connect mechanical parts such as connecting rods.

Wiring: Pass the wiring harness through the inside of the door and connect it to the actuator and the control module position in the car. Note that the wiring harness must be fixed to avoid friction or interference with other parts.

Installation of control module: Install the control module in a suitable position in the car, such as under the dashboard, connect the power cord, signal line, etc., and ensure that it is firmly fixed.

Installation of remote control system: Connect the remote control receiver to the line, generally install it in a hidden position in the car with good signal reception, and then match the remote control key.

Test and reset: After installation, perform various functional tests to ensure that the central lock can be locked and unlocked normally, and the remote control function also works normally. After all, reinstall the door interior panel.

Car Door Actuator Disadvantages

Reliability issues: There are many electronic components, which are easily affected by electromagnetic interference, power failure and other factors, resulting in poor signal reception or actuator failure, and the car cannot be locked or unlocked.

High maintenance cost: Once a failure occurs, it is difficult to repair due to the electronic circuit and complex mechanical structure. Professional equipment and technicians are required, and the maintenance cost is relatively high.

Dependence on power supply: The electronic part of the central lock depends on the vehicle power supply. If the vehicle battery is dead or the power system fails, the central lock may not work. At this time, the door can only be opened by the mechanical key in an emergency.

Risk of misoperation: The remote control key may cause the door to be accidentally locked or unlocked due to reasons such as pressing the button by mistake, especially when the key is in a pocket or bag, the button may be triggered due to squeezing and other situations.
