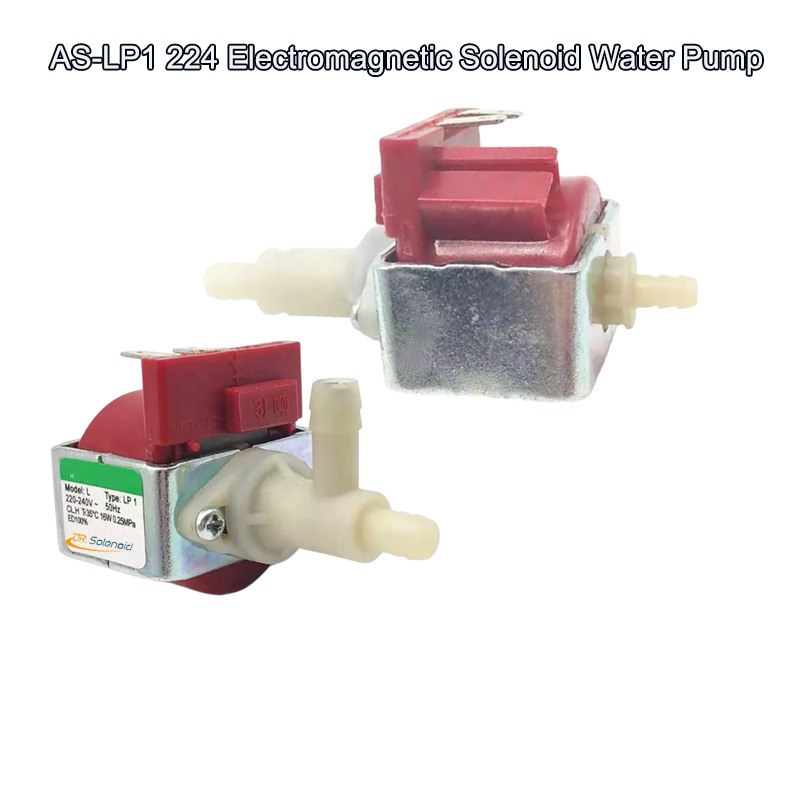

AS-LP 1 Electromagnetic Solenoid Water Pump 4.jpg

AS-LP 1 Electromagnetic Solenoid Water Pump 5.jpg

AS-LP Electromagnetic Solenoid Water Pump 3.jpg

AS-LP 1 Electromagnetic Solenoid Water Pump 6.jpg

AS- LP1 224 Electromagnetic Solenoid Pump

What is an eletromagnetic solenoid pump ?

An electromagnetic solenoid pump is a device that uses electromagnetic force to control the flow of liquid. Its main structure consists of a pump housing body, an electromagnetic coil, an iron core, and an electrode assembly. When current passes through the solenoid coil, magnetic force is generated, which drives the iron core/plunger to move and water pumping. In this way, the electromagnetic solenoid pump can control the flow of liquid by regulating and manipulating the current in the system.

Woring Prcinciple of Solenoid Pump

The working principle of the electromagnetic solenoid pump is to use the interaction between the magnetic field and the current in the conductive fluid to cause the fluid to generate a pressure difference under the action of electromagnetic force, thereby driving the fluid to move. When an alternating current is passed through the electromagnetic coil of the electromagnetic pump, an alternating magnetic field is generated. The conductive fluid in the magnetic field is driven and directed to flow under the action of the Lorentz force. With this innovative device and operation method, the electromagnetic pump can achieve ideal, consistent and repeatable fluid distribution or injection. These components are ideal for applications that require precise fluid control. They are widely used in many important industries that value comprehensive control, including medical equipment, automotive systems and agricultural applications.

The types of Solenoid Pump

There are many types of electromagneic pumps: direct-acting, pilot-operated, proportional, isolated and clamp-tube types. Each solenoid pump has its own unique functions and applications, such as low-pressure operation, high-pressure accuracy, variable flow, and handling of corrosive fluids.

product details

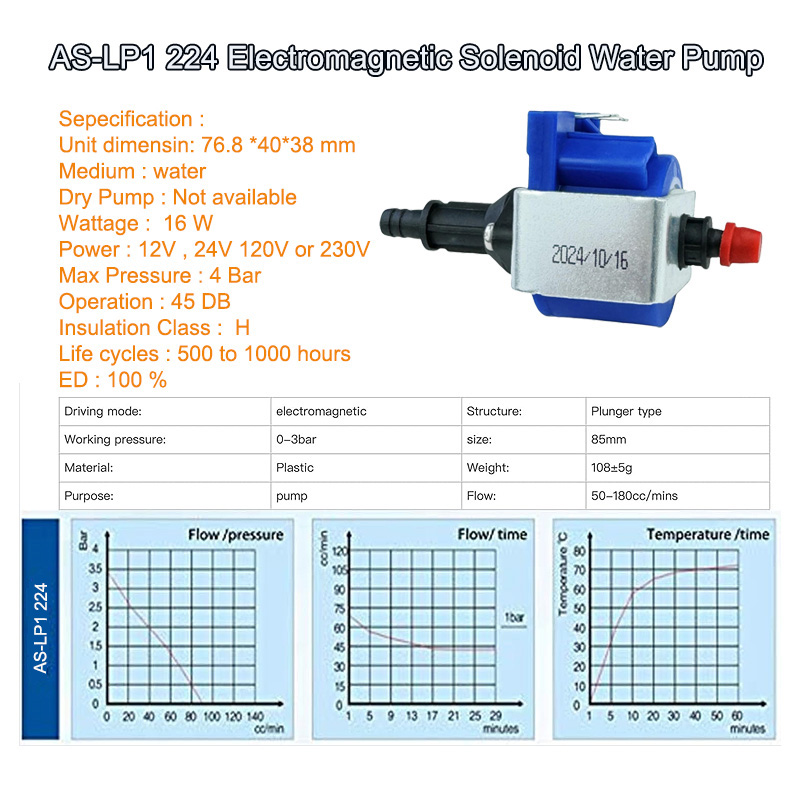

Product Description

Brand	Dr. Solenoid	Model Number	AS-LP1 224
Rated Voltage (V)	DC 24 V	Rated Power(W)	8 8W
Work Model	2 Ways Valve	Holding Force (N)	0.4 MW
Resistance	25 Ω	Reset Time(s)	0.3 Sec. On, 0.3 Sec. Off
Service Life	I Millioin Times	Certification	CE,ROHS,ISO9001,
Material	Carbon Steel Housing with Telfon Plated Coating	Lead Wire Length(mm)	200
Install Style	Adjustable Screw	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	F 155 Degree
Hi-Pot Test	AC 600V 50/60Hz 2s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

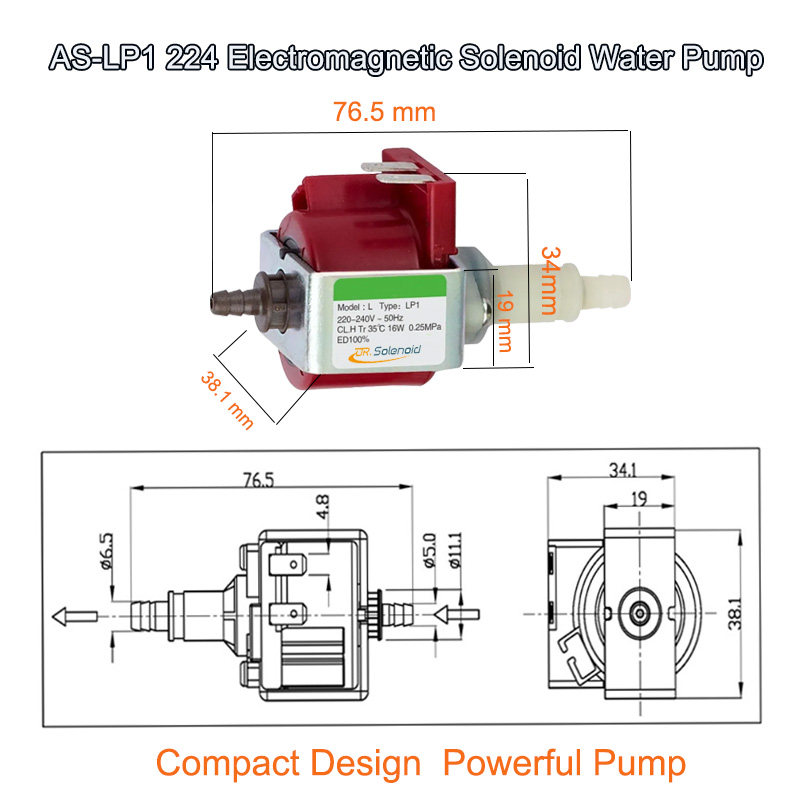

Product detail diagram

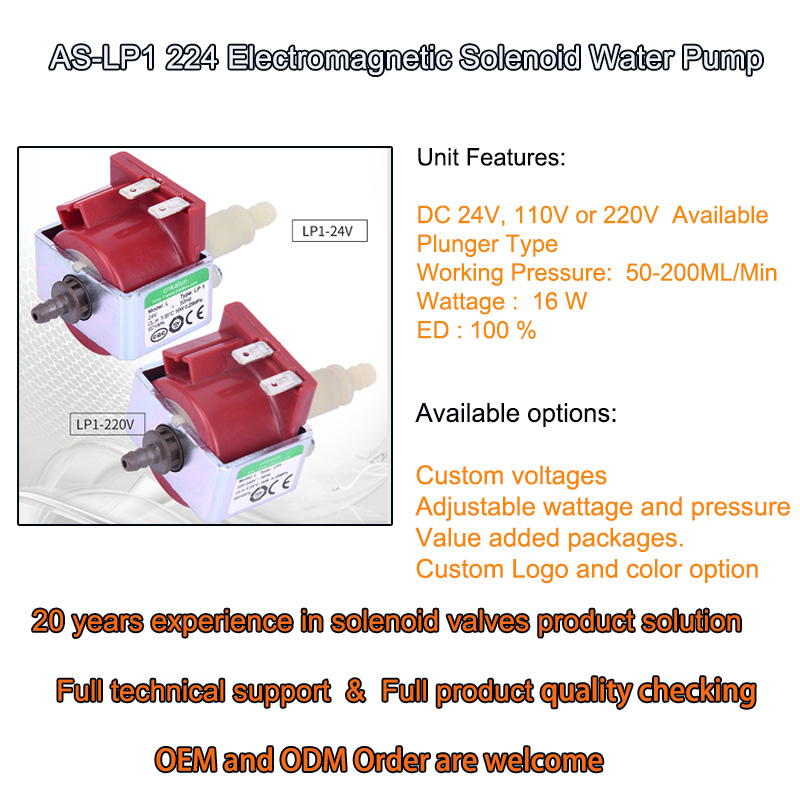

AS-LP 1 Electromagnetic Solenoid Water Pump D 1

AS-LP 1 Electromagnetic Solenoid Water Pump D 2

AS-LP 1 Electromagnetic Solenoid Water Pump D 3

AS-LP 1 Electromagnetic Solenoid Water Pump D 4

AS-LP 1 Electromagnetic Solenoid Water Pump D 5

AS-LP 1 Electromagnetic Solenoid Water Pump D 6

Applications

- Aerospace: used to transport fluids such as aviation fuel and hydraulic oil, with the advantages of small size, light weight, and high reliability.

- Chemical industry: can be used to transport special fluids such as corrosive, flammable and explosive, avoiding leakage problems caused by poor sealing of mechanical pumps.

- Medical field: such as in artificial hearts, dialysis equipment, etc., used to accurately transport fluids such as blood and liquid medicine. Its characteristics of no mechanical wear and low noise are conducive to the stable operation of medical equipment and patient safety

- Household appliances: in coffee machines and sweepers, it can accurately transport the required liquids. Ensure the operation of the product.

Frequently Asked Questions

Electromagnetic interference: The magnetic field generated by the electromagnetic pump when it is working may interfere with the surrounding electronic equipment, and effective electromagnetic shielding measures need to be taken.

Heating problem: The electromagnetic coil will generate heat when it is powered on. If the heat dissipation is poor, it may cause the coil temperature to be too high, reducing the efficiency and service life of the electromagnetic pump.

Fluid compatibility: For some special fluids, they may react chemically with the pump body material or affect the conductivity of the fluid, thereby affecting the normal operation of the electromagnetic pump. It is necessary to select suitable pump body materials and fluids.

Cavitation phenomenon: When the fluid flows in the pump, if the pressure is too low, cavitation may occur, damaging the pump body and affecting the performance of the pump. It is necessary to reasonably design the structure and working parameters of the pump to avoid the generation of cavitation.
