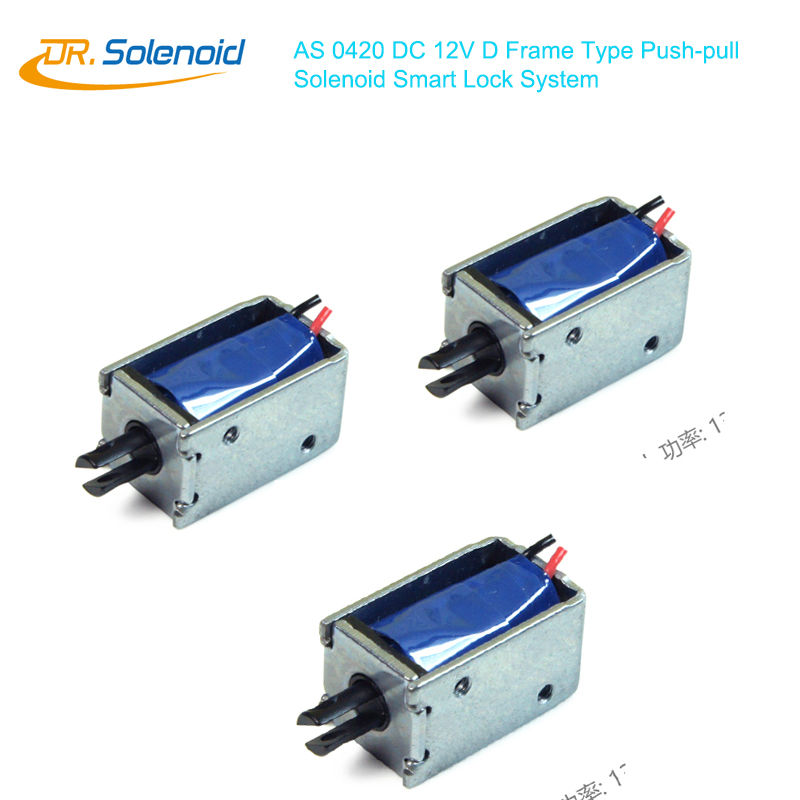

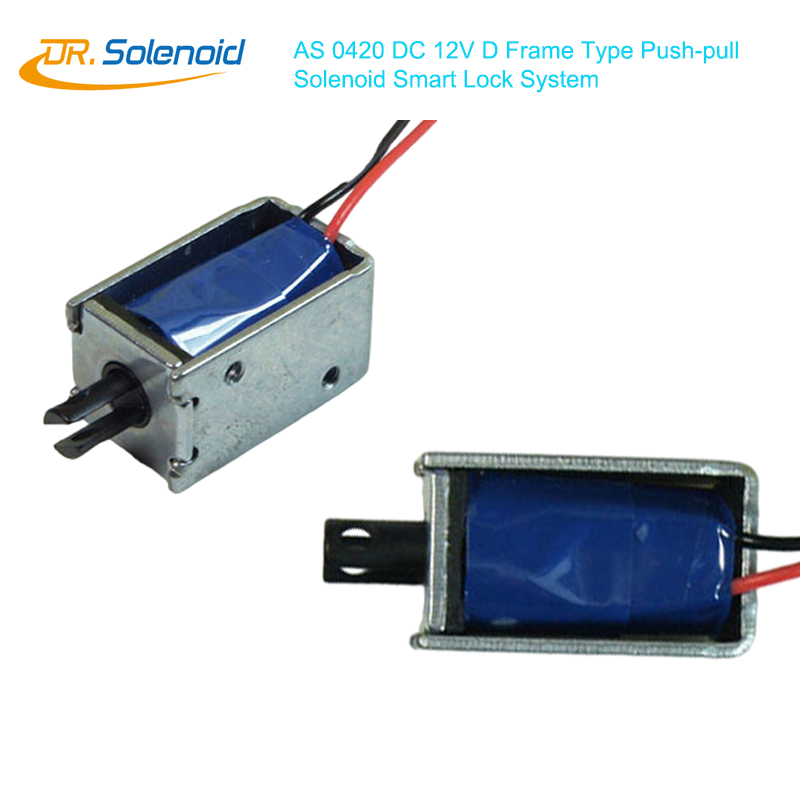

AS0420 DC 12 V Push-pull Solenoid D Frame type

As 4020 DC 12V  Solenoid is  the most cost effective version of linear solenoids. It is being used in many versions in all kind of applications. These is a essentially either PULL or PUSH type for the action. Custom option for the unit dimension, voltage and stroke (linear distance traveled) or new products can be tailor made. These can be either customized to suit individual specifications of Pull/ Push force.

Unit Features as blow

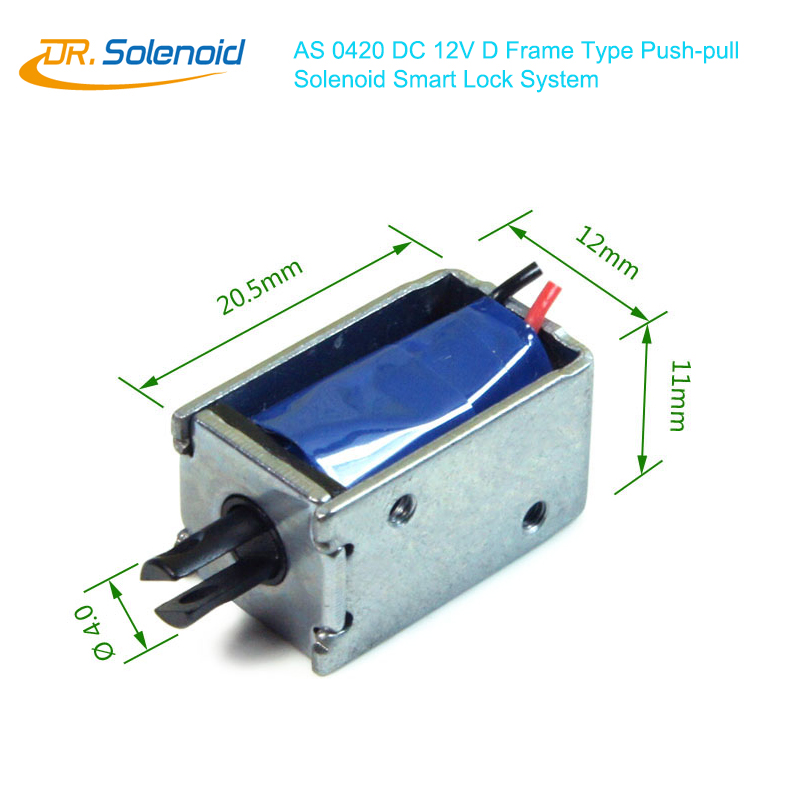

Product Dimension： 20.5 * 12* 11 mm / 0.84 * 0.47 * 0.43 Inches
plunger：φ 4 mm
Voltage: DC12V
Stroke: 0-5mm
Force: 0.2-2N
Power : 13W
Current: 1.09A
Resistance: 11Ω
Working cycle: 0.5s on, 2s off
Yoke/ Housing Material:  Electrolytic zinc-coated carbon steel sheets *(some are with haxavalent chromium free zinc plating.), smooth surface with RoHS compliance,  Anti-corrosion.

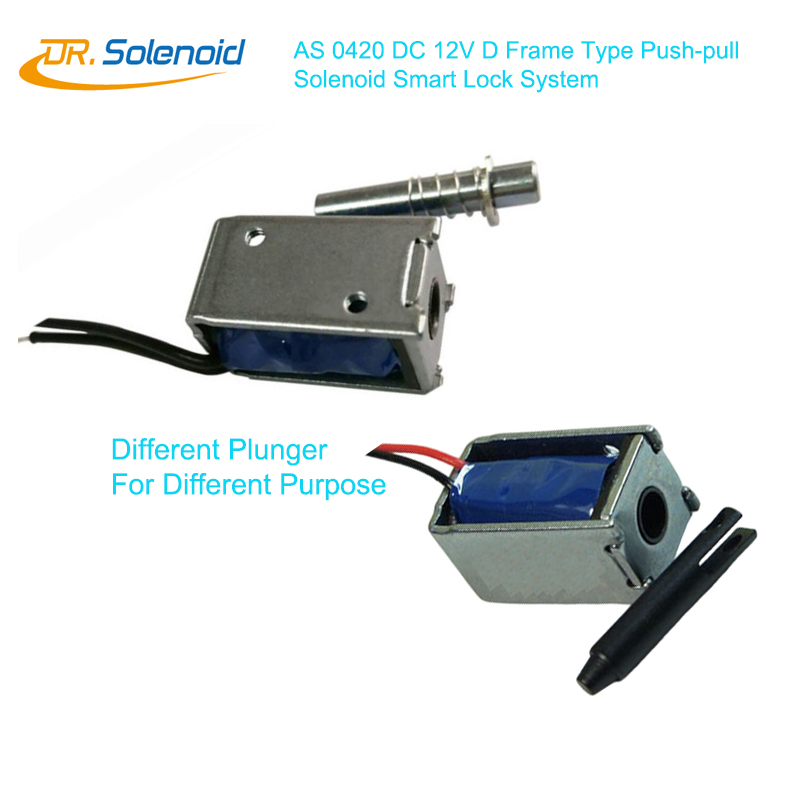

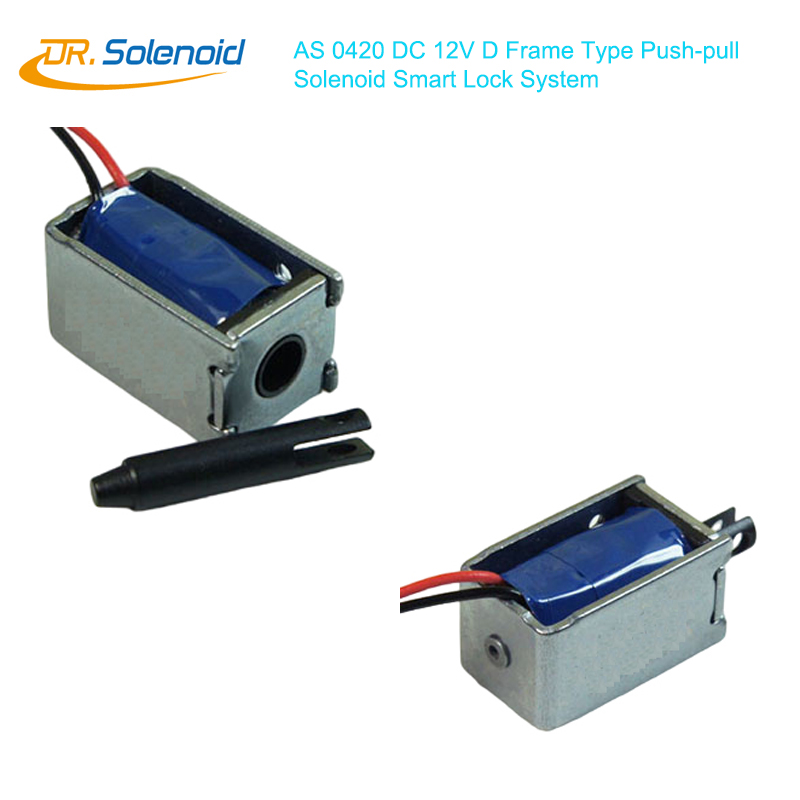

Plunger :  Fluoroplastic coating (open frame solenoids), Zinc or Nickel plating
lifespan:  DC solenoid shall operate normally with 300,000 cycles after tested in a specified intermittent operation cycles for a required number of times under a specific voltage, load, and stroke requirements.

Please consult with us for more special/ customized design requirements for functions (e.g. push type, double-coil type, mold-coil type) or structures (e.g. terminal type, lead-wire type, connectors, thermal fuses, diodes).
