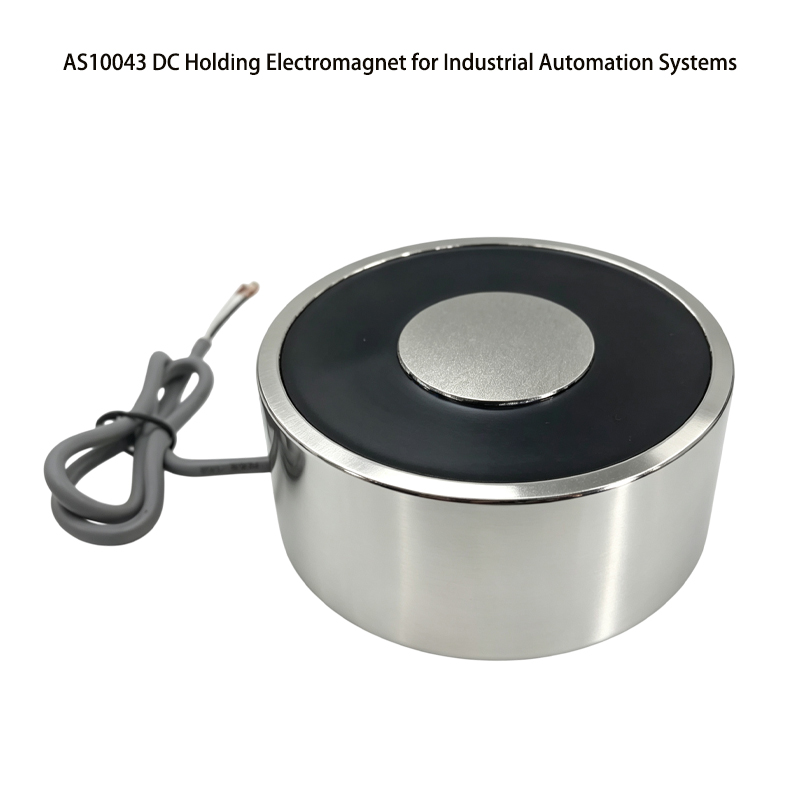

AS10043 High Force DC Holding Electromagnet Custom Manufacturer
Product Description
| Brand | Dr. Solenoid | Model Number | AS 10043 |
| Rated Voltage (V) | DC12V or 24V | Rated Power(W) | 3W |
| Work Mode | Holding Type | Holding Force (N) | 340 Kgs |
| Stroke(mm) | O MM | Working Duty | Intermittance |
| Service Life | 200 Thousand Times | Certification | CE,ROHS,ISO9001, |
| Material | Superior Magnet Iron | Lead Wire Length(mm) | 200 MM |
| Install Style | Screw | Tolerance of Dimension | +/- 0.1 MM |
| Water-proof | None | Insulation Class | B |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Non-excitation Holding Force | 0 |
| Working Temperature | -10°C-100°C | Duty Cycle | 1-100% |
| Thread Depth(mm) | M10 * 20 MM | Payment Term | TT, or LC At Sight |
| Sample Order | Yes | Warranty | 1 Year |
| MOQ | 100 pcs | Supply Ability | 5000 pcs per Week |
| Delivery Time | 30 Days | Port of Loading | shenzhen |

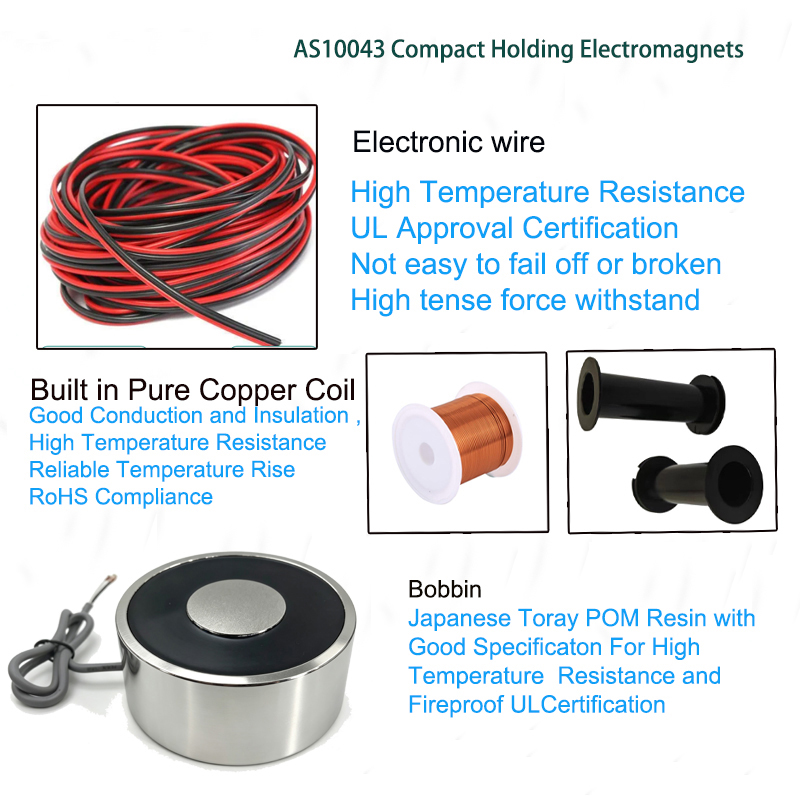

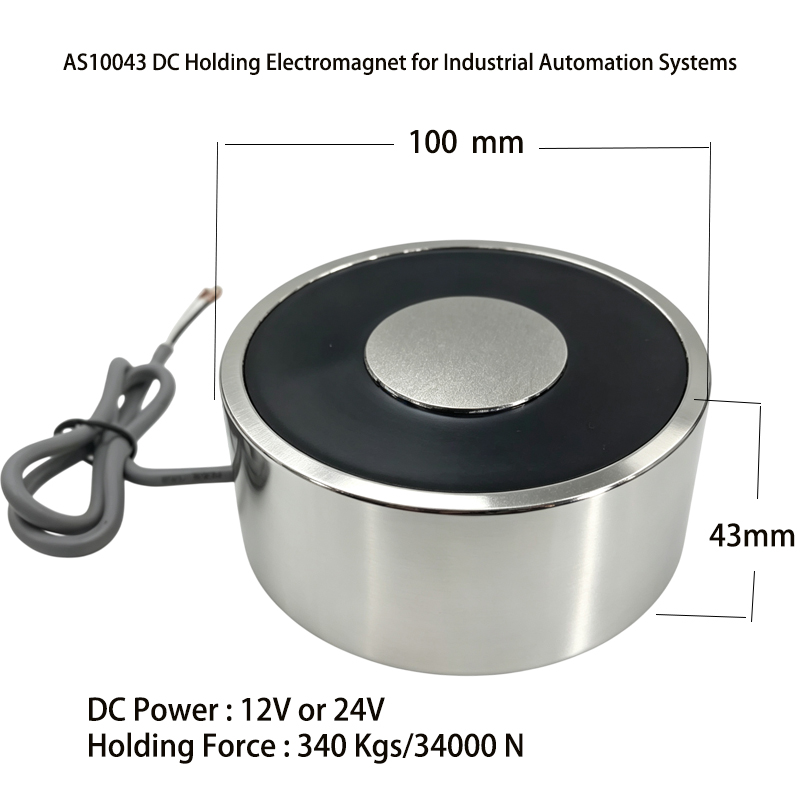

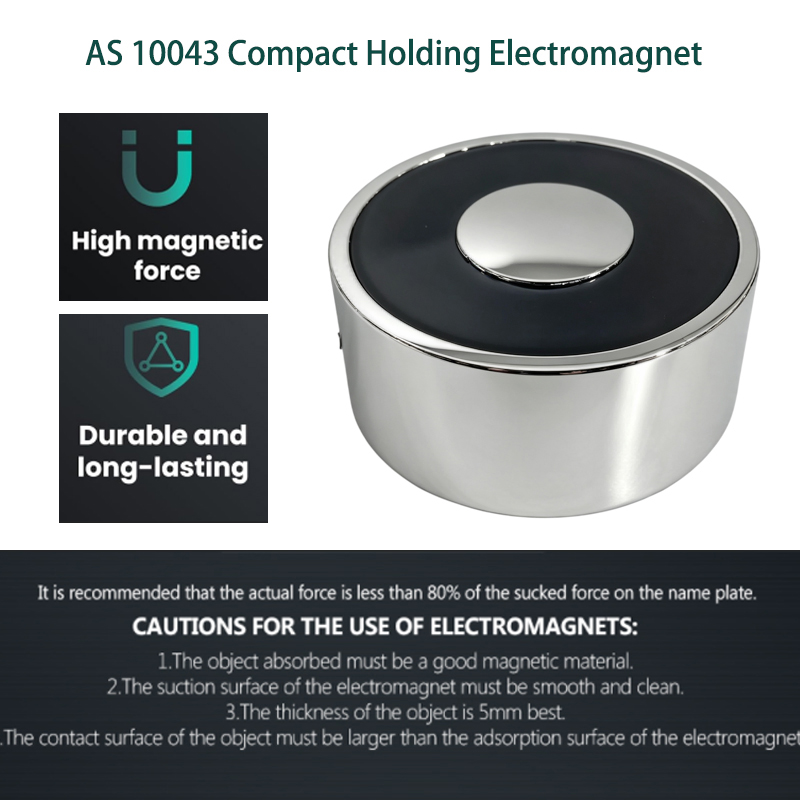

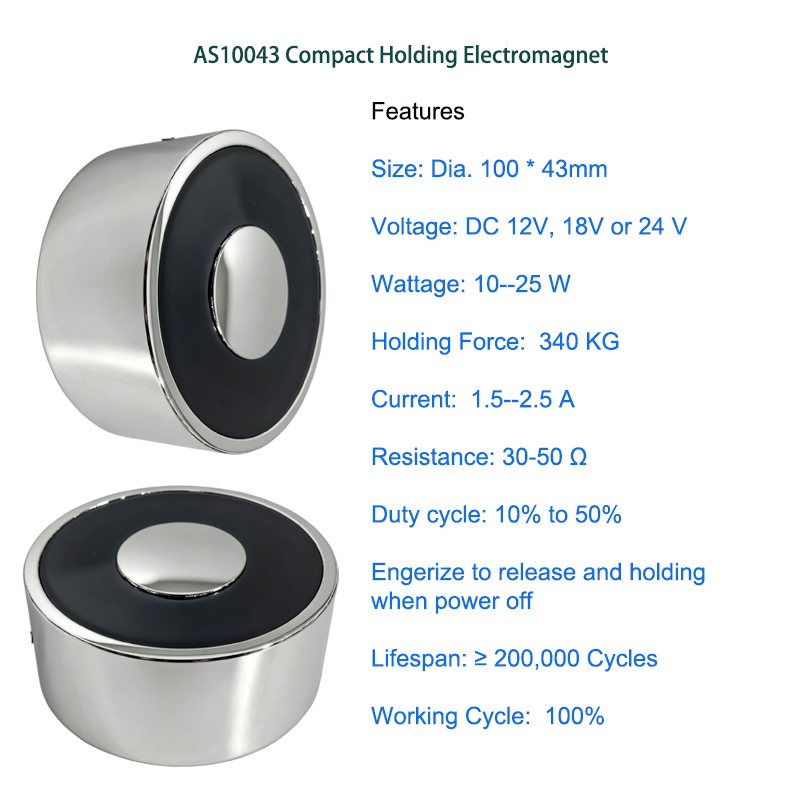

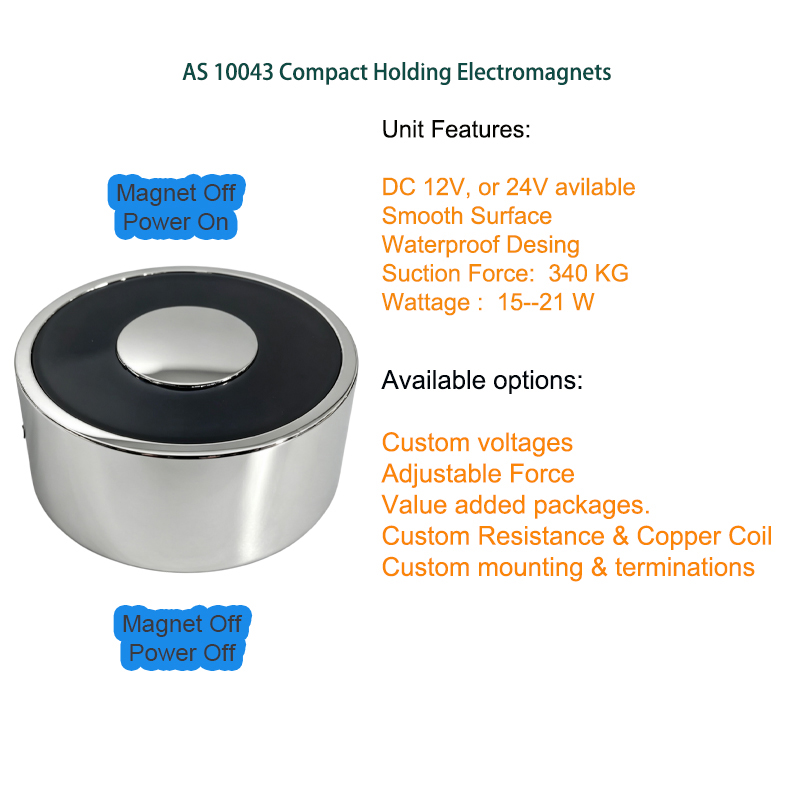

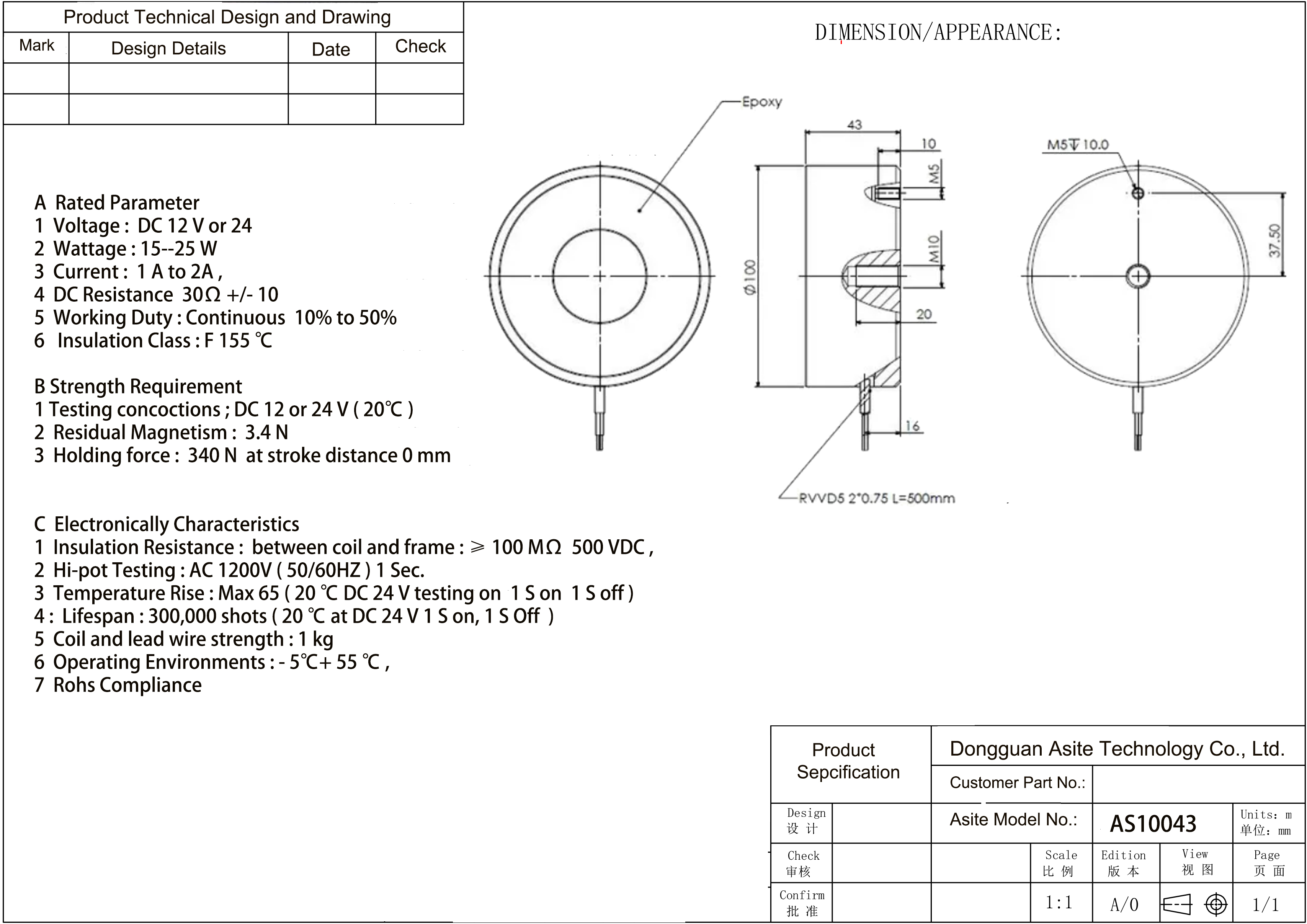

Product detail diagram
Main Feature DC holding electromagnets
feature a compact, maintenance-free design with a high holding force-to-size ratio . They offer fast switching, silent operation, and high repeatability for millions of cycles. They consume minimal power, with standard voltages of 6V, 12V, 24V, and 48V DC . Available in round, rectangular, or flat designs, they feature robust construction with corrosion-resistant surface treatments, waterproof options (IP65/IP67), and various mounting styles .
Industrial Application In factory automation,
they are used for workpiece positioning in assembly, welding, and CNC machining, and as end effectors in robotic pick-and-place systems . They secure fixtures and parts in machine tools, packaging machinery, and textile equipment . In the steel industry, they handle sheets, beams, billets, and scrap . Other applications include electromagnetic door locks in security systems, diagnostic equipment in medical devices, and positioning systems in semiconductor and printing equipment . They integrate easily with PLCs and industrial controllers for automated systems
How to Select the Right DC Holding Electromagnet
To select the right electromagnet, first accurately calculate the required holding force. Determine the weight of the load and apply a safety factor (typically 1.5 to 3x) to account for surface conditions, vibrations, and potential air gaps . Next, identify your power supply voltage—common options are 12V, 24V, and 48V DC—and match it to the electromagnet . Consider the duty cycle: for continuous operation, choose a 100% duty cycle rating to prevent overheating; for intermittent use, lower ratings are acceptable . Evaluate the physical environment, including temperature, humidity, and potential exposure to corrosive substances, and choose models with appropriate protection classes (e.g., IP65) . Assess the mounting space and available mounting methods (e.g., threaded holes, brackets) . Finally, confirm compatibility with your control system; the electromagnet should interface seamlessly with PLCs or microcontrollers . Always consult the manufacturer’s data sheet for technical specifications and derating factors to ensure safe and reliable operation.
