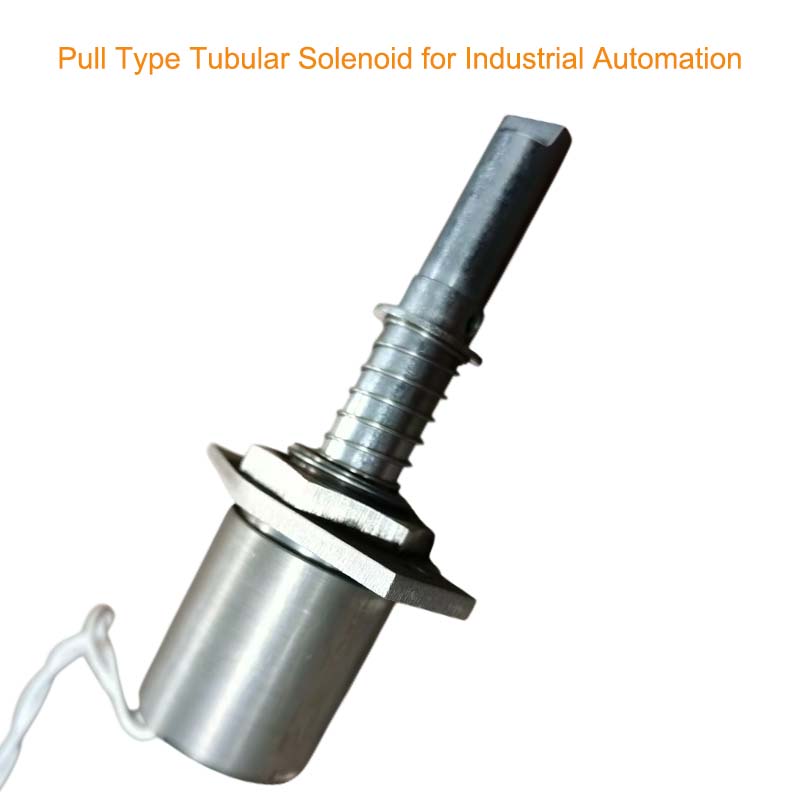

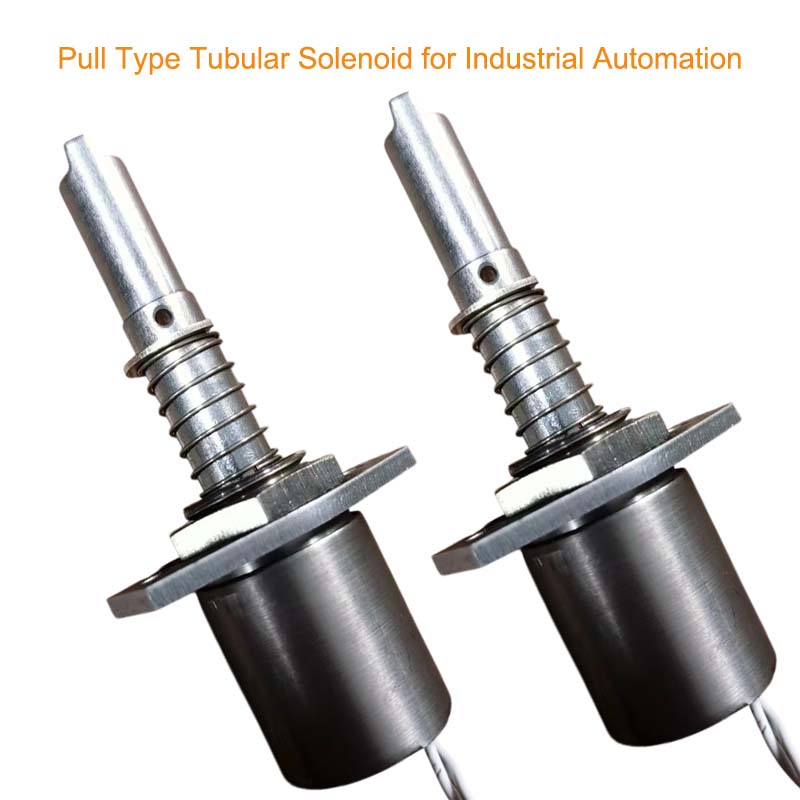

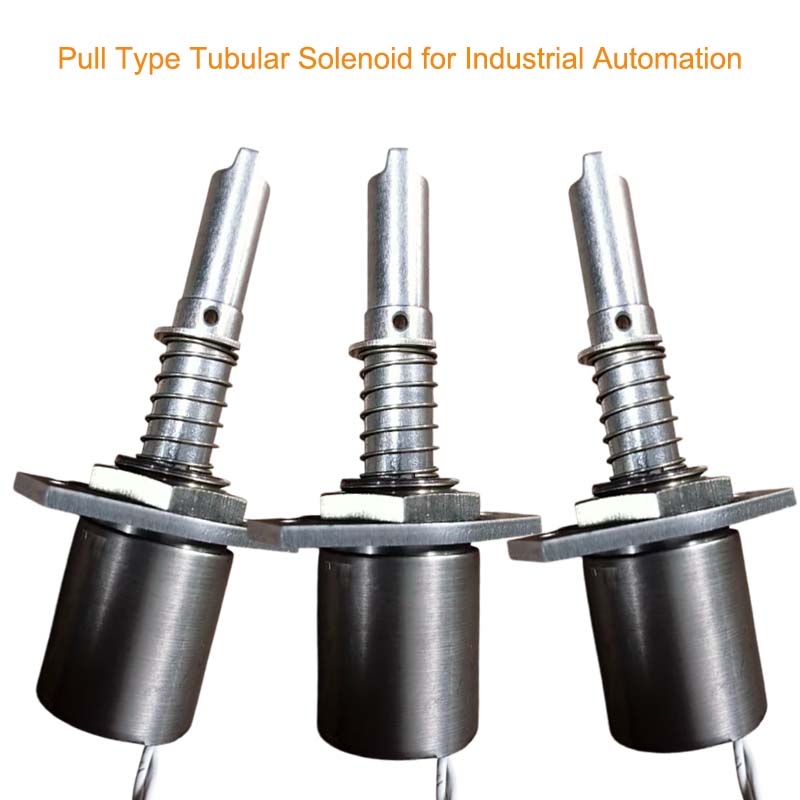

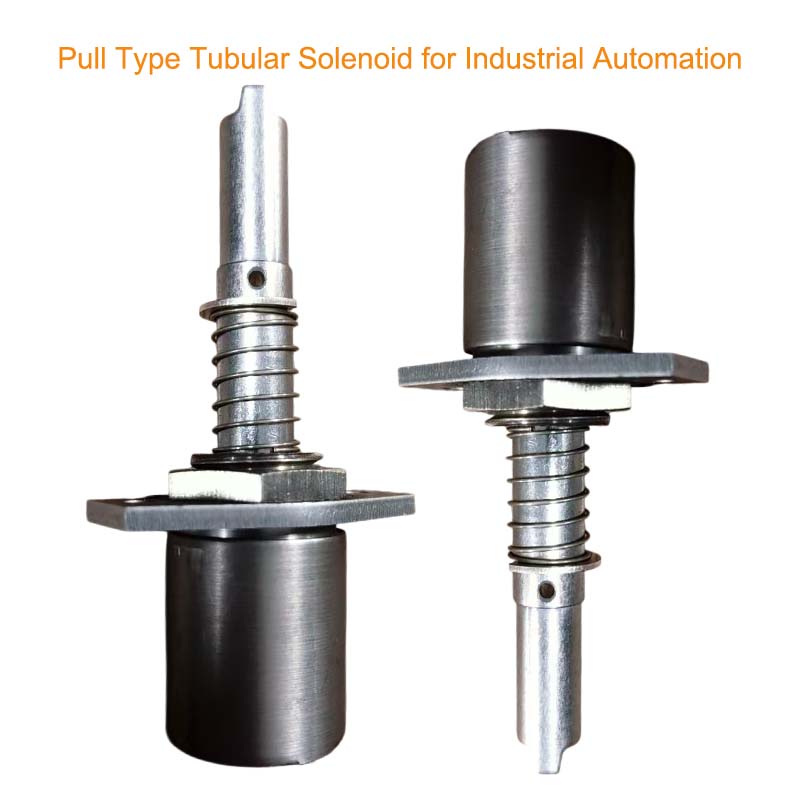

AS2530 Custom Pull Type Tubular Solenoid for Industrial Systems
Product Description

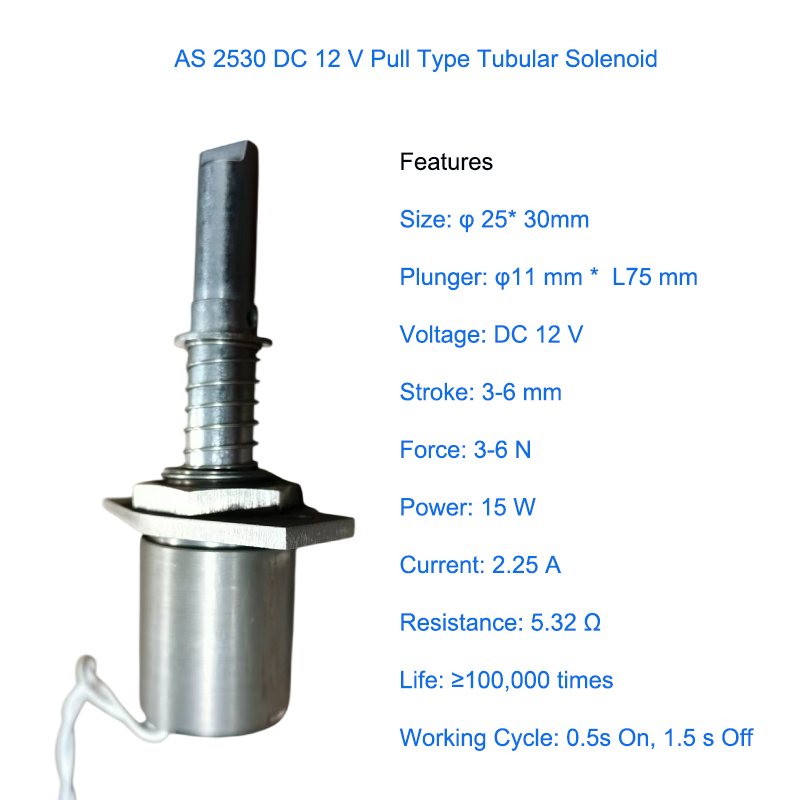

| Brand | Dr. Solenoid | Model Number | AS 2530 |
| Rated Voltage (V) | DC12V or 24V | Rated Power(W) | 5--25W |
| Work Mode | Holding Type | Holding Force (N) | 300--600 Gf |
| Stroke(mm) | 3--6 Mm | Working Duty | Intermittance |
| Service Life | 200 Thousand Times | Certification | CE,ROHS,ISO9001, |
| Material | Superior Magnet Iron | Lead Wire Length(mm) | 200 MM |
| Install Style | Screw | Tolerance of Dimension | +/- 0.1 MM |
| Water-proof | None | Insulation Class | B |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Non-excitation Holding Force | 0 |
| Working Temperature | -10°C-100°C | Duty Cycle | 1-100% |
| Thread Depth(mm) | M10 * 20 MM | Payment Term | TT, or LC At Sight |
| Sample Order | Yes | Warranty | 1 Year |
| MOQ | 100 pcs | Supply Ability | 5000 pcs per Week |
| Delivery Time | 30 Days | Port of Loading | shenzhen |

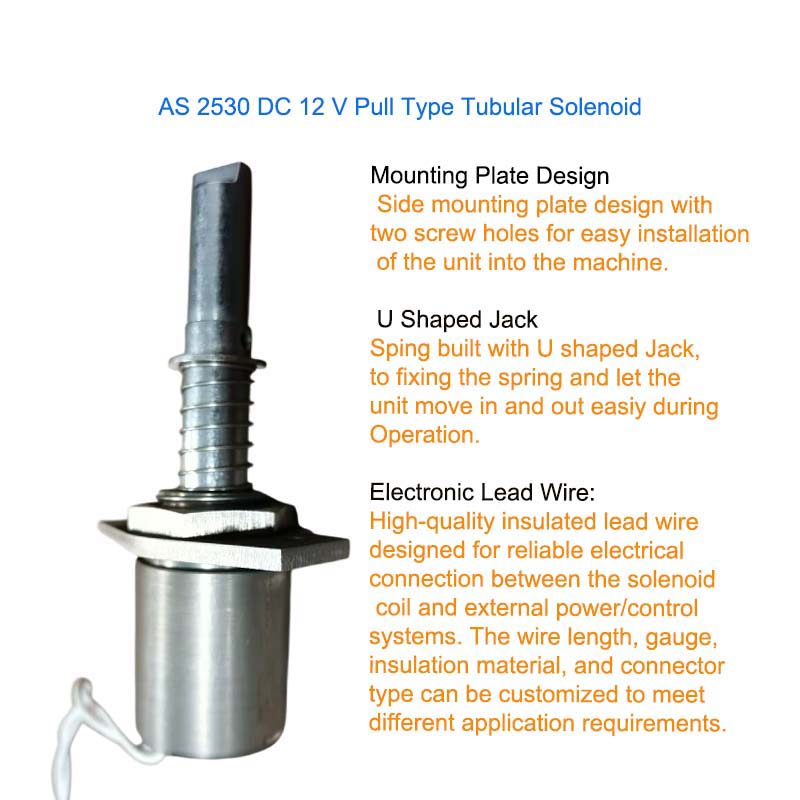

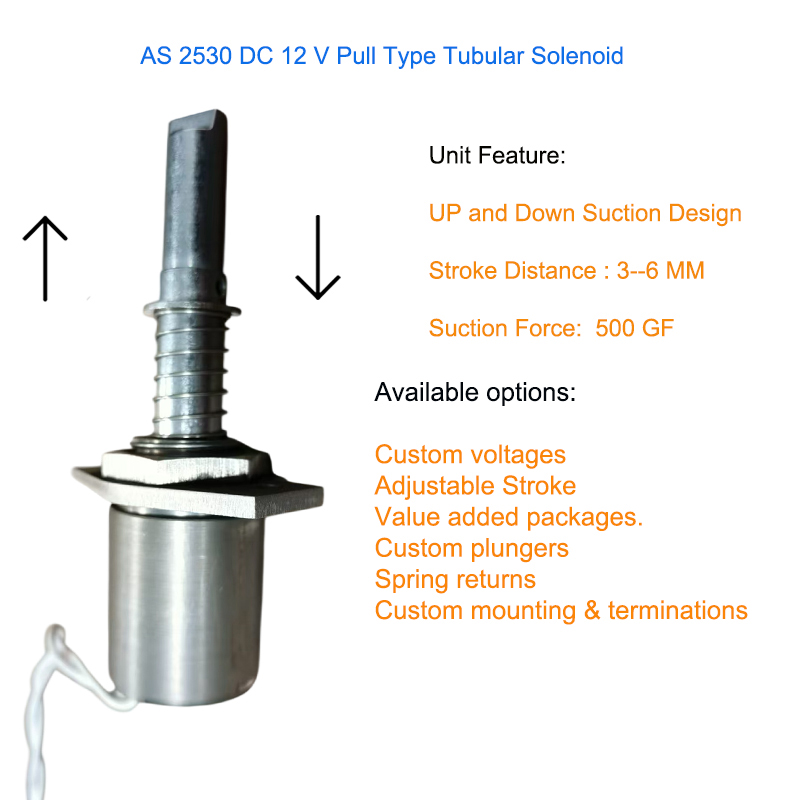

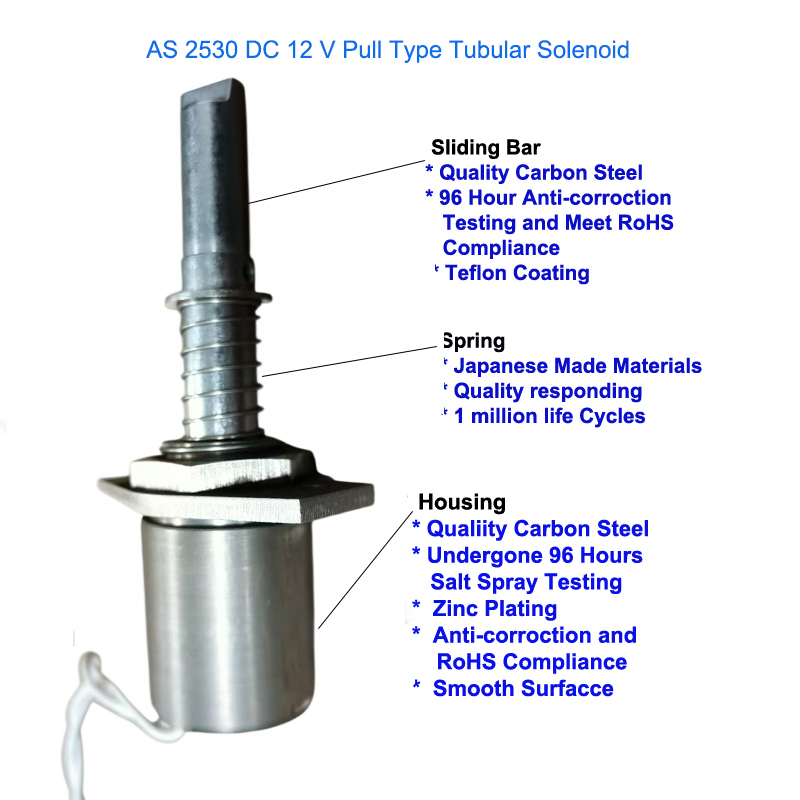

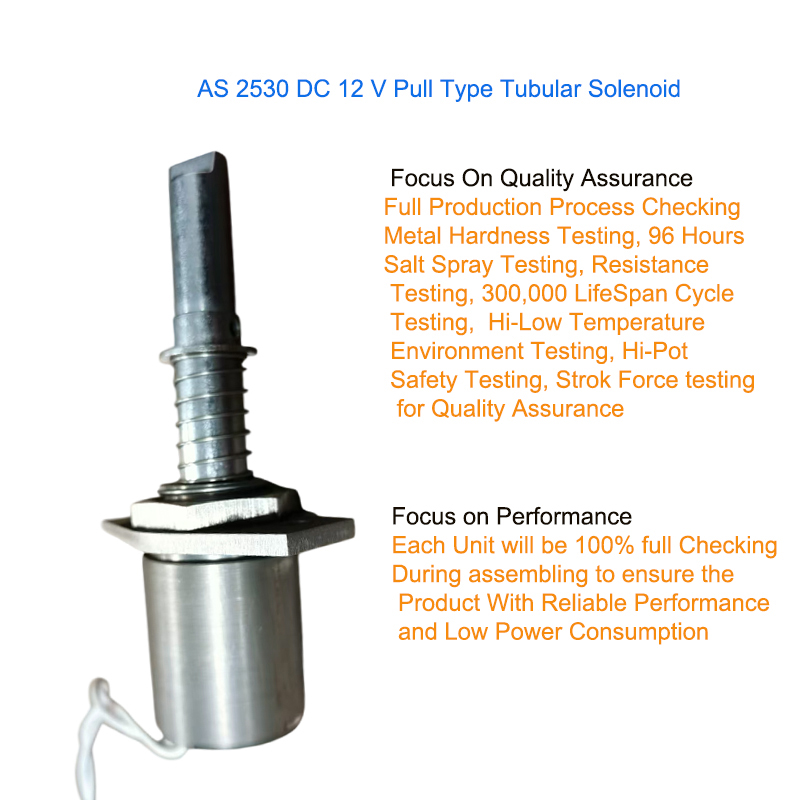

Product detail diagram

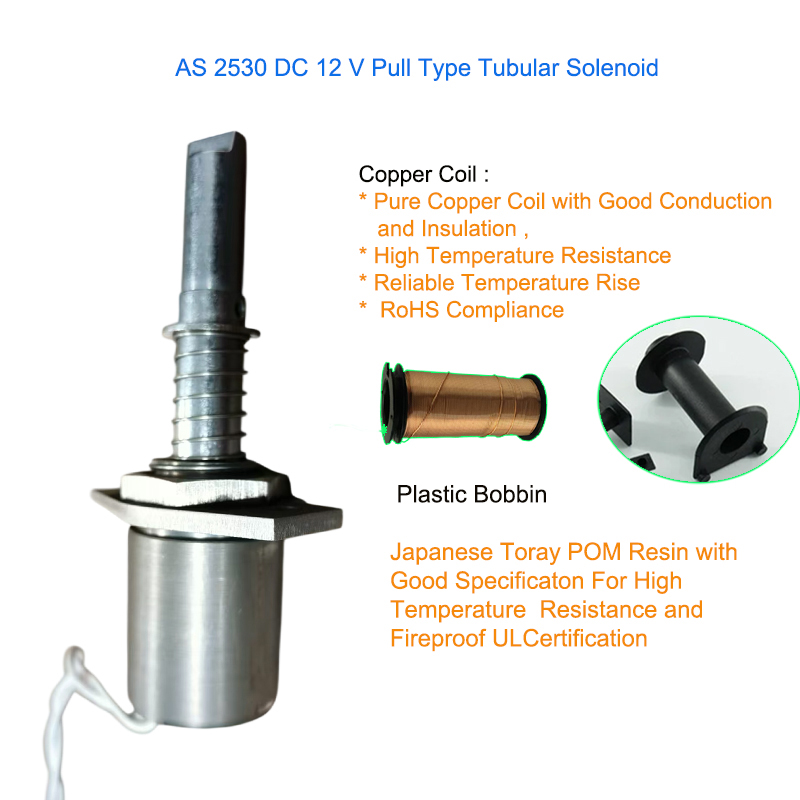

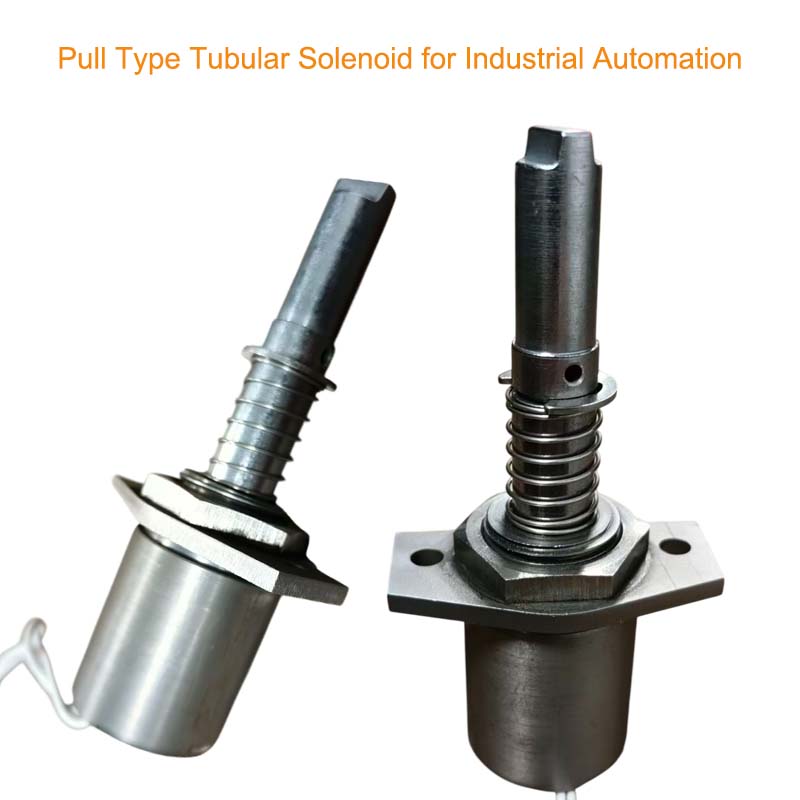

A pull type tubular solenoid is a compact linear actuator that transforms electrical power into mechanical pulling motion. The supply of the DC voltage to the actuator coil creates the electromagnetic field inside the tubular housing. The magnetic field attracts the plunger of the solenoid toward the magnetic center of the coil, generating a pulling force.
The tubular housing design ensures the good mechanical strength, magnetic performance, and flexibility of mounting options while retaining the compactness of the actuator. There are pull type tubular solenoids of various sizes, strokes, voltages, force levels, and duty cycles to suit industrial needs.
They are usually integrated into the industrial automation equipment, machine control systems, locking mechanisms, valves, dispensing equipment, automotive systems, and other electromechanical devices. In some cases, solenoids can be customized in regard to housing, plunger, spring, mounting plate, connector, lead wires, and electrical characteristics.
Their
simplicity of design, fast response, reliability, and relatively low
maintenance make pull type tubular solenoids a convenient solution for
automated linear actuation.
How Does a Pull Type Tubular Solenoid Work?
The principle of operation is very simple:
Application of the power
When the control system supplies the current to the coil of the solenoid, the electromagnetic field appears.
Generation of the magnetic field
The magnetic field attracts the ferromagnetic plunger to the magnetic center of the coil.
Creation of the pulling motion
The linear movement of the plunger creates the required pulling force.
Actuation of the mechanical load
The plunger can pull the linkage, latch, valve mechanism, lever, or any other mechanical part of the machine.
Removal of the power
In case of need, there are designs which are returned to their initial state using the return spring, mechanical mechanism, gravity, or other actuator.
If the
application requires pulling and pushing motion, the pull-type design can be
integrated into the mechanical mechanism or replaced with the push-pull
solenoid.

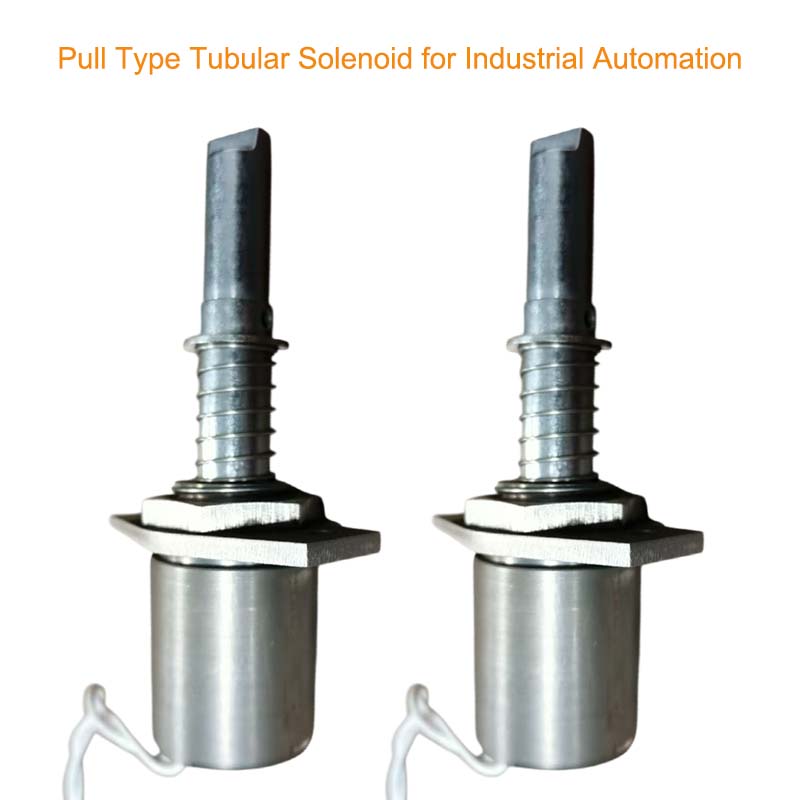

Main Features of Pull Type Tubular Solenoids
Compact tubular design for equipment with limited installation space
High pulling force in relation to the size of the actuator
Fast electromagnetic reaction for automated mechanisms
Linear movement of the plunger for simple mechanical integration
Various options of voltage, like 12V DC or 24V DC
Customization of the stroke and force in accordance with the application requirements
Different mounting options for convenient installation of the solenoid into the machine
Durability of the metal housing in industrial conditions
Custom lead wires and connectors for electrical integration
Different options of the duty cycle in accordance with the design of the coil
Long operating life when the correct selection and operation of the solenoid are ensured
OEM customization in dimensions, force, stroke, spring, wiring, and mounting
Applications of Pull Type Tubular Solenoids
Industrial Automation application
It is used to operate mechanical levers, clamps, locks, gates, and positioning mechanisms in the automated production equipment.
2. Machine Control Systems
Pull type solenoids can activate or release mechanical parts in CNC machines, packaging machines, assembly equipment, and automated machines.
3. Locking Mechanisms
They provide the reliable pulling action for cabinet locks, machine door locks, access-control equipment, and safety mechanisms.
4. Valves and Fluid Control
Solenoid can actuate the components of the valve, controlling the movement of the air, gas, or liquid.
5. Automotive Equipment
It can be used in vehicle mechanisms, latches, actuators, transmission mechanisms, and other electrically controlled mechanical systems.
6. Material Handling Equipment
Pull type tubular solenoids can operate gates, stops, diverters, release mechanisms, and positioning devices.
7. Vending and Dispensing Machines
Their compact size and linear movement make them useful in product-release and dispensing mechanisms.
8. Commercial and Industrial Appliances
They can provide automatic locking, release, switching, and mechanical actuation in special equipment.
