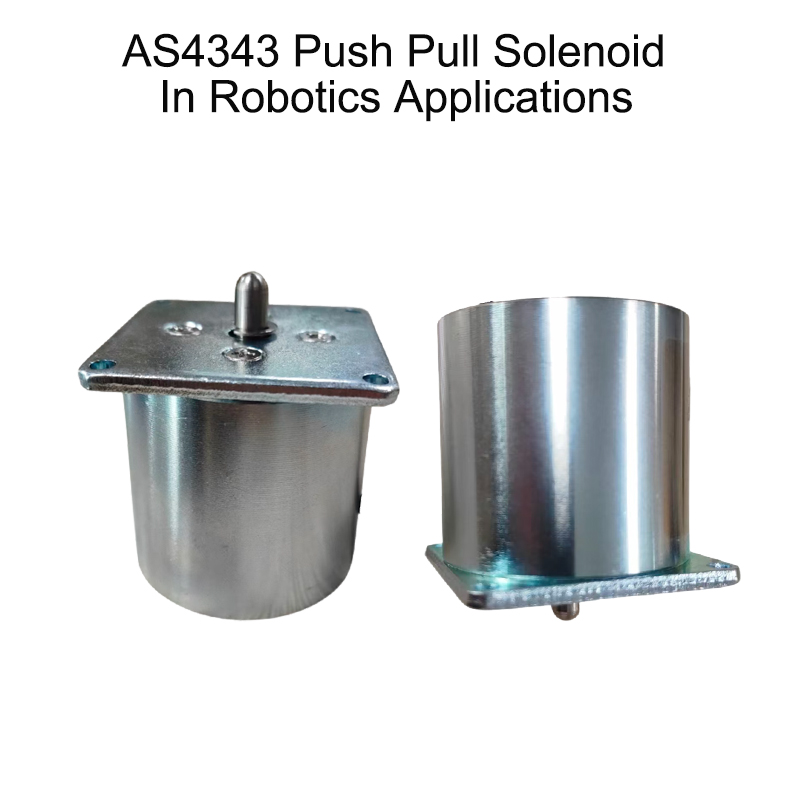

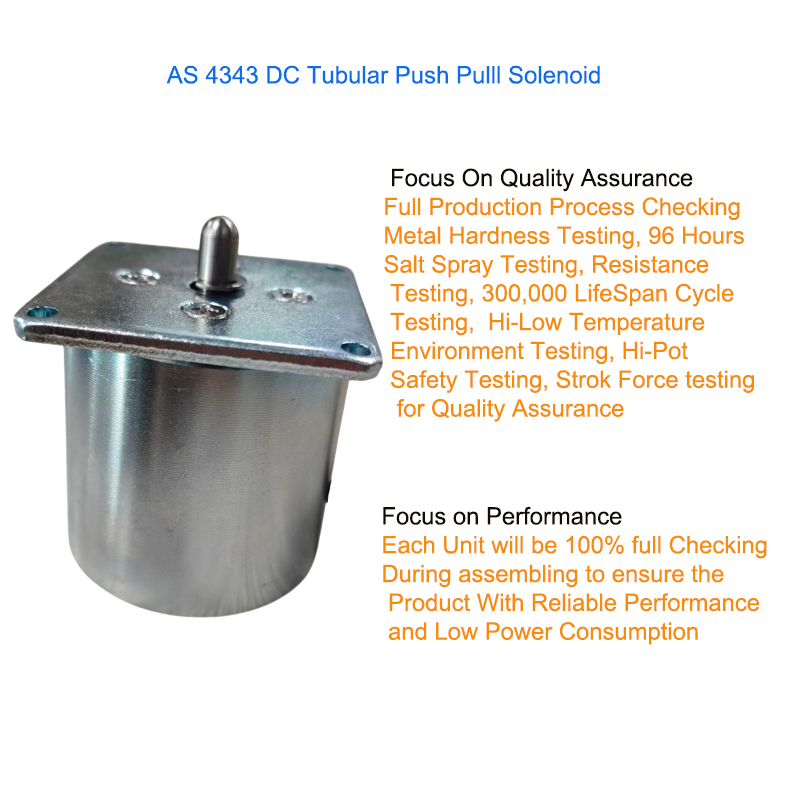

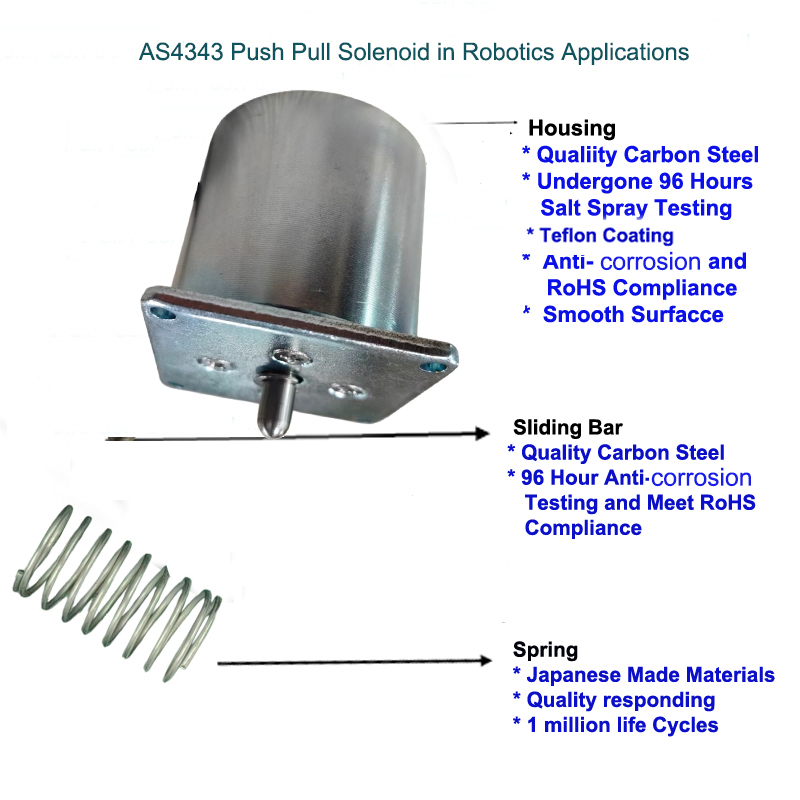

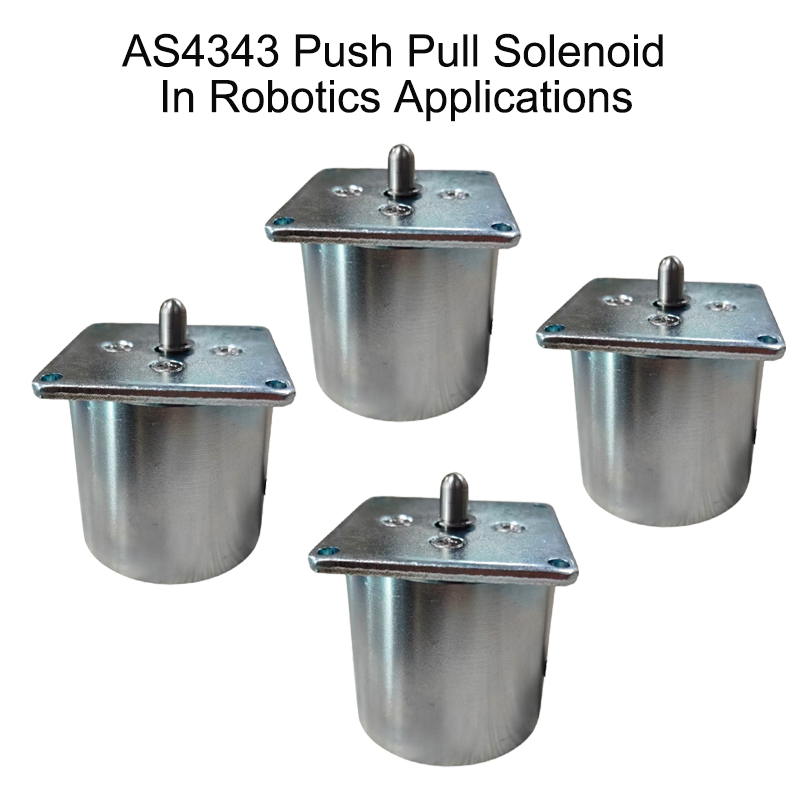

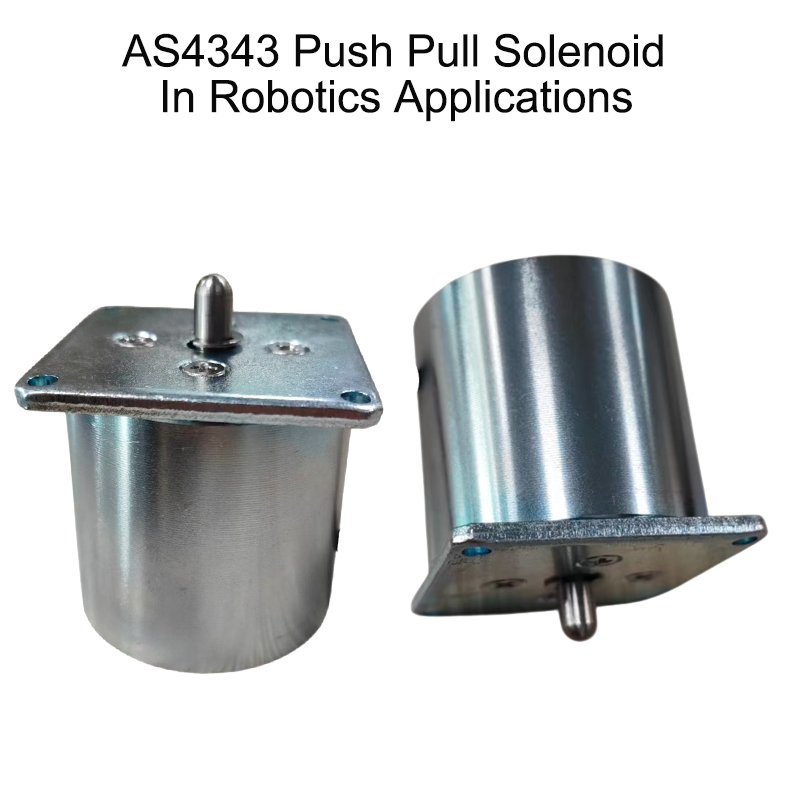

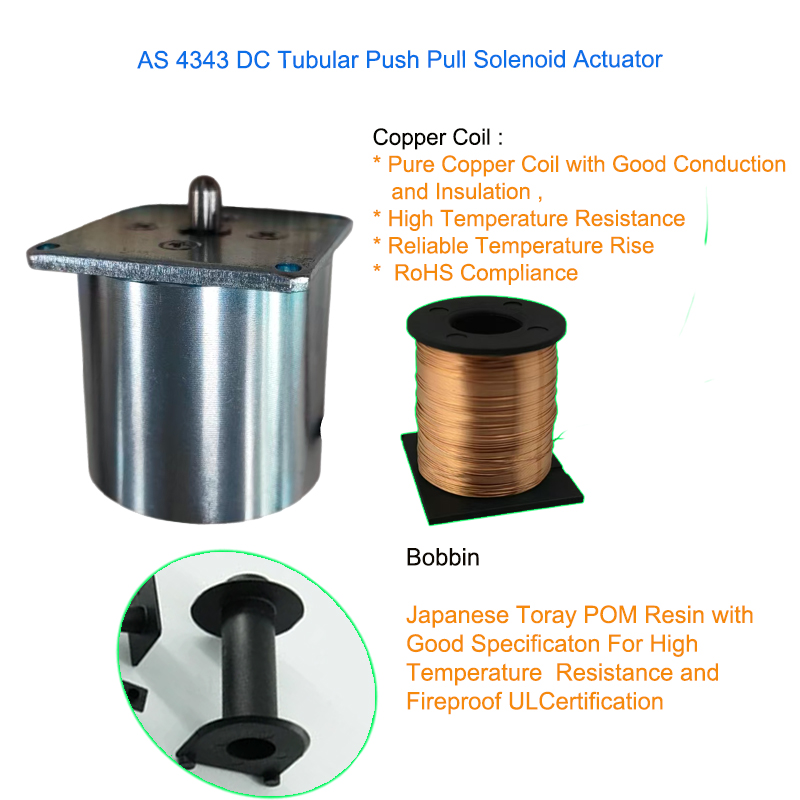

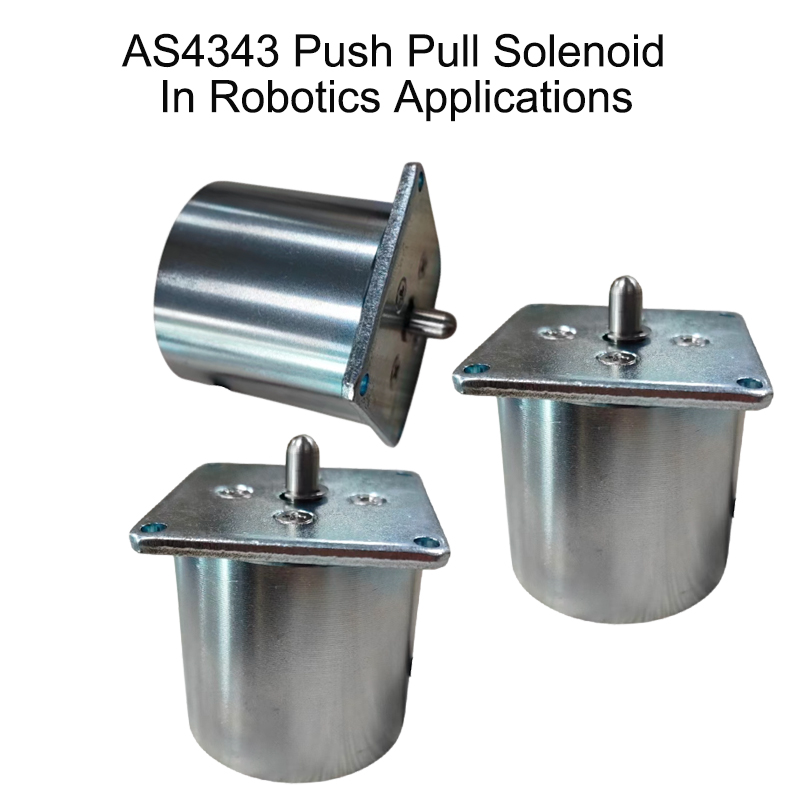

AS4343 Tubular Push Pull Solenoid buying Guide
Product Description

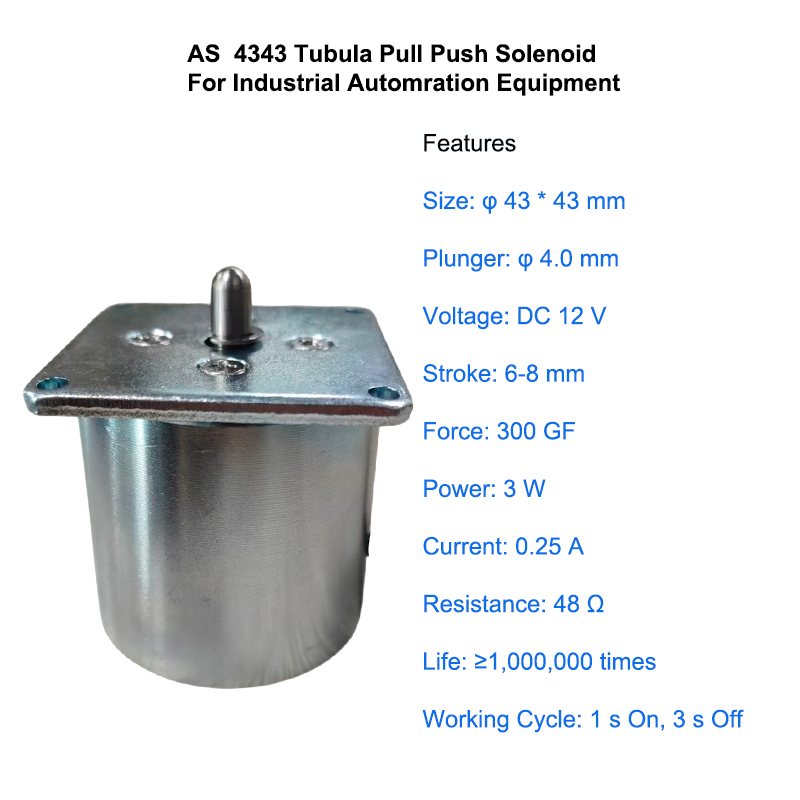

| Brand | Dr. Solenoid | Model Number | AS 4343 |
| Rated Voltage (V) | DC12V or 24V | Rated Power(W) | 3W |
| Work Mode | Push and Pull | Holding Force (N) | 350 Gf |
| Stroke(mm) | 2-5 MM Customized | Working Duty | Continuous |
| Service Life | 200 Thousand Times | Certification | CE,ROHS,ISO9001, |
| Material | Superior Magnet Iron | Lead Wire Length(mm) | 200 MM |
| Install Style | Screw | Tolerance of Dimension | +/- 0.1 MM |
| Water-proof | None | Insulation Class | B |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Non-excitation Holding Force | 0 |
| Working Temperature | -10°C-100°C | Duty Cycle | 1-100% |
| Thread Depth(mm) | / | Payment Term | TT, or LC At Sight |
| Sample Order | Yes | Warranty | 1 Year |
| MOQ | 1000 pcs | Supply Ability | 5000 pcs per Week |
| Delivery Time | 30 Days | Port of Loading | shenzhen |

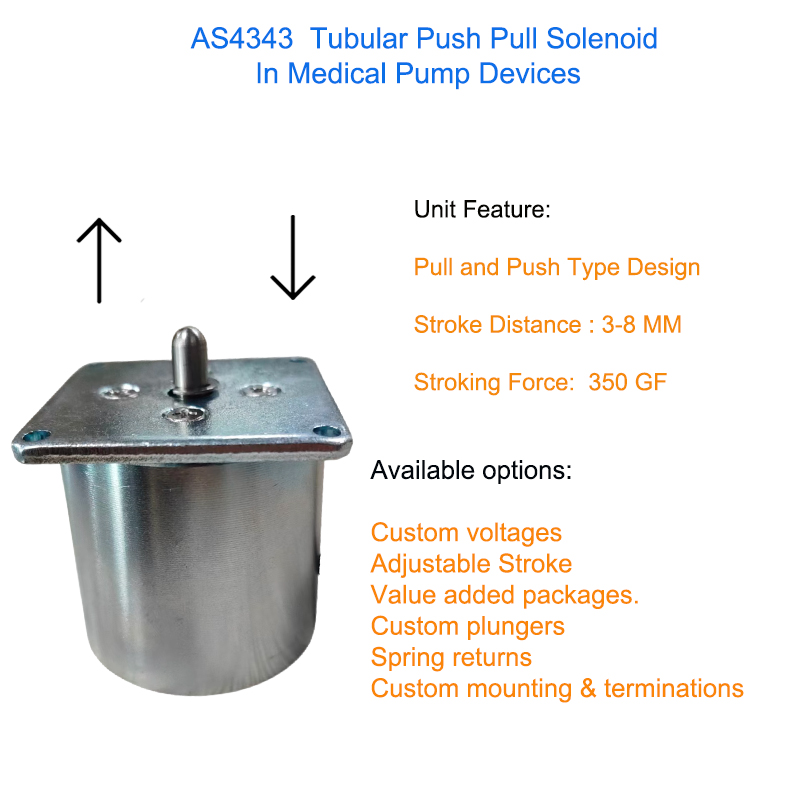

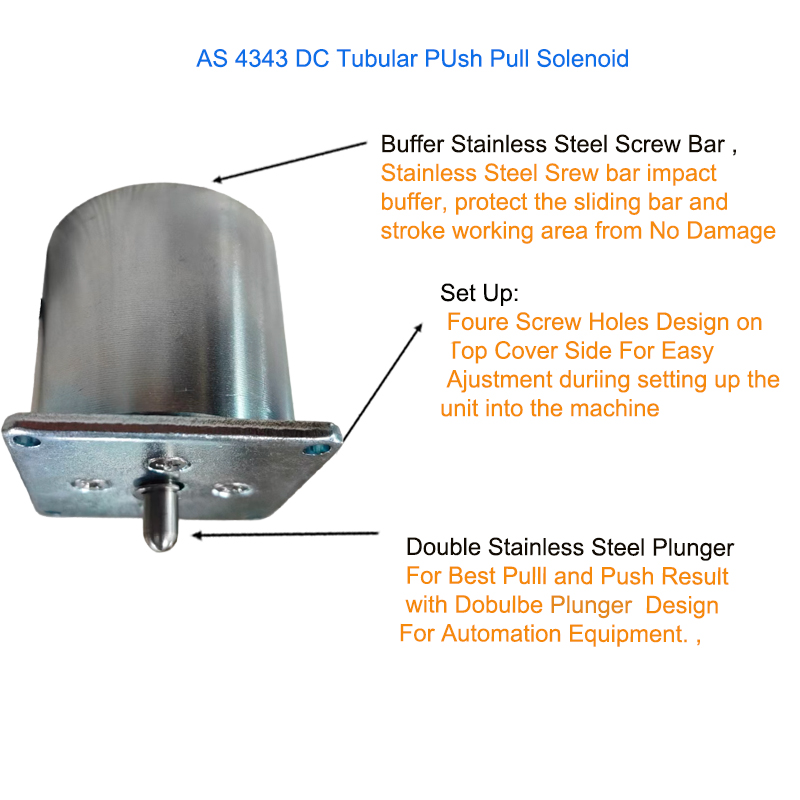

Product detail diagram
The Tubular Push Pull Solenoid Application
Many industries use tubular push-pull solenoids because they are reliable, small, and can control motion very precisely. They are used in the automotive industry for door locks, fuel control systems, and transmission mechanisms. In medical equipment, they are used to accurately control pumps, analyzers, and diagnostic devices where accuracy and dependability are very important.
Tubular solenoids make it possible for vending machines and gaming systems to dispense items in a controlled way and lock them securely. These solenoids are used by smart home and security systems for electronic locks, access control devices, and safety systems. They are important parts of packaging machines, sorting systems, and robotic actuators in industrial automation. They make sure that everything runs quickly and consistently.
They are also used in printers, copiers, and other office equipment, as well as in farming machines and heating, ventilation, and air conditioning (HVAC) systems. Because they can provide consistent linear motion with little maintenance, they are perfect for both high-volume industrial uses and precision electronic devices.
FAQs of Tubular Push Pull Solenoid
1 What do you use a tubular push-pull solenoid for?
A tubular push-pull solenoid turns electrical energy into straight motion so that it can push or pull. People often use it in vending machines, door locks, medical devices, and systems that automate factories.
2. What is the function of a push-pull solenoid?
The coil makes a magnetic field that moves the plunger inside when electricity flows through it. Depending on how it is made, this movement can either push or pull.
3. What choices do you have for voltage?
Most tubular solenoids work with DC voltages like 6V, 12V, and 24V. You can also get custom voltage designs depending on the needs of your application.
4. Is it possible for tubular solenoids to run all the time?
Some solenoids are meant to be used all the time, while others are only meant to be used sometimes. If you don't design it properly, it may overheat and shorten its life.
5. How do I pick the right tubular solenoid?
Some important things to think about are the required force, stroke length, voltage, duty cycle, and operating environment. Choosing the right one makes sure it works well and lasts a long time.
