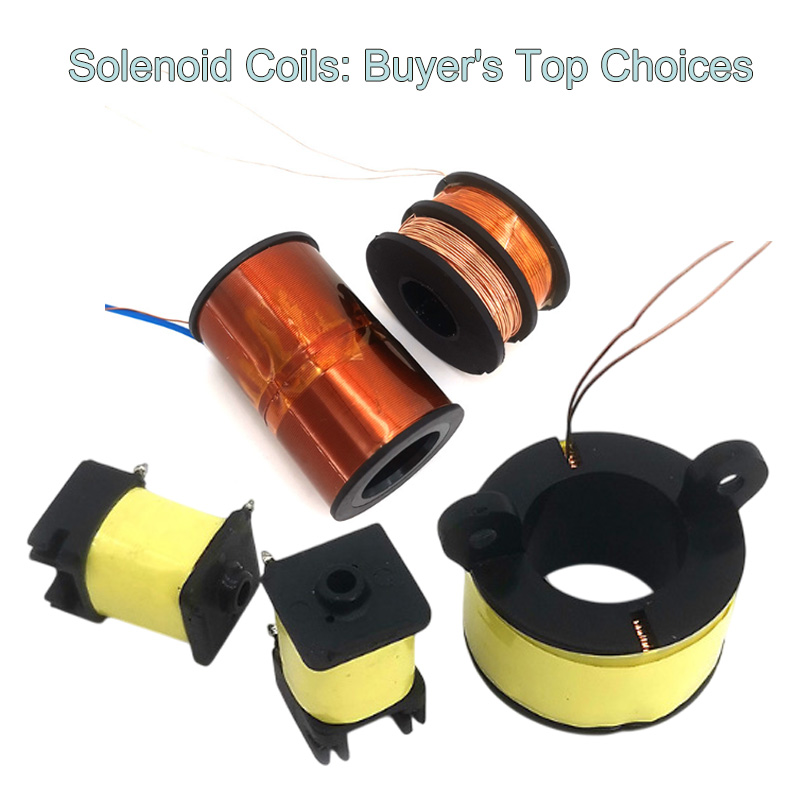

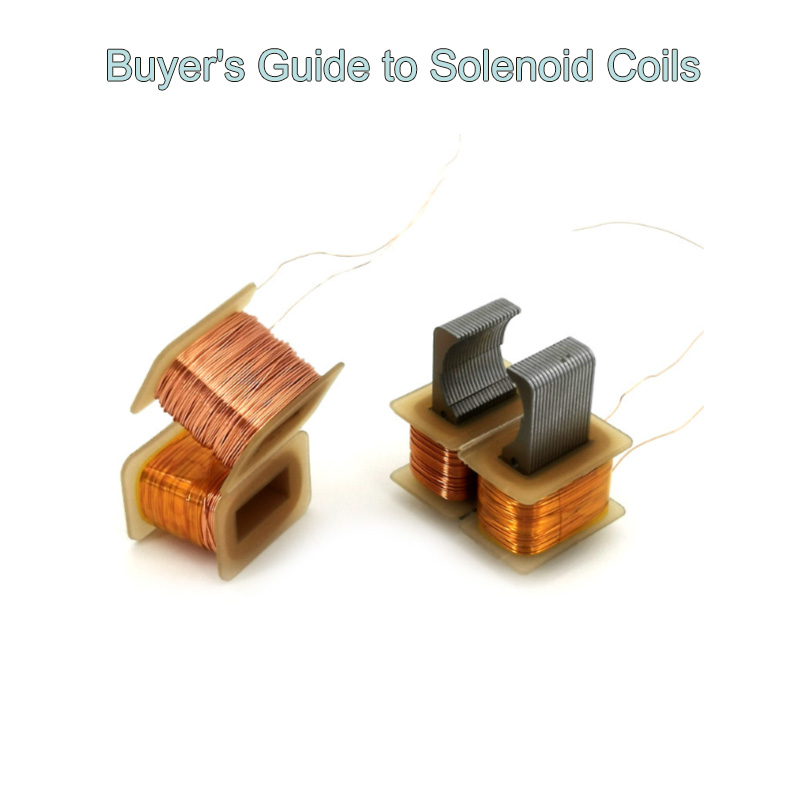

Choosing the Best Solenoid Coil for Your Specific Needs

Solenoid Coil: Features and Description

A solenoid coil is an electromagnetic device consisting of a tightly wound helical coil of insulated wire, typically wrapped around a ferromagnetic core (e.g., iron or steel) to enhance its magnetic field. When an electric current flows through the coil, it generates a controlled magnetic field, enabling it to convert electrical energy into mechanical motion (e.g., pulling or pushing a plunger) or act as a magnetic switch. Below is a detailed breakdown of its key features and a comprehensive description:

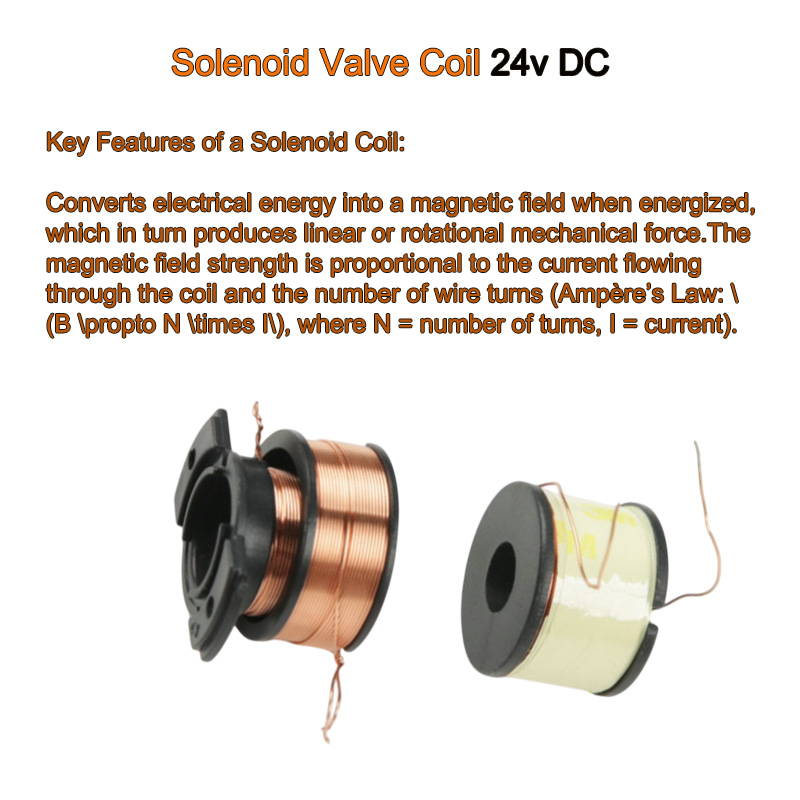

Key Features of a Solenoid Coil

Electromagnetic Functionality

Converts electrical energy into a magnetic field when energized, which in turn produces linear or rotational mechanical force.

The magnetic field strength is proportional to the current flowing through the coil and the number of wire turns (Ampère’s Law: \(B \propto N \times I\), where N = number of turns, I = current).

Structural Design

Coil Windings: Made of insulated copper or aluminum wire (copper is preferred for high conductivity) wound in a helical pattern to maximize magnetic field concentration.

Core Material: Often includes a ferromagnetic core (solid or laminated) to amplify the magnetic field by reducing reluctance (magnetic resistance). Air-core solenoids (without a core) are used in applications requiring lower field strength.

Enclosure: May have a protective casing (e.g., plastic or metal) to shield windings from dust, moisture, or mechanical damage.

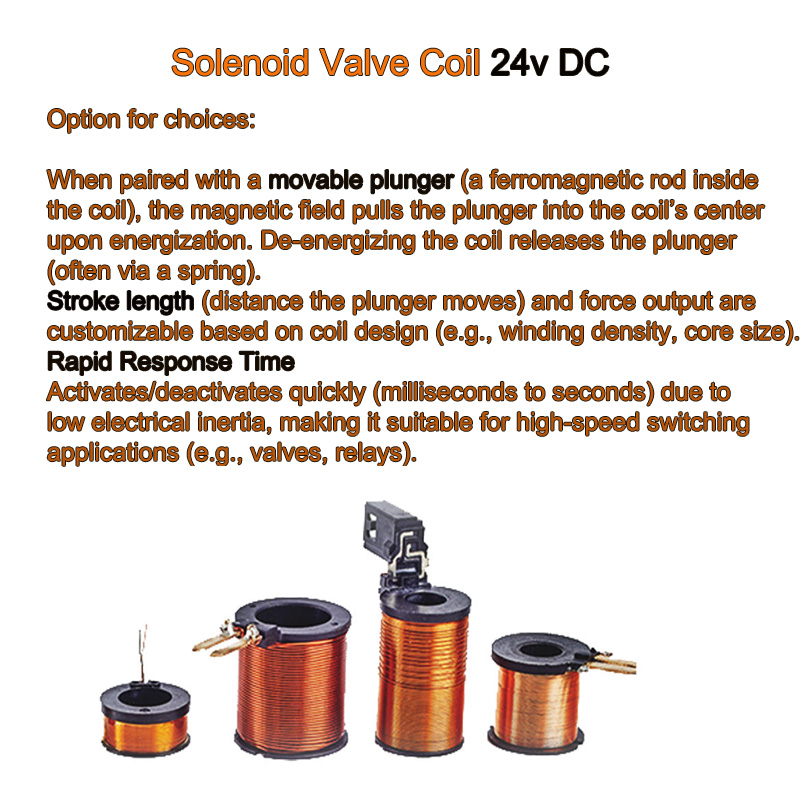

Controllable Motion

When paired with a movable plunger (a ferromagnetic rod inside the coil), the magnetic field pulls the plunger into the coil’s center upon energization. De-energizing the coil releases the plunger (often via a spring).

Stroke length (distance the plunger moves) and force output are customizable based on coil design (e.g., winding density, core size).

Rapid Response Time

Activates/deactivates quickly (milliseconds to seconds) due to low electrical inertia, making it suitable for high-speed switching applications (e.g., valves, relays).

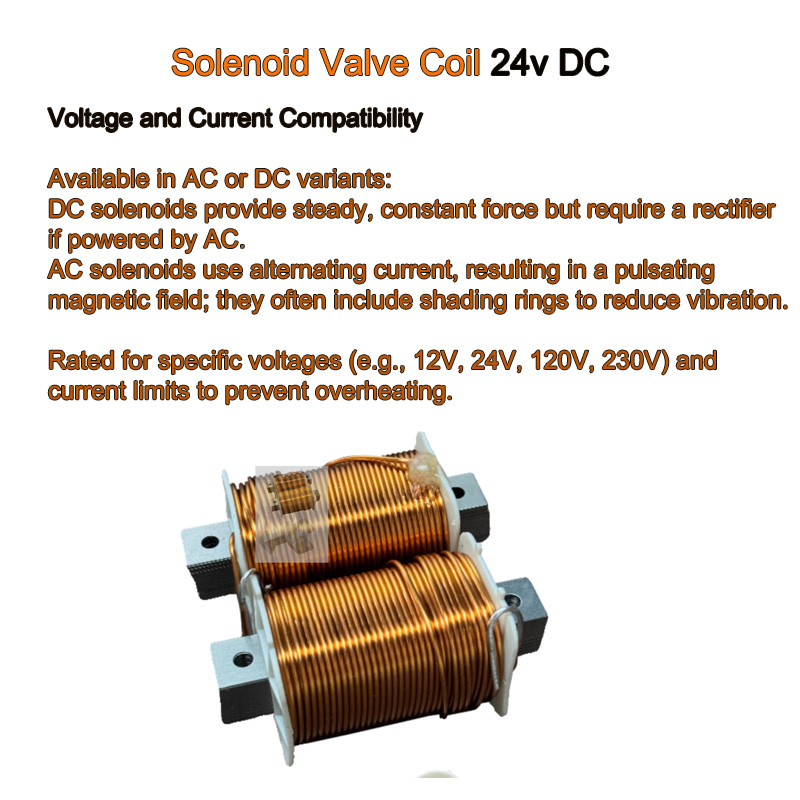

Voltage and Current Compatibility

Available in AC or DC variants:

DC solenoids provide steady, constant force but require a rectifier if powered by AC.

AC solenoids use alternating current, resulting in a pulsating magnetic field; they often include shading rings to reduce vibration.

Rated for specific voltages (e.g., 12V, 24V, 120V, 230V) and current limits to prevent overheating.

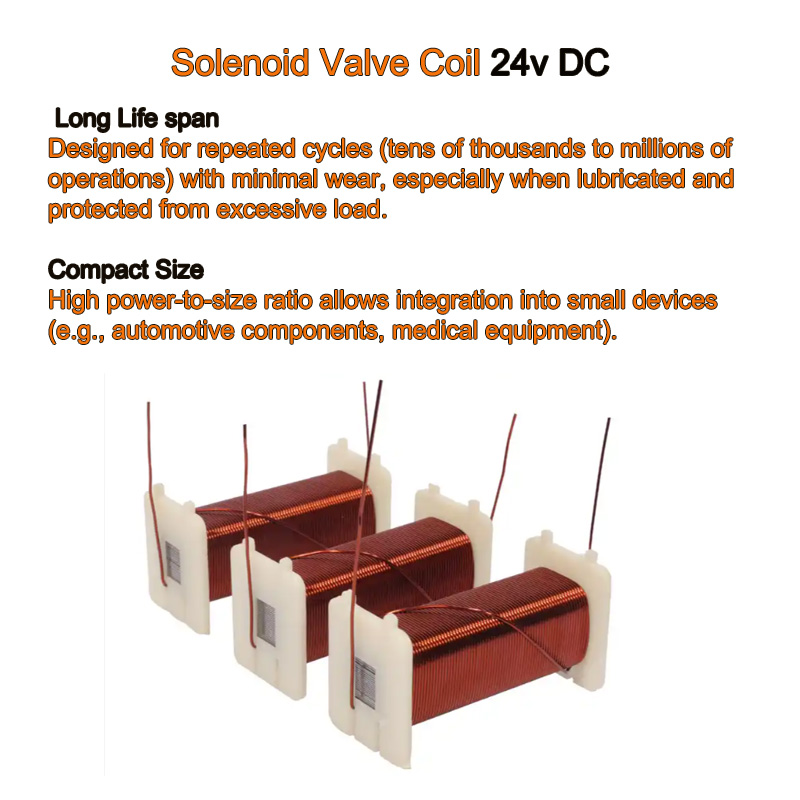

Durability and Longevity

Designed for repeated cycles (tens of thousands to millions of operations) with minimal wear, especially when lubricated and protected from excessive load.

Compact Size

High power-to-size ratio allows integration into small devices (e.g., automotive components, medical equipment).

Description and Working Principle

A solenoid coil operates on the principle of electromagnetism. When current passes through the wound wire, circular magnetic fields around each wire turn align to form a uniform, axial magnetic field along the coil’s length (similar to a bar magnet, with north and south poles at the ends).

Energized State: The magnetic field attracts the plunger (if present) into the coil, creating mechanical motion. This motion can actuate valves (opening/closing fluid flow), locks (engaging/disengaging), or switches (completing/breaking circuits).

De-energized State: Without current, the magnetic field collapses, and the plunger returns to its original position (often via a spring or gravity).

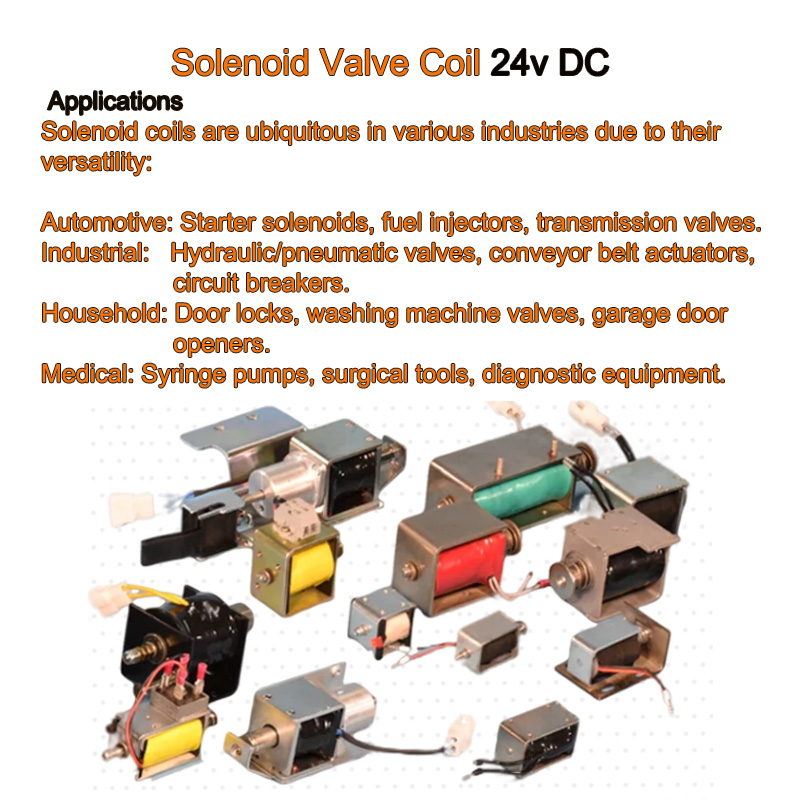

Applications

Solenoid coils are ubiquitous in various industries due to their versatility:

Automotive: Starter solenoids, fuel injectors, transmission valves.

Industrial: Hydraulic/pneumatic valves, conveyor belt actuators, circuit breakers.

Household: Door locks, washing machine valves, garage door openers.

Medical: Syringe pumps, surgical tools, diagnostic equipment.

In summary, solenoid coils are critical for precise, rapid, and controlled mechanical action in countless electrical and electromechanical systems, leveraging their ability to bridge electrical and physical motion.
