AS 6020 Electri Small Round Magnet Electromanget
Below , we would like to introduce a selection of our smallest DC electromagnets. Starting at 50 N and ranging up to 500N in holding force. The electromagnet has a potted solenoid coil to provide additional protection against dust, water and other external forces. All of our holding magnets come with 250mm long leads and offer a threaded center mounting hole in the back for mounting. The low power draw of the electromagnets is keeping the surface temperature of the housing low and allows for peak performance even at continuous duty and high ambient temperatures.
This Small round electromagnets are great for automated part handling and packaging operations, but they have many other application also. Dr solenoid 12 or 24 volt DC round electromagnets are controlled by a 12 or 24 volt power supply and require no maintenance, noise or air pressure like vacuum cups or grippers. Dr solenoid 's rugged high power electromagnets feature a durable steel housing and hand wound premium copper coils sealed with high temperature epoxy for years of maintenance free service.
AS 15063 Degaussing Electro lifting Permanent M...
What is a Lifting Permanent Magnet ?
A lifting Permanent Magnet is composed of two sets of permanent magnets: one set of magnets with fixed polarities, and one set of magnets with reversible polarities. A DC current pulse in different directions through the inside solenoid coil around the latter reverses its polarities and makes in two statuses: with or without external holding force. The device needs the DC current pulse for less than one second in order to be activated and deactivated. During the whole period of lifting a load the device doesn’t need any electricity any more.
AS 20030 DC Suction Electromagnet
What is an Electromagnetic lifter ?
An electromagnet lifter is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of electromagnet lifter are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the electromagnet lifter is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.
AS 4010 DC Power Electromagnet For Safety Smart...
What is an Electromagnet?
An electromagnet is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of electromagnet are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the suction cup electromagnet is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.
AS 32100 DC Power Electromagnetic lifter
What is an Electromagnetic lifter ?
An electromagnet lifter is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of electromagnet lifter are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the electromagnet lifter is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.
AS 25040 DC lifting Electromagnet
What is a DC lifting Electromagnetic ?
A DC lifting Electromagnetic is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of electromagnet are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the suction cup electromagnet is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.
AS 10840 DC Electromagnetic Lifting Magnet
What is an Electromagnetic ?
An electromagnet is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of electromagnet are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the suction cup electromagnet is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.
AS 8040 DC Power Electromagnetics
What is an Electromagnetic ?
An electromagnet is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of electromagnet are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the suction cup electromagnet is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.
AS 6845 DC Electromagnetic Spectrum
What is an Electromagnetic ?
An electromagnet is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of electromagnet are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the suction cup electromagnet is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.
AS 4027 DC Electromagnetic Round
What is an Electromagnetic ?
An electromagnet is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of electromagnet are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the suction cup electromagnet is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.
AS 3530 DC Magnet lift ( Holding Solenoid )
What is a round Magnet lift ?
A round electric Lifting Magnet is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of magnets are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the suction cup electromagnet is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.
AS 3930 DC Electromagnet （Round Lift Magnet )
What is an Electromagnet ?
An electromagnet is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of electromagnet are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the suction cup electromagnet is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.
AS 3340 DC Lift Magnet
What is a round lifting magnets ?
A round electric Lifting Magnet is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of magnets are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the suction cup electromagnet is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.
AS 2113 DC Electric Lifting Magnet Round
What is a round lifting magnets ?
A round electric Lifting Magnet is a device that works on the principle of electromagnet and consists of an iron core, a copper coil and a round metal disk. When current passes through the copper coil, the magnetic field generated will make the iron core a temporary magnet, which in turn attracts nearby metal objects. The function of the round disk is to enhance the suction force, because the magnetic field on the round disk and the magnetic field generated by the iron core will be superimposed to form a stronger magnetic force. This device has a stronger adsorption force than ordinary magnets and is widely used in industries, family life and scientific research.
These kind of magnets are portable, cost-effective, and efficient solutions to easily lift items such as steel plates, metallic plates, sheets, coils, tubes, disks, etc. It is usually consists of rare earth metals and alloys (e.g. ferrite) that make it capable of producing a stronger magnetic field. Its magnetic field is not consistent as it can switched on or off based on the particular needs.
Working principle:
The working principle of the suction cup electromagnet is based on the interaction between the magnetic field generated by electromagnetic induction and the metal object. When current passes through the copper coil, a magnetic field is generated, which is transmitted to the disk through the iron core to form a magnetic field environment. If a metal object nearby enters this magnetic field environment, the metal object will be adsorbed to the disk under the action of magnetic force. The size of the adsorption force depends on the strength of the current and the size of the magnetic field, which is why the suction cup electromagnet can adjust the adsorption force as needed.

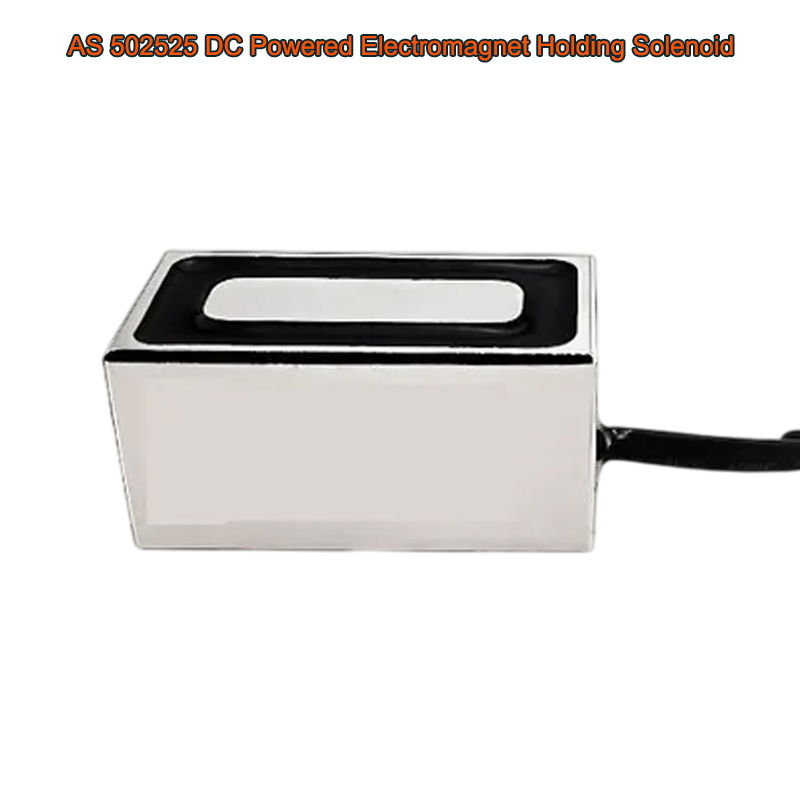

AS 502525 Dc Powered Electromagnet Holding Sole...
What Is an Electromagnet Holding Solenoid?
An electromagnet holding solenoid, also known as an electro holding magnet, is a device designed to securely hold ferromagnetic parts using electromagnetic force. It consists of a steel housing and an internal coil. When energized, the coil generates a magnetic field that holds the metal object in place—this is commonly referred to as an “energize-to-hold” mechanism.
Dr. Solenoid offers two types of DC 12V or 24V electromagnet holding solenoids:
Switched-ON to Hold (energize to attract and hold)
Switched-OFF to Hold (de-energize to release)
Our Product Range
We supply both round and rectangular solenoid electromagnets, available in DC 12V or 24V, with size options ranging from Ø8 mm to Ø100 mm, and holding forces from 2N to 2400N.
Pricing is negotiable based on order quantity.
Key Advantages
✦ High Holding Force
Electromagnets offer strong clamping power, enhanced by durable nickel plating for resistance in demanding applications.
✦ Easy ON/OFF Control
Magnetic force is activated or deactivated with a simple electrical current, making it highly energy-efficient and user-friendly.
✦ Remote Operation
Since the magnet is controlled via electric current, it can be safely operated from a distance—minimizing risk and improving operational safety.
✦ Flexible Mounting Options
Available in multiple sizes and shapes, our electromagnets can be mounted to fit various systems and structures.
AS 6035 Best electro holding magnets DC 24 V st...
AS 6035 Best electro holding magnets DC 24 V strong force from Dr solenoid
Structure and Working Principle
The electro holding magnets is an electromagnetic fixture that fixes the workpiece by the suction force generated by the solenoid coil inside after the electromagnetic coil is energized. The The electro holding magnets consists of several parts such as the iron core, solenoid coil, panel and bobbin. The electro holding magnets composed of the solenoid coil and the iron core is the main part of the unit. The electro holding magnets is different due to the difference in design methods or materials used, and is also constantly developing and improving. The electro holding magnets is used on the grinder instead of using splints and bolts to fix the workpiece being ground. Such an The electro holding magnets is relatively simple and can only fix flat workpieces. This is the traditional electromagnets, and its application has great limitations. With the development of industry, Solelnoid enterprises have an increasing demand for electromagnetic tools, and the requirements are getting higher and higher, prompting people to continuously update the application of the electro holding magnets.
Electro holding magnets style.
Generally, there are two styles of circular suction cup electromagnets, ordinary style (i.e., power on, power off, release); holding style (power on, release, power off, just the opposite of the ordinary style) The suction surface can also be made into various shapes according to actual needs, such as arc shape, V shape, etc.
Product principle: When the solenoid coil inside is energized, magnetic energy is generated, the housing and the middle iron core are magnetized, and then a magnetic field loop is generated, so the suction cup product must rely on the suction surface to work. At a distance of 0mm, the suction cup electromagnet has a strong force despond on different size.
Advantages: Advantages of suction cup electromagnets: 0mm distance suction force is large, which is different from the concept of frame and round tube electromagnets, and the force generated is also different; in the case of spacing, the attenuation force is also different, 0-5mm is attenuated by 65%, 5-10mm is attenuated by 85%, and the force generated at different distances is also different; in terms of installation, it can be designed according to requirements to meet the application of various occasions.
The electro holding magnets has been improved in a series of ways to meet the needs of production. The electromagnetic suction cup is optimized and designed according to customer requirements to solve the serious problems of fast heating, large residual magnetism, and uneven suction surface. The suction force and volume of the circular suction cup type electromagnet product can be customized according to the required requirements. Products of different sizes use different power and functions.
