Cabinet Lock Electromagnets Overview：Structure, Principle and Application

1 Introduction to Cabinet Lock Electromagnets

Cabinet lock electromagnets refer to the intelligent electromechanical actuators that are applied for cabinet lock function. The device operates on the basis of electromagnetic induction, enabling automatic unlocking under the condition of electrification and locking when it is de-energized or vice versa, depending on the design. They are broadly utilized in intelligent storage lockers, equipment enclosures, household appliances, industrial control cabinets and other locking devices. Compared with traditional mechanical locks, the electromagnets combine perfectly with the electrical automation and intelligent control system, providing quick response, strong controllability and wide adaptability. Its application covers civil, industrial, financial and medical fields. Therefore, it is an important component of intelligent locking system.

This article will make a detailed introduction to cabinet lock electromagnets, analyzing its basic structure, working principle, product category, characteristics, application areas and the comprehensive advantages and disadvantages.

 2. Basic Structure

As mentioned before, cabinet lock electromagnet has a compact shape suitable for cabinet space, which is composed of three basic components including lock valve body, electromagnetic device and sealing/protecting device. These three components jointly realize the stable and reliable locking function.

Lock Valve Body: Primary housing which is made of high-permeability carbon steel. Such material has outstanding structural strength, magnetic conductance, wear resistance, anti-deformation capacity and little residual magnetism. As a result, it can maintain stable performance under long term and frequent operation.

Electromagnetic Device

It is the main driving power component which includes electromagnetic coils, fixed iron cores, moving iron cores, return spring and mounting bracket. Electromagnetic coils produce magnetic field in the case of electrification and drive the movement of iron cores telescoping to control the locking and unlocking of the locking bolts.

Sealing and Protecting Device

High-quality sealing gasket and coating technology guarantee the sealing effect, protecting the interior of the device from dust, moisture and mild oil pollution. In addition, it largely reduces the requirements of environment cleanliness.

 3. Basic Working Principle

The cabinet lock electromagnet operates on the basis of electromagnetic induction and spring return mechanism. With the appearance or disappearance of magnetic field caused by the energization or de-energization of coil, the spring mechanism changes the locking condition. These devices can be classified into normally closed type and normally open type according to its state in the condition of lack of electricity.

Fail-safe Type (Normally Closed)

It is the default type in the industry. Under the state of de-energization, the return spring pushes the moving iron core to extend, blocking the locking channel and locking the cabinet door. Under the condition of energization, the magnetic force generated exceeds the spring force pulling back the iron core and realizes the unlocking function. Under the condition of de-energization, the magnetic field disappears and the iron core resets its extended state and locks the cabinet.

Normally Open Type: Operated on the opposite principle. Under the condition of lack of electricity, the spring is not stressed and pulls back the iron core. At this time, the cabinet is unlocked. With the condition of electrification, the magnetic force drives the moving iron core extending and engages the lock. If there is any power loss, the spring will pull back the iron core and unlock the cabinet. Such kind of product is generally used in some special occasions where fail-safe access is required.

4. Classification of Product

The main category criterion is the state of the device when lacking power. Therefore, the products can be divided into normally closed type and normally open type, which meets the safety requirement of various applications.

In the case of lack of power:

Normally Closed: De-energization=unlocked; energization=locked. It is perfect for most security application including storage cabinet, equipment rack and smart parcel locker.

Normally Open: Locked when powered, and unlocked when there is any power loss. Generally used in the equipment maintenance or safety cabinet when the automatic opening is required in the case of power loss in order to cooling or servicing.

Installation Mode: Embedded or surface-mounted (exposed) mode.

By operating voltage: 12V DC and 24V DC version

5. Important Characteristics

The mature design and advanced materials provide many practical advantages for cabinet lock electromagnets:

Ultra-Fast Response: Electromagnetic actuator ensures that there is no mechanical jamming and instant switching of the state, which is much more efficient than the traditional locks.

Excellent Environmental Adaptability: The strong sealing makes the interior of the components be protected, ensuring the stable operation in dusty or slightly humid environment with low requirements of cleanliness.

Exceptional Magnetic Performance: The high-energy rare earth magnets and high-permeability steel are adopted to guarantee the strong locking force, little residual magnetism and small temperature rise to avoid deformation and jamming in long-term use.

Intelligent Control Compatibility: It is compatible with electrical automation and remote control system and supports multiple control modes including microcontroller logic, card swiping, fingerprint recognition and remote control.

Light-weighted and Cost Effective: Compact design, convenient installation and maintenance and energy saving make it provide much better stable performance than the pneumatic and cylinder locking system at high cost-effectiveness.

6. Main Application Fields

Cabinet lock electromagnets are very flexible and are widely used in civil and industrial locking applications.

Civil Application: Broadly used in smart parcel locker, self-service storage locker, wardrobe, kitchen cabinet and household appliance enclosure.

Industrial Application: Provide safety locking elements for equipment cabinet, laser cabinet, packaging machine control panel and robotic control enclosure.

Specialized Equipment: Used in financial terminals, medical devices and precision tooling for hardware molds.

Extended Use (Modified Model): Can be used as magnetic chucks for CNC equipment such as grinder, wire cutter and planer to hold the ferrous workpiece to do cutting, scribing and polishing operations.

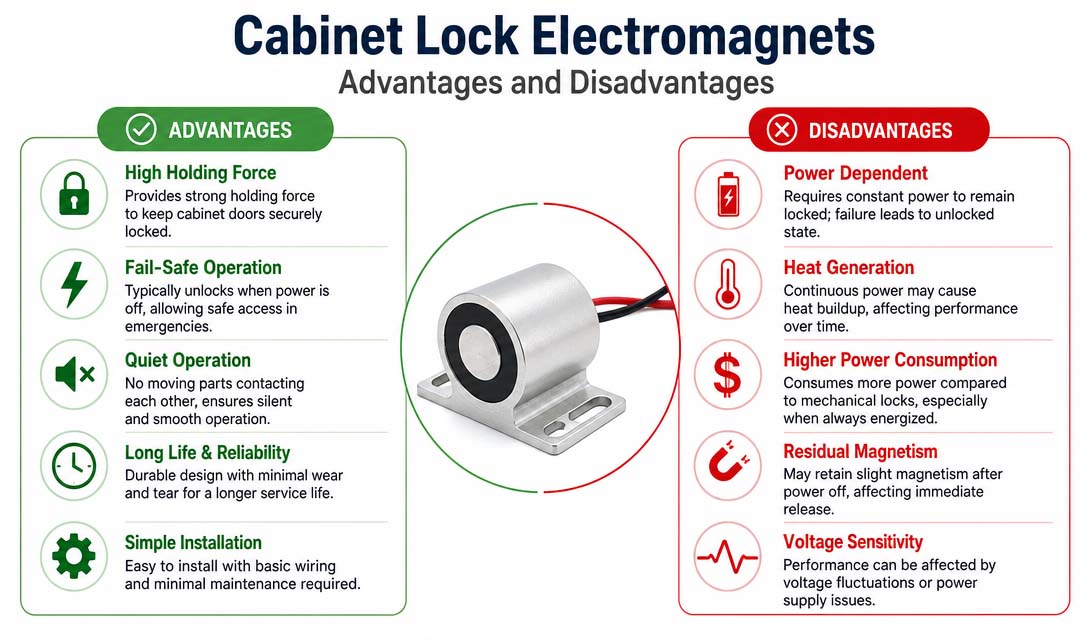

7. Summary of Advantages and Disadvantages

Advantages:

Compact and simple structure, low failure rate, long service life and low maintenance.

Allowing intelligent remote control and high precision operation without problems such as loss of keys and physical jamming for traditional locks.

Versatile application and high cost-performance ratios than traditional mechanical and pneumatic locking system.

Low noise and high safety and stability.

Disadvantages:

Power Dependent: The operational state is fixed when there is no power supply. Normally open type cannot lock in the case of lack of power, normally closed type cannot unlock in the case of lack of power.

Heat Management: High-frequency electrification may lead to a slight temperature rise. Special heat dissipation may be required when applied in the extreme hot environment.

Sensitivity to Power Quality: Stable power supply is required, or large voltage fluctuation leads to locking failure.

Overall Assessment: Except the need of stable power supply, cabinet lock electromagnets enjoy obvious advantages in most intelligent locking applications.

8. Frequently Asked Questions (FAQs)

Q1: What is the difference between normally open and normally closed cabinet lock electromagnets in practice?

The difference lies in their default state in case of power outage. Normally closed models stay locked without the power supply but become unlocked once powered. These are mostly used for security-sensitive cabinets such as express lockers and server cabinets to protect them from accidental opening. Normally open models get unlocked once power is turned off and locked in case of the power supply. They are mostly used for safety maintenance cabinets that can be automatically opened in case of power outage to inspect the contents and let the heat out.

Q2: Can cabinet lock electromagnets be powered on all the time?

A2: Standard cabinet lock electromagnets were designed for occasional use. When powered on for a long period of time, the temperature will increase constantly and the process of aging of coils will accelerate, reducing the life expectancy of the device. When you need your cabinet to be locked for a long period of time, it is recommended to choose self-holding electromagnet models that can keep the locking state without any power supply after the single use and almost without any power consumption, solving the problem of heating effectively.

Q3 What are the suitable environmental conditions for cabinet lock electromagnets?

A3: Standard cabinet lock electromagnet with an inner sealing structure to achieve dust-proof and moisture-proof features, suitable for conventional indoor and light industrial environments with normal temperatures and humidity. They can withstand dust and steam but have low requirements regarding medium cleanliness. However, they are not suitable for the extreme environment including the presence of strong corrosive gas, oil contamination, and ultra-high temperature, which will harm internal coils and magnetic actuators.

Q4: What are the most common malfunctions of cabinet lock electromagnets?

A4: Common malfunctions are unsmooth locking and unlocking caused by voltage fluctuation, jamming caused by dust and other objects that accumulated in the lock body, failure of resetting actions due to fatigue of spring after being used for a long period of time. Also, the coils can burn out and the magnetic actuator can stop functioning properly if being kept powered for a long period of time. Regular cleaning and steady power supply can reduce the risk of malfunction.

Q5: Are cabinet lock electromagnets the perfect substitute for mechanical locks?

It is the best replacement for traditional mechanical locks in smart and automatic management scenarios. They are better than the traditional mechanical locks in smart cabinets, industrial equipment and public storage facilities since they provide remote control, automatic unlocking, and centralized management without any keys. However, the traditional mechanical locks are more suitable for the environments without power supply and smart control. Thus, the two types of locks complement each other in practice.
