Causes and remedies of solenoid overheating analysis

Solenoids are vital components in manufacturing facilities and electrical apparatus. Without proper functioning, the entire system will malfunction or even fail to deliver its intended purpose. The primary hidden risk when working with solenoids includes heat generation, which acts as a significant factor in durability and accuracy of performance. This paper analyzes causes of solenoid overheating, its consequences, preventive measures against overheating in the design phase, technical means of dissipation, as well as practical examples.

Chapter 1: Major Causes of Heat Generation in Solenoids

Heat generation in solenoids occurs due to energy loss in two primary forms:

Copper Loss: Due to electrical resistance generated during current flow in the conductor, the heat is released in form of Joule heat. Higher the current and coil resistance, higher the copper loss.

Iron Loss: Due to alternating magnetic field, the core produces eddy current and hysteresis loss. Higher the permeability and the frequency of magnetic field, higher the iron loss.

Other contributing factors include excessive winding density, insufficient ventilation and elevated environmental temperatures.

Point 1: The aging process of the insulation coating layer of the coil may lead to heat accumulation. The aged insulation layer does not allow effective dissipation of heat, hence keeping it inside. Leakage of local currents occurs resulting in further increase in heat, thus forming a vicious circle of "heat generation → aging → increased heat generation"

Chapter 2: Consequences of Excessive Heating

Extended overheating leads to numerous negative outcomes:

Service Life Shortening: Increased heat leads to rapid aging of insulation, which may eventually result in deterioration of coils' insulation, breakdowns and short circuits. Increased aging also negatively impacts the magnetic performance of the core reducing suction power and life span of the entire equipment.

Inaccuracy of Operation: Increased coil resistance and unstable current due to elevated temperatures result in decreased magnetic field intensity and speed. It negatively impacts the accuracy of the process being performed, especially when it comes to automated machinery or medical devices.

Risk Factors: Excessive heating may lead to distortion of the body housing of the solenoid, burning of adjacent components or even fire in enclosed environments and high temperatures. It also increases the price and costs related to energy consumption.

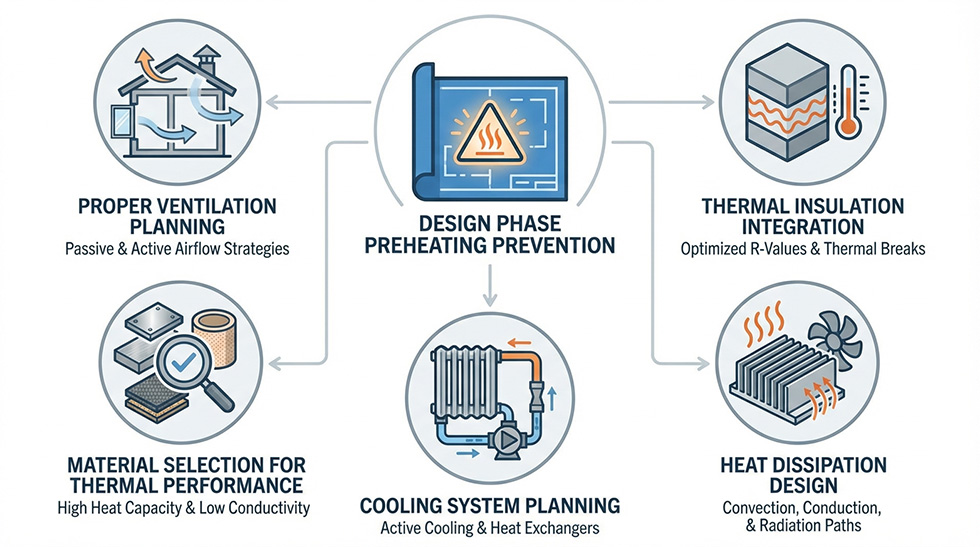

Chapter 3: Prevention Measures Against Excessive Heating in Design Phase

Basic approaches include reduction of energy loss as well as optimized architectural means of dissipation. In designing, consider the following four aspects:

Improved Coil Design: Usage of low resistance conductors (copper). In order to reduce excessive losses, limit coil turns as well as diameter of wire. Maintain proper winding density and space for air flow.

Select materials that produce low iron loss – for example, silicon steel sheets or copper-iron alloys. Improve heat dissipation properties by limiting thermal capacity and enhancing thermal conductivity of core.

Optimization of Working Scenario: Proper selection of duty cycles (intermittent versus continuous operation in order to prevent long periods of full load operation). Leave extra space for dissipation of heat when used in high temperatures.

Optimize wiring techniques: Reduce electrical resistance by using terminals made of silver and tightly fixing screws in order to limit losses in contact points.

Chapter 4: Practical Approaches to Heat Removal: Technical Means of Dissipation

Any of the following techniques (or any combinations of them) may be applied according to the case.

4.1 Optimization of Structural Design: Passive Heat Dissipation

This method does not require additional energy sources making it ideal for solenoids with low to moderate power.

Increase heat dissipation capacity by adding integrated heat sinks (finned plates) to the core and coil housing sides. Additional longitudinal or annular fins of cylindrical and core-type housing enhance heat dissipation capacity by up to 30%.

Optimize coil arrangement according to its design. Layered, stepped and segmented winding with 1-2mm spaces for air convection.

Examples: DC small solenoids used in toys or relays feature layered coil winding. It leaves empty spaces as well as adds annular fins to the housing of the device. This allows maintaining temperature of less than 60oС.

4.2 Highly Effective Heat Dissipation Material: Improved Thermal Conductivity

Thermally Conductive Insulating Materials: Silicone sheets with high thermal conductivity or highly conductive paints are used in order to fill up gap between coil and core. Copper-iron alloy core increases thermal dissipation capability by about 50% comparing to regular iron core.

Application Example: Use nano heat dissipation coatings for the exterior of the core and housing. Such coating provides excellent heat dissipation capability, effective radiation cooling and protection from corrosion and oxidation.

Application Case: Nano heat dissipation coating is used for outdoor high voltage solenoids (power switches) allowing lowering the surface temperature of the solenoid by 15-20% and preserving insulation integrity in harsh conditions outdoors.

4.3 Forced Cooling Techniques: Active Heat Dissipation for High-Power Devices

Air-Cooled Heat Dissipation: Installing air blowers or fans in order to promote air movement on the surface of the solenoid. Proper air volume and speed as well as smooth ventilation channels and air filter. Cost-effective and relatively easy maintenance.

Liquid-Cooled Heat Dissipation: Used in case of high power solenoid featuring increased energy consumption and heat production. The cooling liquid (specialized oil coolant or anti-freezing coolant) flows through the cooling pipe dissipating the collected heat before being delivered to heat exchanger. Relatively complex yet effective solution.

Example: Industrial large-scale metallurgy solenoids used for lifting steel (consuming tens of kW power) uses water-cooled circulation system. It maintains temperature level within 80oС ensuring uninterrupted and secure lifting of steel.

Chapter 5: Smart Temperature Control: Flexible Approach

Temperature Monitoring Sensors: Install PT100 or thermonuclear sensors in critical heating points (for instance coil or core) to monitor temperature in real-time.

Smart Temperature Control System: Self-adjustment of work mode as well as cooling method. Upon reaching critical point, automatic reduction of current and/or decrease of work cycle as well as engagement of forced cooling. Once the temperature drops, normal operation continues. It is also possible to adjust fan speed and flow of coolant depending on temperature and current load.

Extra Point 3: Create a special passage within the body of the solenoid allowing heat dissipation. Utilize convection as well as forced cooling inside of it. This solution works effectively when used with enclosed solenoid.

Application Case: Solenoids used in automobile engine compartment (for instance, transmission shift solenoids) feature special U-shaped dissipation passage. Thanks to ventilation heat quickly dissipates thus preventing jamming of the mechanism even in high temperatures.

Chapter 6: Conclusions

In order to ensure effective solenoid thermal management, it is necessary to apply the following four approaches simultaneously: reducing heat losses, increasing thermal conduction, active heat removal as well as flexible temperature control.

Low Power Solenoids: Apply passive dissipation approach in the form of improved materials and structural optimization

High Power Solenoids and Precise Machinery: Combined application of forced cooling and temperature control

Application Case: Energy vehicles' charging posts feature constant high-load operation with high stability. The following approaches are used here: Thermally conductive insulating material, air-cooling system as well as self-regulated temperature control. Silicon sheets ensure heat distribution, air blowers collect heat. Thermistors and control module regulate temperature in safe operating range allowing to achieve instant charging of vehicles.

Only using proper heat dissipation measures according to the circumstances will bring maximum efficiency in solenoid temperature regulation.

Chapter 7: Most Frequent Questions

Q1: Why does my solenoid heat up even when it operates properly?

A: It is normal for any solenoid to generate some heat due to copper and iron losses. But increased heat generation may indicate excessive current, poor ventilation, aged insulation or inappropriate duty cycle usage.

Q2: Can my solenoid operate continuously without excessive heating?

A: Depends on duty cycle selected for particular solenoid. For continuous operation proper passive or active cooling measures shall be taken: heat sinks, blowers or liquid cooling. Always read manufacturer's recommendations.

Q3: How can I choose between liquid cooling and air cooling options?

A: Easy-to-use air cooling is sufficient and more cost-effective. Liquid cooling is preferable for high power cases when precise temperature management is required.

Q4: What is the most effective technique to prevent excessive heating of solenoids at reasonable cost?

A: Start with applying passive dissipation methods first, like increasing surface area of heat sinks, leaving holes for air convection within coil winding, as well as using high thermal conductivity materials.

Q5: Is it possible to install sophisticated temperature management system on existing solenoids?

A: Sure. For many existing devices, it is possible to install temperature sensors and control module regulating work mode and engaging cooling blowers.
