Exploring the Ins and Outs of Metal Stamping Manufacturing
1 Overview of Metal Stamping Parts

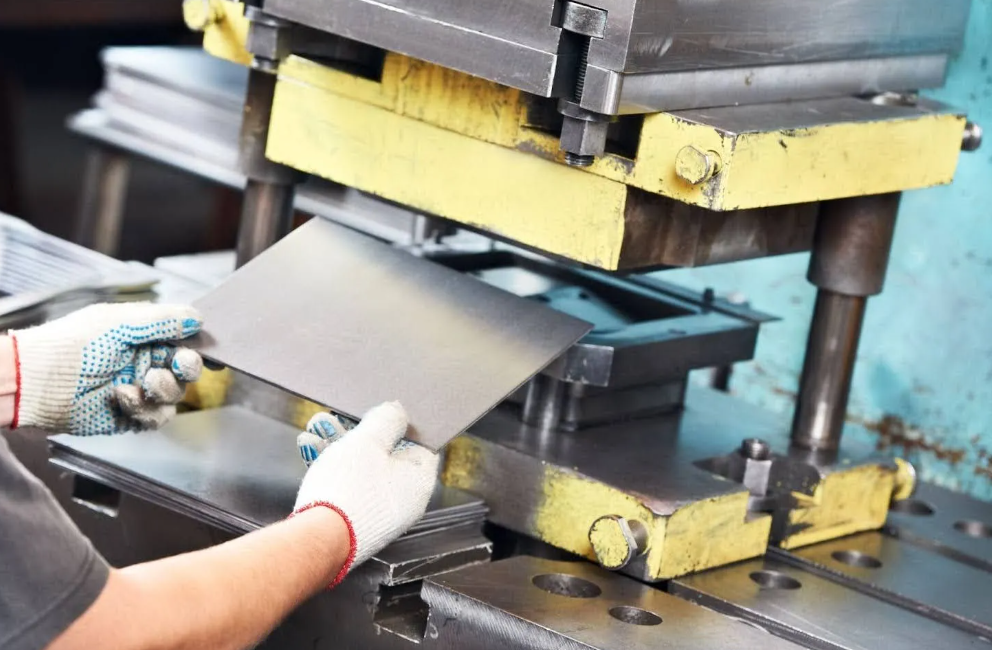

Metal stamping is a manufacturing process that mainly relies on presses and dies to deform or cut iron, aluminum, copper and other plates or special-shaped profiles to form stamped parts with specific shapes and sizes.
Metal stamping is essentially the process of deforming or breaking metal materials using a press and die to form precision parts of various geometries. The process is sometimes referred to as sheet metal forming, but there are differences between the two.
Metal stamping focuses on cutting and shaping metal using dies.
Sheet metal forming, as the name suggests, mainly uses metal sheets, thin-walled tubes, thin profiles, etc. as raw materials, and its forming process is slightly different in application.
There are several main steps involved in metal stamping manufacturing. Let's break them down in detail below.
2.1 Basic process
Blanking: The first step of stamping. Using the die to cut along the closed contour line, the separated part becomes the required blank, which is suitable for producing flat parts of various shapes.
Punching: Similar to blanking, a die is used to cut the material according to the closed contour to form the required hole.
Cutting off: Performed along open contours using scissors or dies, usually suitable for parts with simple shapes.
Trimming: After forming, trimming ensures clean, precise edges, improving accuracy and appearance.
Grooving (or tongue cutting): A partial cutting process where the material is only partially separated along an open contour. The remaining connected portion facilitates subsequent assembly or positioning.
Splitting: Dividing a semi-finished product into two or more parts, usually used to produce symmetrical or paired stampings.
In short, the basic processes – blanking, punching, cutting off, trimming, notching and splitting – allow the initial forming of parts with different geometries.
2.2 Bending process
During this stage, the metal part is bent into the desired angle and shape. Using specialized bending dies, the material is squeezed at specific angles to achieve the designed shape.
Ensure dimensional accuracy and neat appearance.
Widely used in making L-shaped, U-shaped and V-shaped parts.
Essential for manufacturing metal products that require precise bending.
2.3 Drawing (deep drawing) process
The stretching process plays a vital role in stamping production.
It uses deep-draw dies on a press to stretch a pre-cut flat blank into an open, hollow shape.
Through an additional deep-drawing step, these hollow parts can be further processed into complex geometries.
Applications include automotive panels, electrical housings, and other hollow structures. Deep drawing is one of the most critical steps in the stamping process, placing extremely high demands on die design and material properties.
2.4 Other processes
In addition to the main steps, several auxiliary molding processes are used to meet special design or functional requirements:
Hole Flanging: Expanding a pre-punched hole into a standing edge for reinforcement or later assembly.
Flanging: Bending the edge of a sheet material along a curve or arc to form a raised border.
Bulging: The material is deformed under biaxial tensile stress to form a complex curved surface.
Necking (reduction): Reducing the diameter of a tubular or hollow blank at a specific section.
Expansion: The opposite of necking; enlarging the diameter of a hollow blank at a specified location.
Embossing: Producing a raised or depressed pattern on the surface of a sheet or formed part to add variety or functionality.
Shaping (calibration): Correcting the geometry of a part to improve dimensional accuracy and achieve smaller radii.
These additional operations—hole flanging, flange forming, bulging, necking, hole expansion, embossing, and forming—increase part versatility, precision, and performance.
3 Conclusion
The complete manufacturing process for stamped metal parts involves the step-by-step transformation from raw sheet material to finished component:
Basic process: preliminary cutting and forming.
Bend: Create angles and contours.
Drawing: Create hollow and complex parts.
Other processes: increase precision, strength and design diversity.
Together, these processes enable the production of high-quality, cost-effective, and dimensionally consistent stamped parts for a wide range of applications including automotive, electronics, appliances, and industrial machinery.
Frequently Asked Questions
What are the advantages of metal stamping machines?
Metal stamping presses enable businesses to produce large quantities of parts cost-effectively. Not only do they increase productivity, but because tooling is typically less expensive and requires less maintenance than other processes, businesses can realize significant long-term cost savings.
What are the advantages of using metal stamping for part production?
Metal stamping stands out for its cost-effectiveness and high precision. Compared to other manufacturing methods, it can shorten production cycles, reduce tooling costs, and ensure precise results—even for small, complex parts. This reliability makes it particularly important in industries with stringent safety and performance standards, such as medical devices and aerospace.
Which Industries Benefit Most from Metal Stamping?
Metal stamping is favored by a wide range of industries for its precision, consistency, and affordability. Notable sectors include automotive manufacturing, aerospace engineering, medical device production, and electronics—fields where accuracy and repeatability are critical to success.
What is the difference between a mechanical press and a hydraulic press?
Both mechanical and hydraulic presses are efficient tools for high-volume production. Mechanical presses are generally faster, while hydraulic presses offer better control and are ideal for producing intricate and detailed designs. Choosing the right press depends on speed versus design complexity.
