Chapter 1  Understanding Metal Stamping

Metal stamping is a widely used manufacturing process that transforms flat metal sheets or coils into complex, precision-shaped components through a series of mechanical operations. It plays a critical role in industries such as automotive, electronics, appliances, and aerospace due to its efficiency, repeatability, and cost-effectiveness.

1.1  What Is Metal Stamping?

Metal stamping involves placing a flat metal sheet—either from a coil or a pre-cut blank—into a stamping press fitted with custom-designed dies. Through controlled force, the press shapes the metal into the required form by pressing it between a punch and a die cavity.

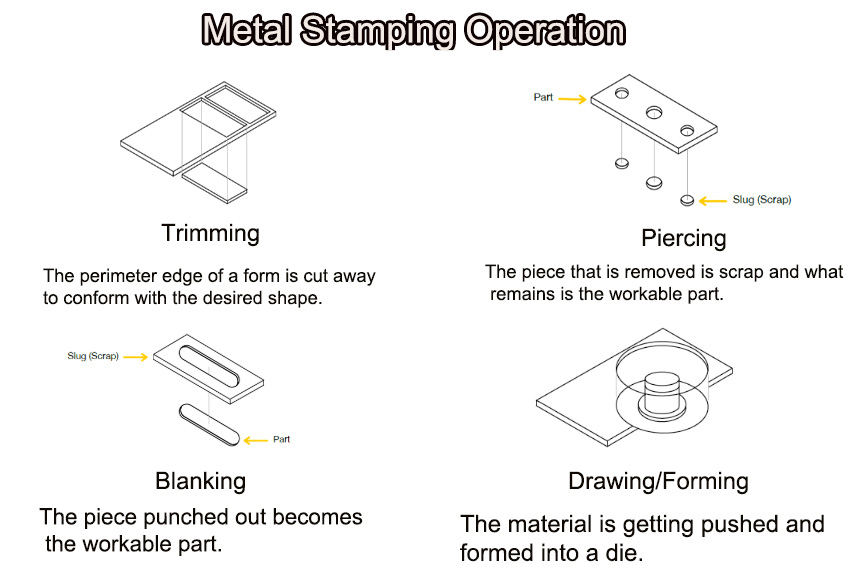

Depending on the product requirements, several stamping techniques may be used:

Punching – Removing material to create holes or slots

Blanking – Cutting out flat shapes from the sheet

Bending – Deforming metal along a straight axis

Coining – Precision stamping to create fine detail or tight tolerances

Embossing – Creating raised or recessed features

Flanging – Bending the edges of the part, often for structural strength or alignment.

1.2 How Metal Stamping Works: Key Components

A typical metal stamping setup includes several critical components working in harmony to achieve precise results:

Binder (Blankholder)
Holds the sheet metal securely in place to prevent wrinkling or buckling during the stamping process.

Punch
The upper portion of the die set that presses the material into the die cavity or cuts through it, depending on the operation.

Die Cavity
The lower portion of the die set that defines the final shape of the stamped part.

Sheet Metal Blank
The raw material—a flat metal sheet—that is shaped during the stamping process.

1.3  Working Principle of Metal Stamping

The process begins by placing a metal blank between the upper punch and lower die. The binder (or blank holder) applies pressure to keep the blank steady. Then, the punch descends, pressing the sheet into the die cavity, shaping it into the desired geometry. Once the punch retracts, the finished part is ejected from the die.

A critical parameter in this process is the binder force:

If the force is too low, the sheet may wrinkle or shift, leading to defects.

If the force is too high, it may restrict the metal's natural flow, causing cracks or improper forming.

Careful control of this force ensures both dimensional accuracy and material integrity in the finished parts.

 This article reveals practical strategies and future trends to help extend die lifespan with real-world case studies.

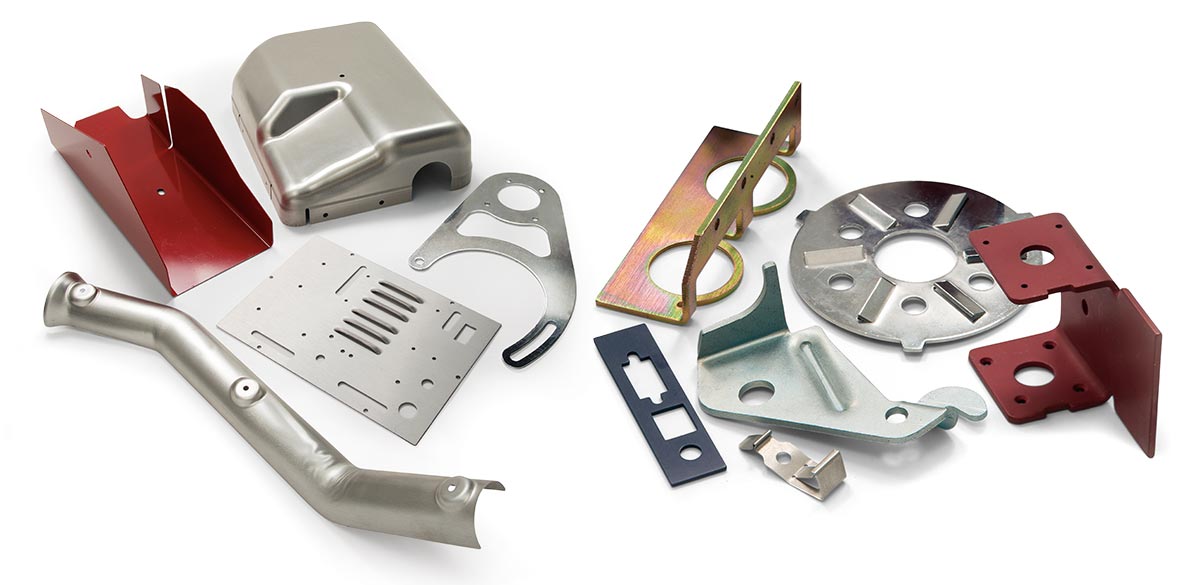

Chapter 2. Fundamentals of Stamping Dies

Metal stamping dies are used to process sheet metal into specific shapes and structures. Common tasks include:

- Cutting: separating sheet metal

- Forming: shaping the metal

- Pressing: adjusting contours or thickness

High-precision dies improve product quality and reduce scrap rates.

Chapter 3. Key Die Components and Materials

Common components include:

- Die Plate: Structural foundation

- Punch: Applies pressure to cut or form metal

- Die Cavity: Matches punch to form the part

- Stripper Plate: Removes material from the punch

- Guide Pins & Bushings: Ensure alignment

- Locating Pins: Precisely position material

Die materials:

- Tool Steel (D2, A2): Durable and pressure-resistant

- Tungsten Carbide: Extremely hard but brittle

- Aluminum: Cost-effective for short-run or prototype dies

- Brass/Bronze: Used for friction-sensitive components

Chapter 4 Key Factors That Affect the Lifespan of Steel Rule Dies

The longevity of a steel rule die depends on several interconnected factors. Understanding these factors not only helps extend the lifespan of your dies but also ensures consistent cutting quality and reduced downtime in production. Below are the six most important elements that influence how long your steel rule die will last:

4.1. Material Being Cut

The type and characteristics of the material you're cutting have a direct impact on how quickly your die wears out.

Abrasive Materials: Materials like fiberglass, certain plastics, and heavily coated papers are highly abrasive and can dull the cutting edges faster.

Thickness & Density: Thicker or denser materials require more cutting force, leading to quicker fatigue and wear of the steel rule.

Adhesives & Coatings: Sticky or coated materials may cause buildup on the cutting edge, reducing effectiveness and requiring more frequent cleaning.

4.2. Quality of the Steel Rule

Not all steel rules are created equal. The composition and manufacturing quality of the steel rule determine its resistance to wear, bending, and corrosion.

High-Carbon Steel Rules: Offer superior edge retention and toughness, especially under high-volume use.

4.3. Die Design and Construction

A well-engineered die is more durable and provides better cutting results over time.

Rule Height & Thickness: Matching rule dimensions to the material ensures even pressure and prevents localized stress.

Ejection System: Components like foam rubber help eject cut pieces cleanly, reducing blade stress and preventing damage.

Die Board Quality: A rigid, high-quality die board maintains proper alignment and minimizes flexing that can shorten die life.

4.4. Cutting Pressure and Machine Settings

How your cutting machine is set up and maintained has a major effect on die wear.

Excessive Pressure: Too much pressure can cause bending, cracking, or accelerated wear.

Insufficient Pressure: Too little pressure results in incomplete cuts, requiring repeat passes that further stress the die.

Machine Misalignment: Improper alignment can cause uneven pressure on the steel rule, leading to premature failure.

4.5. Maintenance and Cleaning

Just like any tool, steel rule dies require regular maintenance to perform at their best.

Cleaning: Remove adhesives, fibers, and debris after each use to avoid buildup.

Lubrication: Apply mineral oil or rust inhibitors to prevent corrosion, especially in humid conditions.

Inspection: Periodically check for wear, bending, or damage, and take action before issues escalate.

4.6. Frequency and Intensity of Use

How often and how intensely the die is used also determines its lifespan.

High-Volume Production: Constant usage increases wear. Without proper maintenance, this can drastically shorten the die’s usable life.

Low-Volume Use: Even dies that are used infrequently must be stored properly to avoid rust, warping, or damage.

Chapter 5. How to Improve the Durability of Stamping Dies

Manufacturers should adopt a life cycle-based die management system integrating materials, design, process control, and digital tools.

A longer-lasting die reflects a stronger commitment to quality, efficiency, and innovation.

5.1. Optimize the Stamping Die Design

The rationality of die design forms the foundation for its durability. During the design stage, engineers must consider the unfavorable conditions that arise during product forming and take proactive measures to mitigate them.

For instance, in the case of small-hole punching dies, failure often occurs at the tiny convex punches. To enhance durability:

Minimize the length of the convex punch to increase its strength.

Use a guide sleeve structure to reinforce and protect the small punch.

Furthermore, it is critical to carefully evaluate:

The form and structure of the die set

Fixing and guiding methods for the die components

Determination of the force center

Rigidity of the upper and lower plates

Particularly for blanking dies, punch-die clearance plays a vital role. A clearance that is too tight may lead to early wear and failure. Practice shows that appropriately increasing the clearance — without compromising part quality — can dramatically extend die life, sometimes by several or even dozens of times.

5.2. Select the Right Die Materials

The choice of material directly affects the strength, toughness, and wear resistance of the die. Using high-performance materials can significantly increase durability.

Examples:

A die made from Cr12 or Cr12MoV outperforms one made from T10A steel in terms of sharpening life.

Dies made from G35 carbide steel last 5–10 times longer than Cr12 steel dies.

Using tungsten-cobalt carbide for punches and dies can improve durability by 20–30 times.

Selecting advanced die materials tailored to the application is crucial for achieving high durability.

5.3. Ensure Proper Forging and Heat Treatment

Material quality alone is not enough; forging and heat treatment must also be carried out properly. The same material can exhibit vastly different durability based on how it is treated.

For example:

Overheating during quenching can lead to brittleness, warping, or cracking.

Improper cooling may cause internal stresses and reduce the tool’s lifespan.

Thus, strictly controlling the heat treatment process is essential for producing reliable and durable dies.

5.4. Improve Machining Accuracy and Manufacturing Processes

The precision of die machining and assembly has a direct impact on durability. Poor tolerances or low surface finish can result in early failure.

Key considerations include:

Accurate hole spacing

Maintaining perpendicularity of punches to the die plate

Uniform die clearance

High guide accuracy between guide pins and bushings

Higher machining precision and smoother surface finishes on working surfaces reduce friction and wear, thereby increasing the die’s lifespan.

5.5. Choose High-Quality Press Machines

The press machine used with the die also affects its durability. A press with insufficient rigidity or poor precision may lead to misalignment, vibration, or impact damage.

Recommendation:

Choose a high-precision, high-rigidity press.

Ensure the machine's tonnage capacity exceeds the required punching force by at least 30%.

This prevents overloading and minimizes shock during operation, thus protecting the die.

5.6. Use and Maintain the Die Properly

Even the best dies will fail prematurely if they are not used and maintained correctly.

Operators should:

Follow correct operating procedures

Regularly inspect and maintain the die

Avoid operating the dies when signs of wear or malfunction are evident

Preventive maintenance and timely sharpening are key to extending die service life and ensuring stable production output.

Chapter 6  Emerging Trends in Metal Stamping Die Industry

Most people outside the manufacturing sector are unaware of the critical role the tool and die industry plays in modern production. This is largely because it operates behind the scenes as a fundamental component of the broader manufacturing process. However, evolving trends in tool and die practices are now reshaping the future of industrial production. From cost-effective innovations to advanced machining capabilities, these developments are pushing the industry into a new era.

Here are three key trends currently transforming the tool and die landscape:

6.1. The Rising Use of 3D Printing

The integration of 3D printing into tool and die manufacturing is significantly reducing costs for both small-scale and large-scale projects. With the advent of high-density polymer and metal sintering printers, components can now be produced with greater precision and less need for post-processing. This technology enables the rapid prototyping, replication, and replacement of tool and die parts—dramatically improving turnaround time and operational efficiency.

6.2. Advancements in Multiaxis Machining

Multiaxis machining is revolutionizing the way dies and tools are manufactured. By enabling simultaneous operation across up to nine axes, this technology accelerates production while eliminating many secondary finishing steps. It allows manufacturers to move swiftly from design to production, streamlining the entire workflow and delivering high-precision components with exceptional consistency.

6.3. Automation is Leading the Way

Automation is having a profound impact on the tool and die industry, just as it is across the wider manufacturing world. Automated processes reduce the manual workload associated with crafting intricate dies and molds, especially from complex digital models. In doing so, automation not only improves accuracy and efficiency but also frees up skilled labor for more strategic and value-added tasks.

Chapter 7. Conclusion and Recommendations

The durability and lifespan of a stamping dies are influenced by a combination of factors, including material selection, die construction quality, machine settings, maintenance routines, and usage frequency. By proactively addressing these elements and implementing industry best practices, businesses can significantly extend die life, lower production costs, and ensure consistent cut quality.

Investing in high-quality dies, properly training machine operators, and establishing a routine maintenance program may seem like small steps, but they yield substantial long-term returns in performance and reliability.

Remember, a stamping die is more than just a cutting tool — it’s a critical asset in your manufacturing process. Taking care of it means investing in the efficiency, precision, and profitability of your entire operation.
