Chapter 1 :  What is a linear solenoid?

A linear solenoid is an electromagnetic device whose primary function is to convert electrical energy into linear motion. Due to its simple structure, reliability, and high controllability, linear solenoids have become essential components in many industrial fields.

The key structure of a linear solenoid consists of three parts: a solenoid coil wound with wire, a movable iron core (also called a plunger or armature), and a carefully designed housing. When current passes through the copper coil, it generates a directed magnetic field. This magnetic field interacts electromagnetically with the ferromagnetic core, pushing or pulling the iron core, causing it to produce a precise linear displacement within the housing. This achieves the basic "power on, power off, reset" function (some models require a return spring for reset).

To adapt to different application scenarios, the key parameters of linear solenoids vary greatly, including: rated coil voltage (e.g., 12V DC, 24V DC), core stroke length (ranging from a few millimeters to tens of millimeters), output thrust/pull force (which can range from a few Newtons to hundreds of Newtons depending on the power supply design), and response time (measured in milliseconds, affecting drive sensitivity). Many linear solenoids also integrate additional features such as return springs (to ensure automatic reset upon power failure) and position systems (for monitoring core displacement during actual operation), further expanding their application range.

Whether in industrial automation, precision control equipment, or consumer electronics, linear solenoids play a key role as precision actuators. For those developing intelligent systems, designing automation projects, or even DIY production, understanding the fundamental principles and parameter characteristics of linear solenoids is a prerequisite for efficient selection and application.

 Chapter 2 : How do linear solenoids work?

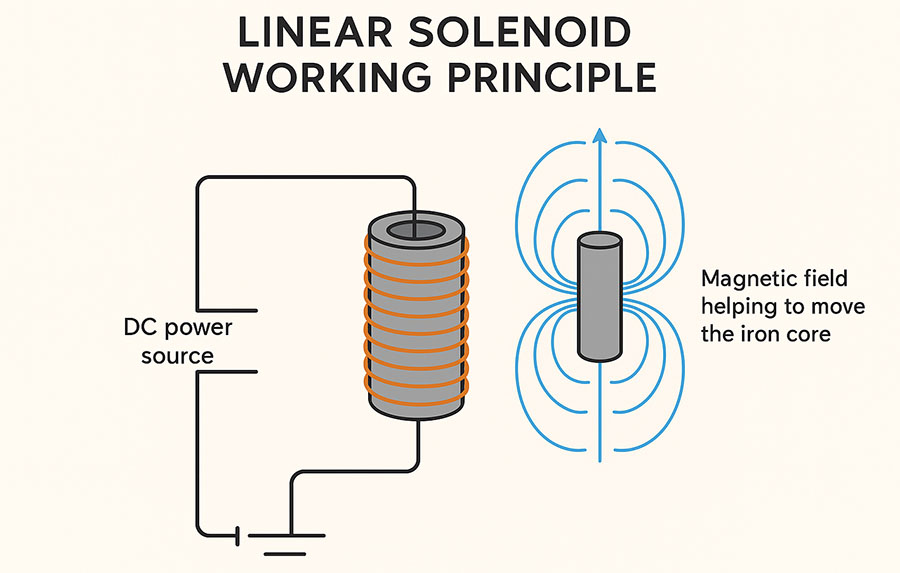

The working principle of a linear solenoid is rooted in the basic principles of electromagnetism, and the entire driving process can be summarized into three key steps: (1) magnetic field generation, (2) force application, and (3) motion output.

Magnetic field generation: When current passes through a copper coil, a circular magnetic field is generated around the copper wire. Because the solenoid coil is spirally wound, multiple circular magnetic fields form a directional magnetic field "similar to a bar magnet," with the north and south poles at the two ends of the solenoid coil, respectively.

Force Application: The plunger, a high-permeability material, interacts with the magnetic field generated by the solenoid coil. Depending on the polarity of the current, the plunger is attracted or repelled, and this interaction generates a linear driving force along the coil axis. Reversing the current polarity reverses the direction of motion.

Motion operation: Driven by the driving force, the plunger moves linearly along the guide structure inside the housing. The displacement (stroke) and movement speed of the plunger can be controlled by adjusting key parameters:

Coil voltage/current: Affects magnetic field strength. The higher the voltage (within the rated range), the greater the output force and the faster the response.

Number of copper coil turns: The more turns there are, the stronger the magnetic field superposition effect is, and the greater the output force is under the same current.

Plunger and housing design: The magnetic permeability of the plunger material and the magnetic shielding effect of the housing directly affect the magnetic field utilization and movement accuracy.

This "instant-operation, adjustable parameters" operating mode enables precise actuation of valves, switches, levers, and other components, making it the preferred "low-cost actuator" in electromagnetic systems. Understanding the operating principles of linear solenoids can better match their functionality with project requirements and avoid functional failures caused by parameter mismatches.

Chapter 3  :  Types of Linear Solenoids

Classified by direction of motion and structural system, each type is tailored to specific application needs. There are four types of linear solenoids:

3.1 Pull solenoid

Core-actuated: When power is applied, the plunger (core/armature) is pulled into the coil; when power is removed, it is reset by a spring system or external motion system.

Typical applications: door locks (retract bolts), automotive starters (engage flywheels), vending machines (release product shutters), and printer jam-reset mechanisms.

Advantages: It provides a steady pulling force and is ideal for confined spaces where retraction motion is required.

 3.2 Push-type solenoid

Core action: The opposite of pull action; when power is applied, the plunger is pushed outward from the coil. Reset is the same (spring system or external force).

Typical applications: pneumatic valves (switching spools), automatic switches (close/open contacts) and washing machine drain valves (opening the outlet).

Advantages: Transmits thrust directly to external components, reducing the need for complex transmission mechanisms and simplifying installation.

 3.3 Tubular solenoid

 Structural features: Metal tubular design with solenoid coil and plunger. Compared to push/pull types, this type of electric cylinder generally allows for longer stroke systems (sometimes exceeding 50 mm).

Key advantages: High operating force (power can be increased by increasing the solenoid coil size) and precise linear motion due to the stable guide structure.

Typical applications: medical equipment (infusion pump flow control), printers (paper positioning rods), textile machinery (yarn tension adjustment) and electronic test systems (probe drive).

 3.4 Rotary solenoid (special case)

Unique mechanism: Although not strictly linear, it is included because it also converts electrical energy into mechanical motion. The output is not linear motion, but rather a limited degree of rotation (usually 90° or 180°).

Typical applications: locking mechanisms (rotary cylinder locks), electric actuators (valve angle adjustment), robotics (small joint movement), and ATMs (banknote sorting carousels).

Advantages: Direct rotation output can be achieved without additional reduction gears, simplifying system design.

🔎 Quick Comparison of Solenoid Valve Types

Chapter 4  :  Application of Linear Solenoid

Linear solenoids have become indispensable components in the automotive, industrial, consumer electronics, medical, and security fields due to their precise control, good reliability, and high cost-effectiveness. The following are their detailed applications:

4.1  Automotive systems (core application areas)

Power Control: The fuel injectors precisely control the opening and closing of the injection nozzles, while the intake throttle valves regulate the amount of intake air.

Transmission: Automatic transmissions use solenoid valves to actuate the shift valves for smooth gear shifting.

Body Controls: Door locks, trunk latch, and power window mechanisms rely on solenoids to pull or push components when power is applied.

Safety systems: Seatbelt pretensioners use rapid solenoid action to tighten seatbelts during a collision.

 4.2 Industrial machinery

Fluid control: Pneumatic and hydraulic valves use solenoids to drive valve cores to achieve precise fluid on/off control.

Conveying and Sorting: Solenoids drive actuators to guide products on conveyors or adjust part position.

Automation equipment: Robotic arm end effectors use short-stroke solenoids to grab or release items, while stamping machine safety doors use solenoids for reliable locking.

4.3 Consumer electronics

Interactive feedback: Cell phones and game controllers use small solenoids to drive vibration motors for tactile feedback.

Precise control: Cameras rely on solenoids to achieve automatic focus displacement of the lens, and printers use solenoids to achieve fine positioning of the print head.

Everyday appliances: Microwave ovens and coffee makers use solenoids to lock doors or control water flow.

 4.4 Medical devices

Fluid Control: Infusion pumps and dialysis machines use solenoids to precisely regulate fluid flow.

Diagnostic equipment: Biochemical analyzers use solenoids to control sample push rods and reagent valves.

Surgical instruments: Minimally invasive tools and dental equipment use solenoids for short-stroke jaw movements or start-stop control of drills.

 4.5 Security System

Access control systems: Electromagnetic locks utilize solenoids to secure doors, while facial recognition turnstiles use them to open and close barriers.

Surveillance equipment: PTZ cameras utilize solenoids for fine angular steering adjustments.

Alarm devices: Emergency door lock circuit breakers and safety emergency unlocking mechanisms use a solenoid to activate a striker or release mechanism.

 Chapter 5 : Summary

As a key device for converting electrical energy into linear motion, the value of linear solenoids can be summarized in the following three aspects:

5.1 Simple principle, key functions

Linear solenoids are based on fundamental electromagnetic principles, converting electrical energy into controlled linear motion. Due to their simple design, they reliably meet the requirements for precise and controllable actuation, making them the fundamental drive unit in many electromagnetic mechanical systems.

5.2 Strong match between type and scenario

Different types of solenoids are optimized for specific applications:

Pull and push solenoids: Suitable for short-stroke push and pull operations.

Tubular Solenoids: Suitable for long stroke, high thrust applications.

Rotary Solenoids: Designed to handle rotary motion needs.

Selection should focus on three core parameters: motion direction, stroke, and force value to ensure optimal performance in the intended scenario.

 5.3 Full-field application coverage

Linear solenoids are used in a variety of industries:

Heavy industry: automobiles and industrial machinery.

Precision fields: consumer electronics, medical equipment.

Security Control: Security System.

Their combination of low cost and high reliability makes them versatile components in various fields.

User Points

It is crucial to master the "matching of parameters and scenes":

Automotive applications require solenoids that are resistant to extreme temperatures and vibrations.

Medical equipment requires solenoids with low noise and high cleanliness.

The right choice can prevent malfunctions and premature wear, ensuring long-term reliability and performance.

Chapter 6  Frequently Asked Questions (FAQ)

Question 1: How do I choose the right linear solenoid for my project?

A: Follow the "three-step selection method":

Identify actuation requirements: Determine whether you need pulling, pushing, or rotating motion, and define the desired stroke length (e.g., 5 mm, 20 mm).

Confirm force and voltage: Calculate the required push or pull force based on the load. A 20% margin is recommended to prevent overload. Match the solenoid valve voltage to your system (e.g., 12 V DC, 24 V DC).

Adapt to environmental conditions:

Industrial grade: Consider temperature resistance (generally -40°C to 85°C), oil resistance, and dust resistance.

Medical: Prioritize low noise and high cleanliness.

Automotive: Ensures protection against vibration and electromagnetic interference.

Question 2: Why does the linear solenoid sometimes not respond after being powered on?

A: Common reasons include:

Circuit problem: insufficient power voltage, poor line contact or open circuit.

Mechanical jam: There is foreign matter (dust, oil) between the core and the shell, or the return spring is broken, hindering the movement of the core.

Coil failure: Coil insulation is burned or damaged. Use a multimeter to check resistance – it should be within product specifications (e.g., 5 Ω or 10 Ω). Infinite resistance indicates an open circuit.

Overload: If the load exceeds the maximum output force of the solenoid, the core may not move.

Question 3: What factors affect the service life of linear solenoids? How can I extend the service life?

one:

Influencing factors:

Frequent power on/off (long-term power on causes coil heating).

Overload (long-term operation exceeding the rated force will accelerate wear).

Environmental dust and humidity (may cause rust or clogging).

Extension method:

Avoid prolonged power-on periods; use intermittent operation (for example, 0.5 seconds on/1 second off).

Clean the core and housing regularly; lubricate with grease in industrial applications.

Select the appropriate degree of protection (for example, IP65, dust and water protection).

Question 4: How can I reduce the noise generated by a linear solenoid during operation?

A: Noise usually comes from the collision between the core and the shell or the vibration of the coil. You can reduce the noise by:

Install the bumper: Attach the silicone or rubber pad to the core end or housing contact point.

Optimize the circuit: Use PWM (Pulse Width Modulation) to gradually increase/decrease the current and avoid sudden changes in the magnetic field.

Choose low-noise models: For medical or consumer electronics, select solenoids with snubber and low-vibration coil designs

Question 5: What is the difference between a linear solenoid and a linear motor? Can they be used interchangeably?

A: The main differences are accuracy, cost and control method:

Replacement principle:

Solenoids can only replace linear motors in short-stroke, low-precision switching applications.

For high-precision, continuous motion, linear motors are required.
