The Science Behind Air Core Coils: Understanding the Working Principle and Applications
Table of Contents :
Chapter 1 : Definition and structure of air-core coil
Chapter 2: Working principle and application of Air core coil
Chapter 3 : Types of air-core coils
Chapter 4 : Key parameters of air-core coils
Chapter 5 : Design Considerations for Air-Core Inductors
Chapter 6 : How to choose a suitable air-core inductor
Chapter 7 : In conclusion
Chapter 1. Definition and structure of air-core coil
An air-core coil is an electronic component that is made by winding an insulated wire into a spiral shape without inserting any ferromagnetic core material. Its main features include:
Coreless design - relies on air as the magnetic medium to avoid core saturation and eddy current losses.
Simple materials – usually made of copper or aluminum wire coated with insulating varnish or tape.

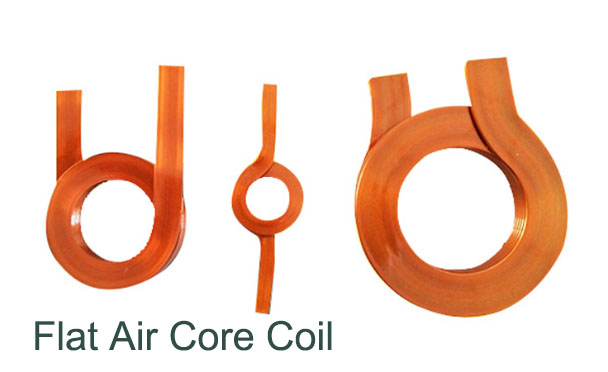

Multiple Shapes – Available in cylindrical, flat or ring configurations depending on application requirements.
For example, in high-frequency circuits, air-core coils often use multiple thin wires connected in parallel to minimize skin effect losses. Air-core coils are widely used in electromagnetic induction, wireless power transmission, and medical imaging systems.
Chapter 2 : Working principle and application of Air core coil
The working principle of air-core coils is based on electromagnetic induction.
When AC current flows through a coil, it generates a changing magnetic field, which induces voltage and current in nearby coils or conductors, enabling energy transfer or signal detection.
Typical applications include:
Electromagnetic sensors – measure magnetic field strength, direction, or current.
Wireless power transfer – used in wireless chargers and contactless power supply systems.
Medical imaging – a key component in MRI (magnetic resonance imaging) and MSI (magnetic susceptibility imaging).
Chapter 3 : Types of air-core coils
There are many ways to classify air core coils:

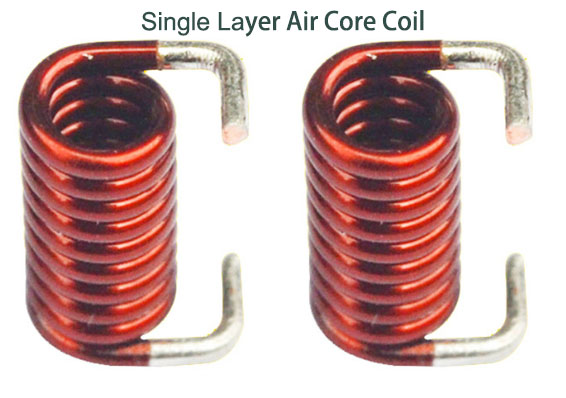

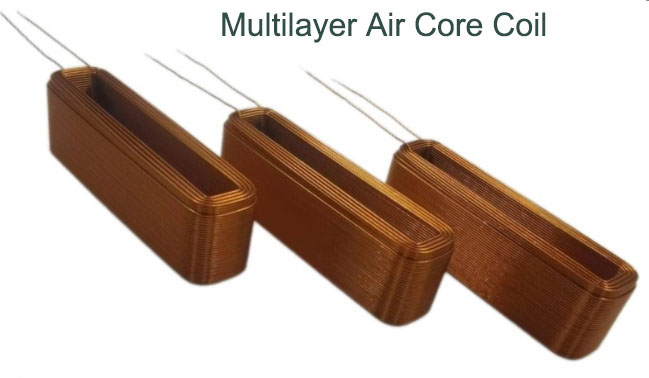

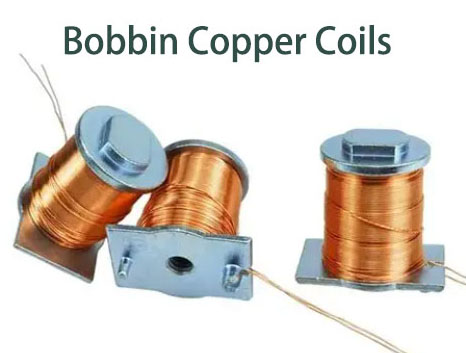

According to the winding structure: single layer, multi-layer, honeycomb.
According to the inductor type: fixed inductor and variable inductor.
By function: antenna coil, oscillation coil, choke coil, trap coil, deflection coil.

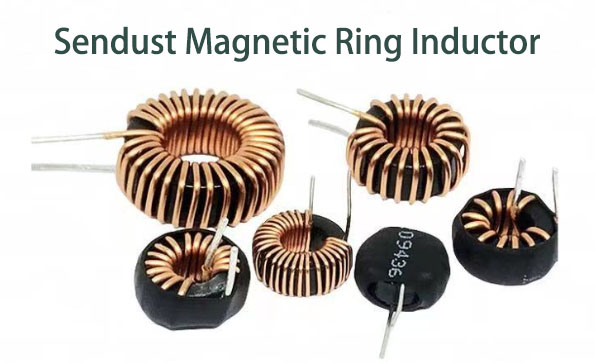

According to the core material, it is divided into: air core, ferrite core, iron core and copper core.
Examples of common coils:
Single-layer coil - commonly found in medium wave antenna circuits (e.g. transistor radios).

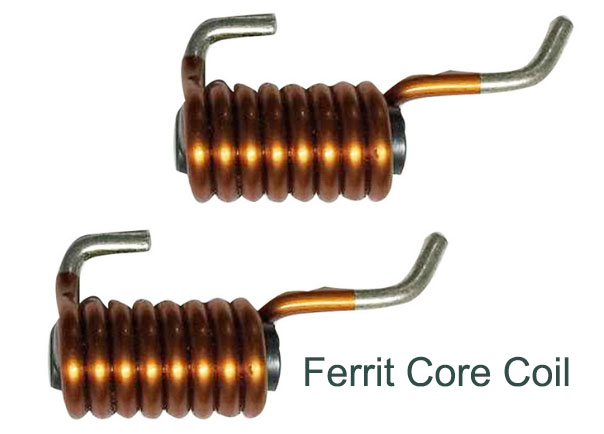

Ferrite core coils – improve inductance and quality factor by inserting ferrite in the windings.
Copper core coil - commonly found in ultra-high frequency circuits, in which the inductance is changed by moving the copper block.
Color-Coded Inductors – High-frequency fixed inductors (0.1 μH–3300 μH, 10 kHz–200 MHz) identified by color bands similar to resistors.
Choke - restricts the passage of alternating current; available in high-frequency and low-frequency versions.
Deflection coil - used for scanning CRT televisions, requiring high sensitivity, uniform field and compact size.
Air-core inductors – Large air-core designs increase inductance but increase bulk; in many cases, a core is inserted to achieve higher inductance while reducing size and weight.
Chapter 4 : Key parameters of air-core coils
When designing or selecting an air core coil, several key parameters must be considered:
Impedance matching – ensures efficient energy transfer between the coil and the circuit.
Coupling coefficient – indicates the strength of the magnetic coupling between the coils (the higher the better the efficiency).
Frequency Range – defines the usable range for a particular application.
Inductance (L) – determines the response of a coil to a changing magnetic field.
Size and shape – directly impact performance, footprint, and integration flexibility.
Chapter 5: Design Considerations for Air-Core Inductors
Air-core inductors are essential components in RF circuits, filters, oscillators, and precision measuring instruments. They offer stable magnetic properties (μ₀ ≈ 4π × 10⁻⁷ H/m) and no saturation losses.
The main design goals include:
Inductance (L): Must meet circuit requirements (nH–μH range for RF; μH–mH range for filters).
Q Factor: A high Q value (RF ≥50) minimizes energy loss.
Operating frequency: Excessive parasitic effects at high frequencies must be avoided.
Current rating: Ensure conductor thickness and heat dissipation to prevent overheating.
Parasitic effects: Interwinding capacitance reduces the self-resonant frequency (SRF); the SRF should be ≥1.5–3 times the operating frequency.
Chapter 6 : How to choose a suitable air-core inductor
Step 1 – Matching Core Parameters
Inductance (L): Must be precisely matched to circuit requirements.
DCR (DC resistance): The lower the DCR, the better the efficiency.
Rated current (Iₙₒₘ / Iₘₐₓ): Operating current ≤ 80% of the rated value.
Self-resonant frequency (SRF): at least 5-10 times higher than the operating frequency.
Q Factor: In RF/microwave circuits, a high Q value is crucial.
Step 2 - Consider the application environment
Low frequency (50 Hz–10 kHz): Prioritize current handling and DCR.
High frequency (1 MHz–10 GHz): Choose a coil with high Q and SRF.
Mounting: Through-hole for stability/power; SMD for compact devices.
Environment: Environments with high temperature, high humidity, or high vibration require specialized coils.
Step 3 – Verify reliability
Material: oxygen-free copper, high temperature resistant insulation.
Compliance: RoHS, CE, AEC-Q200 (Automotive), ISO 13485 (Medical).
Testing: Verify inductance, DCR, Q, SRF, and thermal stability before large-scale use.
Step 4 – Balancing Cost and Performance
Avoid over-specification—for example, a low-frequency filter does not require a high-Q RF coil.
Standard models are suitable for most applications; custom coils may be required to achieve unique dimensions or extra-high inductance.
Chapter 7 : In conclusion
Air-core coils are crucial components in modern electronic devices, enabling efficient energy transfer, sensing, filtering, and imaging without the drawbacks of magnetic cores. Understanding the operating principles, classifications, parameters, and design considerations of air-core coils allows engineers to make the best choice for applications ranging from wireless charging to precision RF circuits and medical imaging systems.
