The Science Behind Solenoid Temperature Rise and Its Effects
Table of Contents:
Chapter 1 : What is a solenoid temperature rise ?
Chapter 2 : Basics of a Solenoid
Chapter 3 ： Causes of Temperature Rise in a Solenoid
Chapter 4 : Implications of Temperature Rise
Chapter 5 : Factors Affecting Temperature Rise
Chapter 6 : Measurement and Rating of Temperature Rise
Chapter 7 : Guide for Temperature Riseof Optimizing Design
Chapter 8 : Application
Chapter 9 : What are the common causes of excessive solenoid temperature rise?
Chapter 10 : Conclutions
Chapter１：What is a solenoid temperature rise ?
A solenoid temperature rise is real temperature that a solenoid component when it is energized and operating. If the temperature rise is too high or damage that will affect the solenoid performance.
Chapter 2 ： Basics of a Solenoid
A solenoid is an electrical component consisting of a solenoid coil of wire (it often being wrapped around a cylindrical core). When an electric current flows through the copper coil, it generates a magnetic field, which can be used to attract or repel a plunger or armature, enabling mechanical motion in devices like valves, switches, or actuators.
Chapter 3 ： Causes of Temperature Rise in a Solenoid
Temperature rise in a solenoid occurs primarily due to electrical losses within the component. The main sources of these losses include:
Joule Heating (I²R Losses): The resistance of the coil wire causes electrical energy to be converted into heat. The power dissipated as heat is given by \(P = I^2R\), where I is the current and R is the resistance of the coil.
Magnetic Hysteresis Losses: If the core is made of a magnetic material (e.g., iron), repeated magnetization and demagnetization as the solenoid switches on and off can cause energy losses due to internal friction in the material, generating heat.
Eddy Current Losses: Induced circulating currents in the core (especially if it is a conductor) can also dissipate energy as heat.
Chapter 4 : Implications of Temperature Rise
Performance Degradation: Excessive temperature rise can reduce the strength of the magnetic field, as the resistance of the coil increases with temperature (positive temperature coefficient for most metals), decreasing the current and magnetic flux.
Component Damage: High temperatures can degrade the insulation of the coil wire, leading to short circuits or even melting. For magnetic cores, exceeding the Curie temperature (the point at which a material loses its magnetic properties) can permanently damage the solenoid.
Lifespan Reduction: Continuous operation at high temperatures accelerates wear and tear, shortening the solenoid’s service life.

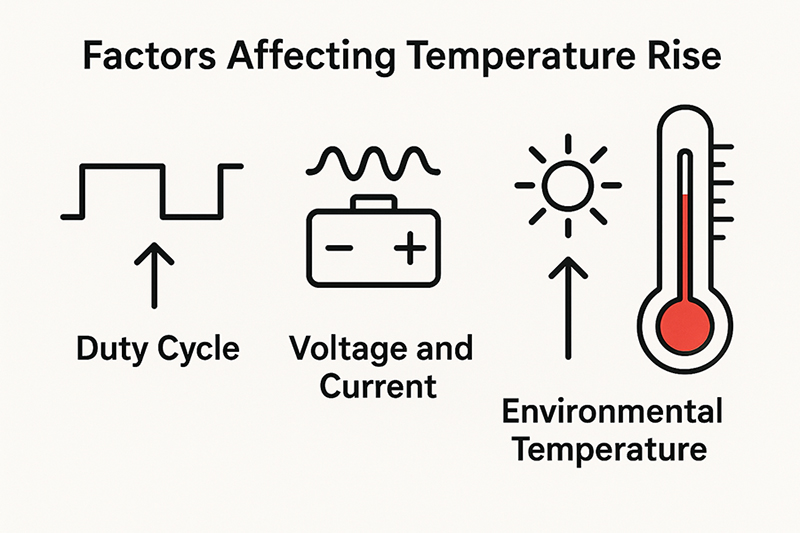

Chapter 5 : Factors Affecting Temperature Rise
Duty Cycle: Solenoids are often rated for specific duty cycles (e.g., continuous, intermittent, or short-term operation). Running a solenoid beyond its rated duty cycle (e.g., continuous use when it’s designed for short-term use) leads to higher temperature rise.
Voltage and Current: Deviations from the rated voltage (e.g., over voltage) can increase current, leading to more Joule heating.
Environmental Temperature: The ambient temperature where the solenoid operates affects its ability to dissipate heat. Higher ambient temperatures make cooling more difficult, exacerbating temperature rise.
Coil wire gauge (thicker wire has lower resistance, reducing I²R losses).
Core material (e.g., laminated cores reduce eddy current losses).
Heat dissipation features (e.g., ventilation, heat sinks).
Chapter 6 : Measurement and Rating of Temperature Rise
Temperature Rise Calculation: Engineers often specify solenoids with a maximum allowable temperature rise (e.g., “60°C rise above ambient”), which is calculated based on the difference between the solenoid’s operating temperature and the ambient temperature.
Thermal Testing: Solenoids are tested under rated conditions to ensure their temperature rise stays within safe limits. Common methods include measuring resistance (using the temperature-resistance relationship) or using thermocouples to monitor surface temperature.

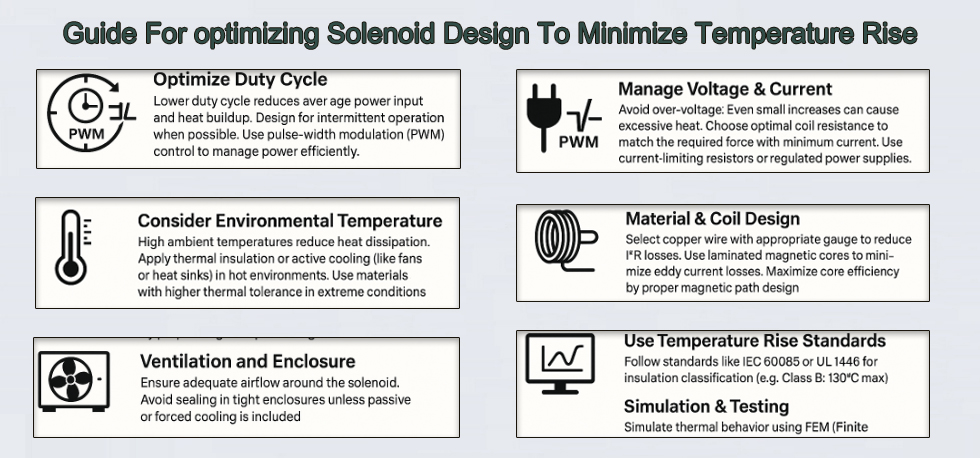

Chapter 7 : Guide for Temperature Rise of Optimizing Design
7.1 Duty Cycle
Lower duty cycle reduces average power input and heat buildup.
Design for intermittent operation if it is possible.
Use pulse-width modulation (PWM) control to manage power efficiently.
7.2. Manage Voltage & Current
Avoid over-voltage: Even small increases can cause excessive heating.
Choose optimal coil resistance to match the required force with minimum current.
Use current-limiting resistors or regulated power supplies.
7.3 Consider Environmental Temperature
High ambient temperatures reduce heat dissipation.
Apply thermal insulation or active cooling (like fans or heat sinks) in hot environments.
Use materials with higher thermal tolerance in extreme conditions.
7.4. Material & Coil Design
Select copper wire with appropriate gauge to reduce I²R losses.
Use laminated magnetic cores to minimize eddy current losses.
Maximize core efficiency by proper magnetic path design.
7.5. Ventilation and Enclosure
Ensure adequate airflow around the solenoid.
Avoid sealing in tight enclosures unless passive or forced cooling is included.
7.6. Use Temperature Rise Standards
Follow standards like IEC 60085 or UL 1446 for insulation classification.
Set a maximum temperature rise limit based on insulation class (e.g., Class B: 130°C max).
7.7 Simulation & Testing
Simulate thermal behavior using FEM (Finite Element Method) tools.
Conduct real-time thermal tests under worst-case scenarios
Chapter 8 : Application
Automotive Solenoids: Used in fuel injectors or transmission valves, these must withstand engine bay temperatures while maintaining safe temperature rises.
Industrial Valves: Solenoids in manufacturing equipment may require high-duty cycles, necessitating robust thermal design.
Chapter 9 : What are the common causes of excessive solenoid temperature rise?
Excessive temperature rise in a solenoid can stem from various operational, design, or environmental factors. Below is a detailed breakdown of the common causes, along with their underlying mechanisms and impacts:
| Cause Category | Specific Causes | How They Lead to Overheating |
| Electrical issues |
Over voltage, short circuits, voltage fluctuations |
Increased current flow leading to higher Joule heating |
|
Duty cycle misuse |
Continuous operation beyond rating, rapid cycling |
Inadequate cooling time, cumulative heat buildup |
|
Mechanical problems |
Stuck plunger, high friction loads |
Increased magnetic reluctance and current draw |
|
Environmental factors |
High ambient temperature, blocked ventilation |
Reduced heat dissipation, trapped thermal energy |
|
Design/manufacturing flaws |
Poor coil/core materials, lack of thermal design |
Higher electrical/magnetic losses, insufficient heat transfer |
|
Contamination/aging |
Dust, corrosion, insulation degradation |
Reduced efficiency, increased resistance or friction |
|
Incorrect Installation or Misuse |
Wrong Solenoid Selection,Improper Wiring or Connections | Loose connections create arcing and increased resistance, generating extra heat at the terminals, which can transfer to the coil. |
Chapter 10 : Conclusion
To address excessive temperature rise, it is crucial to identify the root cause—whether through operational adjustments (e.g., voltage regulation, duty cycle compliance), maintenance (e.g., cleaning, lubrication), or design improvements (e.g., heat sinks, better core materials). Regular thermal monitoring and adherence to manufacturer specifications are also essential for preventing damage.
In summary, solenoid temperature rise is a critical factor in ensuring the reliability and longevity of solenoid-based devices. It arises from electrical and magnetic losses and must be managed through proper design, operation, and thermal management to prevent performance degradation or failure. If you have a solenoid project in hand and are looking to optimize temperature rise, force output, or working duty, our experienced engineering team is here to help. We would be glad to provide you with a tailored solution that meets your specific requirements. Feel free to contact us today!
