Tips to Understanding Solenoid Actuators

A solenoid actuator is an electromechanical device that converts the electrical energy into a linear motion, widely used in automotive, industrial, medical, and home appliances.

Content :

 Part 1 : how does a solenoid actuator work ?

 Part 2 : Working principle of solenoid actuators

 Part 3 : Types of Solenoid Actuators

 Part 4 ：Advantage of disadvantage of solenoid actuator\

 Part 5 :  Application of solenoid actuator

 Part 6 :   Selecting a Solenoid Actuator

 Part 7:   Summery

 Part 8 :   FQA

Part 1 :  how does a solenoid actuator work ?

An electromagnetic actuator is an electromechanical device that converts electrical energy into linear mechanical motion. It is a fundamental component in a variety of applications such as automotive, aerospace, industrial automation, medical devices, and home appliances. Electromagnetic actuators have many advantages such as precise control, fast response, and long service life, making them a popular choice for many applications.

Part 2 :  Working principle of electromagnetic actuator

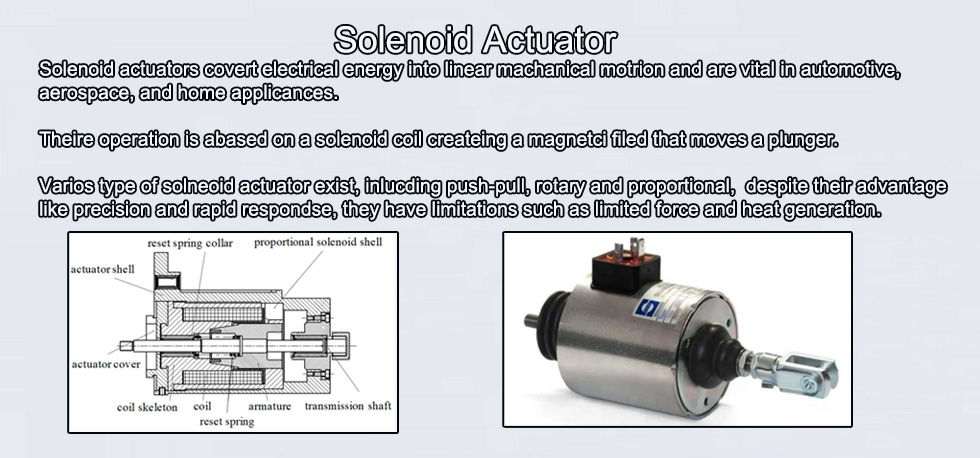

At the heart of a solenoid actuator is the solenoid coil, which is essentially a wound copper wire. When current flows through the coil, it creates a magnetic field around it. This field interacts with the ferromagnetic plunger or armature located within the coil. The resulting magnetic force causes the plunger to move linearly, either pushing or pulling, depending on the design of the actuator.

When the current is switched off, the magnetic field dissipates and the plunger returns to its original position under the action of an external force such as a spring. This process can be repeated to produce continuous linear motion, enabling electromagnetic actuators to perform a variety of tasks, such as opening and closing valves, controlling fluid flow, or positioning components in machinery.

Part 3 :  Types of electromagnetic actuators

There are many types of electromagnetic actuators, each with its own unique characteristics and applications. The most common types include:

3.1. Push-pull Frame Solenoid Atuator

Push-pull solenoid actuators are the simplest and most common type of solenoid actuators. They consist of a solenoid coil, a plunger, and a spring. When power is applied, the plunger is pushed or pulled linearly. When power is removed, the spring serves to return the plunger to its initial position.

3.2. Rotary electromagnetic/solenoid actuator

Rotary solenoid actuators convert the linear motion of the solenoid into rotary motion, typically through a mechanical linkage or gears. Such actuators are often used in applications that require precise control of angular position, such as valve control or robotics.

3.3.. Proportional electromagnetic/solenoid actuator

Proportional solenoid actuators provide variable control of the position of a plunger based on the input current. By varying the current, the position of the plunger can be precisely controlled, allowing for precise control in applications such as flow control valves or metering pumps.

3.4. Locking solenoid valve actuator

Latching solenoid actuators use a permanent magnet to maintain the plunger's position even when the current is turned off. This reduces power consumption, making them suitable for battery-powered devices or applications where energy efficiency is critical.

Part 4 :  Advantages and disadvantages of electromagnetic actuators

4.1 Electromagnetic actuators offer several advantages over other types of actuators, such as hydraulic or pneumatic systems. These advantages include:

High precision and accuracy

Fast response time

Long service life and low maintenance cost

Compact and lightweight design

Cost-effectiveness

4.2 Disadvantages of electromagnetic actuators

Although electromagnetic actuators have many advantages, they also have some limitations. Some of these disadvantages include:

Limited force and stroke length

Heat generated by coil resistance

Possibility of electromagnetic interference

Noisy operation in some applications

Part 5 : Application of solenoid actuator

 Solenoid actuators have a wide range of applications in various fields due to their ability to convert electrical energy into mechanical motion. The main applications are as follows:

5.1 Industrial Automation: They are used in factory production lines, such as controlling the opening and closing of valves in pneumatic or hydraulic systems, which is essential for processes such as fluid handling and machine tool operation. They are also used in automated assembly equipment to perform precise positioning and clamping operations.

5.2 Automotive Industry: In automobiles, solenoid actuators are used in starters to mesh the pinion with the flywheel at ignition. They are also used in automatic transmissions to control the flow of hydraulic oil for smooth gear shifting. In addition, solenoid actuators are used in fuel injection systems to accurately control the amount of fuel sprayed into the engine cylinders.

5.3  Home Appliances: In washing machines, Solenoid actuators control the water inlet and outlet valves to regulate the water flow in different cycles. In refrigerators, they are used to control the opening and closing of defrost drain valves. In addition, solenoid actuators are used in some electric locks to control the locking and unlocking mechanisms.

5.4 Medical Devices: In medical syringe pumps, solenoid actuators are used to precisely control the movement of the plunger to ensure accurate delivery of medication. They are also used in some medical imaging equipment, such as mechanisms to position hospital beds or adjust imaging components.

 5.5 Aerospace: Electromagnetic actuators are used in aircraft to control the flow of fuel and hydraulic fluid. They are also used in landing gear systems to control the extension and retraction of the landing gear. In addition, they are used in flight control systems to actuate small control surfaces or adjust the position of components.

Part 6 :  Key Considerations for Selecting solenoid Actuators

When selecting an solenoid actuator for a specific application, several factors must be considered. These factors include:

6.1 Force and stroke length requirements

6.2 Working voltage and current

6.3 Operating temperature range

6.4 Duty Cycle

6.5 Environmental factors such as humidity and corrosion resistance

6.6 Installation Requirements

Part 7 : Summery :

Solenoid actuators are indispensable components in a wide variety of applications due to their high precision, quick response and long service lifespan. They are highly sought after by designers and engineers due to their versatility and adaptability. Understanding the working principles, types, advantages and limitations of solenoid actuators can help you choose the most suitable actuator for a specific application. As technology development continues to advance, solenoid actuators will undoubtedly play an increasingly important role in the development of new and innovative products and systems. Dr Solenoid has been in this line since 2007, we are the professional solenoid actuator manufacturers and we have the experience team and offer you the solution according to your project need. Should you have any question or need more ideas for your project need, pls send us an email through : info@drsolenoid.com

Part 8 : FAQ

8.1  Can solenoid actuators be operated with DC or AC power?

Solenoid actuators can be designed to with with either DC (direct current) or AC (alternating current) power source . DC power solenoid actuators have the advantage of a more stable magnetic field and a more predictable response. AC power solenoid actuators may experience some additional effects such as eddy currents.

 8.2 How much voltage and current does the solenoid actuator require?

The required voltage and current depend on the specific design and application of the solenoid actuator. Electromagnetic actuators are available in a variety of voltage ratings, including the common DC 12 V, DC 24 V, and 110 V or 220 V for AC-powered applications. The current consumption is related to the solenoid coil resistance and the applied voltage, and can range from a few milliamps to several amps, depending on the size and power requirements of the actuator.

8.3 How should the electromagnetic actuator be installed?

The mounting of electromagnetic actuators depends on their specific application. Generally, they should be securely mounted in a position that allows the armature to move freely and without interference. Electrical connections should be made properly according to the manufacturer's instructions to ensure correct polarity and prevent any short circuits or loose connections. In some cases, additional mounting brackets or fixtures may be required to ensure proper alignment and stability.

8.4 What are the common maintenance requirements for electromagnetic actuators?

Regular maintenance may include inspecting the armature and coil for signs of wear or damage, cleaning the actuator to remove any dirt or debris that could affect its operation, and ensuring that the electrical connections are secure and free of corrosion. It is also important to inspect the spring (if any) for any signs of fatigue or weakening. If the electromagnetic actuator is used in a harsh environment or is cycled frequently, it may require more frequent inspection and maintenance.
